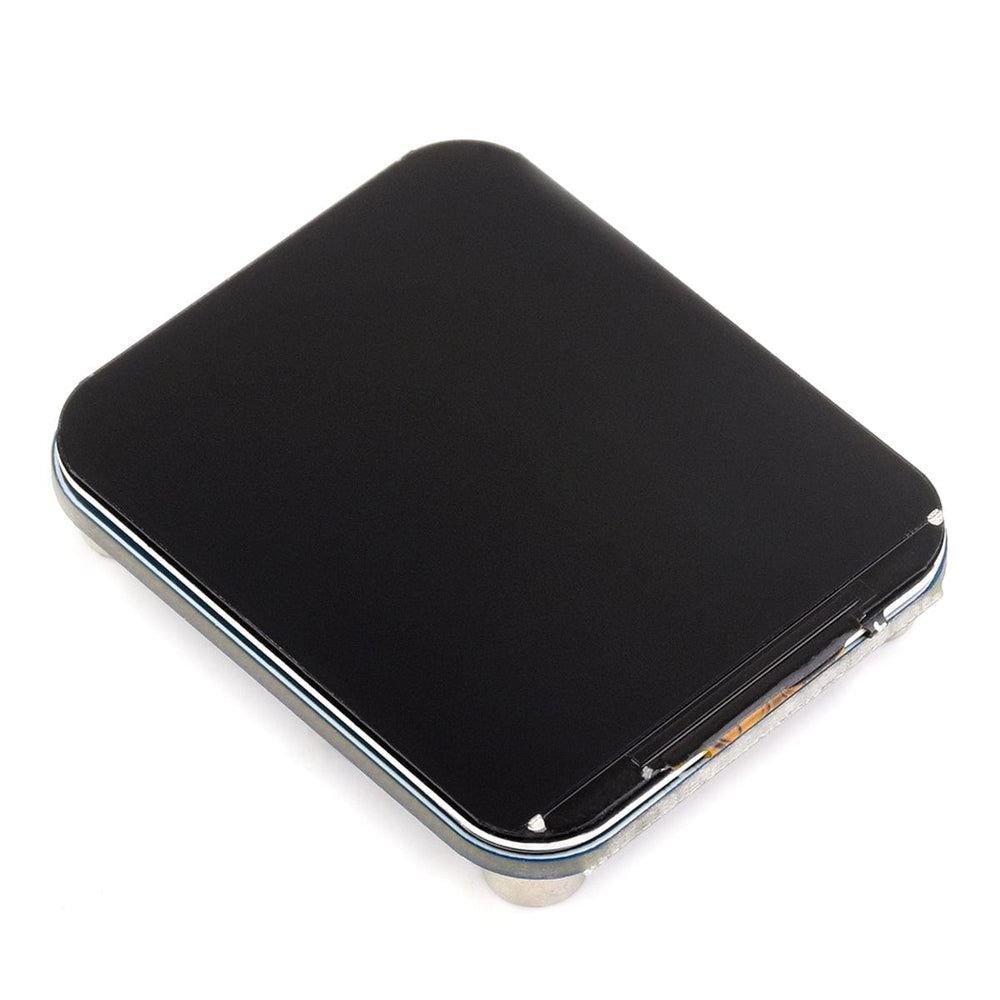

1.83" IPS LCD Display Module (240 x 280)

WaveshareSKU: WAV-26784
Price:
Sale price £9
incl. VAT
excl. VAT
Stock:
Coming Soon
Notify me

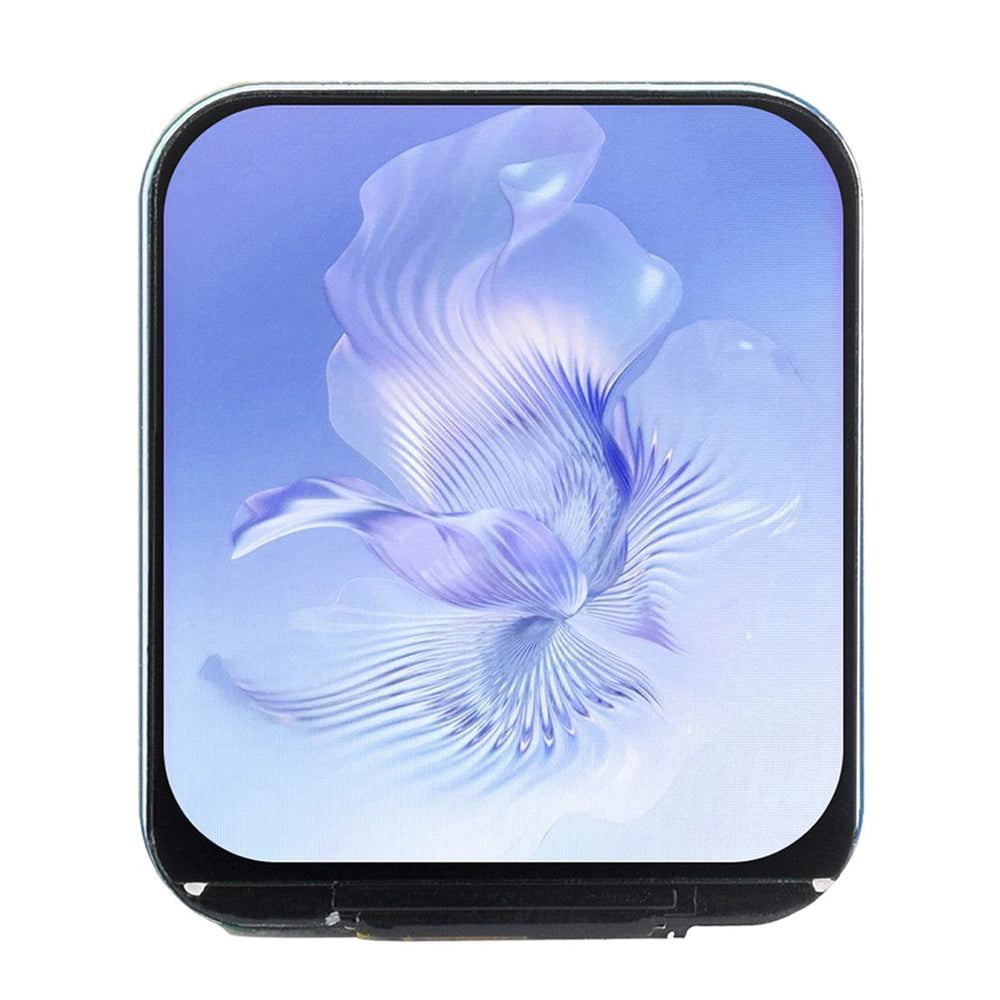

This 1.83" LCD Display has a 240 x 280 resolution with vibrant 65K colours on an IPS LCD screen. The module is powered by an embedded NV3030B driver chip, providing a clear and colourful display.

With an SPI interface, this display module minimises the number of required IO pins, making it ideal for integration with popular controller boards such as Raspberry Pi, Arduino, STM32, and ESP32. To assist with development, the module comes with online resources, including examples for Raspberry Pi, Arduino, STM32, and ESP32, making sure you have the support needed to get started quickly and easily.

Features

  • 240 x 280 resolution, 65K colours, clear and colourful displaying effect
  • SPI interface, minimises required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32
  • Embedded NV3030B Driver Chip
  • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32, etc.)

Connection Example - Raspberry Pi

Specifications

Operating Voltage 3.3V / 5V
Communication Interface 4-wire SPI
Display Panel IPS
Driver NV3030B
Resolution 240 x 280 pixels

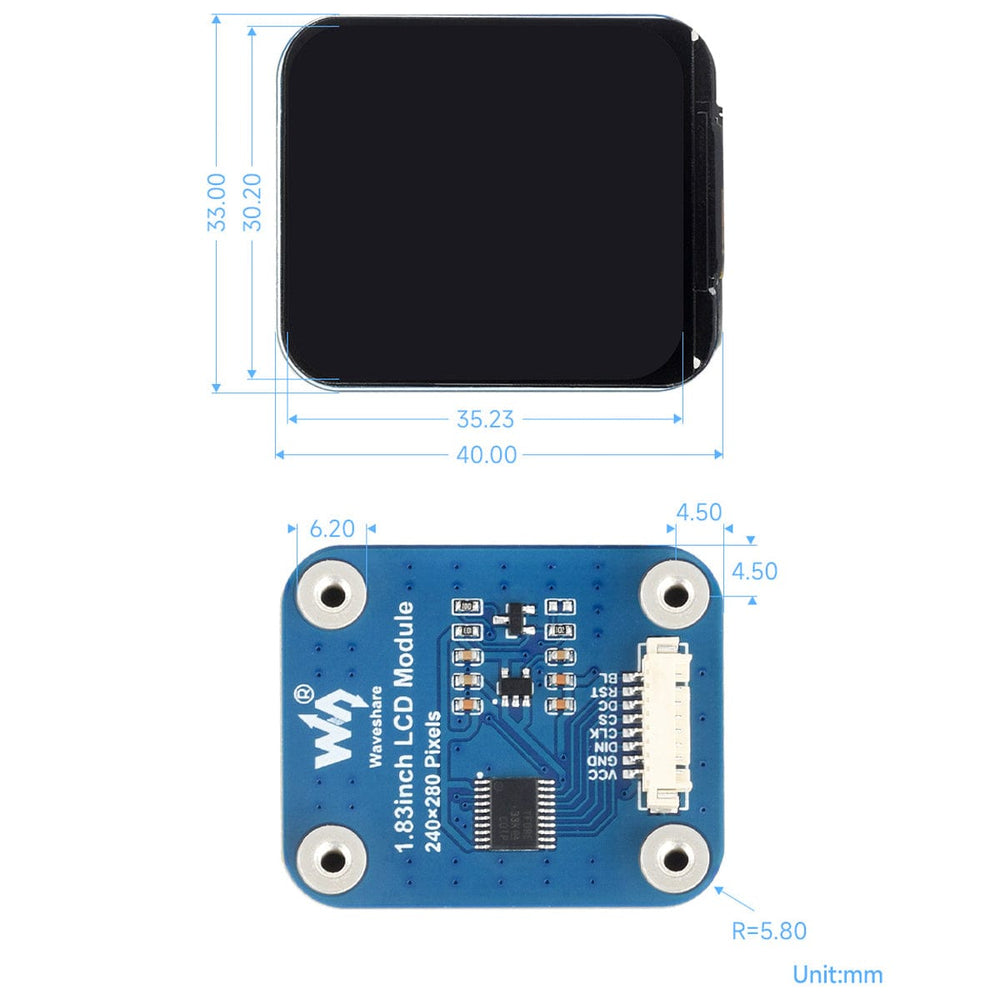

Display Size 30.20 x 35.23mm
Pixel Size 0.126 x 0.126mm
Module Size 33.00 x 40.00mm

Resources

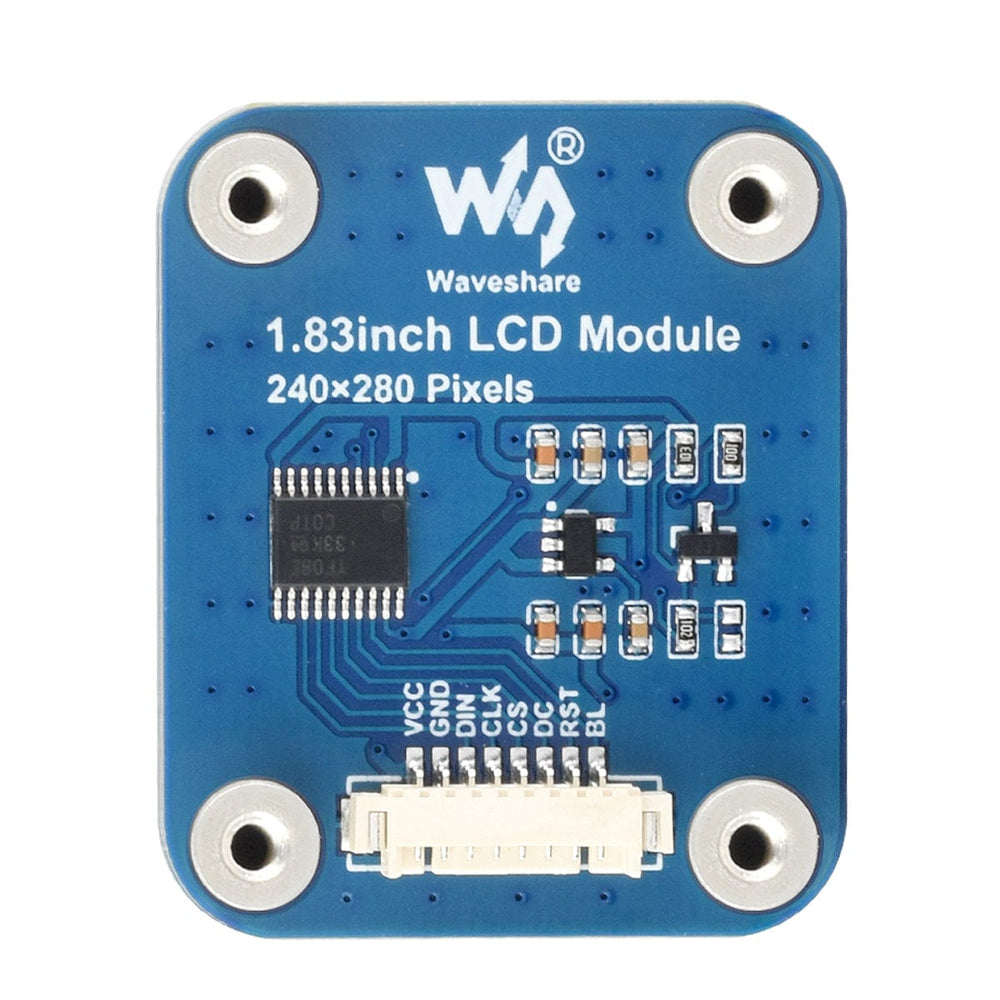

Pinout

VCC Power (3.3V / 5V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active
BL Backlight

Package Contents

  • 1x 1.83" LCD Module

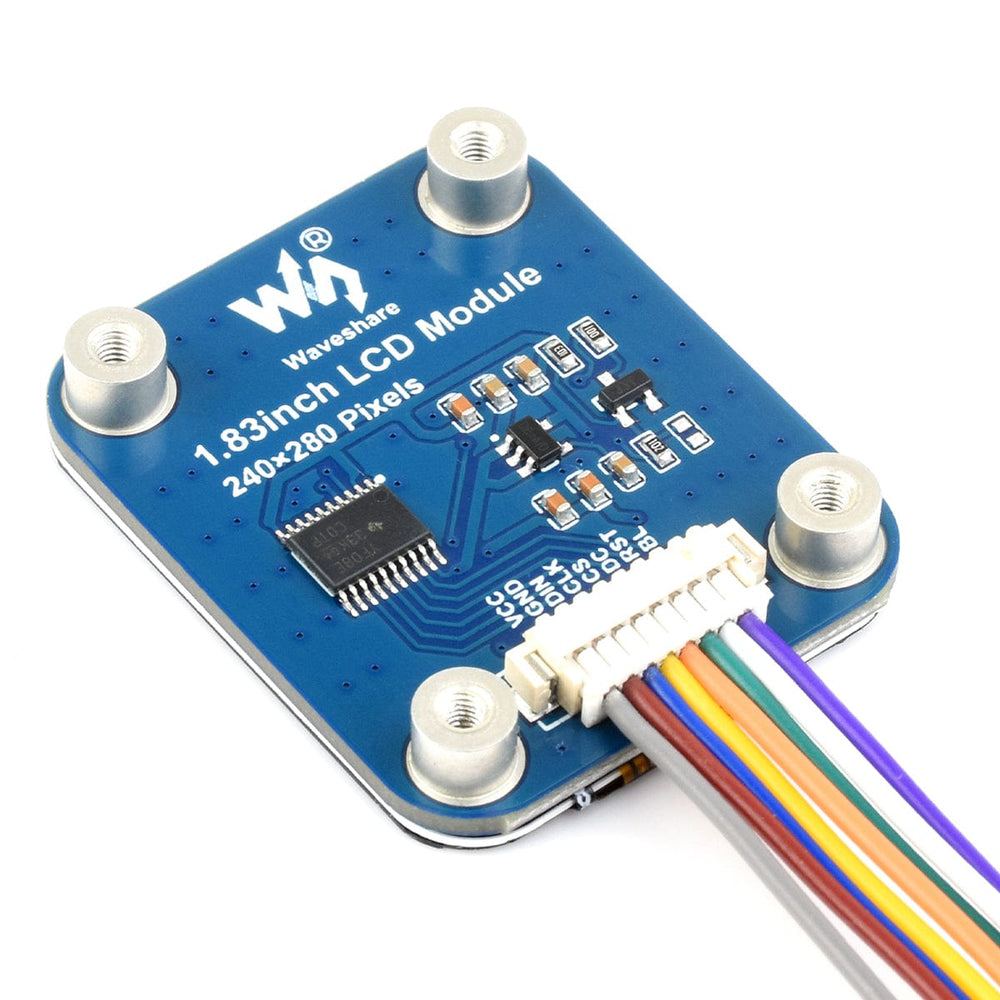

  • 1x MX1.25 8-pin cable
