1.3" IPS LCD Display Module for Raspberry Pi Pico (240x240)

WaveshareSKU: WAV-19650
Price:
Sale price £9.70
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi Pico W
Sale priceFrom £5.80 incl. VAT excl. VAT
The Pi HutUSB-A to Micro-USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT
PimoroniPico Omnibus (Dual Expander)
Sale price £8.40 incl. VAT excl. VAT

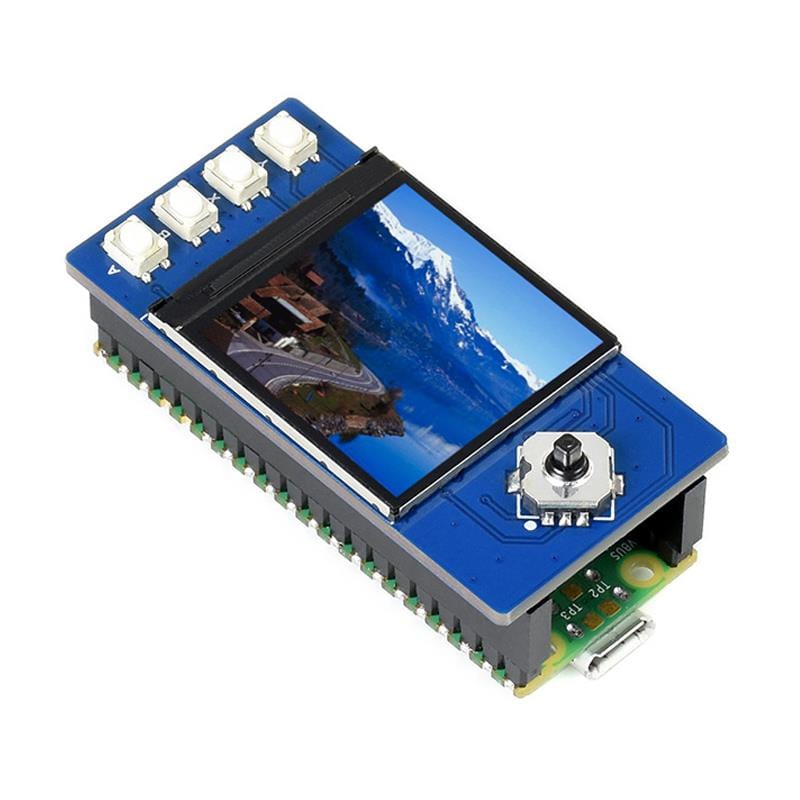

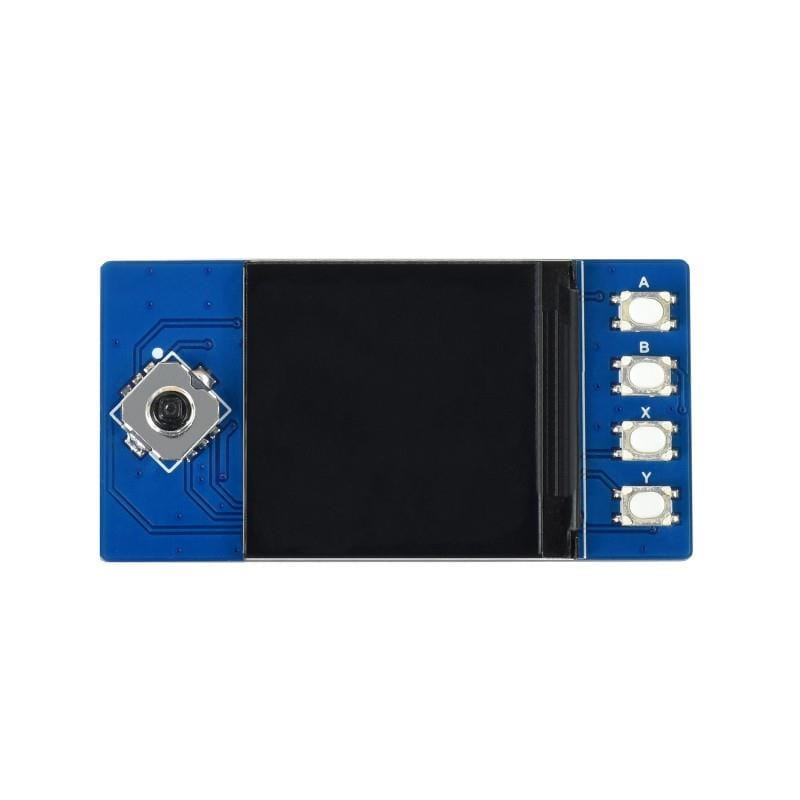

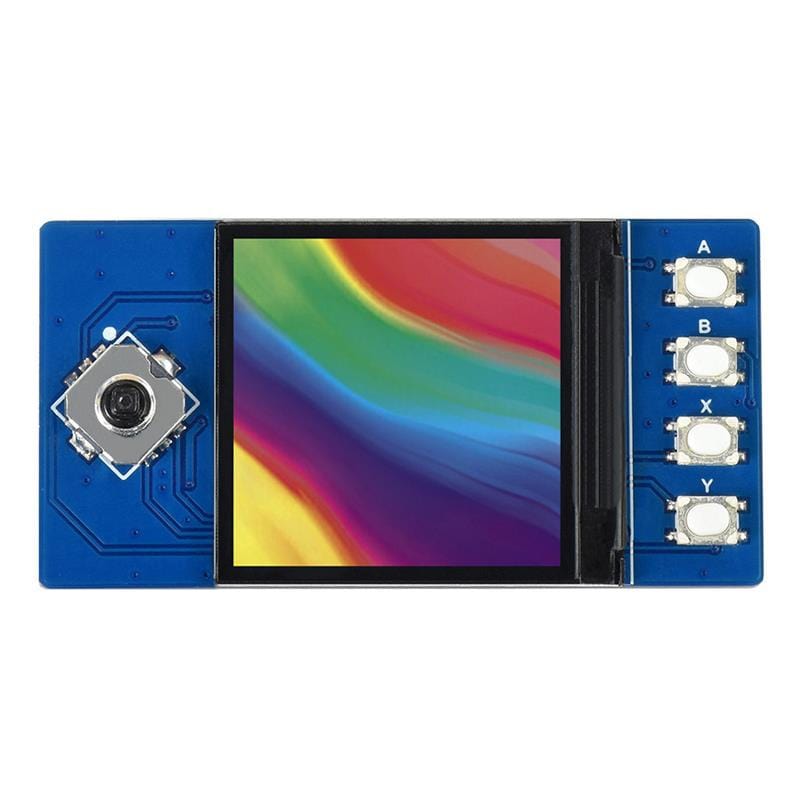

How neat is this little display module for the Raspberry Pi Pico?! The clever folks at Waveshare have managed to cram a 1.3" IPS LCD, four buttons and a mini joystick all on to a Raspberry Pi Pico-sized HAT!

Great for all sorts of different projects or even just as something to learn to code with, the display offers bright 65K RGB colours and is controlled via SPI - keeping more of your precious GPIO pins free for the rest of your project.

The online resources provide code examples in C/C++ to help you get started - just slot your Pico into the pre-soldered female hears and you're ready to code!

We also have our own set of tutorials teaching you how to use these displays with MicroPython:

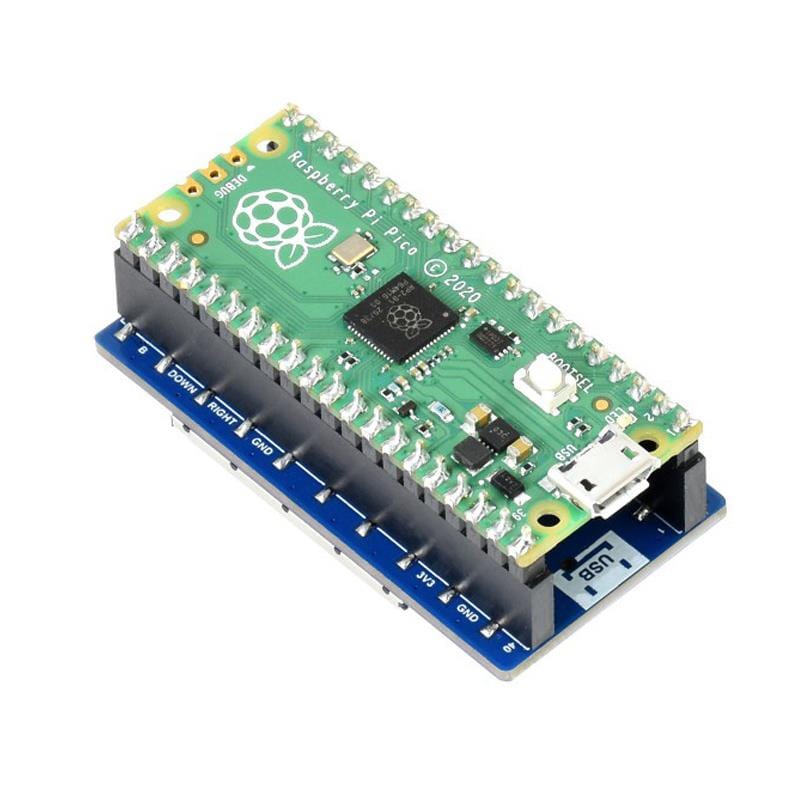

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

  • Compatible with Raspberry Pi Pico
  • 1.3" IPS LCD
  • 240x240 resolution
  • 65K RGB colours
  • 4x user-programmable buttons
  • 1x Joystick
  • Communicates via SPI
  • Online development resources and manual (Raspberry Pi Pico C/C++ examples)

Specifications

  • Operating Voltage: 2.6-5.5V
  • Communication Interface: 4-wire SPI
  • Display Panel: IPS
  • Driver: ST7789
  • Resolution: 240x240 Pixels
  • Display Size: 23.40mm x 23.40mm
  • Pixel Size: 0.0975mm x 0.0975mm

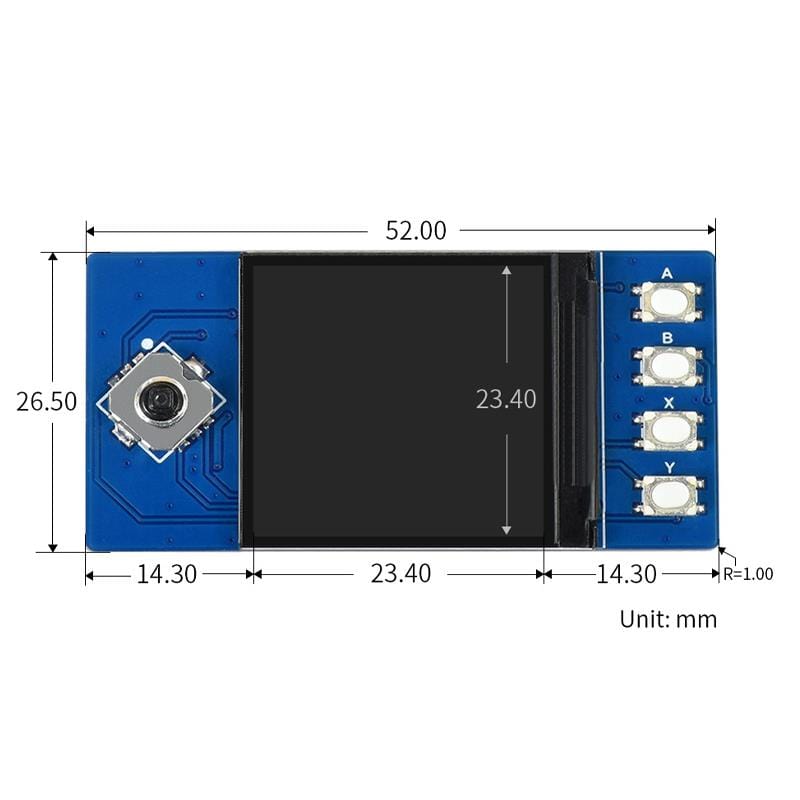

  • Dimensions: 52mm x 26.5mm

Resources

Package Contents

  • 1x Pico LCD Display Module

Raspberry Pi Pico not included

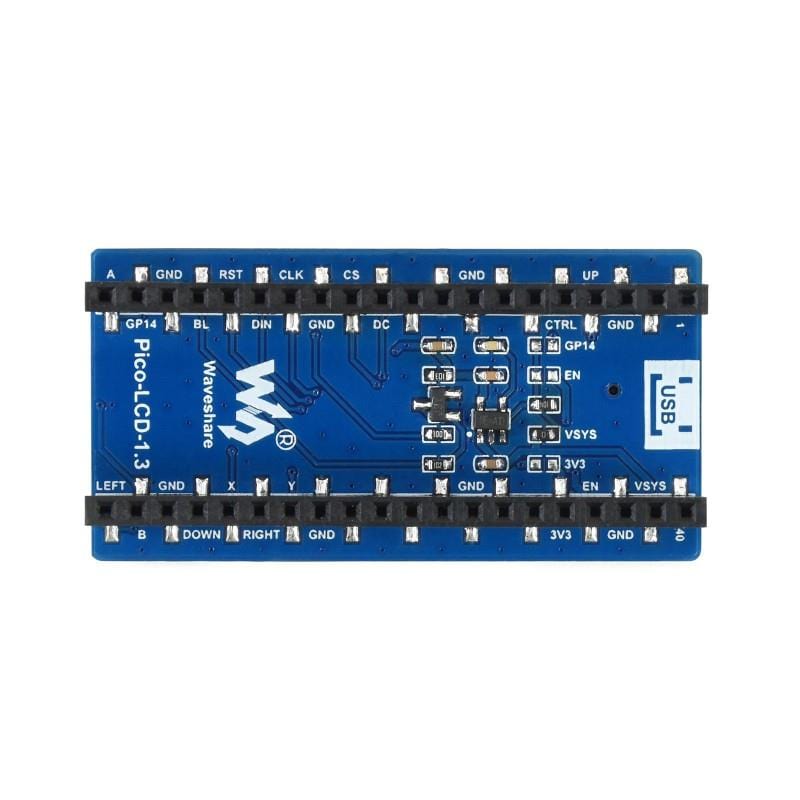

Pinout

pico display module pinout
