0.96" OLED Display Module (128x64)

This is a simple, affordable OLED display module to add to your projects using your favourite microcontroller.

This 0.96" OLED has a 128x64 resolution and is driven by the popular SSD1306 using I2C for communication with your microcontroller - meaning it will work for lots of code libraries for various boards and programming languages. When showing data, the text is white.

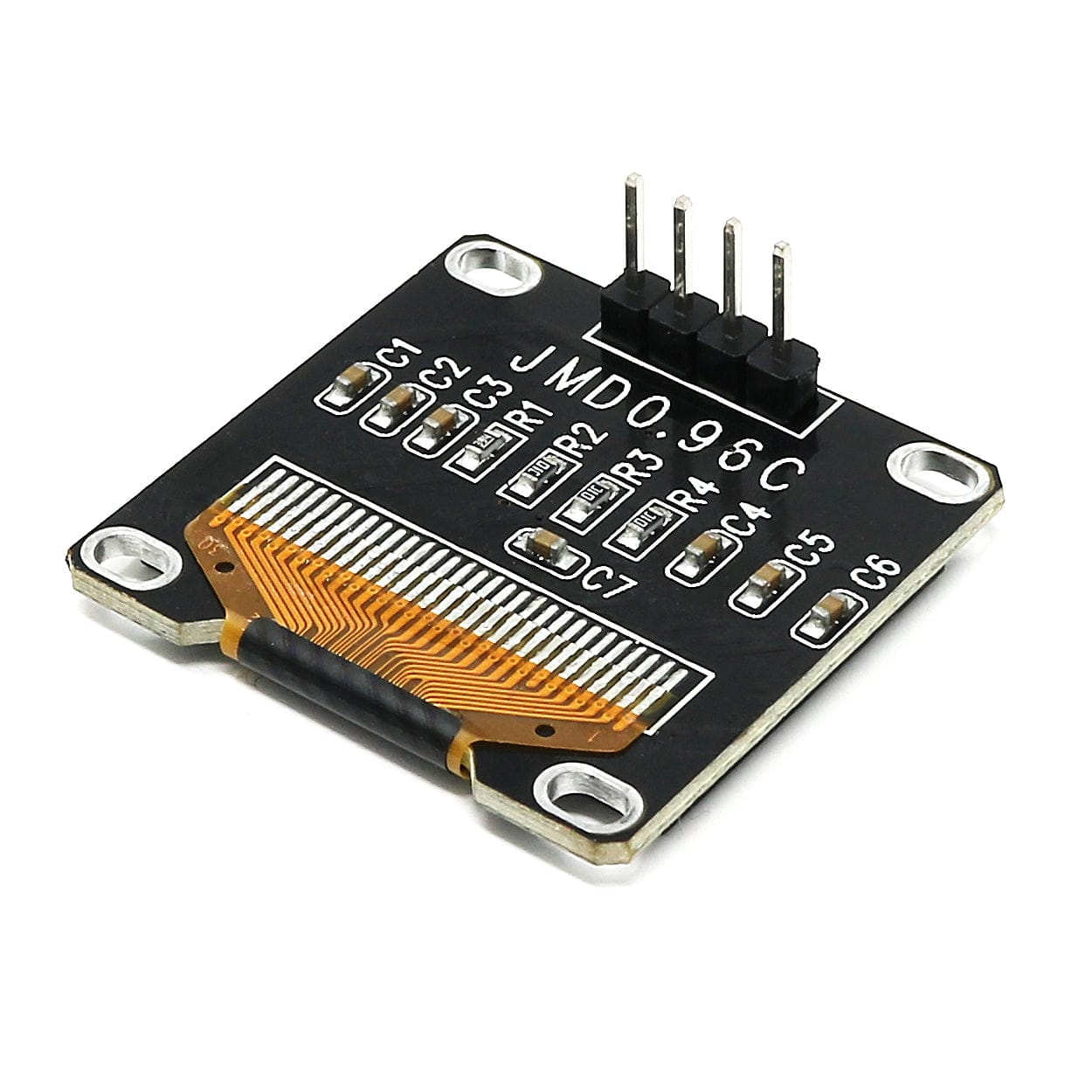

The pins are pre-soldered and can be popped straight into a breadboard, ready to hook up with jumper wires.

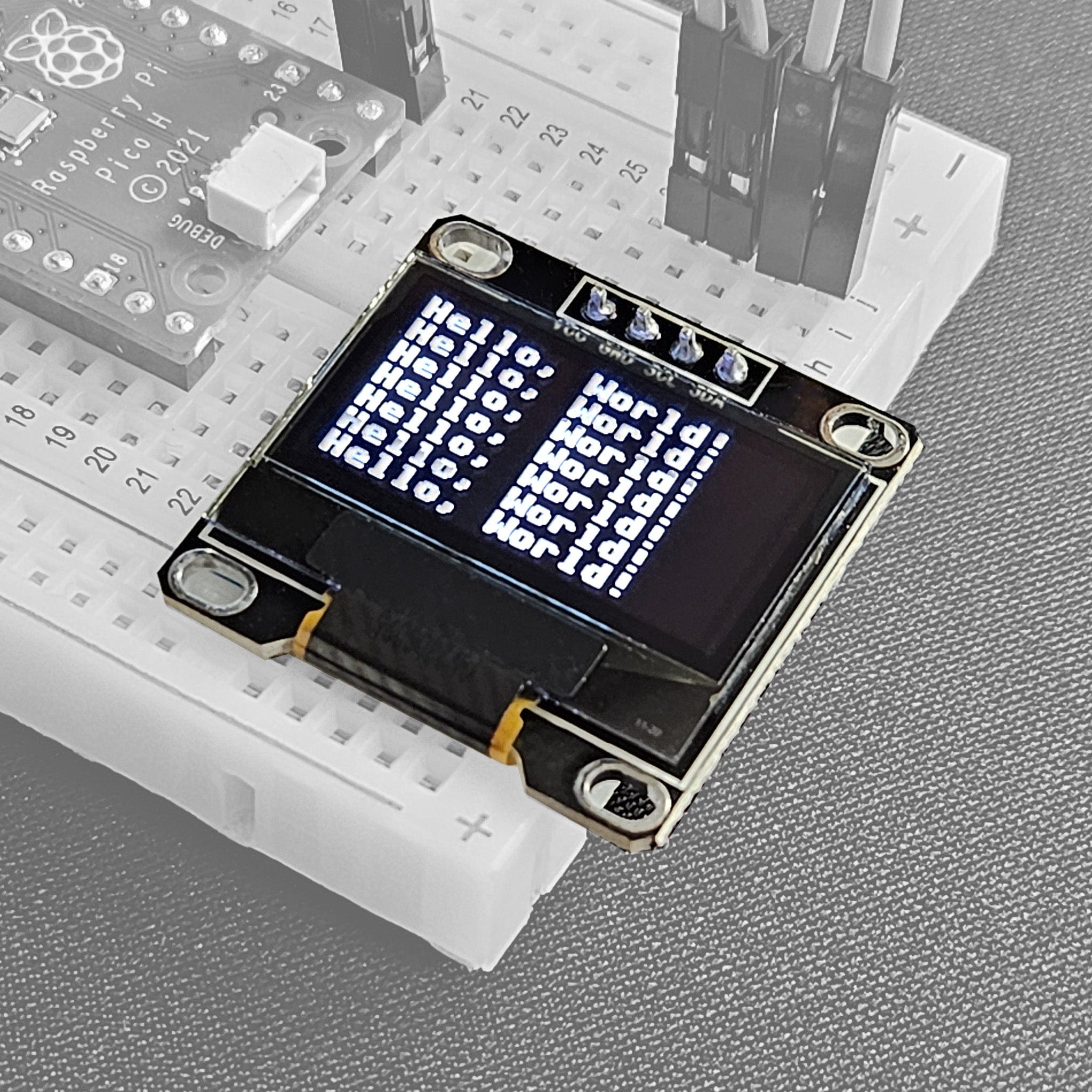

We use them with the Raspberry Pi Pico all the time - in fact, we included a similar display in our Maker Advent Calendar, so you can re-use a lot of the examples from that day's article - just change the display setup line to the right resolution, like this: display = SSD1306_I2C(128, 64, i2c).

We also stock a similar 1.3" OLED display.

Features

• 0.96" OLED display
• 128x64 resolution
• SSD1306 driver - lots of compatible code libraries
• I2C communication
• Breadboard-compatible
• White text

Pinout

The OLED display has four pins. Connect them as follows:

Care: Not all OLED displays use the same pin order - check before following the wiring from a tutorial!

Resources

• Tony's blog post (coming soon!)
• Using an SSD1315 OLED with the Raspberry Pi Pico - libraries and wiring are the same
• Maker Advent Calendar OLED article - change the display setup line to: display = SSD1306_I2C(128, 64, i2c)

Package Contents

• 1x 0.96" OLED Display (pins pre-soldered)
