0.96" LCD Display Module for Raspberry Pi Pico (160×80)

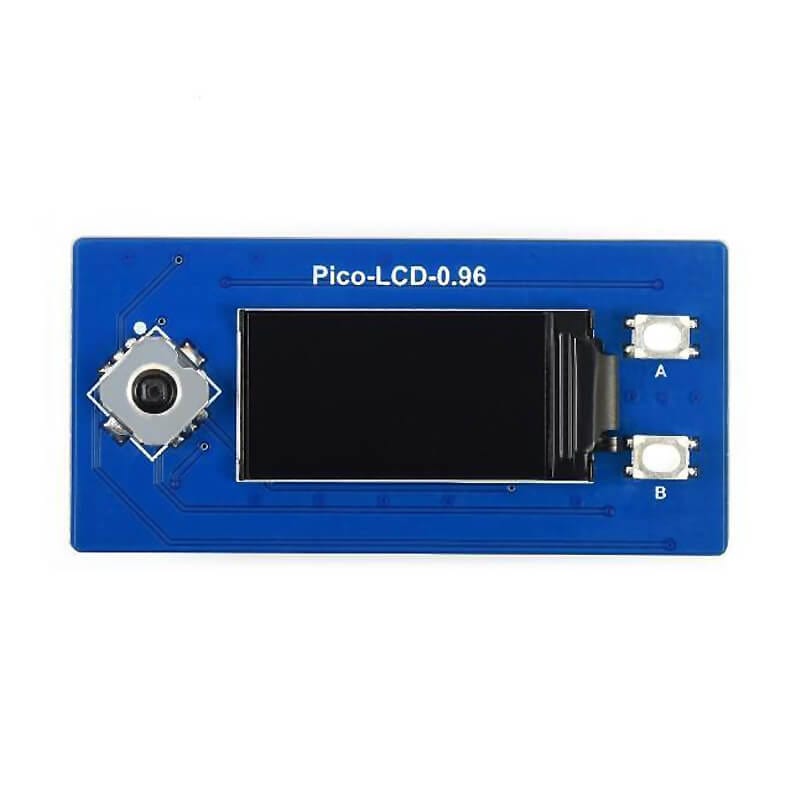

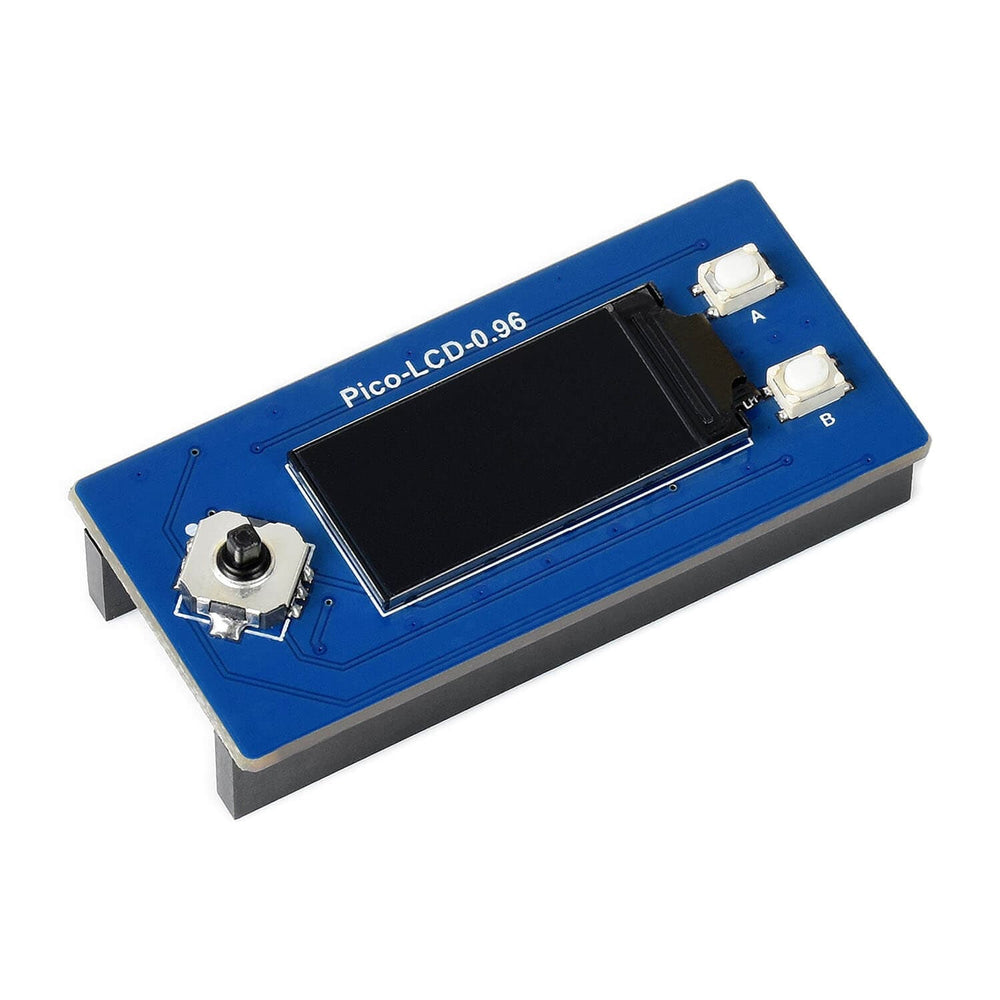

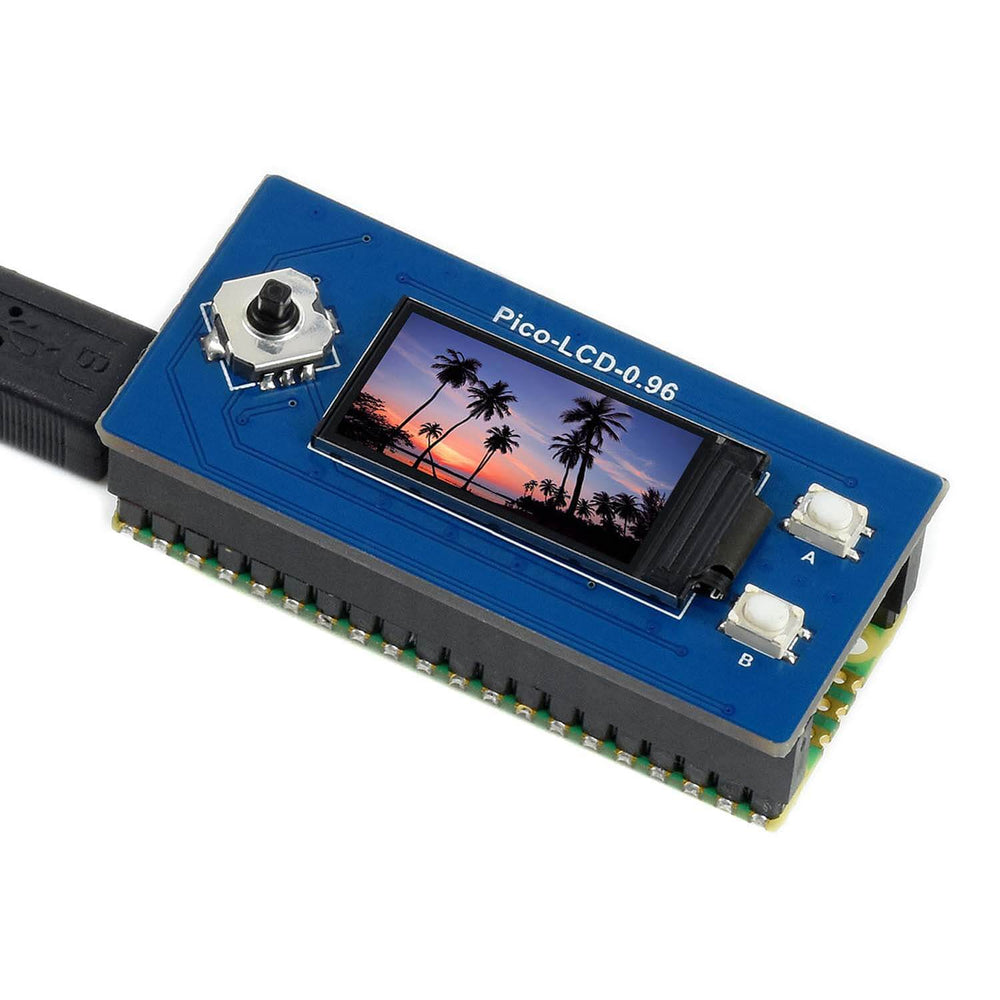

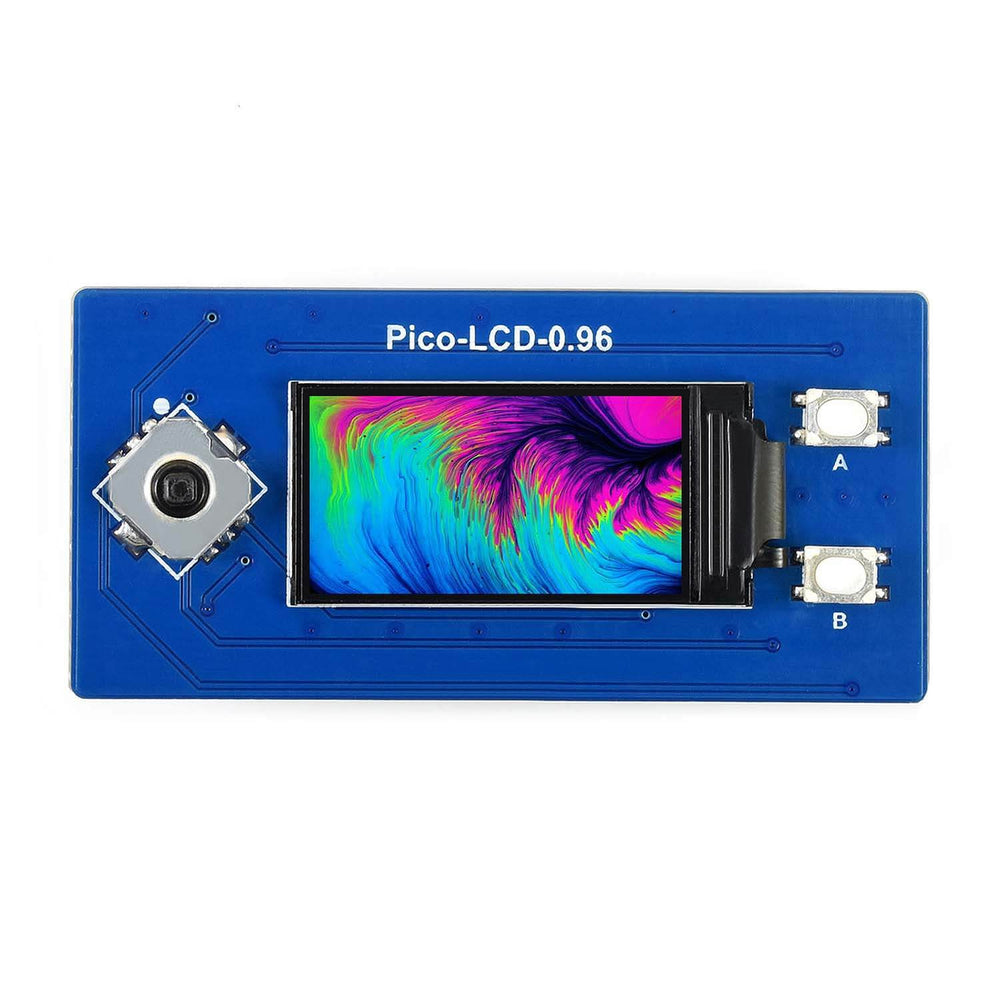

This may just be the coolest little IPS LCD for the Raspberry Pi Pico in existence! Measuring in at just 0.96-inches, and featuring two tactile buttons and a mini joystick makes this the perfect micro-display for your next Raspberry Pi Pico project!

Great for all sorts of different projects or even just as something to learn to code with, the display offers bright 65K RGB colours and is controlled via SPI - keeping more of your precious GPIO pins free for the rest of your project.

The online resources provide code examples to help you get started - just slot your Pico into the pre-soldered female hears and you're ready to code!

Online development resources are available, which include wiring guidance and example code, with additional information being found on the Waveshare Wiki.

We also have our own tutorial teaching you how to control colour, display text & graphics and build a simple colour mixing project with a few extra components!

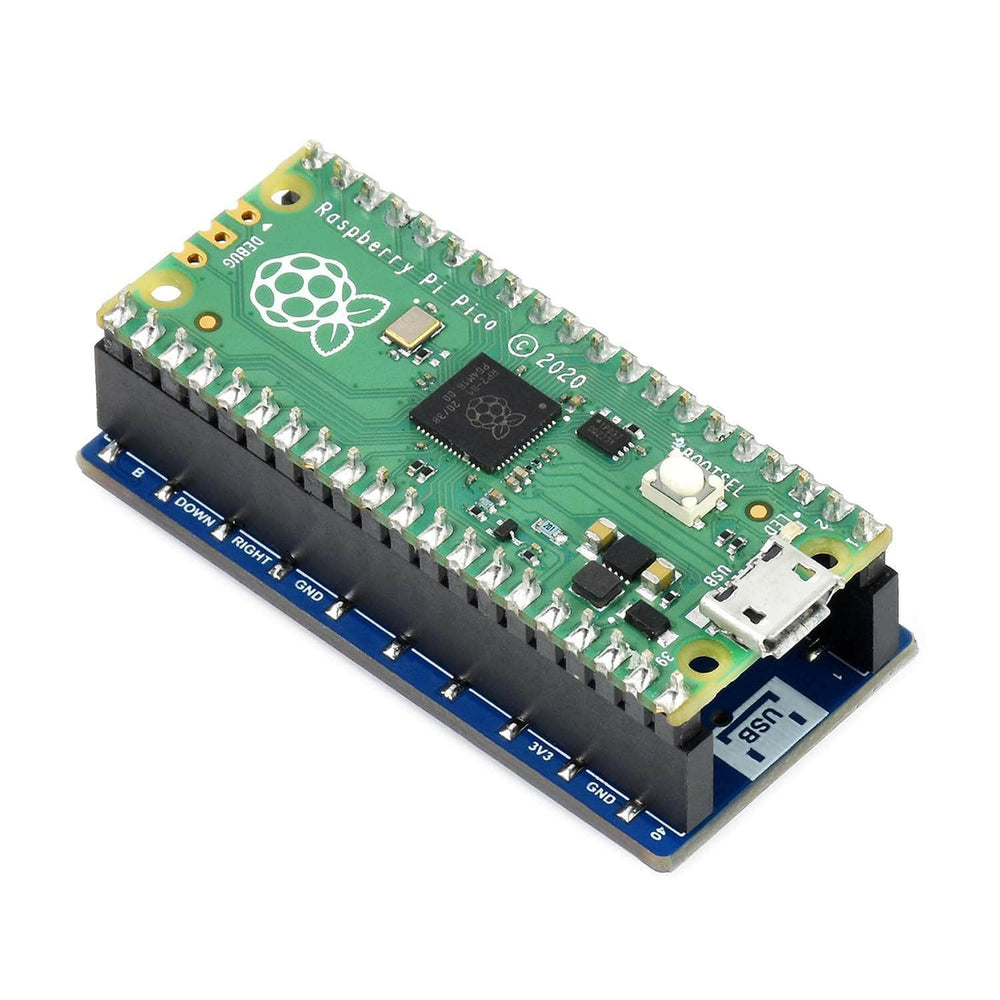

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

• Compatible with Raspberry Pi Pico
• 60×80 resolution
• IPS screen
• 65K RGB colours
• SPI interface requires minimal IO pins
• Comes with online development resources and manual

Package Contents

• 1x Pico LCD 0.96" Module

Other Specifications

• Operating Voltage: 2.6 ~ 5.5V
• Communication Interface: SPI
• Display Panel: IPS
• Display Driver: ST7735S
• Resolution: 160x80 Pixels
• Display Size: 21.7 x 10.80mm
• Pixel Size: 0.1356 x 0.135mm
• Dimensions: 52.00 x 25.00mm

Resources

• Waveshare Wiki

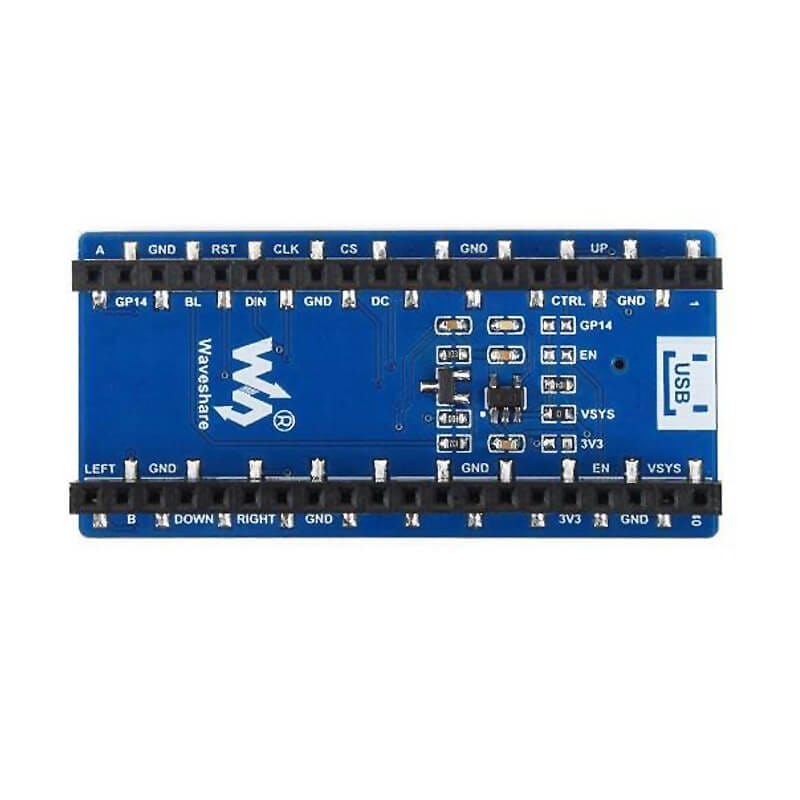

Pinout Definition

Dimensions
