0.96" 160x80 Colour SPI TFT Display

DFRobotSKU: DFR0847
Price:
Sale price £8.50
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

(77 Reviews)
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
Sale price £6 incl. VAT excl. VAT
(21 Reviews)
DFRobotFireBeetle 2 ESP32-E IoT Microcontroller
Sale priceFrom £8.50 incl. VAT excl. VAT
(33 Reviews)
ArduinoArduino Uno Rev3
Sale price £19.90 incl. VAT excl. VAT

Description

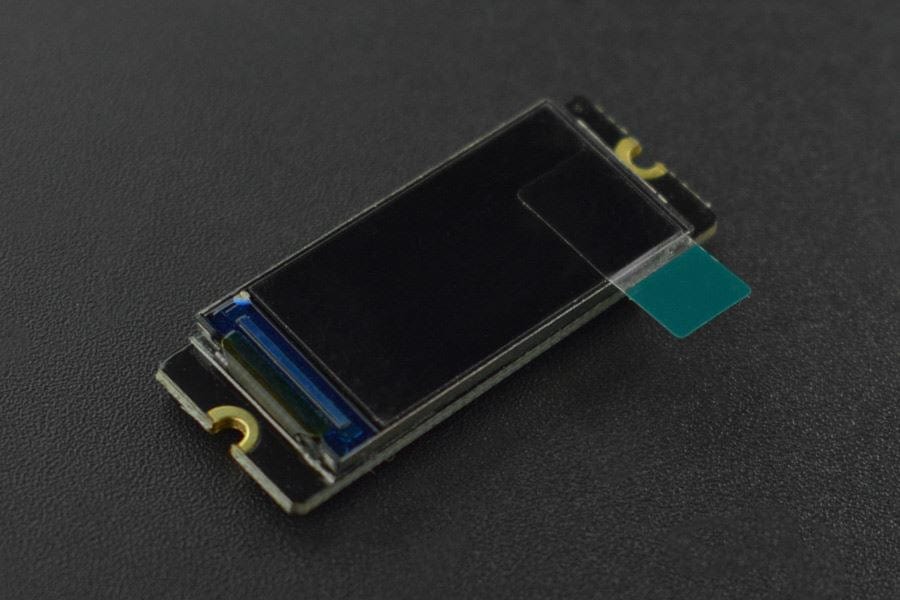

This 0.96” TFT screen employs an edge-to-edge design and offers a glorious 160×80 HD 16-bit colour display, suitable for wearable projects, mobile devices and smart home projects.

It supports the DFRobot GDI display interface and can be conveniently connected to your GDI main-controller with FPC - plug n' play and easy to wire!

Compatible with 3.3V to 5V, the display consumes less than 15mA in full-screen. It works well with controllers like Arduino UNO, ESP32, ESP8266, FireBeetle M0 and more.

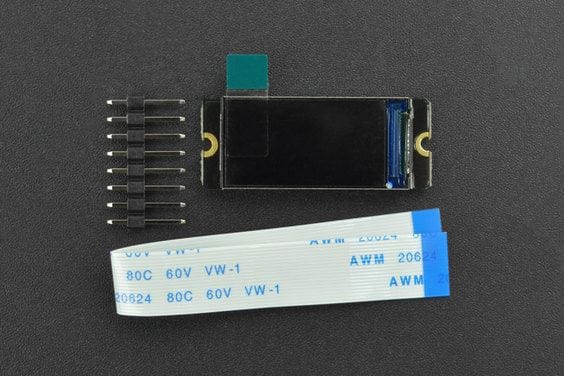

The display comes complete with a pin header and FPC cable.

Features

  • TFT display
  • GDI interface, no soldering required
  • Narrower PCB, easy to integrate into smaller projects

    Specification

    • Operating Voltage: 3.3V-5V
    • IPS Viewing Angles: 60/ 60/ 60/ 60
    • Color Depth: 16-bit (RGB565)
    • Pixels: 160x80
    • Interface: SPI
    • Driver Chip: ST7735
    • Luminance: 250 (Typ) cd/m2
    • Power Consumption of Full Screen: 15mA
    • Operating Temperature: -30℃~+70℃
    • Display Area: 10.8 x 21.7 mm/ 0.43 x 0.85"

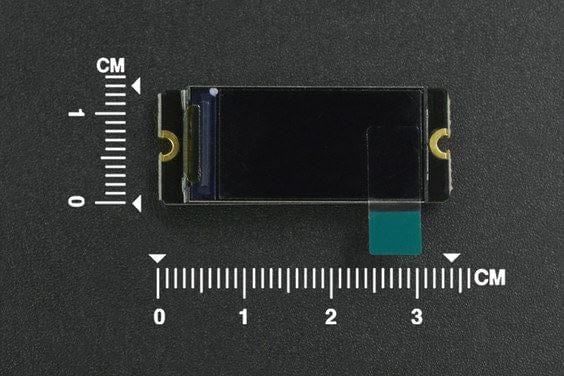

    • Dimension: 13.5 x 34 mm/ 0.53 x 1.34"

    Documents

    Shipping List

    • 1x 0.96"160x80 Color SPI TFT Display
    • 1x 2.54 Black Single Row Connector-10P
    • 1x FPC0.5-18-pin Reverse Direction 10cm
