This is an LTE Cat-1 HAT, enabling LTE Cat-1, 3G and 2G communication as well as GNSS positioning with your Raspberry Pi.

The board is based on the SIMCom SIM7600E module. With your 1.8V/3V SIM card fitted to the underside of the HAT, the board supports dial-up, telephone calls, SMS, TCP, UDP, DTMF, HTTP and FTP. The GNSS feature supports GPS, BeiDou, Glonass and LBS base station positioning.

There is an onboard USB interface to test AT commands and capture GPS data and more, alongside an onboard CP2102 USB to UART converter for serial debugging. Breakout pins for the UART allow you to use this board with other boards such as the Arduino UNO.

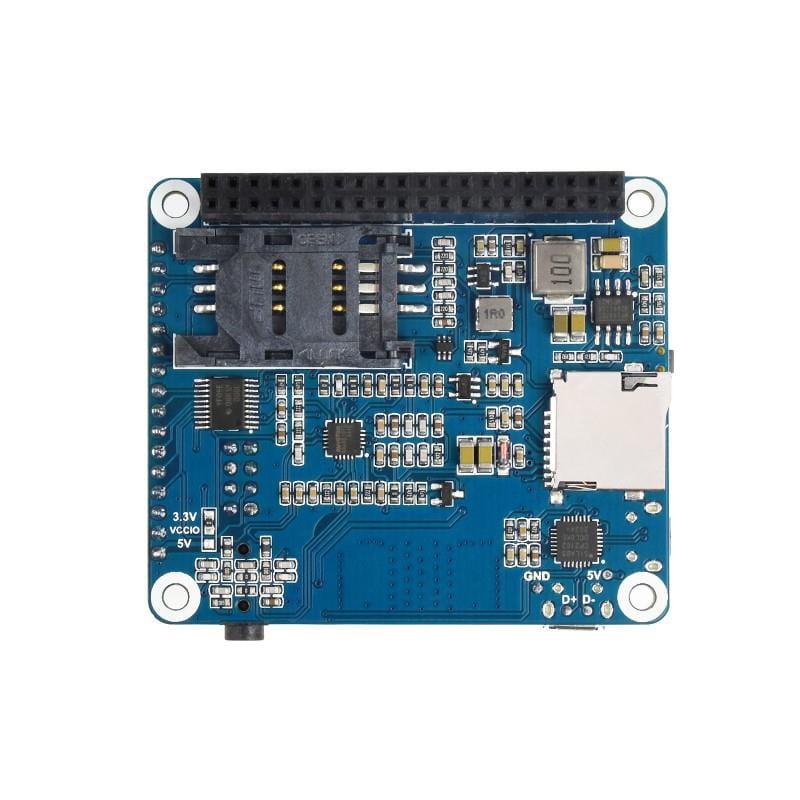

A MicroSD card slot on the underside of the board can be used to store data from your projects such as pictures or messages. The onboard audio jack and audio decoder can be used for making telephone calls.

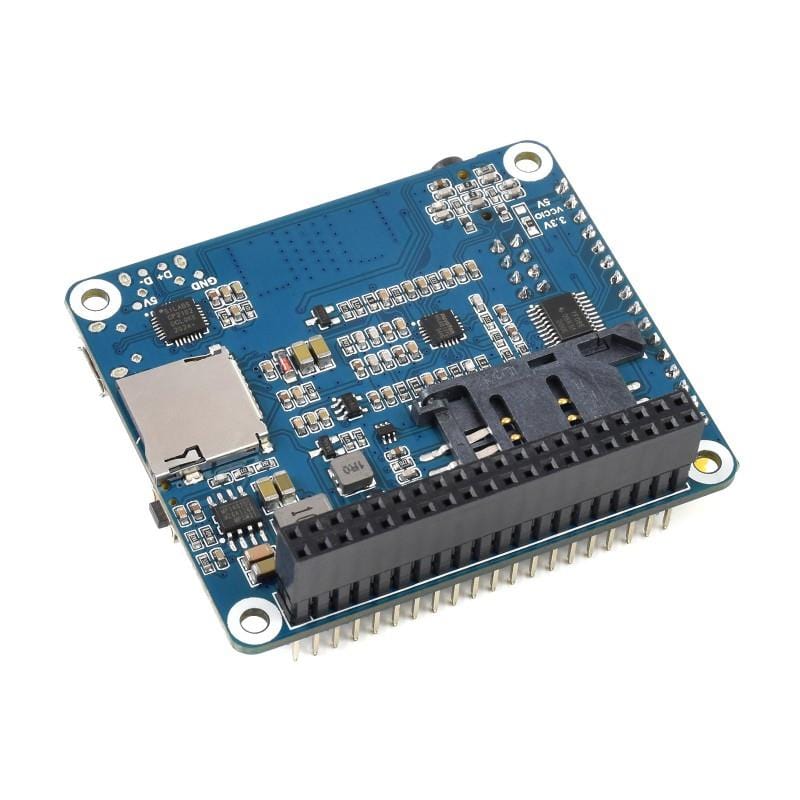

The board will work with any 40-pin Raspberry Pi and includes male header pins for attaching other devices once the HAT is fitted. Please read the product Wiki for usage instructions.

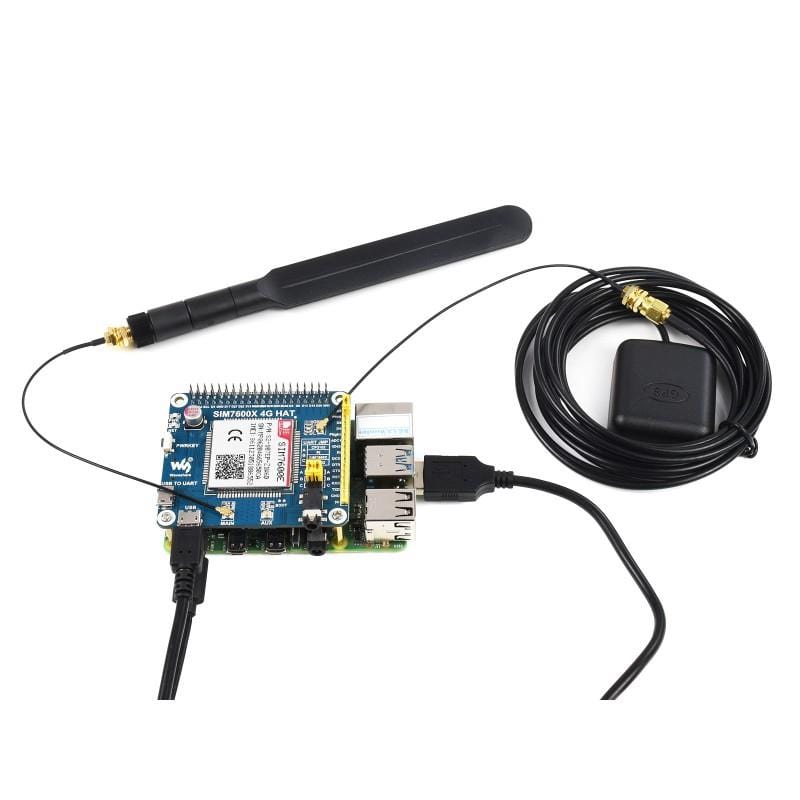

The board comes with a full set of accessories - an LTE antenna, GPS external antenna, two USB cables and standoff fixings!

Dial-Up On Windows/Linux

LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink) *

3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

sim7600e raspberry pi hat windows linux

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition etc

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

sim7600e raspberry pi hat cloud communication

GNSS Positioning

Supports GPS, BeiDou, Glonass, LBS Base Station Positioning

sim7600e raspberry pi hat gnss positioning

Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

sim7600e raspberry pi hat telephone calls sms

Features

  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP and FTP
  • Supports GPS, BeiDou, Glonass and LBS base station positioning
  • Onboard USB interface to test AT Commands and obtain GPS positioning data
  • Onboard CP2102 USB to UART converter for serial debugging
  • Breakout UART control pins, to connect with host boards such as the Arduino Uno
  • SIM card slot - supports 1.8V/3V SIM cards (not included)
  • Onboard audio jack and audio decoder for making telephone calls
  • 2x LED indicators - easy to monitor the working status
  • Onboard voltage translator - operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

Specifications

LTE CAT-1/3G/2G
LTE Cat-1 LTE-TDD: B38 / B40 / B41
LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20
3G UMTS / HSPA +: B1 / B5 / B8
2G GSM / GPRS / EDGE: 900 / 1800 MHz
GNSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / -159dBm (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction
OTHER
Power supply 5V
Operating voltage 5V / 3.3V (configured via jumper)
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C

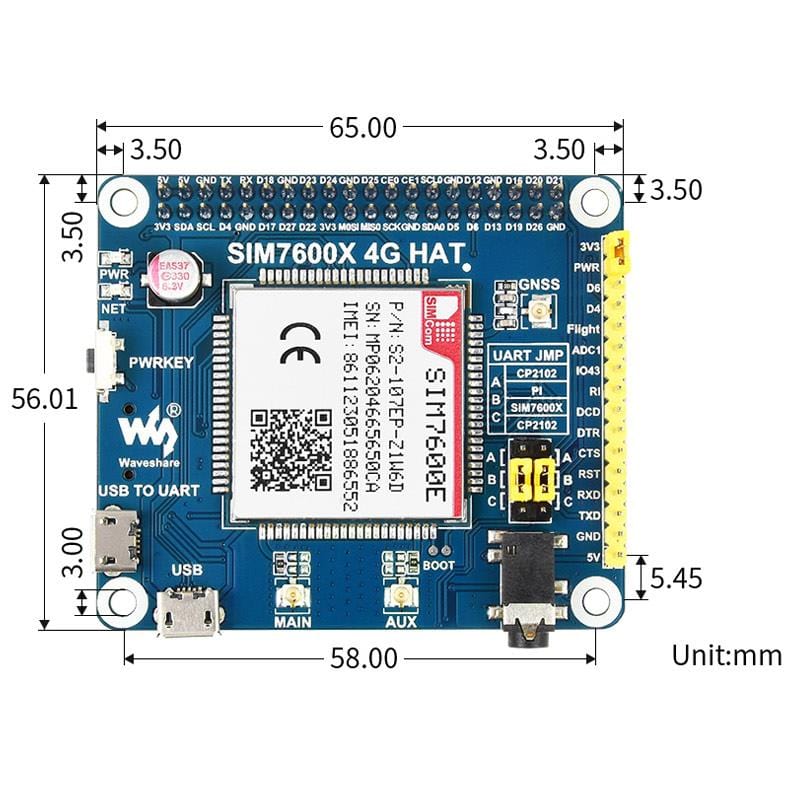

Dimensions 56.21mm × 65.15mm

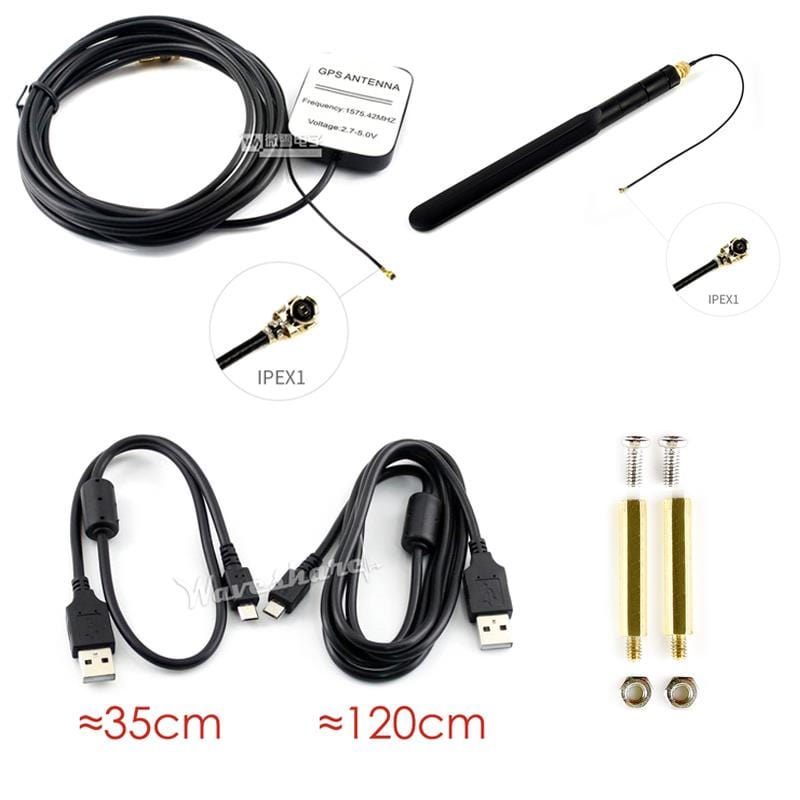

Package Contents

  • 1x SIM7600E LTE Cat-1 HAT
  • 1x LTE Antenna
  • 1x GPS External Antenna (B)
  • 2x USB-A to Micro-B cable
  • 1x RPi screws pack (2pcs)

Raspberry Pi, Sim card and MicroSD card not included

Resources

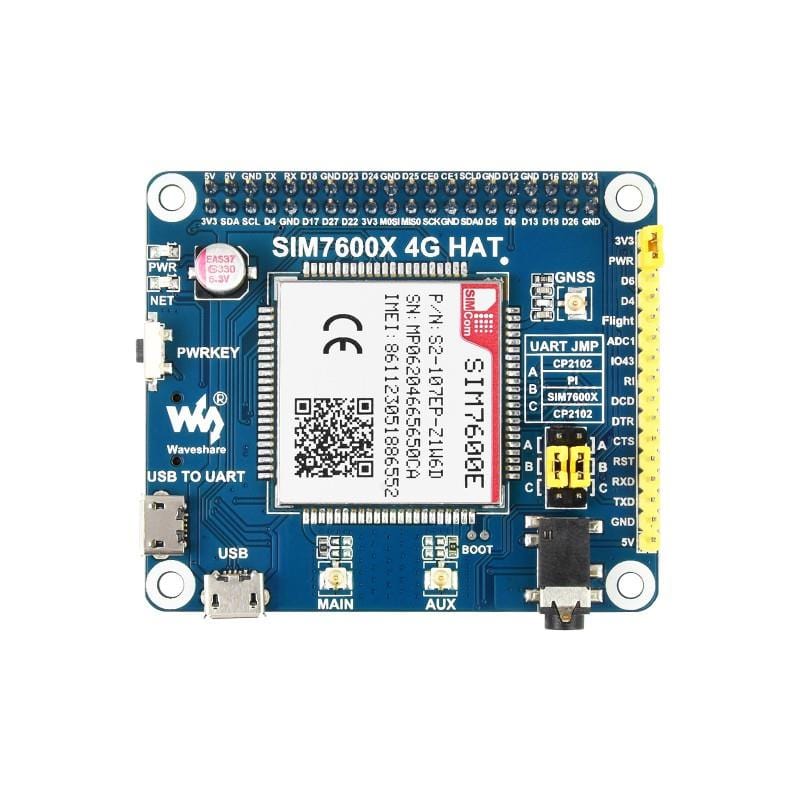

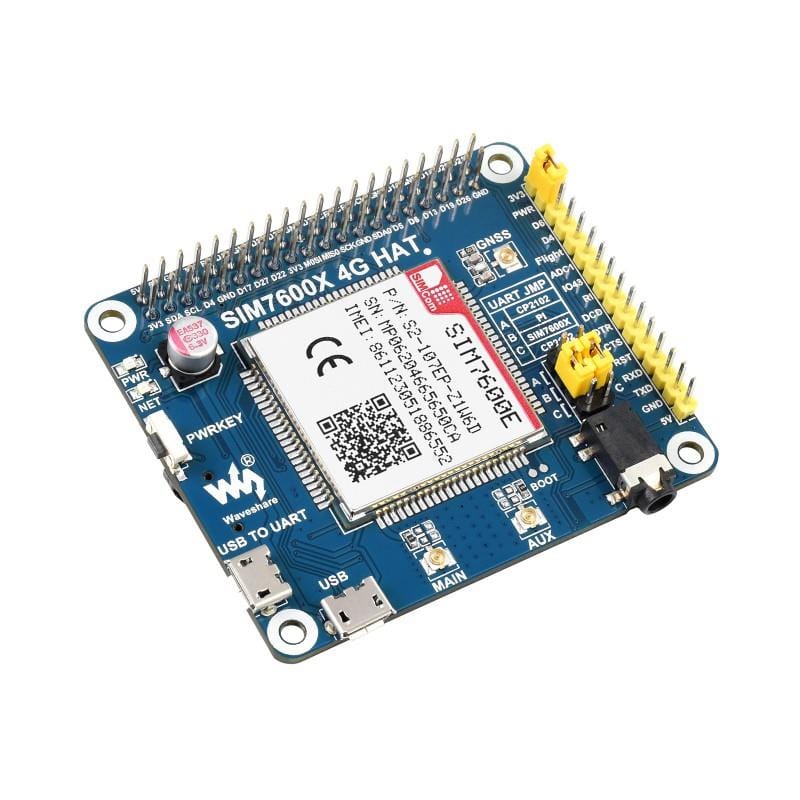

What's Onboard?

sim7600e raspberry pi hat onboard features

1) SIM7600E
2) CP2102 USB to UART converter
3) NAU8810 audio decoder
4) TXS0108EPWR voltage translator
- Translates 3.3V/5V into 1.8V
5) MP2128DT power chip
6) MP1482 power chip
7) Raspberry Pi GPIO header
8) SIM7600 control interface
- For connecting with host boards like Arduino/STM32
9) SIM card slot
- Supports 1.8V/3V SIM card
10) TF card slot
- For storing data like files, messages, etc.
11) 3.5mm earphone/mic jack
- For audio actions like making telephone call
12) USB interface
- For testing AT Commands, getting GPS positioning data, etc.
13) USB TO UART interface
- For serial debugging, or login to Raspberry Pi
14) MAIN antenna connector
15) AUX antenna connector
16) GNSS antenna connector
17) Module power switch
18) Network status indicator
19) Power indicator
20) Operating voltage selection jumper
- Configured via 0Ω resistor jumper
- VCCIO - 3.3V: set operating voltage as 3.3V
- VCCIO - 5V: set operating voltage as 5V
21) UART selection jumper
- A: access Raspberry Pi via USB to UART
- B: control the SIM7600 by Raspberry Pi
- C: control the SIM7600 via USB to UART
22) PWR configuration jumper
- PWR - 3V3: auto startup on power-up (default)
- PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
Flight mode configuration jumper
- NC by default, no flight mode control pin
- Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
23) USB connector solder pads
24) BOOT forced programming solder pads

Pinout

sim7600e raspberry pi hat pinout
