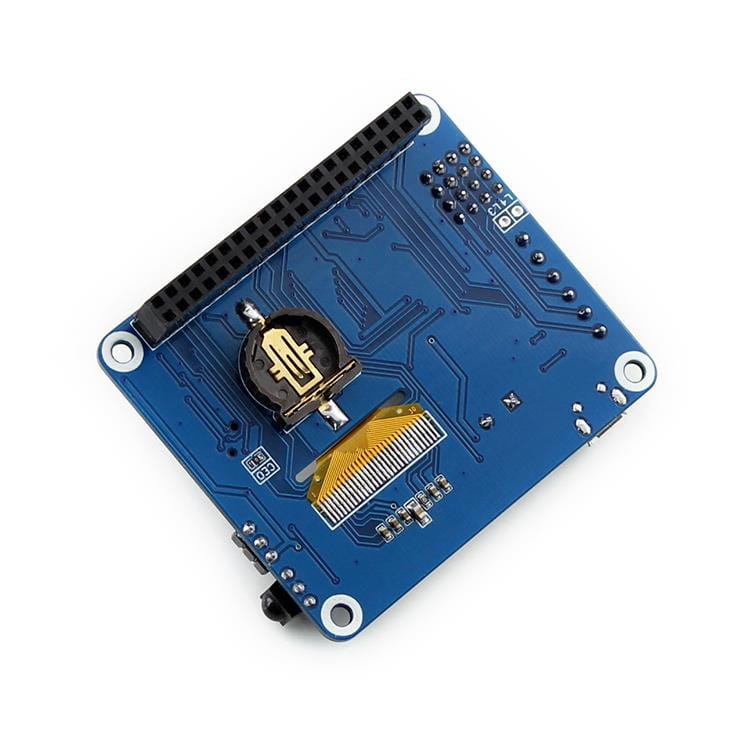

Pioneer600 Raspberry Pi Expansion Board

WaveshareSKU: WAV-11179
Price:
Sale price £37.80
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Compatible with:

Awesome Extras

WaveshareDHT11 Temperature-Humidity Sensor
Sale price £4.30 incl. VAT excl. VAT
WaveshareSoil Moisture Sensor
Sale price £3.20 incl. VAT excl. VAT
WaveshareLiquid Level Sensor
Sale price £3.20 incl. VAT excl. VAT

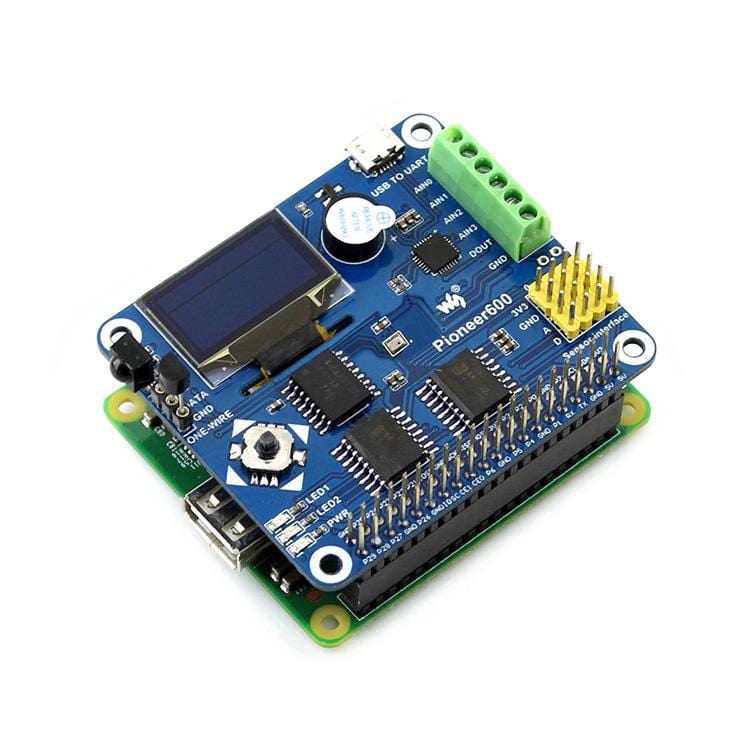

The Pioneer600 is an all-in-one multi-function expansion board for the Raspberry Pi (compatible with all 40-pin GPIO models).

The board packs a huge list of features making it the ultimate 'Swiss Army Knife' for your projects - we've never seen a single Raspberry Pi HAT offering this many features!

Feature list

  • 0.96" OLED - 128x64 resolution, with an SSD1306 driver and SPI interface
  • Onboard mini joystick for program control
  • BMP280 pressure sensor - measure air pressure and temperature (I2C interface)
  • Onboard real-time clock - DS3231 high-precision with I2C interface
  • 1-wire interface - for connecting 1-wire devices (a DS18B20 sensor is included in the kit)
  • IR receiver - LFN0039K
  • Sensor interface pins - for connecting various sensors
  • Buzzer - add sound alerts or beeps to your programs
  • 8-bit analogue-to-digital converter with screw terminals
  • Port expander (PCF8591) - Input/Output expansion chip, adding 8 additional I/O lines
  • USB to UART connection - for controlling your Pi through a serial terminal on your PC
  • 2x programmable LEDs
  • Power indicator LED
  • GPIO header pins accessible (not hidden like some HATs!)

Package Contents

  • 1x Pioneer600 board
  • 1x USB A to micro-B cable
  • 1x DS18B20 sensor
  • Fixings pack including standoffs

Resources

  • Product Wiki - including installation, usage and code examples
