20 x 30mm Cavity Speaker (B) with PH1.25 Connector (8Ω 2W)

20 x 30mm Cavity Speaker (B) with PH1.25 Connector (8Ω 2W)

Name: 20 x 30mm Cavity Speaker (B) with PH1.25 Connector (8Ω 2W)
Brand: Waveshare
SKU: WAV-27859
Price: 1.90 GBP
Availability: InStock

WaveshareSKU: WAV-27859

£1.90

incl. VAT

excl. VAT

Only 19 units left

Awesome Extras

ESP32-S3 Development Board with 1.28" IPS Round LCD - The Pi Hut

Waveshare ESP32-S3 Development Board with 1.28" IPS Round LCD

From £15.20 incl. VAT excl. VAT

Waveshare 20x30mm Cavity Speakers with PH1.25 Connector (8Ω 2W)

£2.90 incl. VAT excl. VAT

ESP32-S3 Development Board with 1.28" Round Touch LCD - The Pi Hut

Waveshare ESP32-S3 Development Board with 1.28" Round Touch LCD

From £21 incl. VAT excl. VAT

1.25mm Pitch 2-pin Cable Matching Pair - 40cm long - The Pi Hut

The Pi Hut 1.25mm Pitch 2-pin Cable Matching Pair - 40cm long (Molex PicoBlade Compatible)

£0.90 incl. VAT excl. VAT

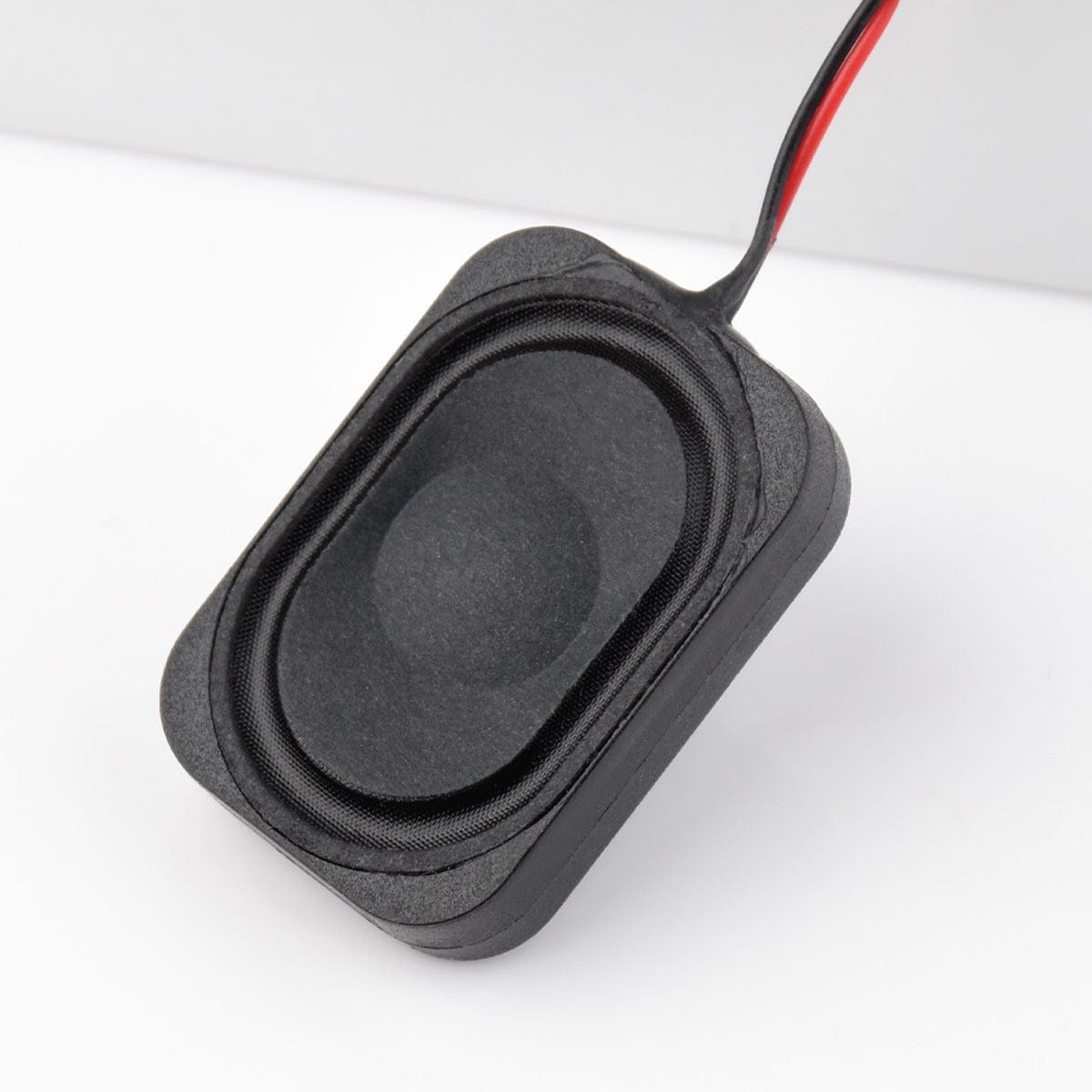

This speaker will make a great audio addition to your next project! It has a built-in sound cavity that provides clear audio across a frequency range of 0 to 20KHz. With an impedance of 8Ω and a power capacity of 2W, it is easy to use with many different projects.

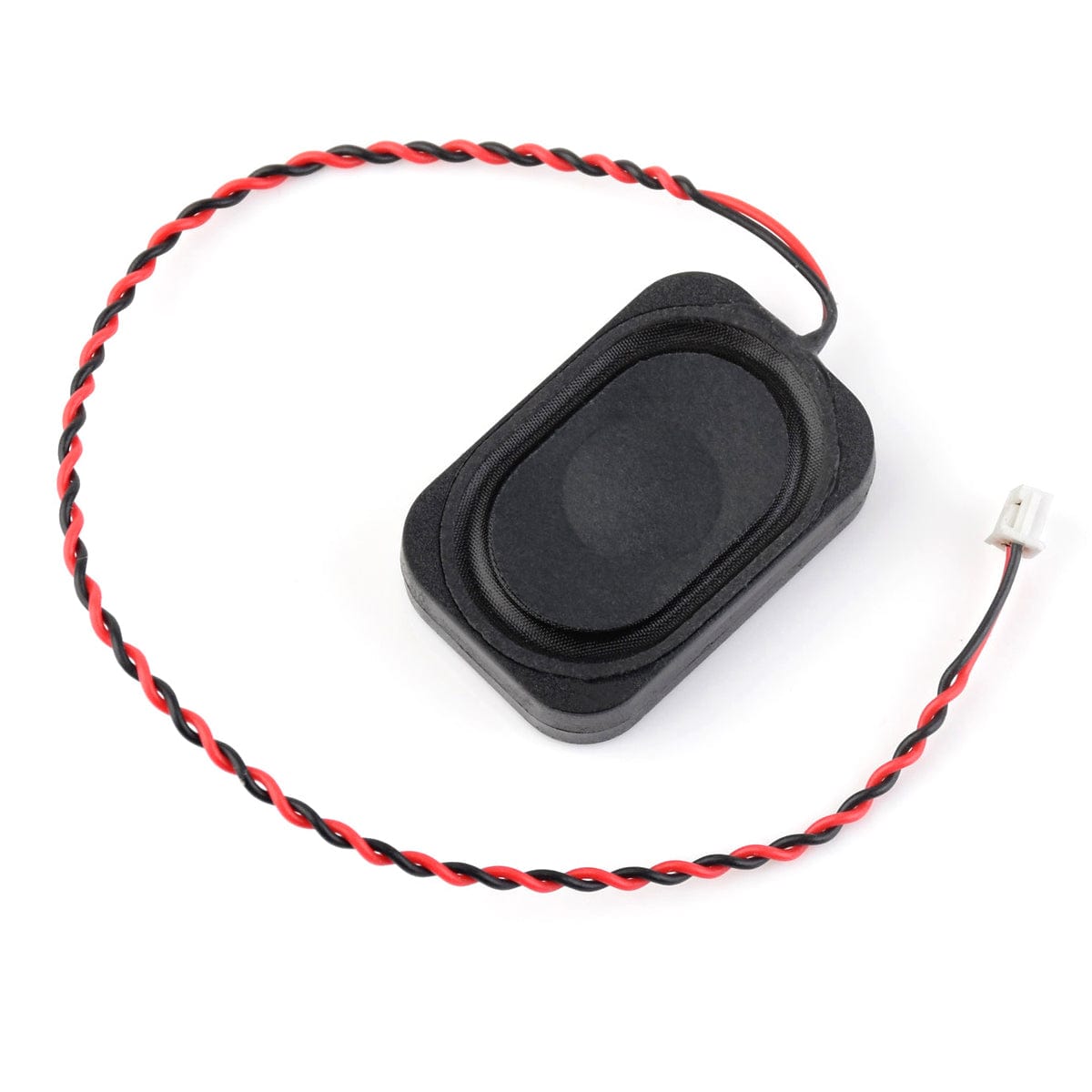

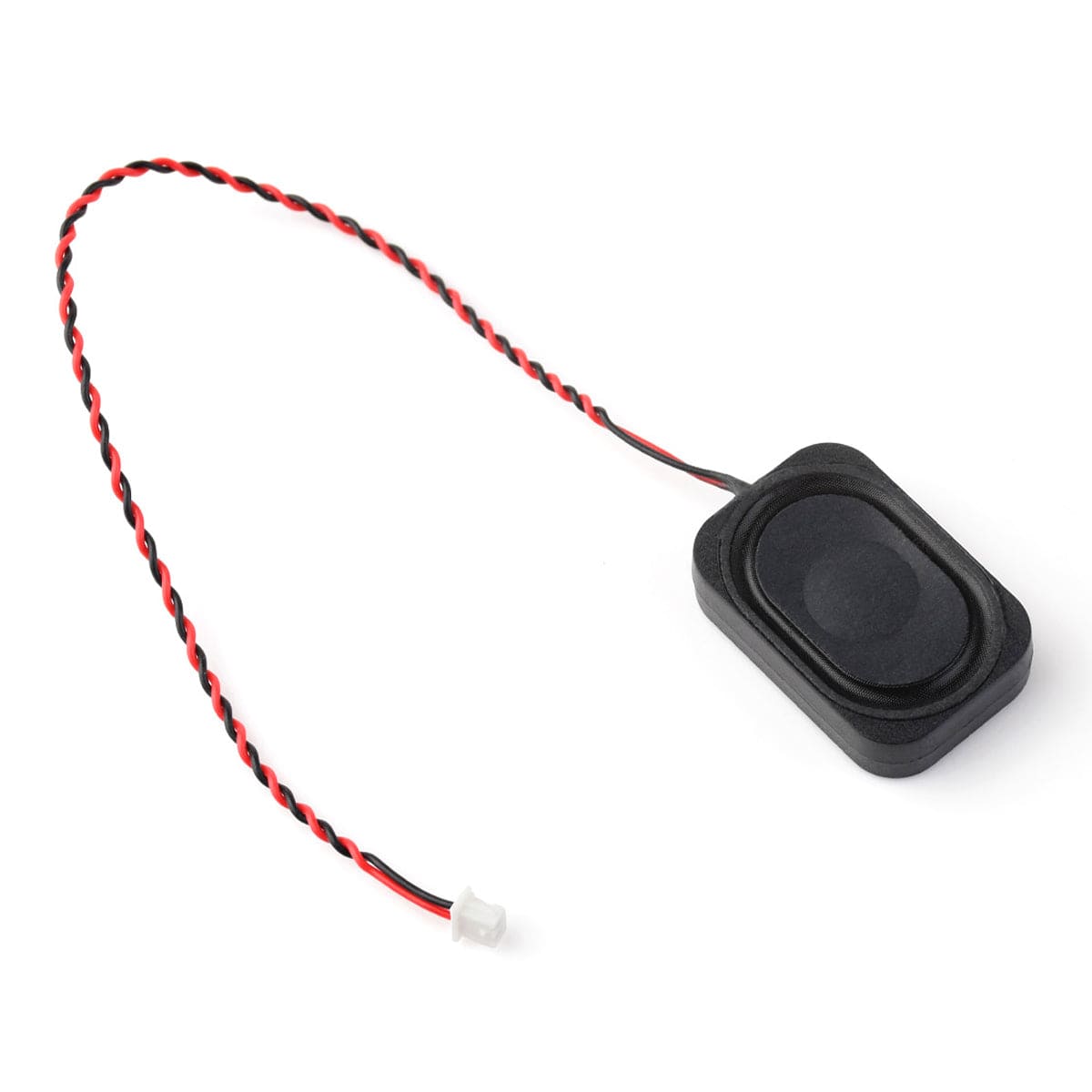

The speaker connects via a 2-pin PH1.25 connector with a 120mm cable and operates between -20 to 55°C. Its small dimensions make it easy to integrate into various devices.

The board is NOT included

Note: Please make sure your board has a speaker connector on it that will fit a 2-pin PH1.25 cable before purchasing

Specifications

Frequency Band	0 ~ 20KHz
Impedance	8 ± 20%Ω
Power	2W
Operating Temperature	-20 ~ 55℃

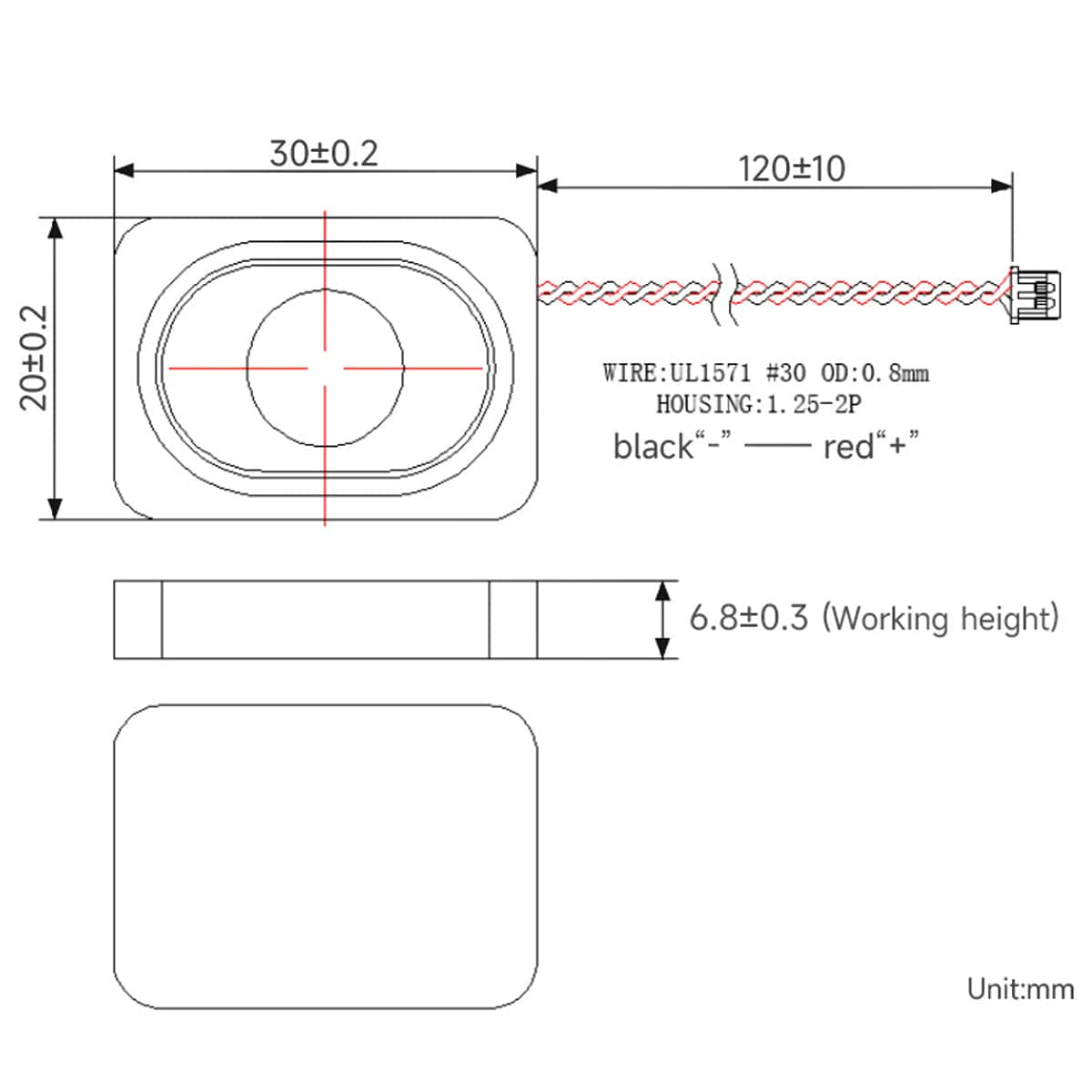

Wire Specifications	2-pin PH1.25 connector, approx. 120mm cable length
Size	20 x 30 x 6.8 mm
