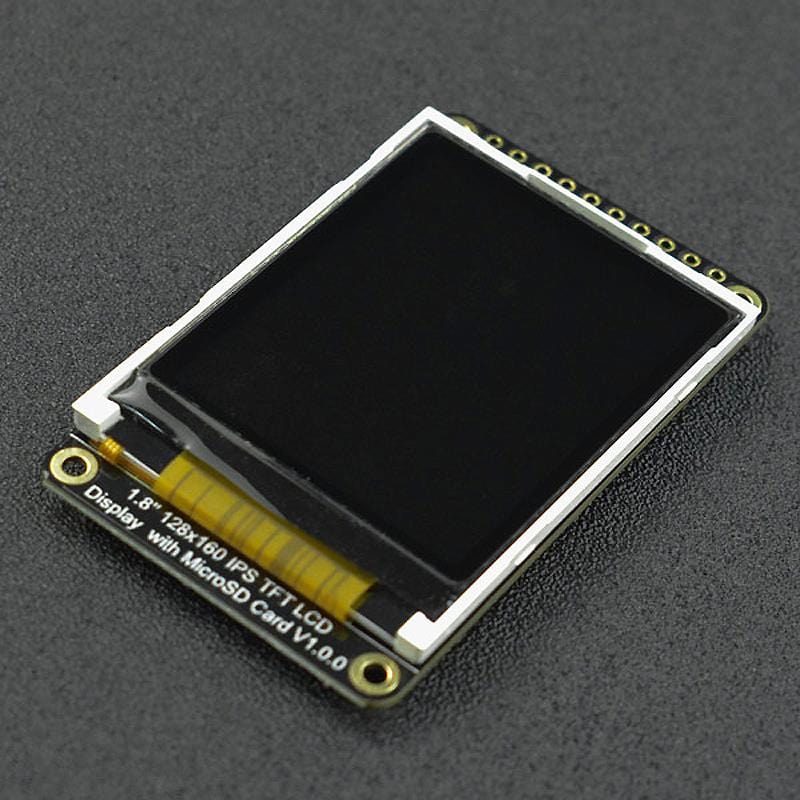

Fermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Slot

DFRobotSKU: DFR0928
Price:
Sale price £9
incl. VAT
excl. VAT
Stock:
Only 9 units left
Quantity:

Awesome Extras

(44 Reviews)
DFRobotFireBeetle 2 ESP32-E IoT Microcontroller
Sale priceFrom £9.50 incl. VAT excl. VAT
DFRobotFireBeetle 2 M0
Sale price £8.50 incl. VAT excl. VAT
(193 Reviews)
SanDiskSanDisk MicroSD Card (Class 10 A1)
Sale priceFrom £6 incl. VAT excl. VAT

This ST7735S 1.8" TFT Display features a resolution of 128×160 and SPI (4-wire) communication. Integrated with a microSD card slot, it allows you to easily read full-colour bitmaps from the SD card.

The module provides you with two wiring methods: pin header and GDI (General Display interface). You can directly connect the display to a FireBeetle main controller using the included FPC cable. Plug n' play and easy to wire, the display supports a low refresh rate and offers a good display effect and strong versatility.

It can be used in applications such as sensor monitoring and alarm, an Arduino temperature monitor, fan controller and many more!

FireBeetle Wiring Example

Features

  • 128x160 Resolution
  • SPI (4-wire) communication
  • Integrated with a microSD card slot
  • GDI or pin header interface

Specification

  • Operating Voltage: 3.3V-5V
  • TFT Viewing Angle: 120 degrees
  • Pixels: 128 columns x 160 rows
  • Communication: SPI
  • Interface Mode: GDI, pin header
  • Driver Chip: ST7735S
  • Full-screen Power Consumption: 0.11 W
  • MicroSD Slot x 1
  • Operating Temperature: -10℃ - +60℃

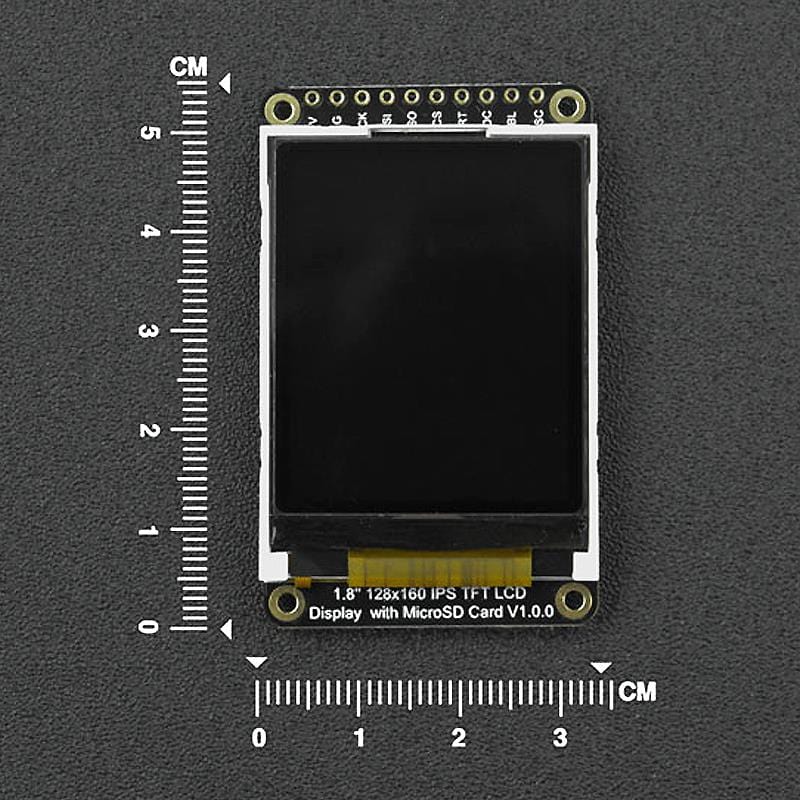

  • Display Area: 26 mm x 35 mm
  • Module Dimension: 34 mm x 55 mm
  • Mounting Hole Pitch: 29 mm, 50 mm
  • Mounting Hole Size: 2 mm

Package Contents

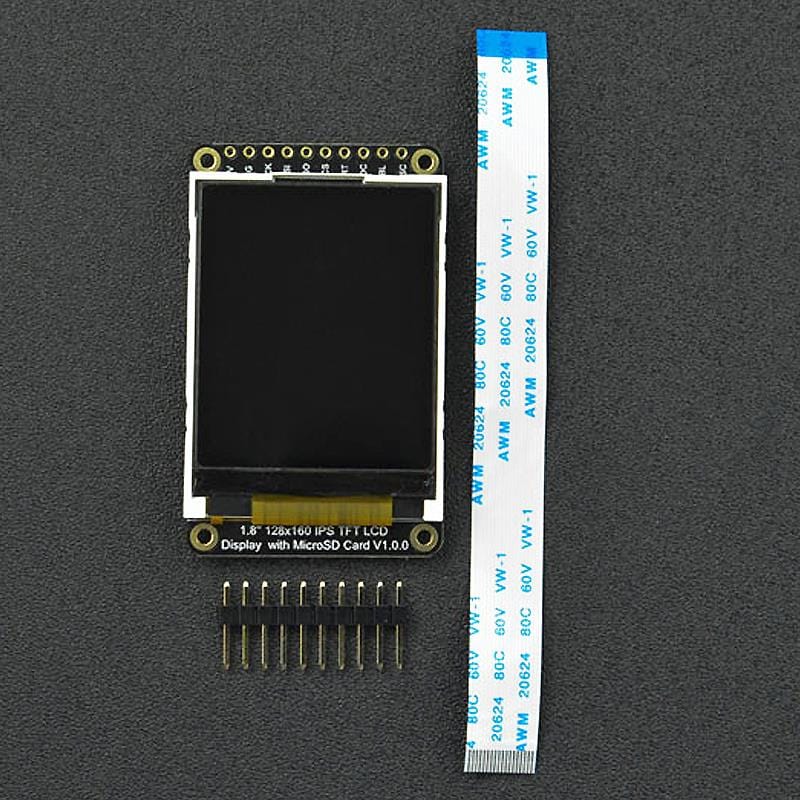

  • 1x Fermion: 1.8" 128x160 IPS TFT LCD with MicroSD Card Slot
  • 1x GDI Display Cable
  • 1x 10P Pin Connector

Resources

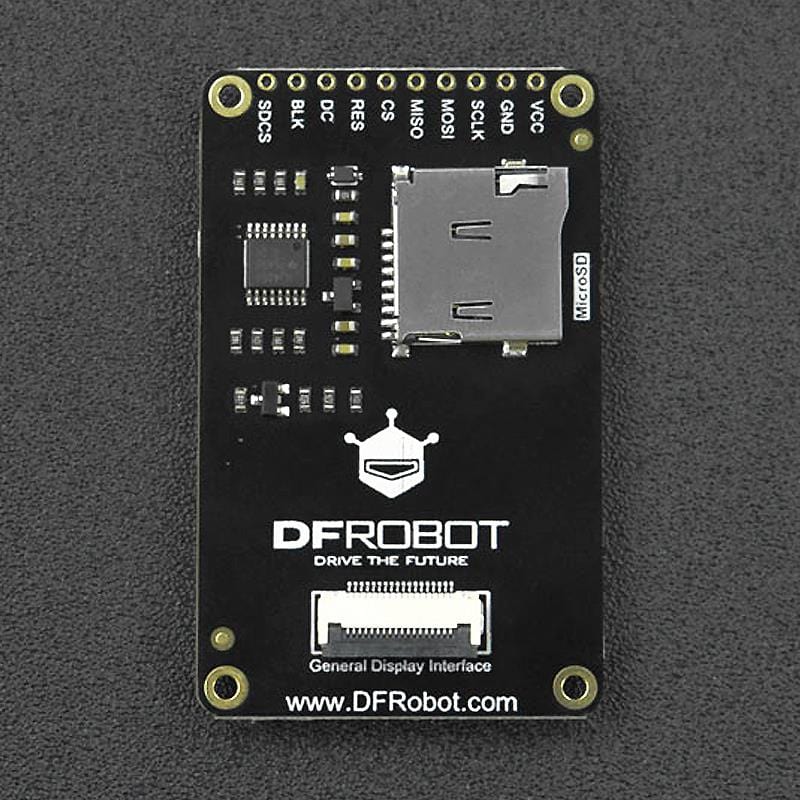

Pinout

Num Label Description
1 VCC Power
2 GND Ground
3 SCLK Clock signal
4 MOSI Receiving data
5 MISO Transmitting data
6 CS Screen Chip-select
7 RES Reset
8 DC Data/Command
9 BLK Backlight
10 SDCS SD card chip-select
