Easy Assembly Electronics Enclosure - Size 1 (with Pi Zero mounts)

Price:
Sale price £3.80
incl. VAT
excl. VAT
Stock:
Only 16 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi Zero W
Sale price £15 incl. VAT excl. VAT

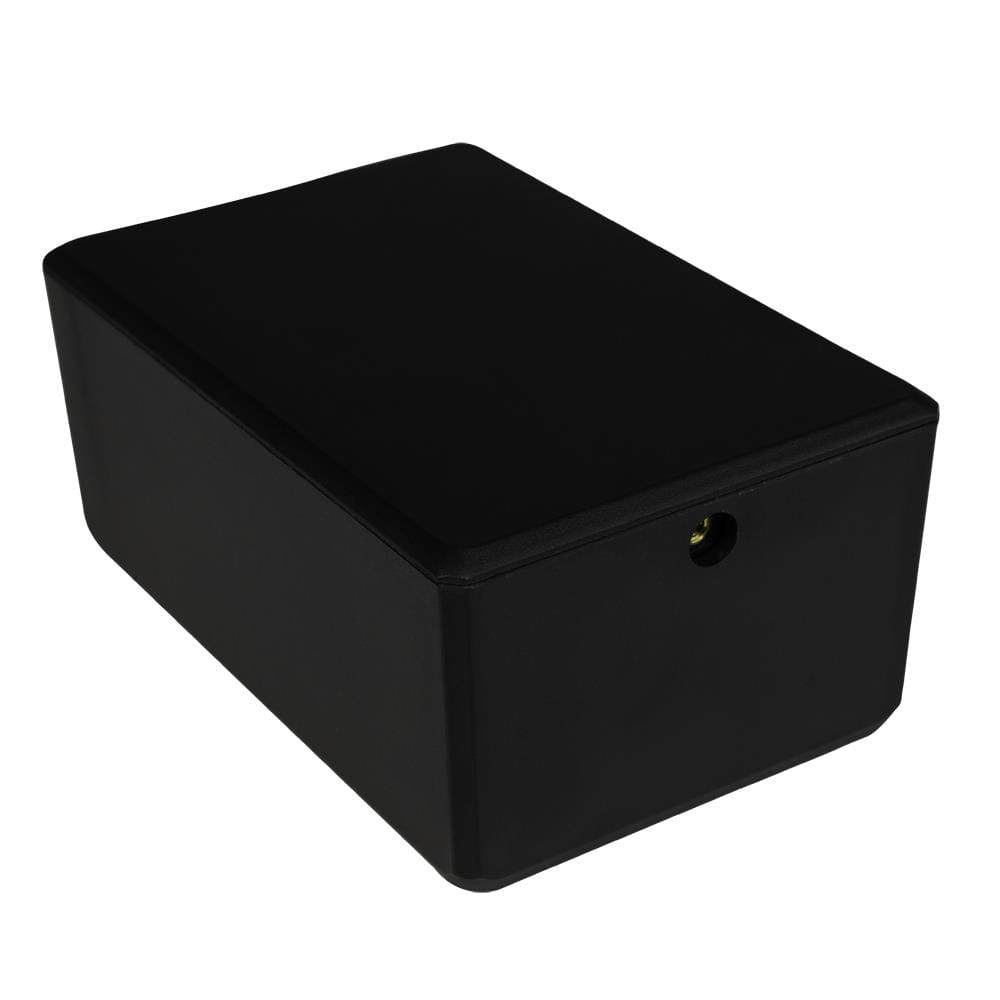

Moulded in robust ABS and manufactured in the UK, the Easy Assembly Electronics Enclosure (Size 1) is a premium cost-effective enclosure solution for your projects. The overall dimensions are 90mm x 60mm x 40mm.

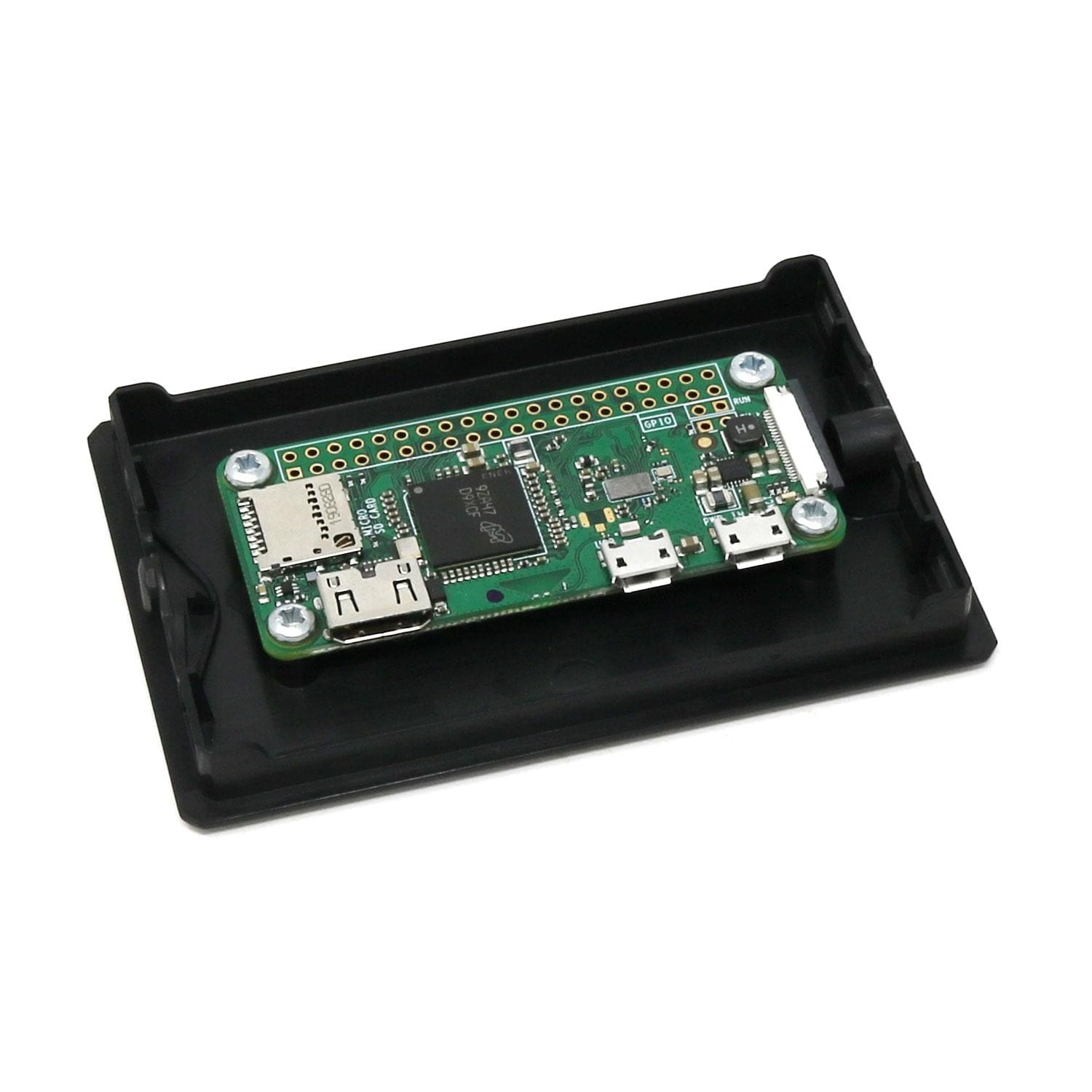

The lid of the enclosure (or the base if you prefer to use it that way) includes mounting points to fit a Raspberry Pi Zero*, leaving the rest of the enclosure space for your pHAT or other attached hardware for your project.

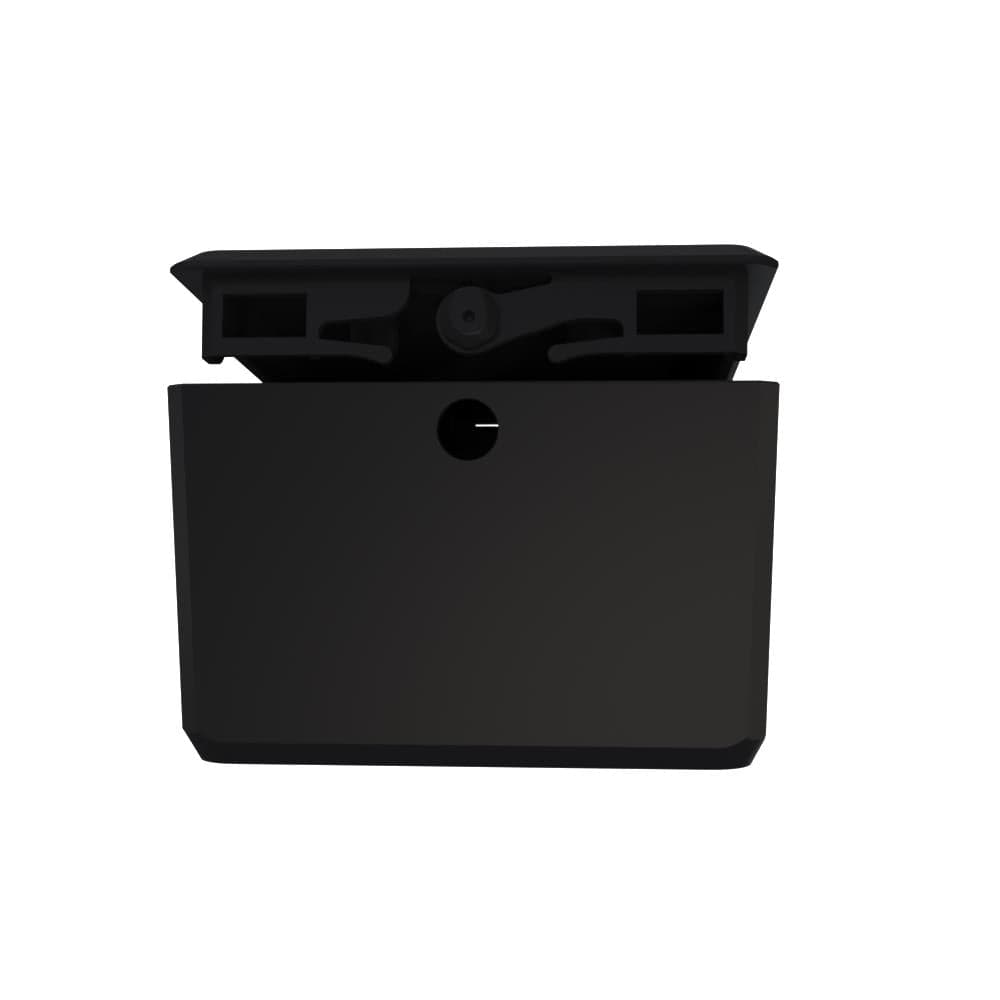

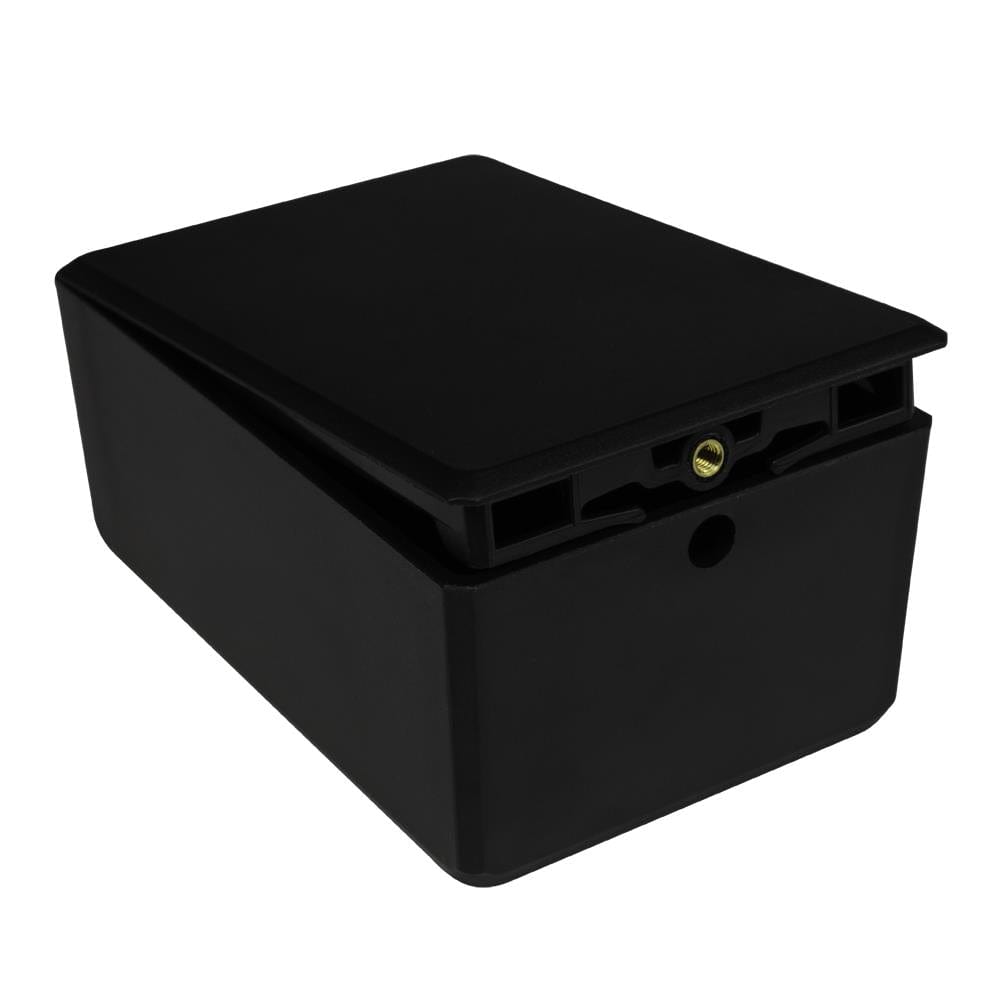

Gaining access is easier than ever thanks to the unique dual-action lid - held in place by either a push-button clip or single (included) screw (just spin the lid around to use your desired fixing option).

The enclosure's design uses no corner pillars, maximising space inside. There are also multiple PCB mounting points in base and lid, along with PCB edge corner supports in the base.

*Note - there are no port cut-outs for the Pi Zero as this universal enclosure is not designed for a specific purpose. Either modify the enclosure yourself or use an internal battery solution/HAT. Modified enclosures cannot be returned.

Features

  • Unique dual action lid is held in place by either a push-button clip or a single screw
  • Raspberry Pi Zero mounting points within the lid
  • Raspberry Pi Zero mounting fixings included (x4 screws)
  • No corner pillars, providing maximised PCB footprint with edge-to-edge capability
  • Multiple PCB mounting points in base and lid, along with PCB edge corner supports in the base
  • Unique spring feature in lid holds your PCB securely in place without the need for screws, greatly improving assembly time
  • In conjunction with the spring feature in the lid, the 'easy assembly' ledge holds the PCB in place without the need for screws, for quick and easy assembly
  • Premium quality universal enclosure with cost-saving assembly design features
  • Robust 2.5mm thick walls moulded in UL94-V0 ABS material with a smooth finish to aid customisation and modification
  • Designed and manufactured in the UK
  • Black colour

Package Contents

  • 1x Easy Assembly Electronics Enclosure (Size 1)
  • 1x Lid screw
  • 4x Raspberry Pi Zero screws

Resources

Specifications

External Length (mm) 90
External Width (mm) 60
External Height (mm) 40
Internal Length (mm) 82
Internal Width (mm) 52
Internal Height (mm) 36
Weight (G) 61
Base Material Plastic
Material Type ABS UL94-V0
UL Rating UL94-V0
IK Rating IK06
IP Rating IP40
Development Board N/A
Wall Thickness (mm) 2.5
