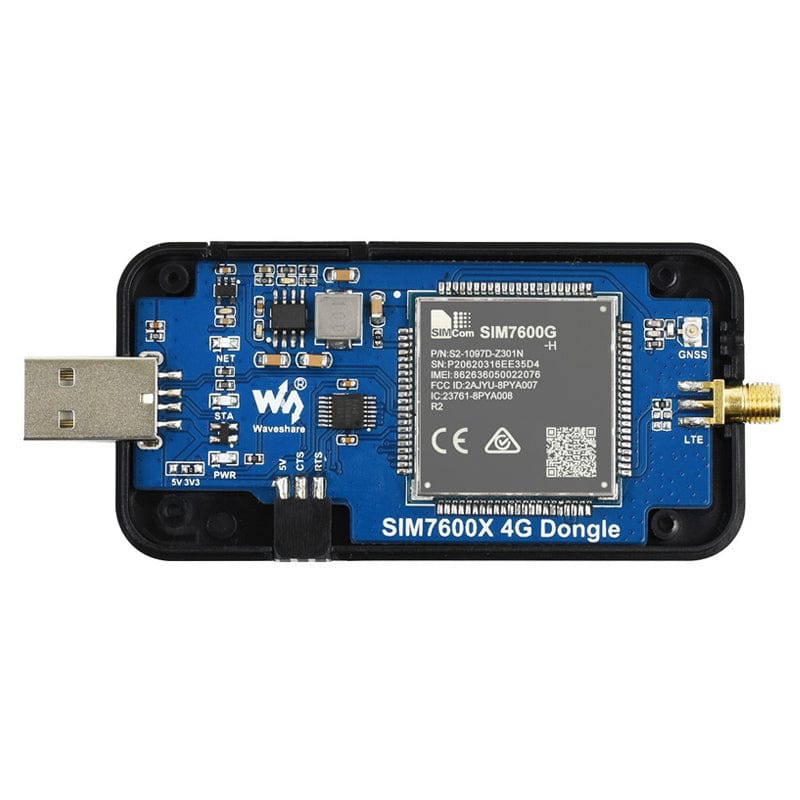

This is a global band industrial grade USB 4G dongle featuring the SIMcom SIM7600G-H, which supports up to 150Mbps downlink rate and 50Mbps uplink rate (depending on the network provider and conditions/signal) and is compatible with multiple operating systems including Linux, Windows and Android.

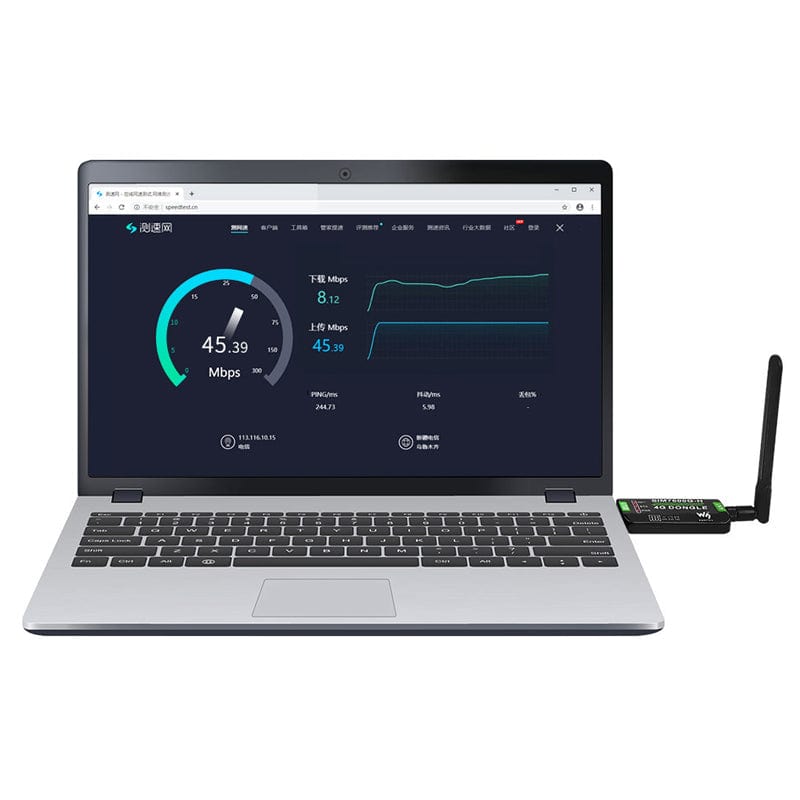

By simply connecting the dongle to a Raspberry Pi, laptop, PC, drone, industrial computer or other IoT host device, it is easy to use a 4G network connection on the go. The board accepts a 1.8V/3V Nano sim card and supports a wide range of network bands (see specification below for a full list of supported bands).
The dongle supports 4G, 3G and 2G network connections and includes onboard GNSS functionality supporting GPS, Beidou, Glonass, LBS base station positioning (for GNSS, a GPS antenna (and uFL to SMA cable) is required but NOT included).

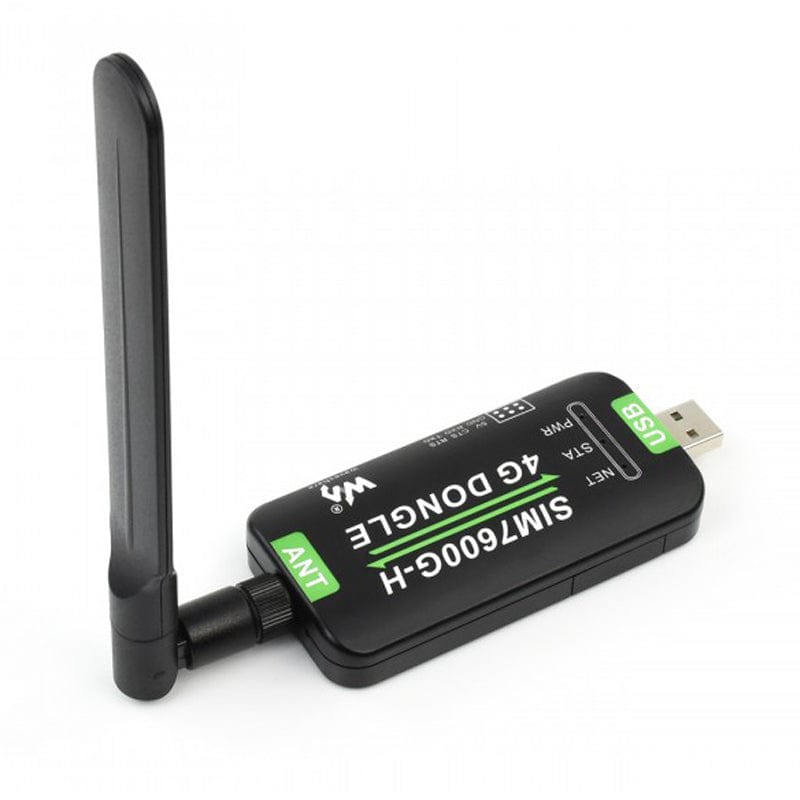

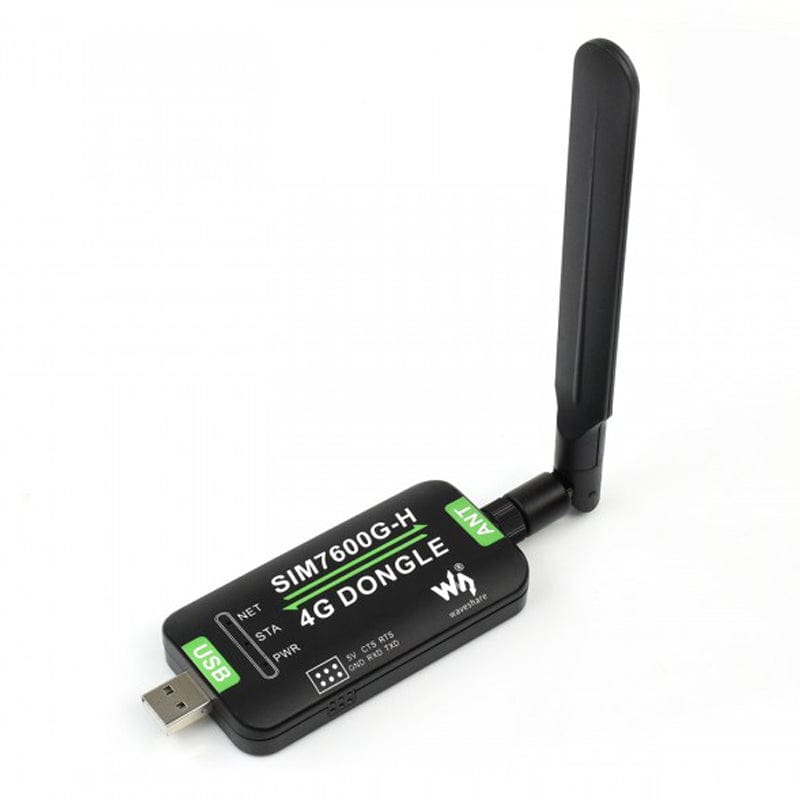

The dongle comes complete with an LTE antenna, USB extension cable, jumper wires for manual connections and a screwdriver + screw set.
Features
- Supports 2G/3G/4G network connection, global band
- Drivers provided for operating systems including Windows/Linux/Android
- Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
- Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32
- Onboard GNSS, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)

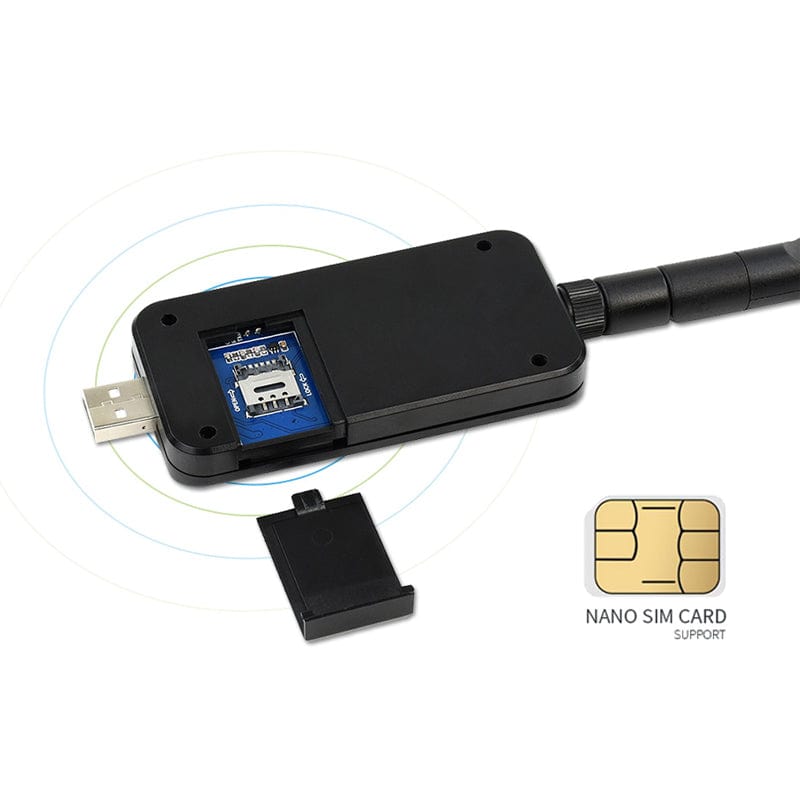

- Nano SIM card slot, supports 1.8V / 3V nano SIM cards
- 3x LED indicators, easy to monitor the working status
- Portable customized enclosure
- Baudrate support: 300bps ~ 4Mbps (115200bps by default)
- Baudrate auto-negotiation: 9600bps ~ 115200bps
- Online development resources
Specifications
| Band |
| LTE Cat-4 / LTE Cat-1 |
LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/
B13/B18/B19/B20/B25/B26/B28/B66 |
| 3G |
UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 |
| 2G |
GSM/GPRS/EDGE: 850/900/1800/1900MHz |
| GNSS |
GPS, BeiDou, Glonass, LBS base station |
| Data Rate |
| LTE Cat-4 |
150Mbps(DL) / 50Mbps(UL) |
| 3G (HSPA+) |
42Mbps(DL) / 5.76Mbps(UL) |
| 2G (EDGE) |
236.8Kbps(DL) / 236.8Kbps(UL) |
| 2G (GPRS) |
85.6Kbps(DL) / 85.6Kbps(UL) |
| Software Features |
| Operating system |
Windows/Linux/Android |
| Network protocol |
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS |
| Dial-up protocol |
NDIS/RNDIS/PPP |
| SMS |
Supports MT, MO, CB, Text, PDU |
| Hardware Description |
| Communication interface |
USB / UART |
| UART baud rate |
300bps ~ 4Mbps (115200bps by default) |
| Indicator |
NET：network indicator |
| STA：status indicator |
| PWR：power indicator |
| SIM card support |
Nano SIM card (1.8V / 3V) |
| Antenna connector |
LTE |
| Power supply |
5V |
| Logic level |
3.3V |

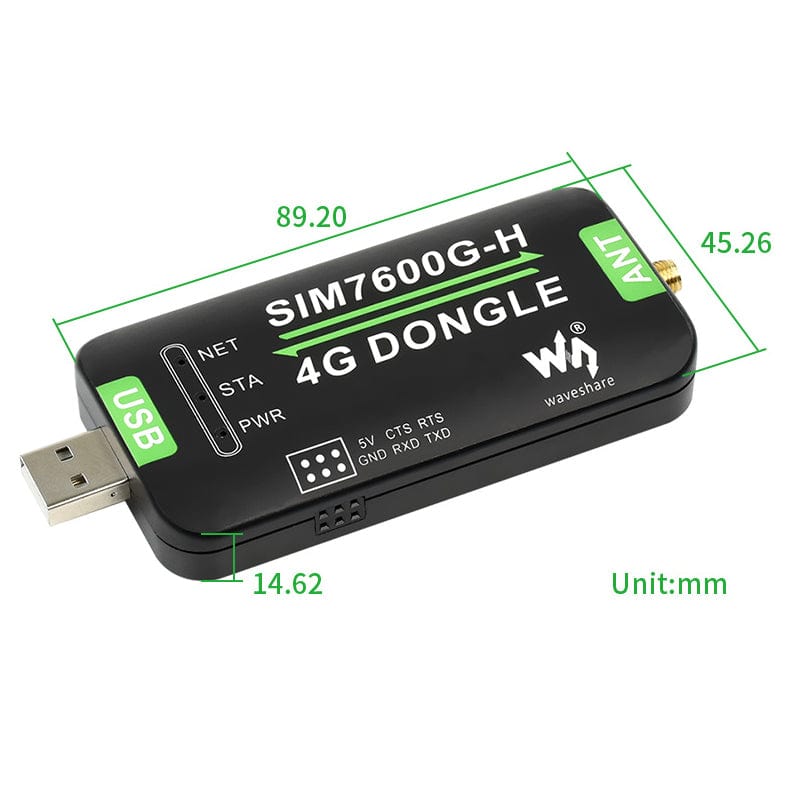

| Outline dimensions |
89.20 × 45.26 × 14.62mm |
Resources
Package Contents
- 1x SIM7600G-H 4G Dongle
- 1x LTE Antenna (not GPS/GNSS)
- 1x USB extension cable
- 1x 6-pin jumper wire
- 1x Screws tool kit
GNSS/GPS antenna not included
