ReSpeaker 2-Mics pHAT

SeeedSKU: 102348
Price:
Sale price £14
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Compatible with:

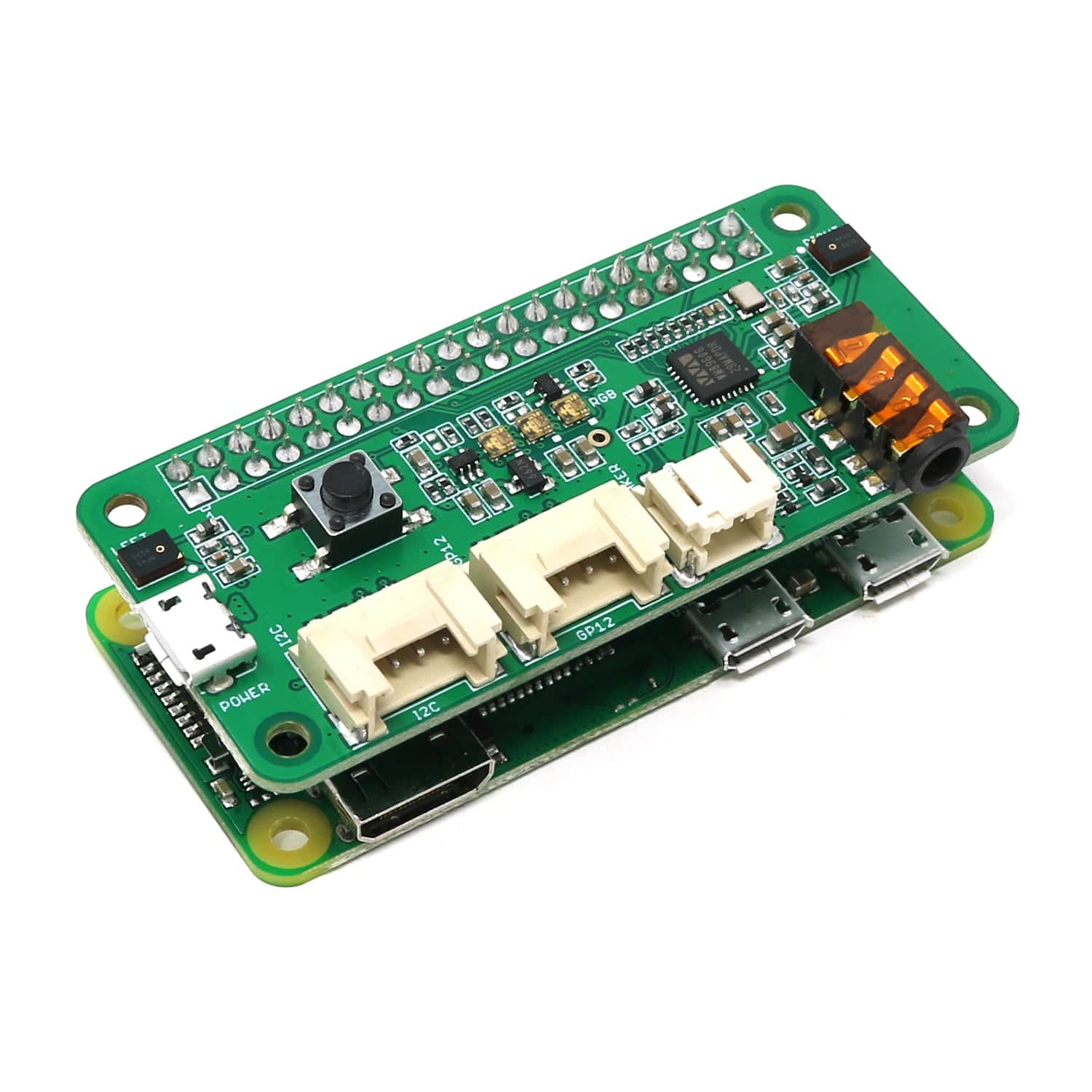

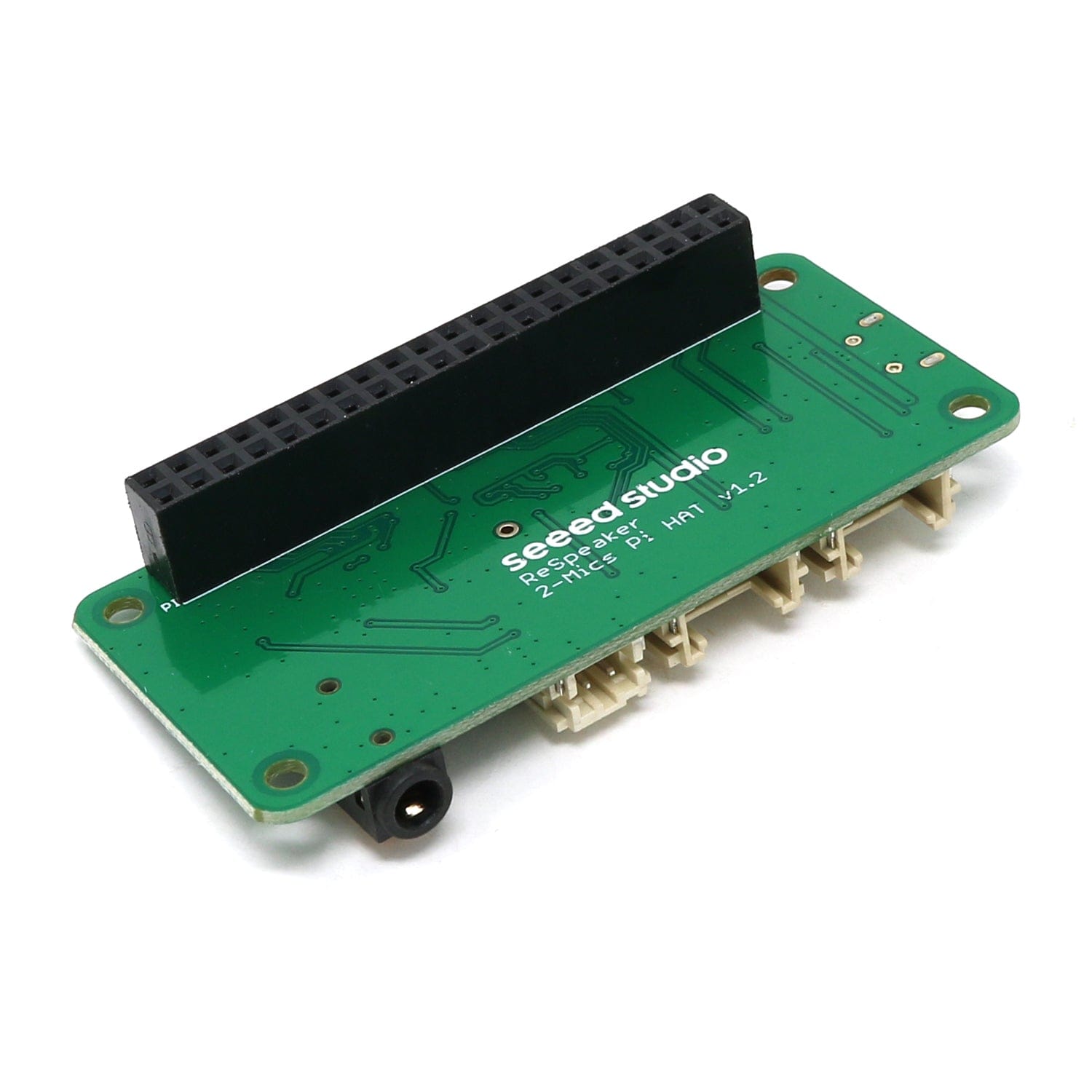

ReSpeaker 2-Mics Pi HAT is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

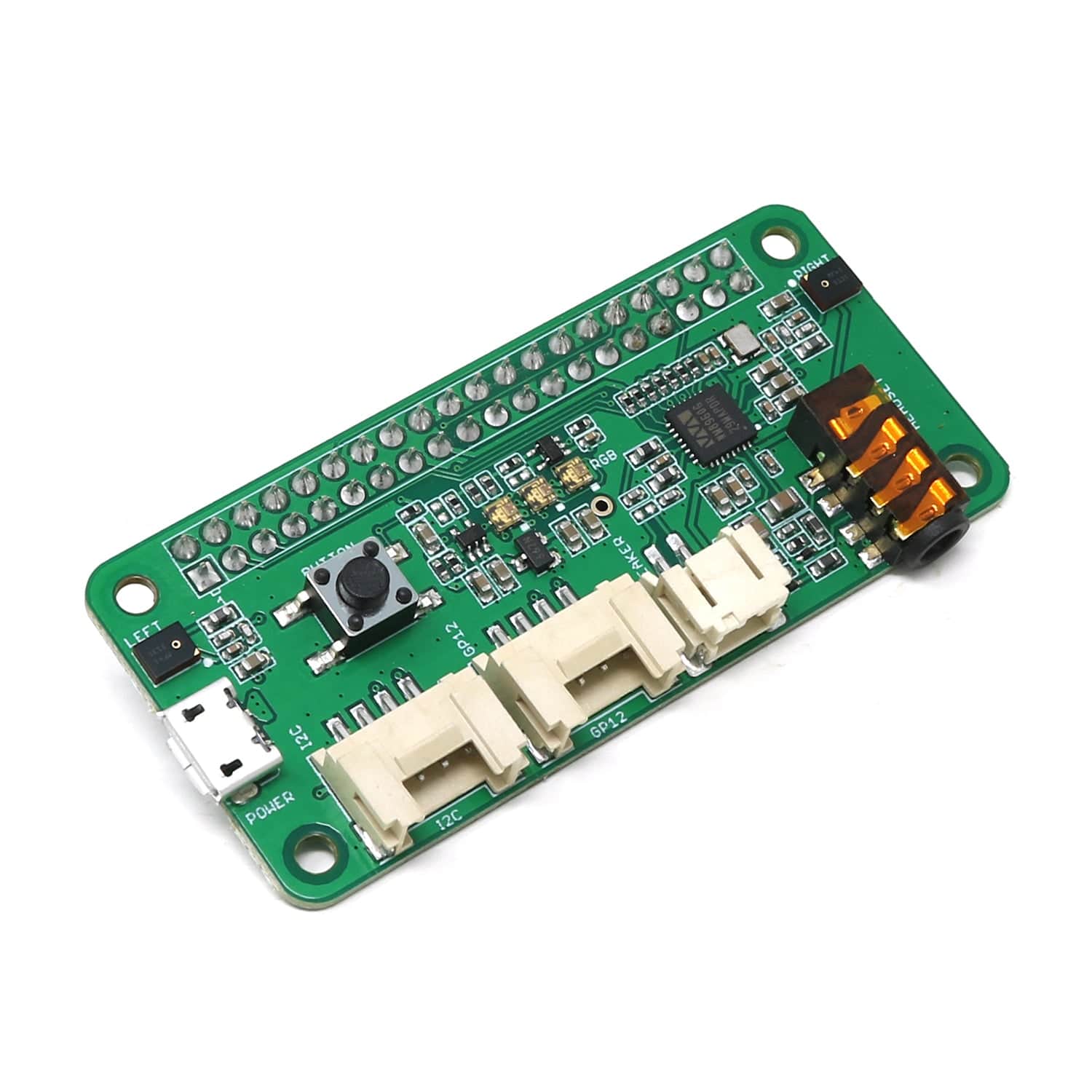

The board is developed based on WM8960, a low power stereo codec. There are 2 microphones on both sides of the board for collecting sounds and it also provides 3 APA102 RGB LEDs, 1 User Button and 2 on-board Grove interfaces for expanding your applications. What is more, 3.5mm Audio Jack or JST 2.0 Speaker Out are both available for audio output.

Note: This product does not include the Pi Zero board

Features

  • Raspberry Pi compatible(Support Raspberry Pi Zero, Raspberry Pi 1 B+, Raspberry Pi 2 B and Raspberry Pi 3 B)

  • Dual-Microphones

  • 2 Grove Interfaces: support GPIO and I2C

  • Programmable Button and LED: one button and three LEDs

  • Audio codec onboard

  • Two types audio output socket : 3.5mm Audio Jack, JST2.0 Speaker Out

  • Far field support (up to 3 meters)

  • Product number: Seeed 107100001

Usage

1.Get started with Google Assistant

2.How to use button to trigger Google Assistant

Documentation

Please visit the wiki page for more info about this product.It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to this forum.
