2" IPS LCD Display for Raspberry Pi Pico (320x240)

WaveshareSKU: WAV-19888
(2 Reviews)
Sale price £15.10
incl. VAT
excl. VAT
Sold out
Notify me

Compatible with:

Awesome Extras

(241 Reviews)
Raspberry PiRaspberry Pi Pico W
Sale priceFrom £6.30 incl. VAT excl. VAT
(479 Reviews)
Raspberry PiRaspberry Pi Pico
Sale priceFrom £3.60 incl. VAT excl. VAT
(77 Reviews)
The Pi HutEssential Raspberry Pi Pico Kit
Sale price £6 incl. VAT excl. VAT
(77 Reviews)
The Pi HutEssential Raspberry Pi Pico Kit
Sale price £6 incl. VAT excl. VAT

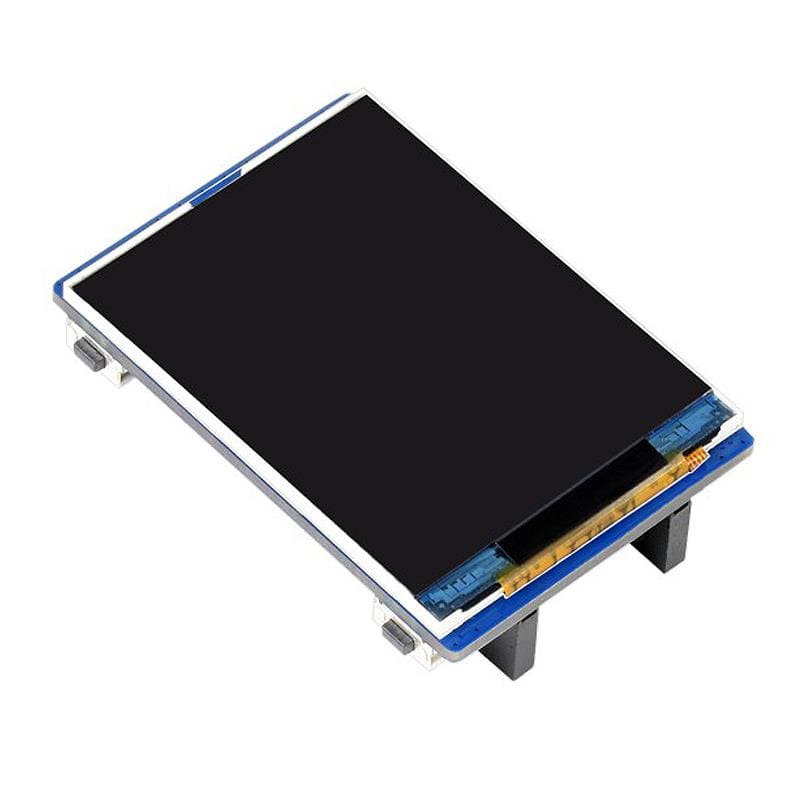

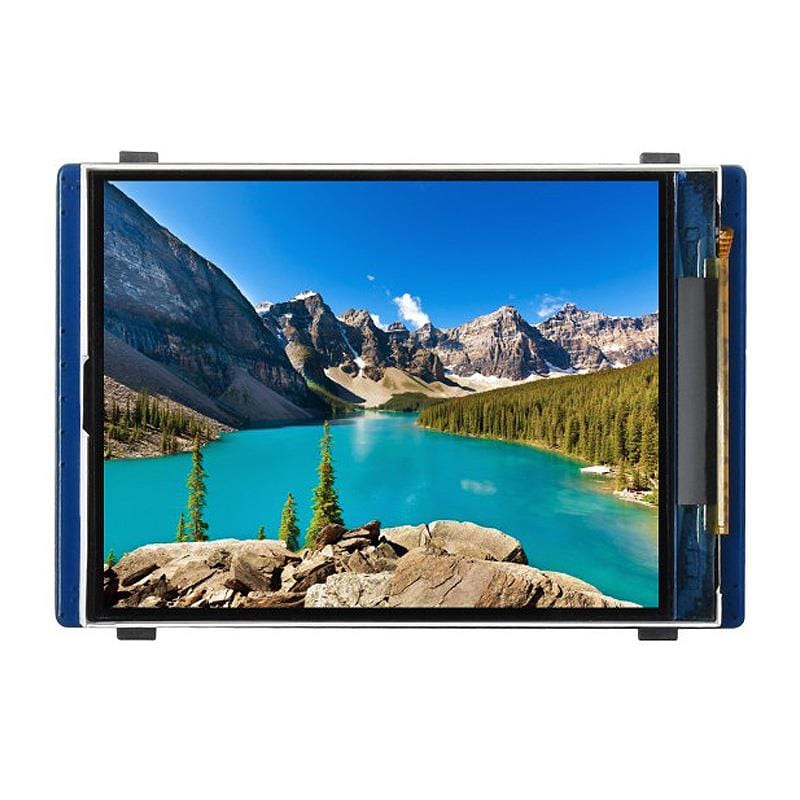

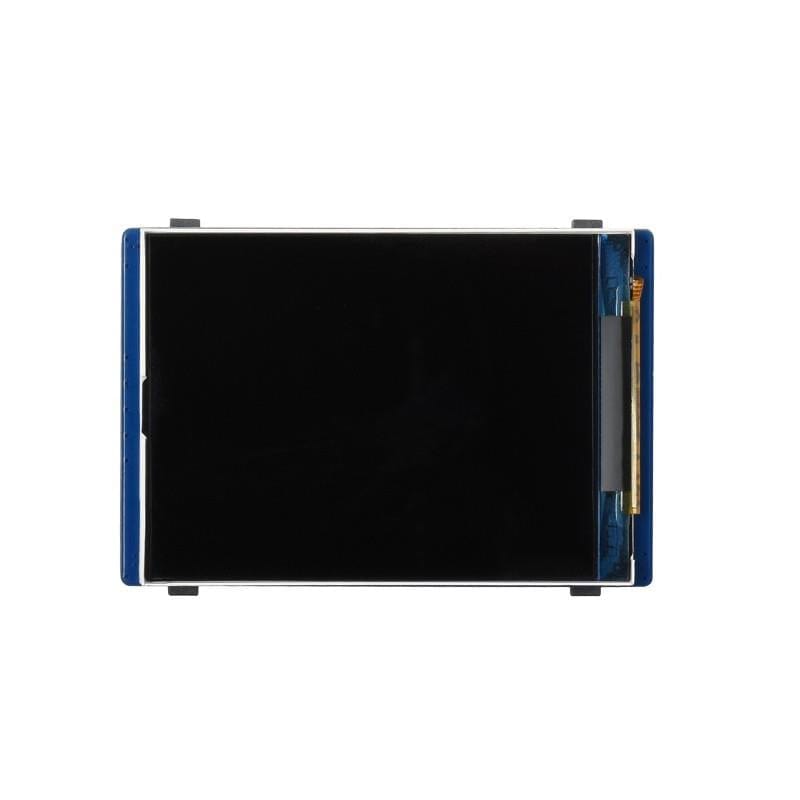

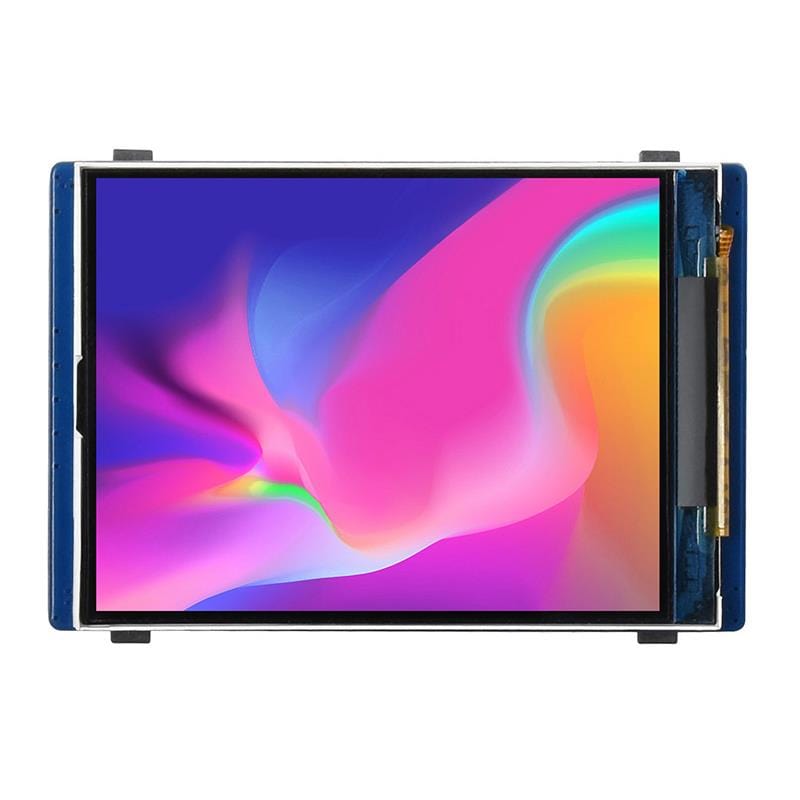

Easily add a clear and colourful display to your Raspberry Pi Pico project with this 2" IPS LCD 65K RGB display from Waveshare!

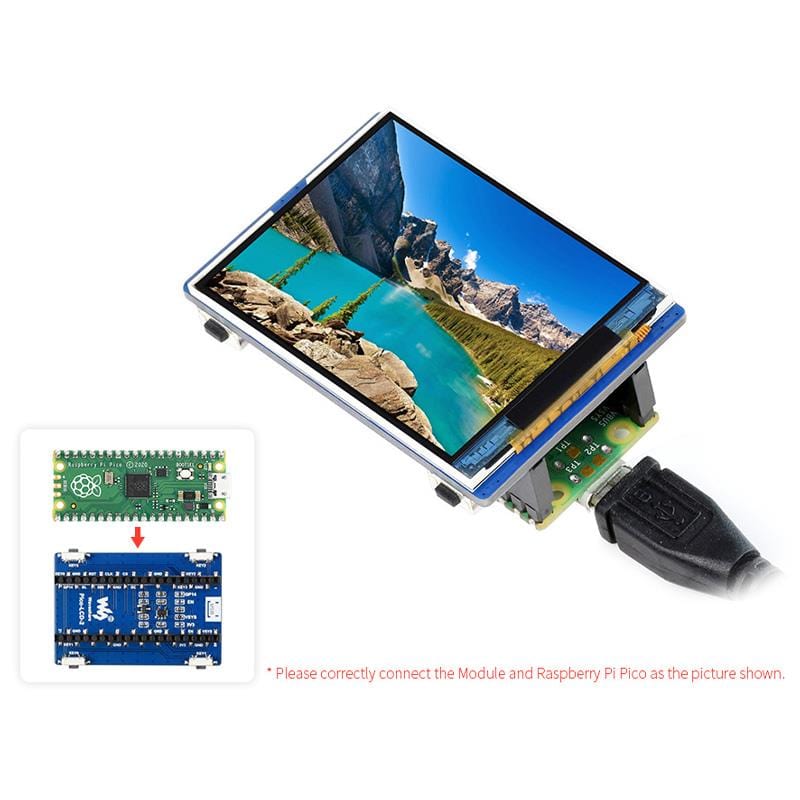

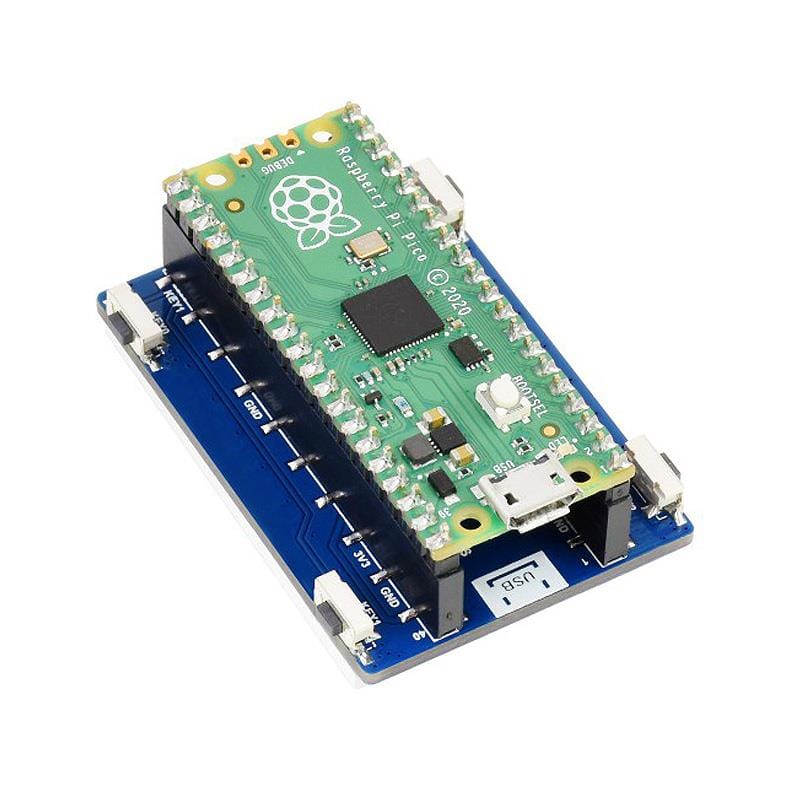

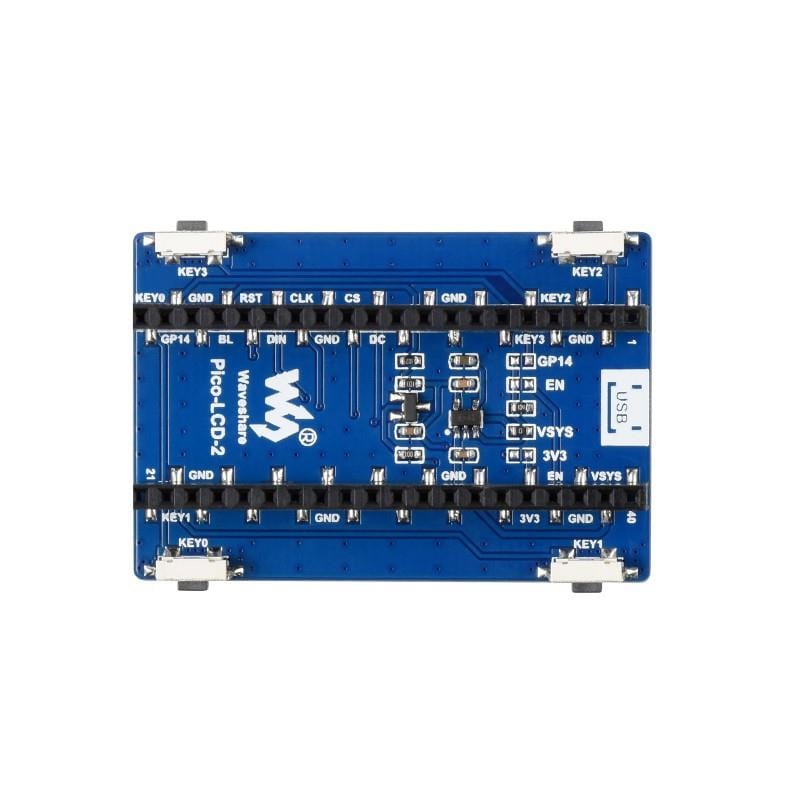

With the included Raspberry Pi Pico C/C++ examples, getting started with this screen is quick and easy. There's also no soldering required with this LCD display - just slot your Pico into the female headers on the rear and you're good to go!

4 programmable buttons can be found on each corner of this IPS display, giving you lots of interface control options for your project. They're already connected to the Pico's GPIO pins too (pins 2, 3, 15 and 17).

This display uses an embedded ST7789VW driver, which uses the SPI bus to communicate with your Pico using just the 4 pins (leaving the majority of your Pico pins free for other things!).

We also have our own tutorial teaching you how to control colour, display text & graphics and build a simple colour mixing project with a few extra components!

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.


  • Compatible with the Raspberry Pi Pico
  • 320x240 resolution
  • IPS display
  • 65K RGB Colours
  • SPI Interface
  • 4x User programmable buttons at the end of the display
  • Online development resources and manual


  • Operating voltage: 2.6-5.5V
  • Resolution: 320x240 pixels
  • Communication Interface: 4-wire SPI

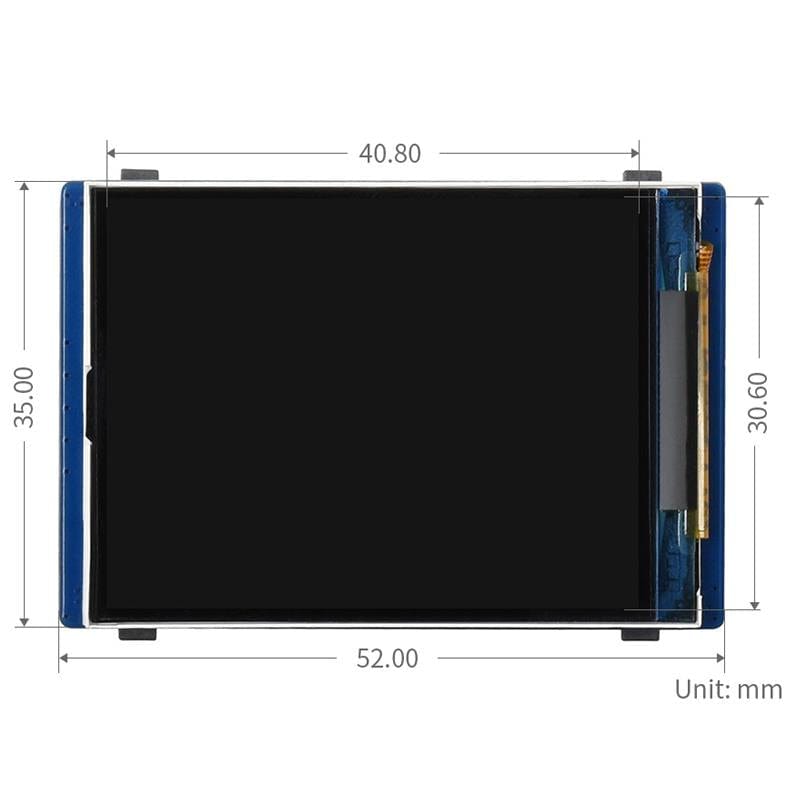

  • Display Size: 40.80mm x 30.60mm
  • Display panel: IPS
  • Pixel size: 0.1275mm x 0.1275mm
  • Driver: ST7789VW
  • Dimensions: 52mm x 35mm


Package Contents

  • 1x 2" Pico LCD

Raspberry Pi Pico not included

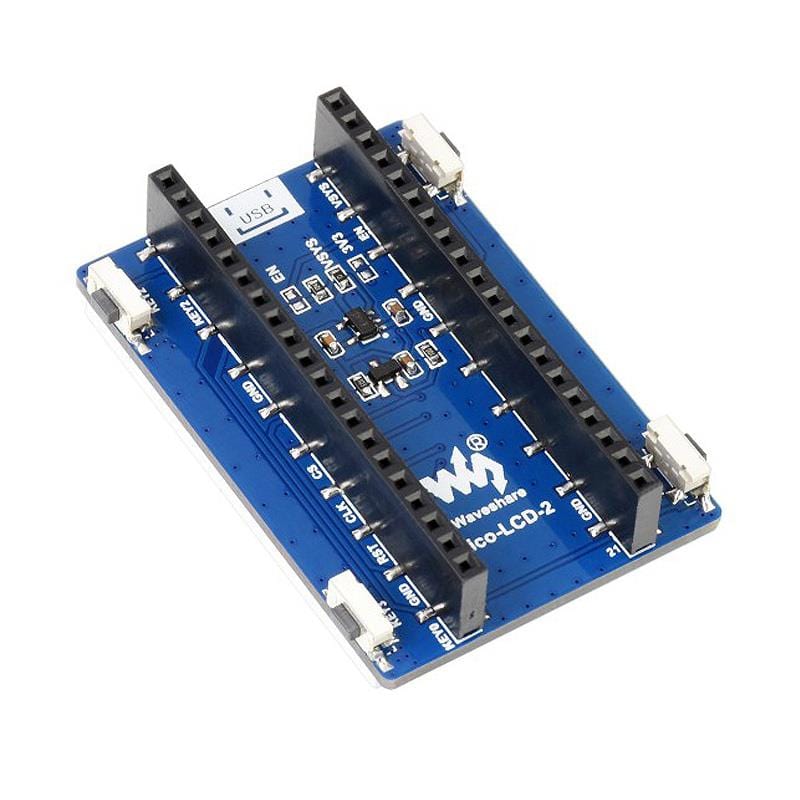

2" Pico LCD Pinout
