Precision RTC Module for Raspberry Pi Pico (DS3231)

This is a high-precision RTC expansion module specifically designed for the Raspberry Pi Pico.

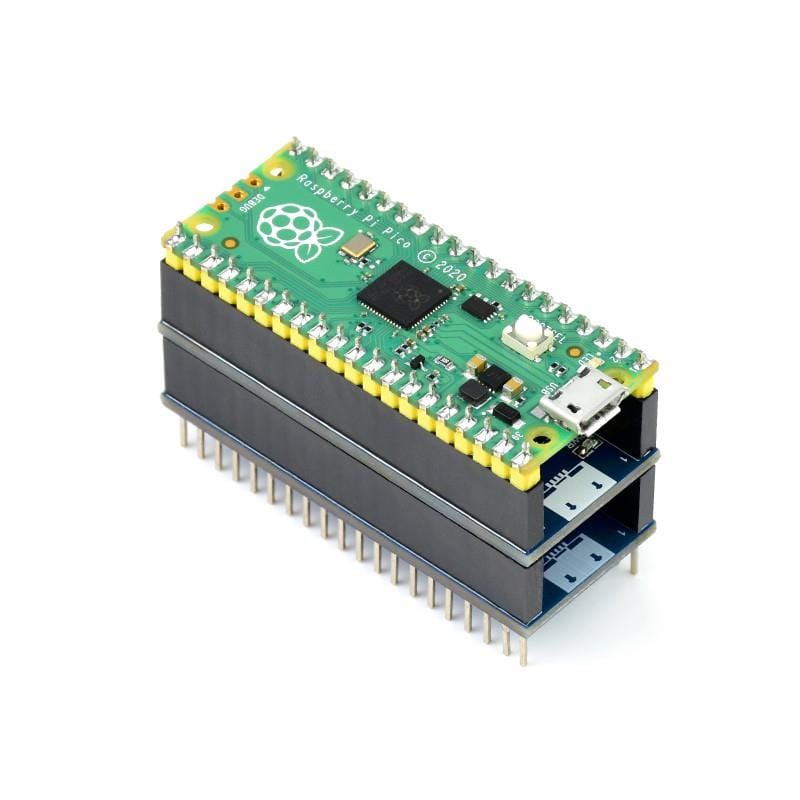

The module incorporates a high-precision DS3231 RTC chip and uses the I2C bus for communication. The stackable design allows you to add other hardware whilst using the RTC board.

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• Onboard high precision RTC chip DS3231, with backup battery holder
• Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
• Optional format: 24-hour OR 12-hour with an AM/PM indicator
• 2x programable alarm clock
• Online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

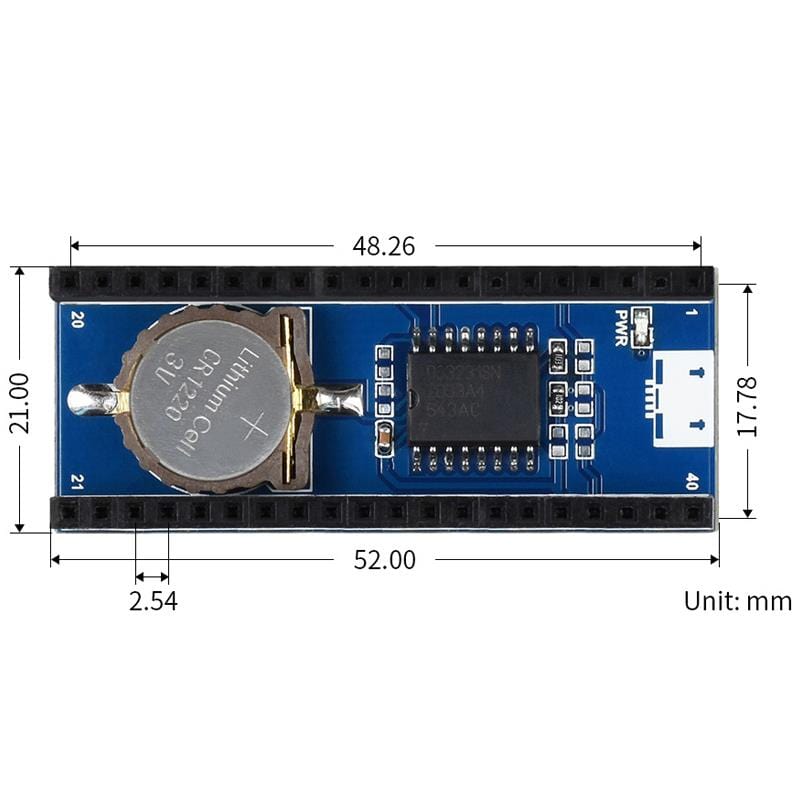

• Dimensions: 52mm x 21mm

Note: Raspberry Pi Pico and CR1220 battery not included

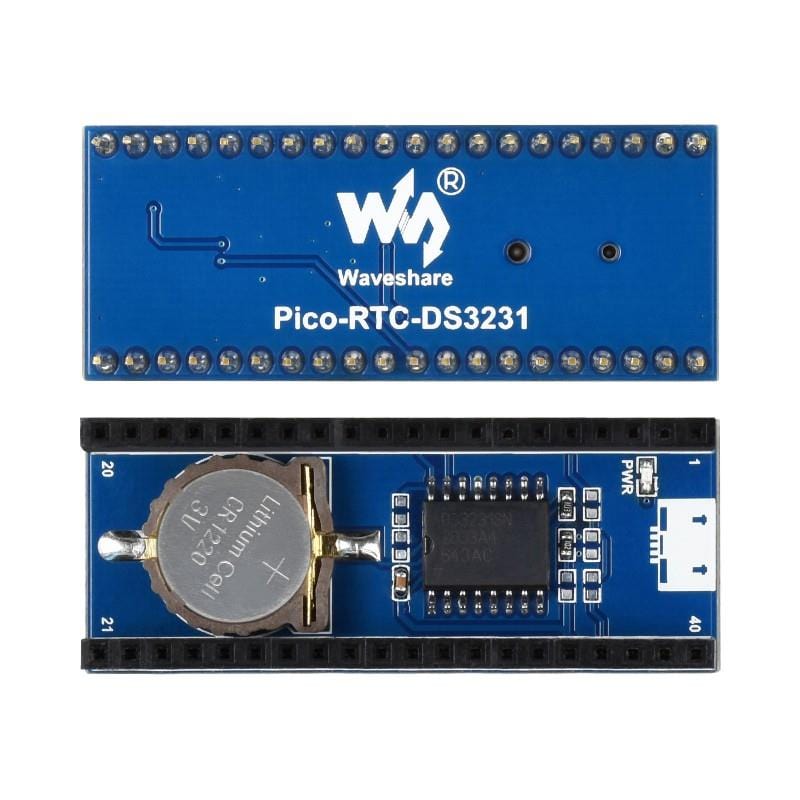

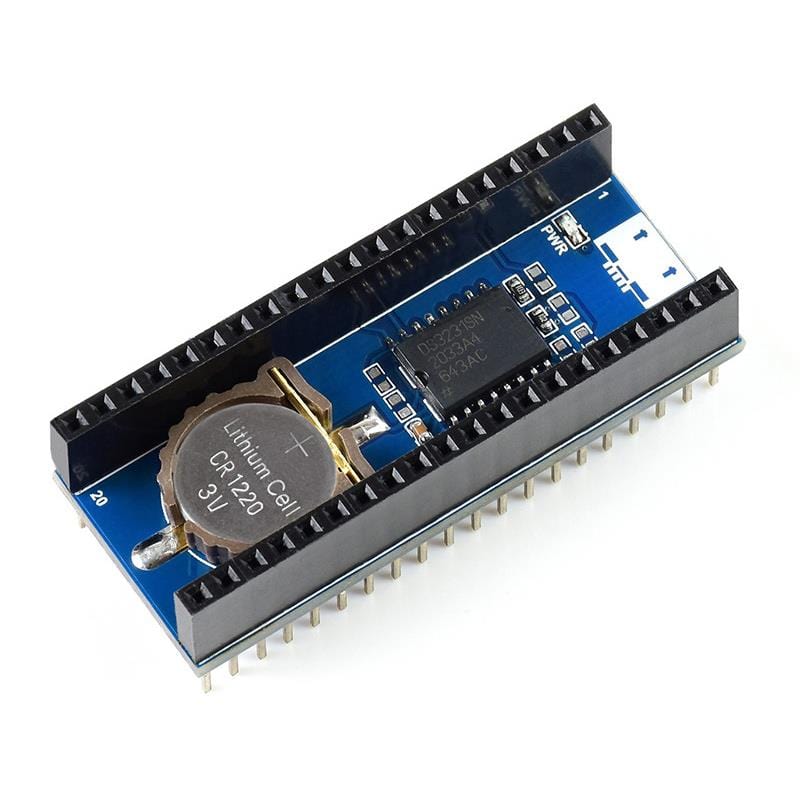

What's On Board

• 1) DS3231
  • High-precision RTC chip, I2C bus
• 2) RTC backup battery
  • Supports CR1220 button cell
• 3) Power indicator
  • Enabled by soldering a 0Ω resistor on the jumper, disabled by default
• 4) Raspberry Pi Pico header

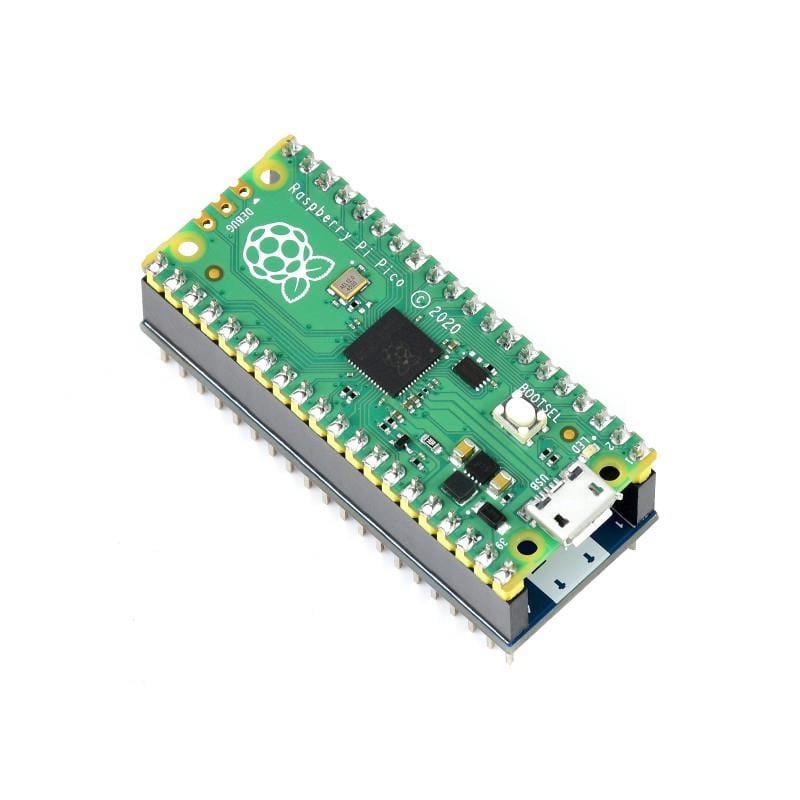

  • For attaching to Raspberry Pi Pico, stackable design

Resources

• Product Wiki

Package Contents

• 1x Pico RTC Module

Raspberry Pi Pico and CR1220 battery not included

Pinout

Specifications
