Assembled Pi T-Cobbler Plus - GPIO Breakout (Pi A+, B+, Pi 2/3/4/5, Zero)

AdafruitSKU: ADA2028
Price:
Sale price £7.80
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Compatible with:

Awesome Extras

Downgrade GPIO Ribbon Cable for Pi A+/B+/Pi 2/Pi 3 - 40p to 26p - The Pi HutDowngrade GPIO Ribbon Cable for Pi A+/B+/Pi 2/Pi 3 - 40p to 26p - The Pi Hut
The Pi HutDowngrade GPIO Ribbon Cable - 40-pin to 26-pin
Sale price £2.90 incl. VAT excl. VAT
Full-Size Breadboard - White - The Pi HutFull-Size Breadboard - White - The Pi Hut
The Pi HutFull-Size Breadboard - White
Sale price £5 incl. VAT excl. VAT
GPIO Ribbon Cable for Raspberry Pi Model A+/B+/Pi 2/Pi 3 - The Pi HutGPIO Ribbon Cable for Raspberry Pi Model A+/B+/Pi 2/Pi 3 - The Pi Hut
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT
Assembled Pi Cobbler Plus - Breakout Cable (for Pi B+/A+/Pi 2/Pi 3/Pi 4/Pi 5)Assembled Pi Cobbler Plus - Breakout Cable (for Pi B+/A+/Pi 2/Pi 3/Pi 4/Pi 5)

This is the assembled version of the Pi T-Cobbler Plus.  It only works with the Raspberry Pi Model Zero, A+, B+, Pi 2, Pi 3, Pi 4 and Pi 5! (Any Pi with a 2x20 connector)

The Raspberry Pi has landed on the Maker World as a 40-GPIO pinned, quad-USB ported, credit card-sized bomb of DIY joy. And while you can use most of our great Model B accessories by hooking up our downgrade cable, it's probably a good time to upgrade your set-up and accessorize using all of the 40 pins.

That's why we now carry the Assembled Adafruit Pi T-Cobbler Plus - Breakout + Cable for Raspberry Pi. This Cobbler is in a fancy T-shape, which is not as compact, but is a little easier to read the labels. We also have the more compact original Cobbler Plus.

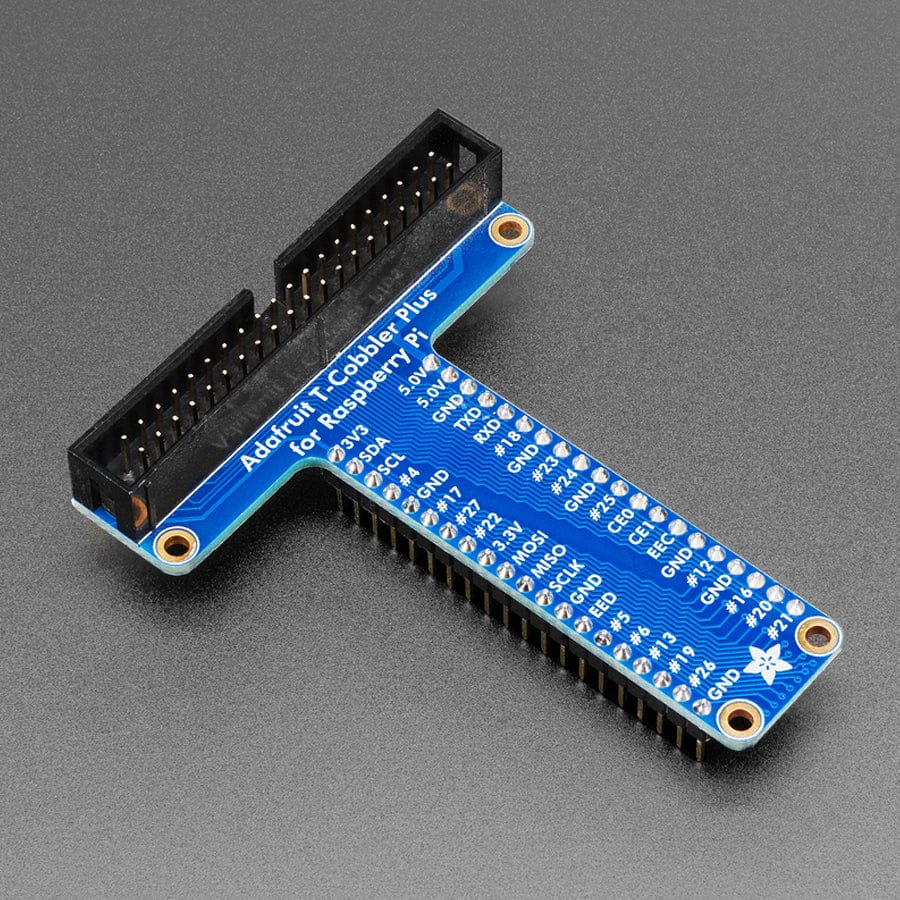

The T-Cobbler Plus is an add-on prototyping board from Adafruit specifically designed for the 2 x 20 connector-type Raspberry Pi and can break out all those tasty power, GPIO, I2C and SPI pins from the 40-pin header onto a solderless breadboard. This set will make "cobbling together" prototypes with the Pi super easy.

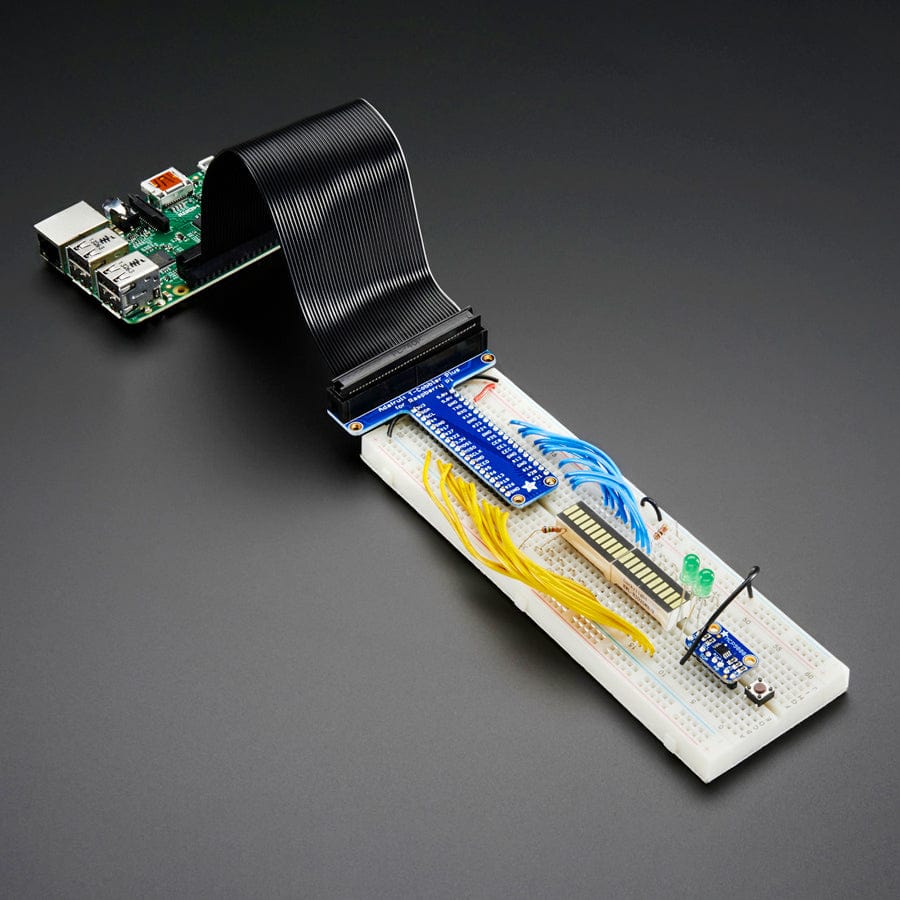

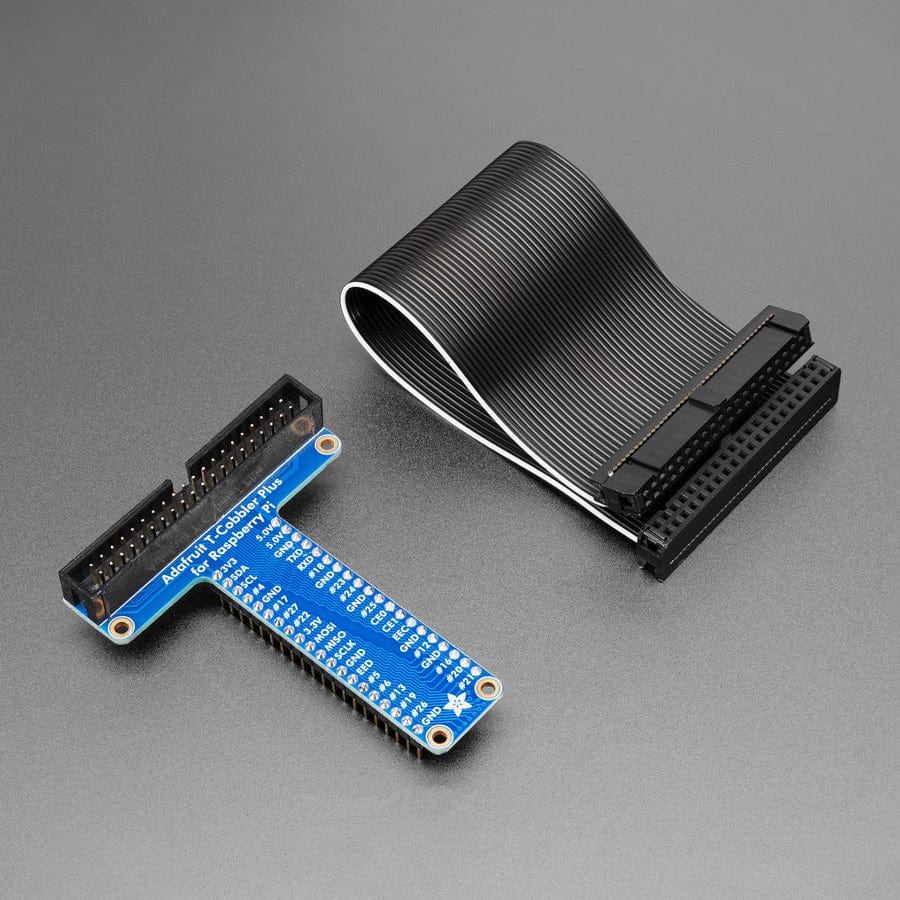

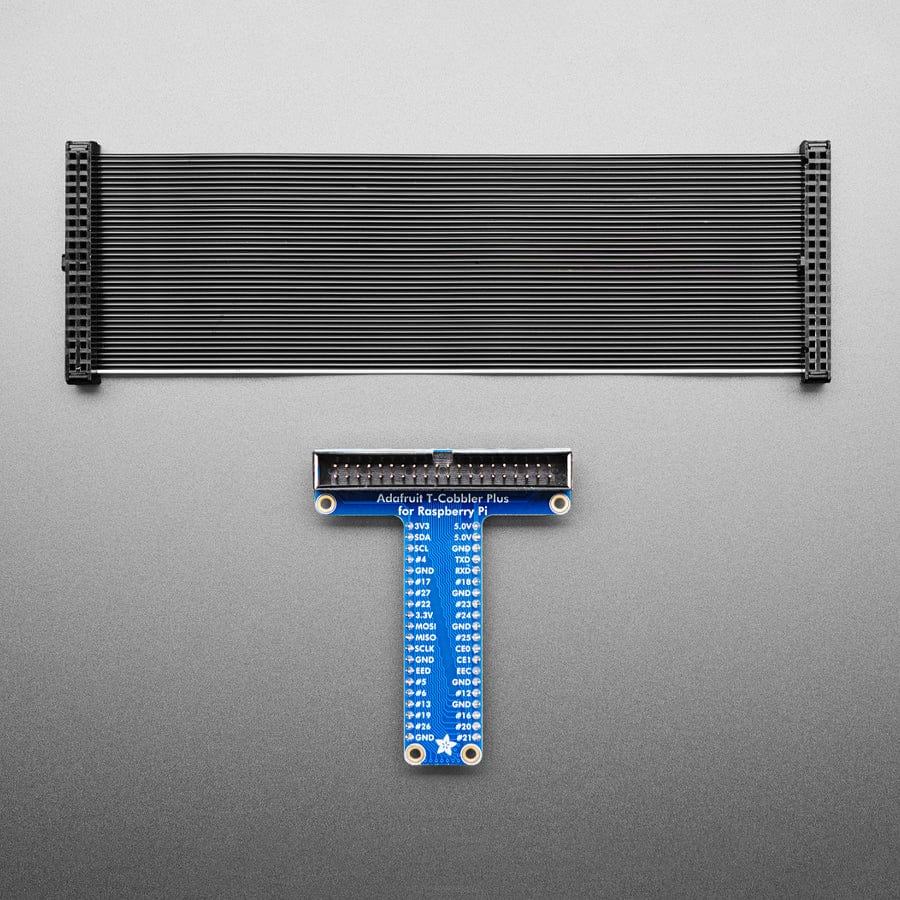

Each order comes with a 40 pin ribbon cable and assembled T-Cobbler Plus. You can plug the 40-pin GPIO cable between the Pi computer and the T-Cobbler breakout. The T-Cobbler can plug into any solderless breadboard (or even a prototyping board like the PermaProto). The T-Cobbler PCB has all the pins labeled nicely so you can go forth and build circuits without keeping a pin-out printout at your desk. We think this will make it more fun to expand the Pi and build custom circuitry with it.

Designed for use with any 2 x 20 connector Raspberry Pi. No soldering is required!

The Raspberry Pi, solderless breadboard, breadboarding wires, cables, components, power supply, etc are NOT included! We do stock many of those items in the shop, so check those out as well!

Revision History

  • As of September 25th, 2024 - We updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen.

Specifications

  • 73mm x 20mm x 11mm / 2.9" x 0.8" x 0.4"
  • Height with pins: 19mm / 0.8"
  • Width at top of T: 58mm / 2.3"
  • Weight: 14g
