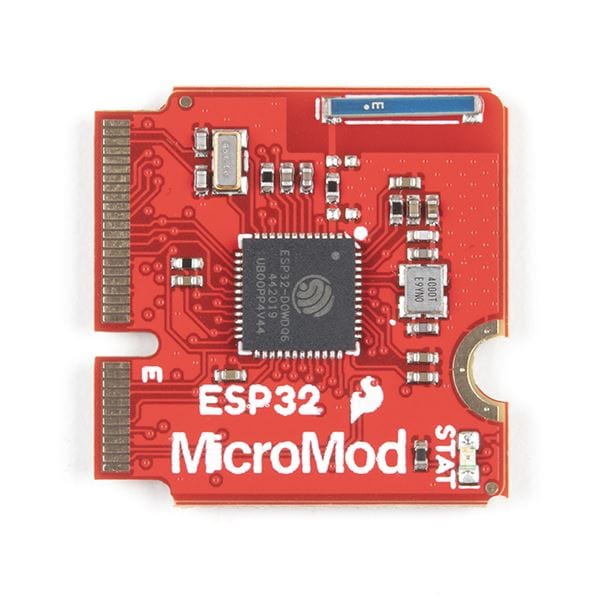

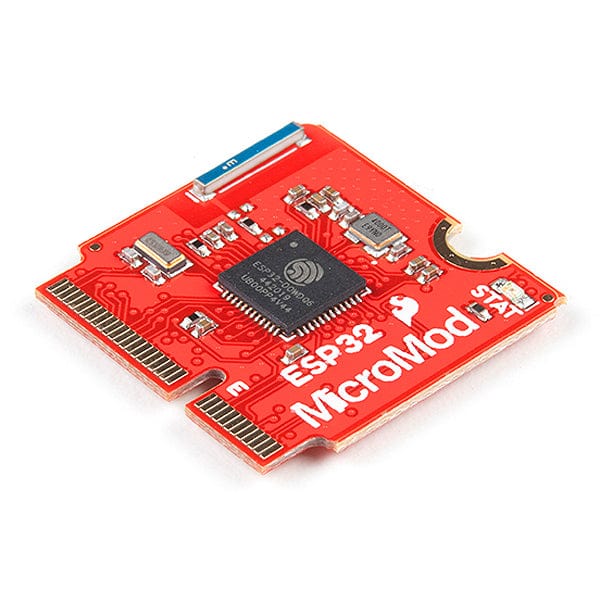

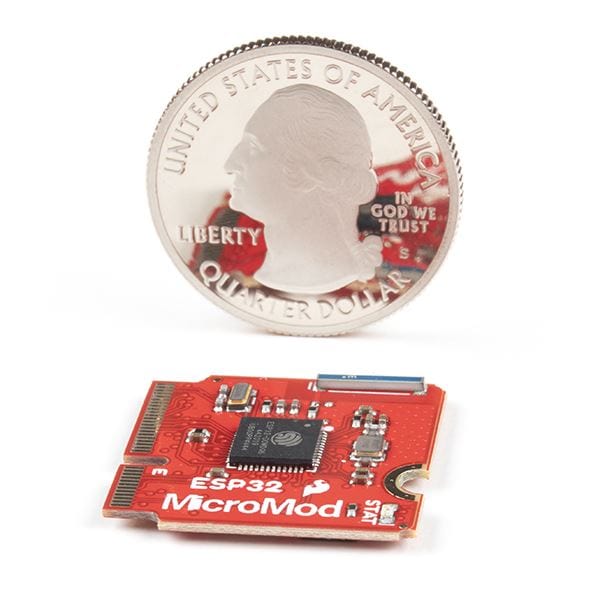

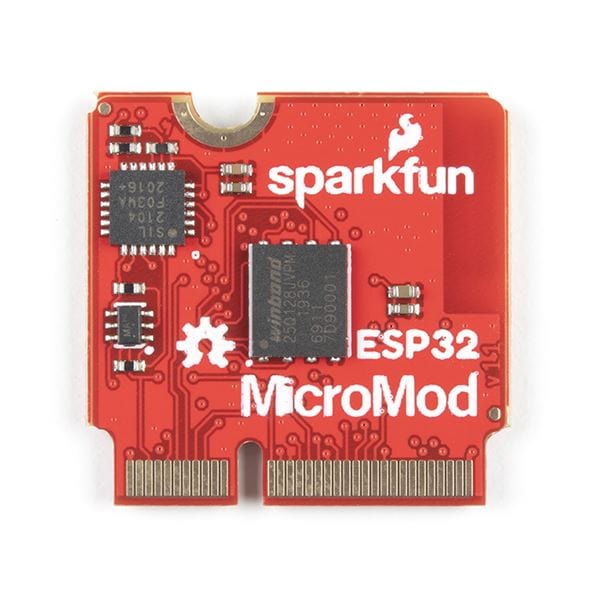

SparkFun MicroMod ESP32 Processor

SparkfunSKU: WRL-16781
Price:
Sale price £16
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

SparkfunSparkFun MicroMod ATP Carrier Board
Sale price £18 incl. VAT excl. VAT
SparkfunSparkFun MicroMod Machine Learning Carrier Board
Sale price £19.80 incl. VAT excl. VAT
SparkfunSparkFun MicroMod Input and Display Carrier Board
Sale price £58.50 incl. VAT excl. VAT
SparkfunSparkFun MicroMod Qwiic Carrier Board - Single
Sale price £9.90 incl. VAT excl. VAT
SparkfunSparkFun MicroMod Qwiic Carrier Board - Double
Sale price £10.50 incl. VAT excl. VAT

The MicroMod ESP32 Processor Board combines Espressif's ESP32 with our M.2 connector interface to bring a processor board with reliable WiFi capabilities into our MicroMod ecosystem. With the M.2 MicroMod connector, connecting your ESP32 Processor is a breeze. Simply match up the key on your processor's bevelled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards). If you need to swap out your processor for a strong wireless option, make sure to check out the MicroMod ESP32!

The ESP32 includes a laundry list of functionality, including the dual-core Tensilica LX6 microprocessor, 240MHz clock frequency, 520kB internal SRAM, integrated WiFi transceiver, integrated dual-mode, and hardware-accelerated encryption (AES, SHA2, ECC, RSA-4096). With this MicroMod processor board, you have access to 8 general use IO pins, dedicated analogue, digital, and PWM pins, as well as all the fan favourites - SPI, I2C, UART, and SDIO. Add to that 16MB flash storage and sleep current of around 500µA, and you've got a perfect storm of versatility.

Get Started with the Micromod ESP32 Processor Hookup Guide

Features

ESP32 General Features
  • Dual-core Tensilica LX6 microprocessor
  • Up to 240MHz clock frequency
  • 520kB internal SRAM
  • 128mbit/16MB flash storage
  • Integrated 802.11 BGN WiFi transceiver
  • 2.7 to 3.6V operating range
  • 500µA sleep current under hibernation
  • 10-electrode capacitive touch support
  • Hardware-accelerated encryption (AES, SHA2, ECC, RSA-4096)
Specific Peripherals made available on MicroMod ESP32
  • 1x USB dedicated for programming and debug
  • 1x UART
  • 2x I2C
  • 1x SPI
  • 7x GPIO
  • 2x Digital Pins
  • 2x Analog Pins
  • 2x PWM
  • Status LED
  • VIN Level ADC

Additional peripherals are available but are shared on dedicated MicroMod pins.

Resources

MicroMod ESP32 Processor Documentation MicroMod Documentation ESP32 Documentation
