Simple USB C Socket Breakout

Price:
Sale price £1.70
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

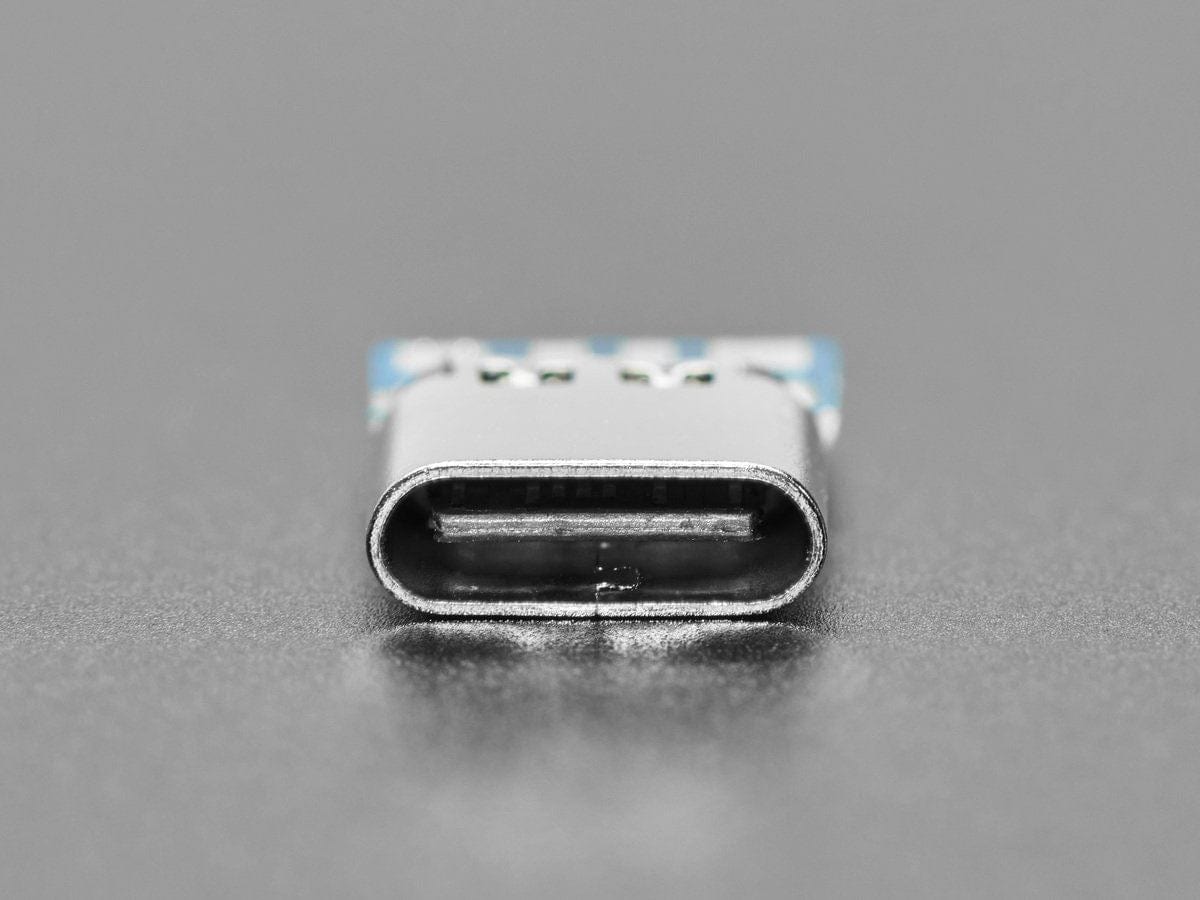

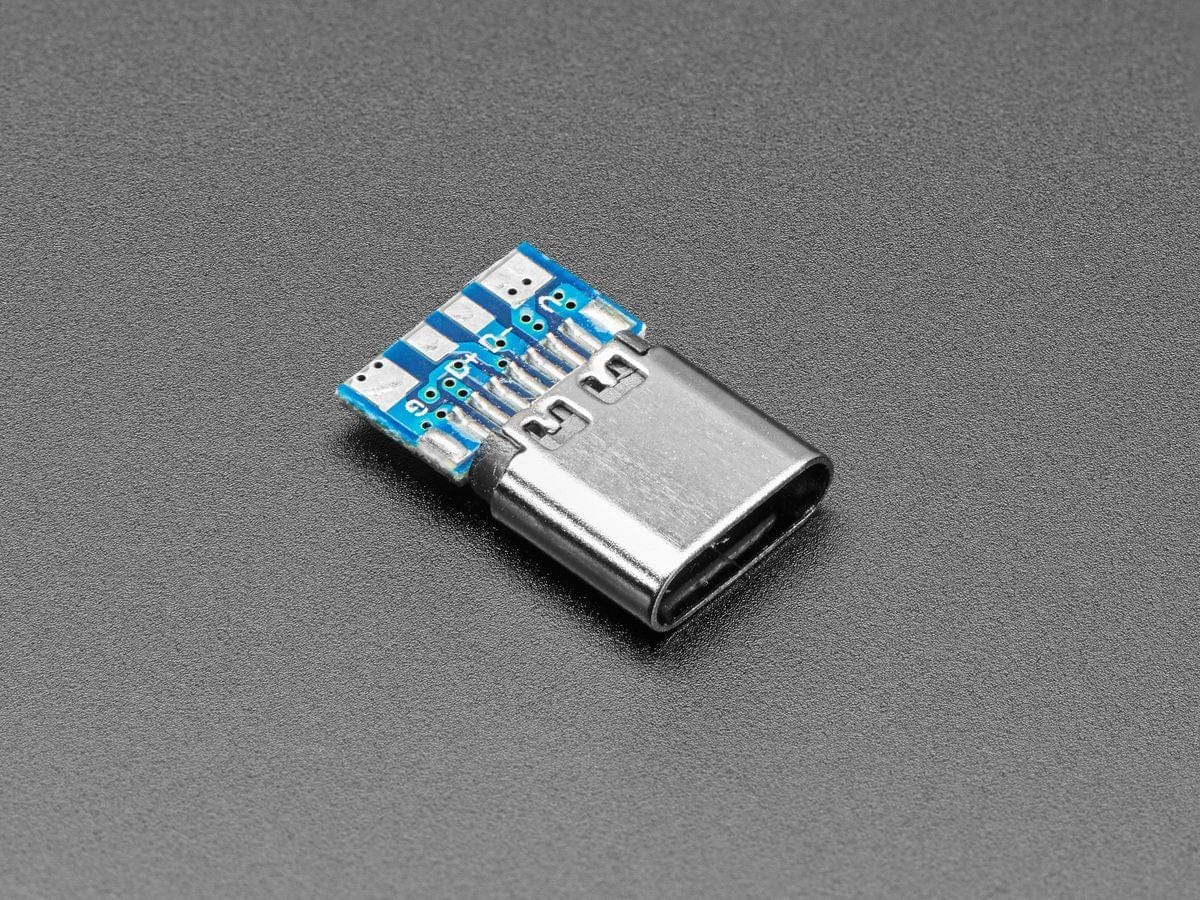

This Simple USB Type C breakout is kinda interesting, it looks similar to this USB Type C SMT Inline Breakout Board, but it's an 'inline' style with pads for soldering to the common USB 1.1/2.0 connections. We see this lil breakout used often in custom keyboards, it's glued or wedged into the enclosure.

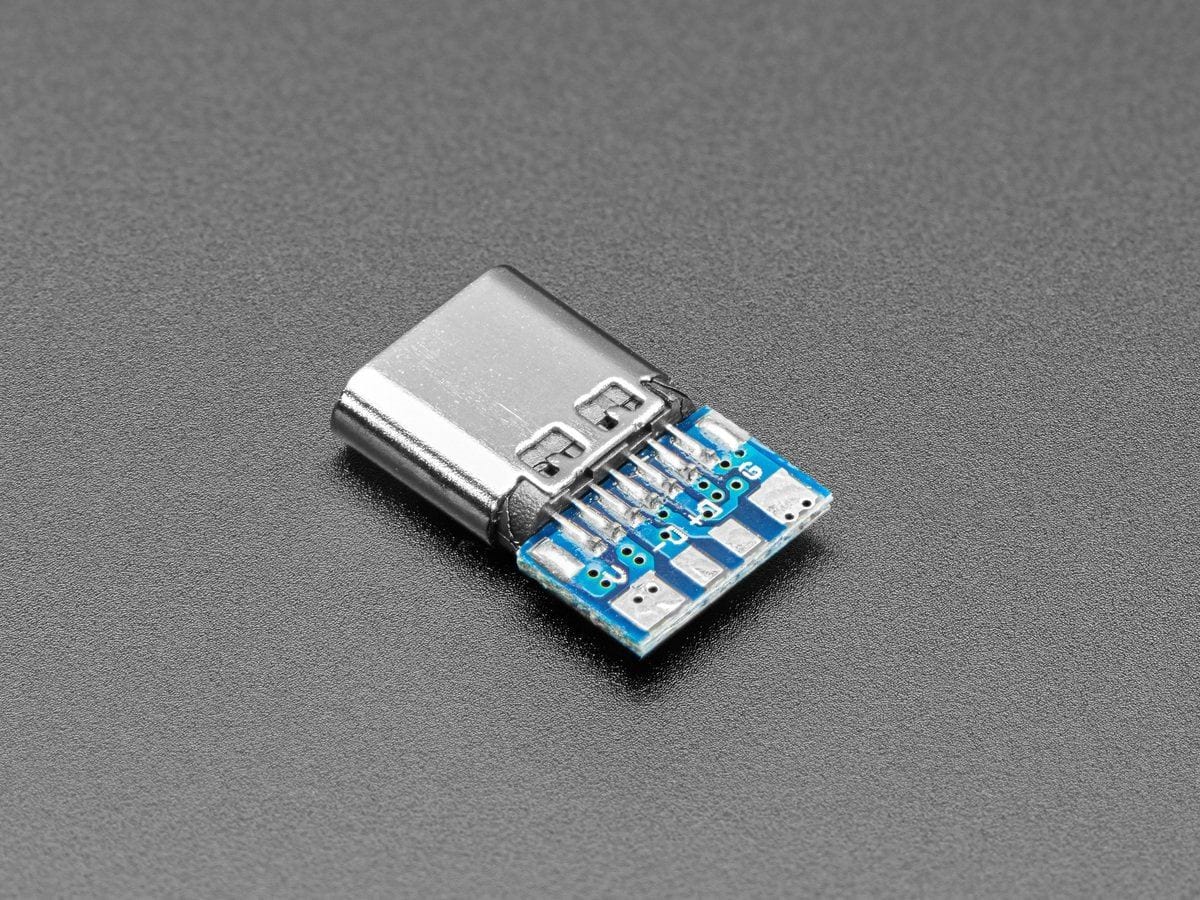

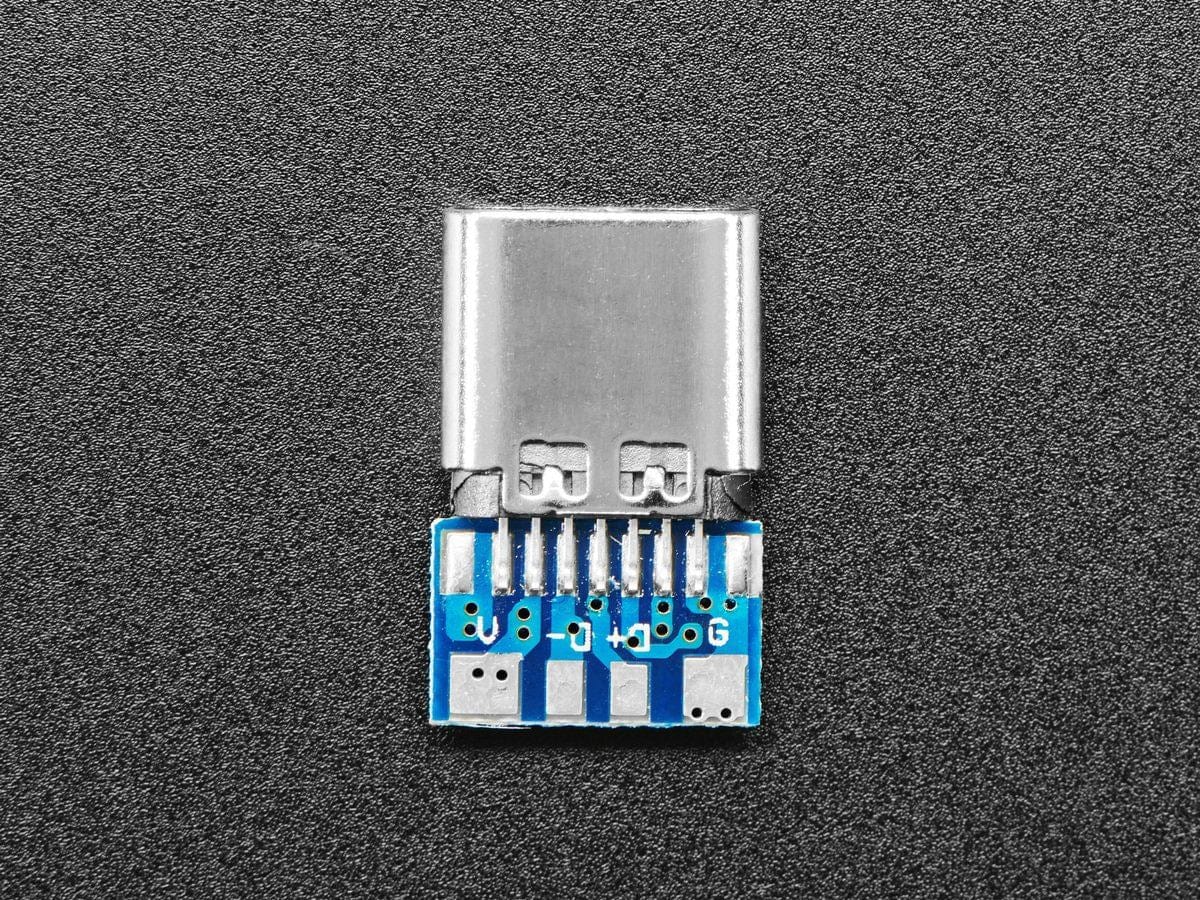

Unlike our breakout, it doesn't break out all the pads - it just gives you the classic 4 USB pins that would let you connect to a USB-capable chip or microcontroller. It does not have any resistors to set direction/current - but despite that it seems to work just fine when we used it to connect to our computer. It may not work with power supplies or ports that require CC resistors for PD negotiation.

For more details, we like this Introduction to USB C app note.

Technical Details

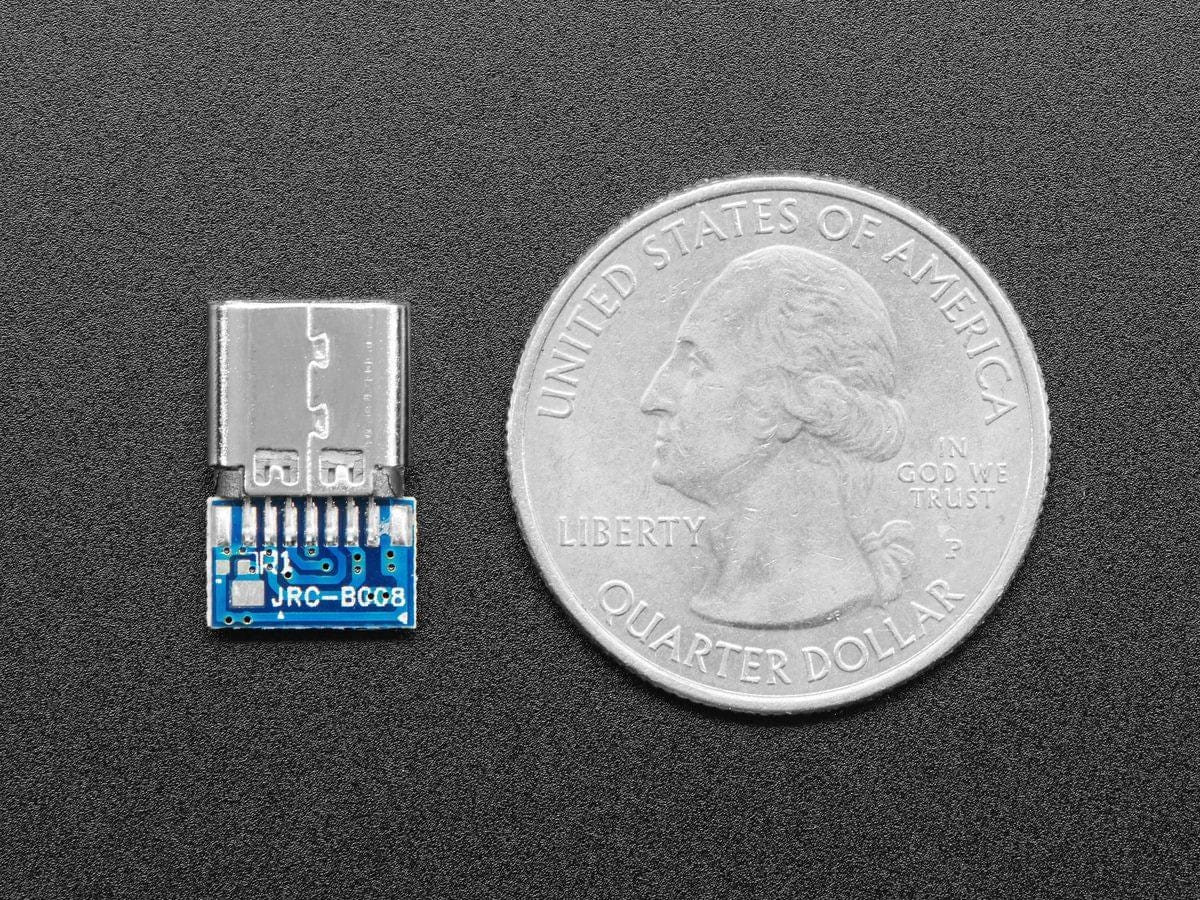

  • Product Dimensions: 14.5mm x 9.2mm x 3.2mm / 0.6" x 0.4" x 0.1"
