A compact AI IoT camera development board with 64bit image processing capabilities.
Powered by a Kendryte K210 dual-core 64bit RISC-V CPU, advanced neural network processor and OmniVision OV7740 image sensor, M5StickV is a great option for low power embedded machine vision. It also has a speaker with built-in DAC, an IPS screen, motion sensor and inbuilt battery.
Lithium Battery Shipping:Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
Dual Independent Double Precision FPU
Neural Network Processor(KPU) / 0.8Tops
Field-Programmable IO Array (FPIOA)
Dual hardware 512-point 16bit Complex FFT
SPI, I2C, UART, I2S, RTC, PWM, Timer Support
AES, SHA256 Accelerator
Direct Memory Access Controller (DMAC)
Micropython Support
Firmware encryption support
Case Material: PC + ABS
Includes

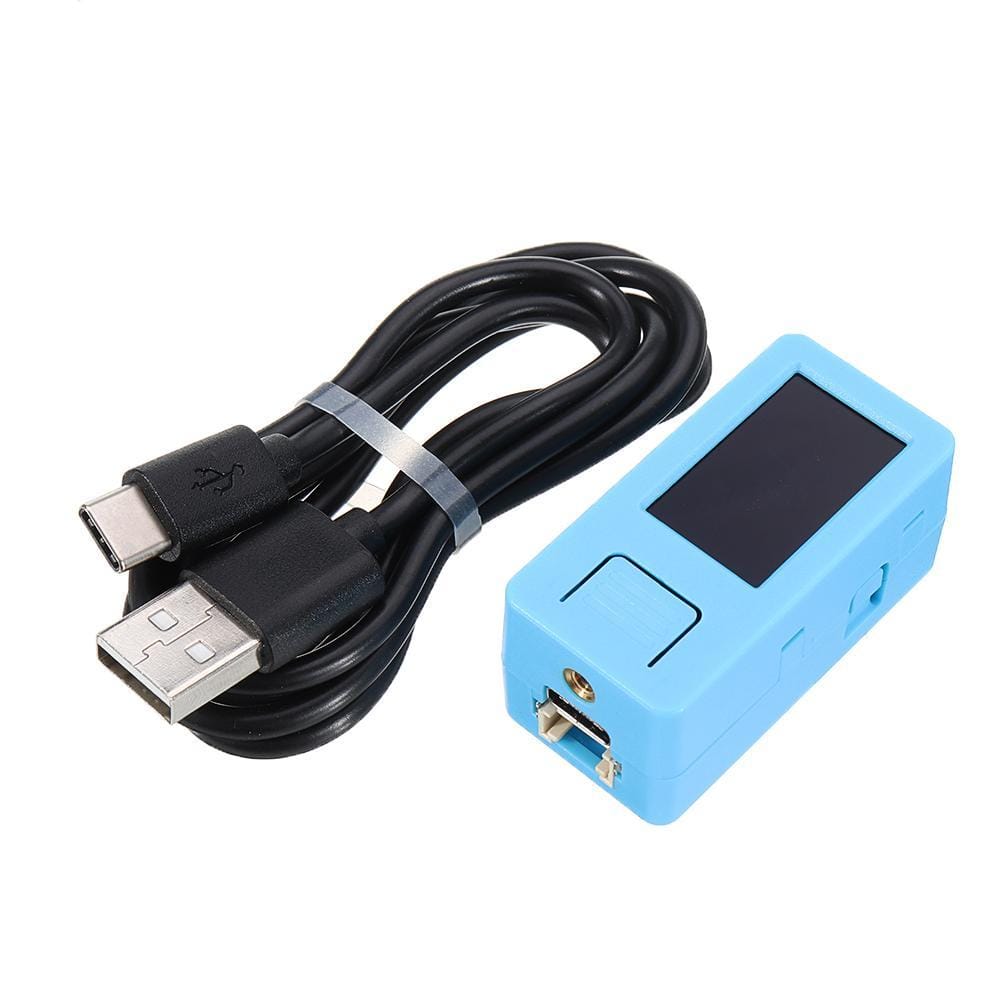

1x M5StickV
1x USB Type-C cable (100cm)

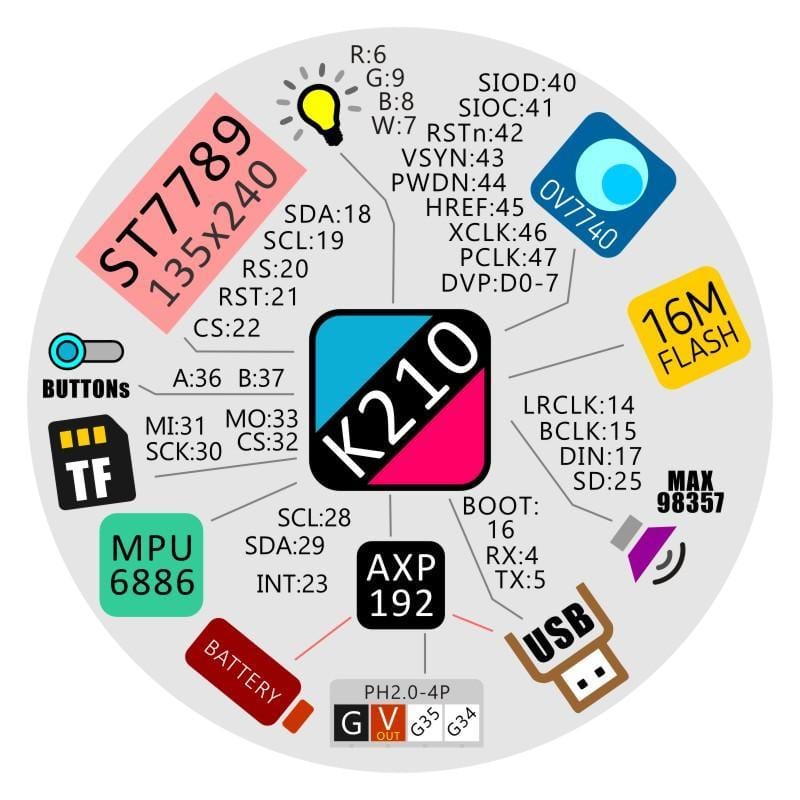

Specifications
Resources
Parameter
Kendryte K210
Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
SRAM
8Mbit
Flash
16M
Power input
5V @ 500mA
KPU Parameter size of neural network
5.5MiB - 5.9MiB
Port
TypeC x 1, GROVE(I2C+I/0+UART) x 1
RGB LED
RGBW x 1
Button
Custom button x 2
IPS screen
1.14 TFT, 135 x 240, ST7789
Camera
OV7740
PMU
AXP192
Battery
200mAh
External storage
TF Card/Micro SD
MEMS
MPU6886
Size
144 x 44 x 43mm
Weight
82g
Case Material
Plastic ( PC )
