Analog Test Board

WaveshareSKU: WAV-3972
£5.40
incl. VAT
excl. VAT
Only 12 units left

Awesome Extras

The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT
R3 Plus - Arduino-Compatible ATmega328P Development Board - The Pi HutR3 Plus - Arduino-Compatible ATmega328P Development Board - The Pi Hut
WaveshareR3 Plus - Arduino-Compatible ATmega328P Development Board
£24.80 incl. VAT excl. VAT
Maker Nano - The Pi HutMaker Nano - The Pi Hut
CytronMaker Nano
£8.80 incl. VAT excl. VAT
Notify me

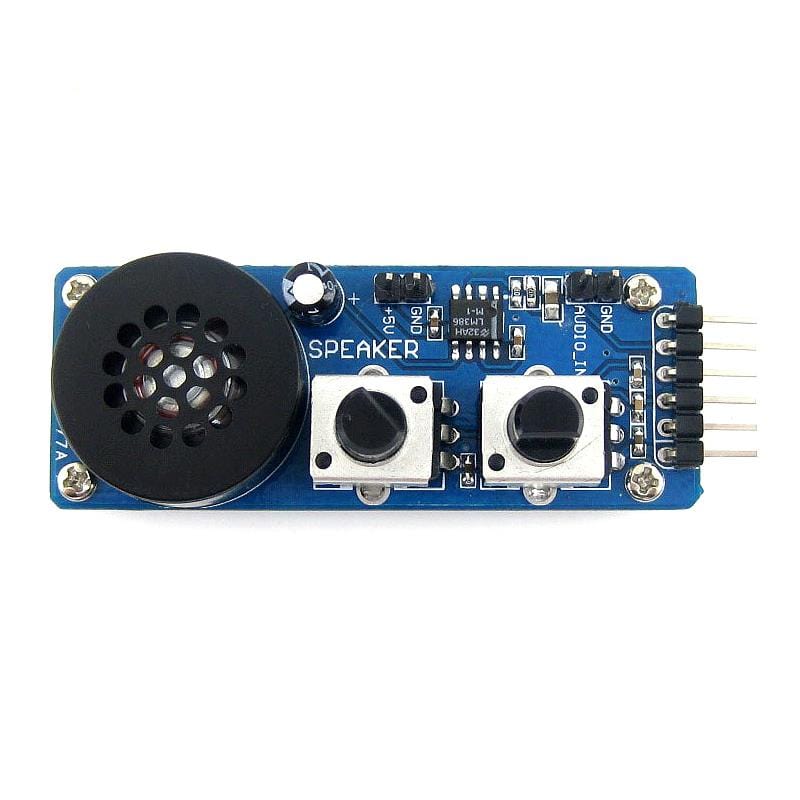

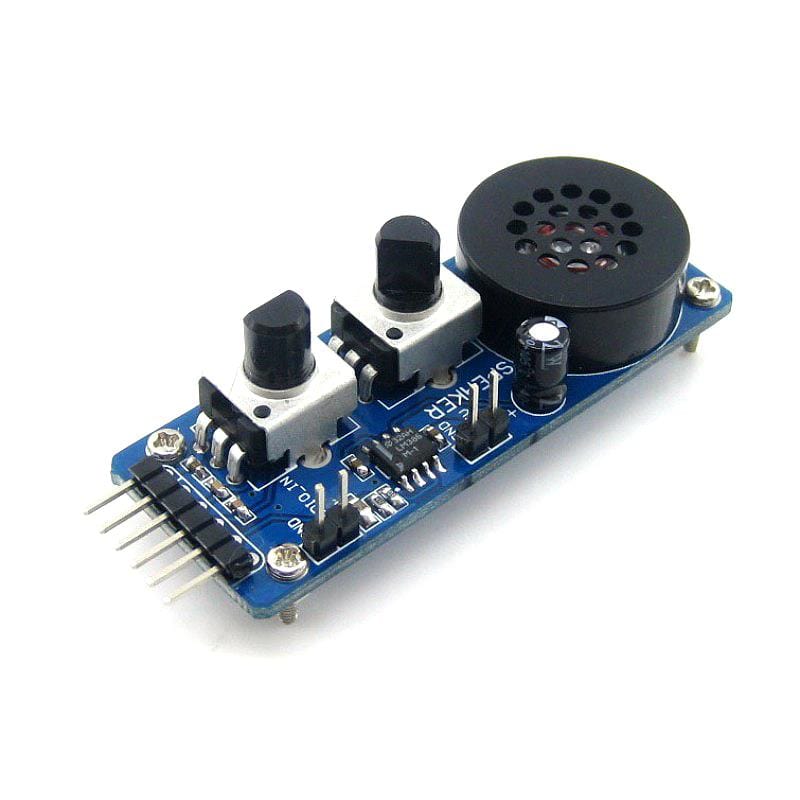

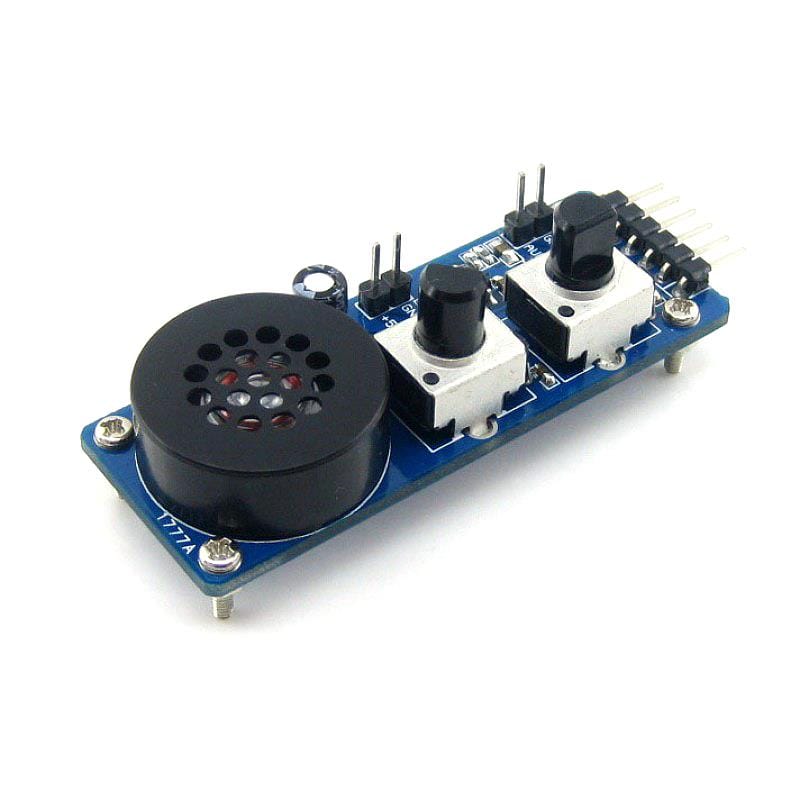

The Analog Test Board is an accessory board that includes an onboard Audio Power Amplifier (LM386M), two high-precision adjustable resistors used for adjusting the input voltage level (0-3.3V, 2 channel) and a speaker for indicating the output voltage level by sound volume (1 channel).

The board is ideal for testing AD/DA (ADC) functions that are integrated into many MCUs. The module also supports MP3 output to play music.

Don't forget to grab a handy pack of jumper wires for connecting to your development board!

Features

  • LM386M Audio Power Amplifier
  • Onboard speaker
  • High-precision adjustable resistors
  • Analog input/output
  • Mounting holes

Resources

Package Contents

  • 1x Analog Test Board
