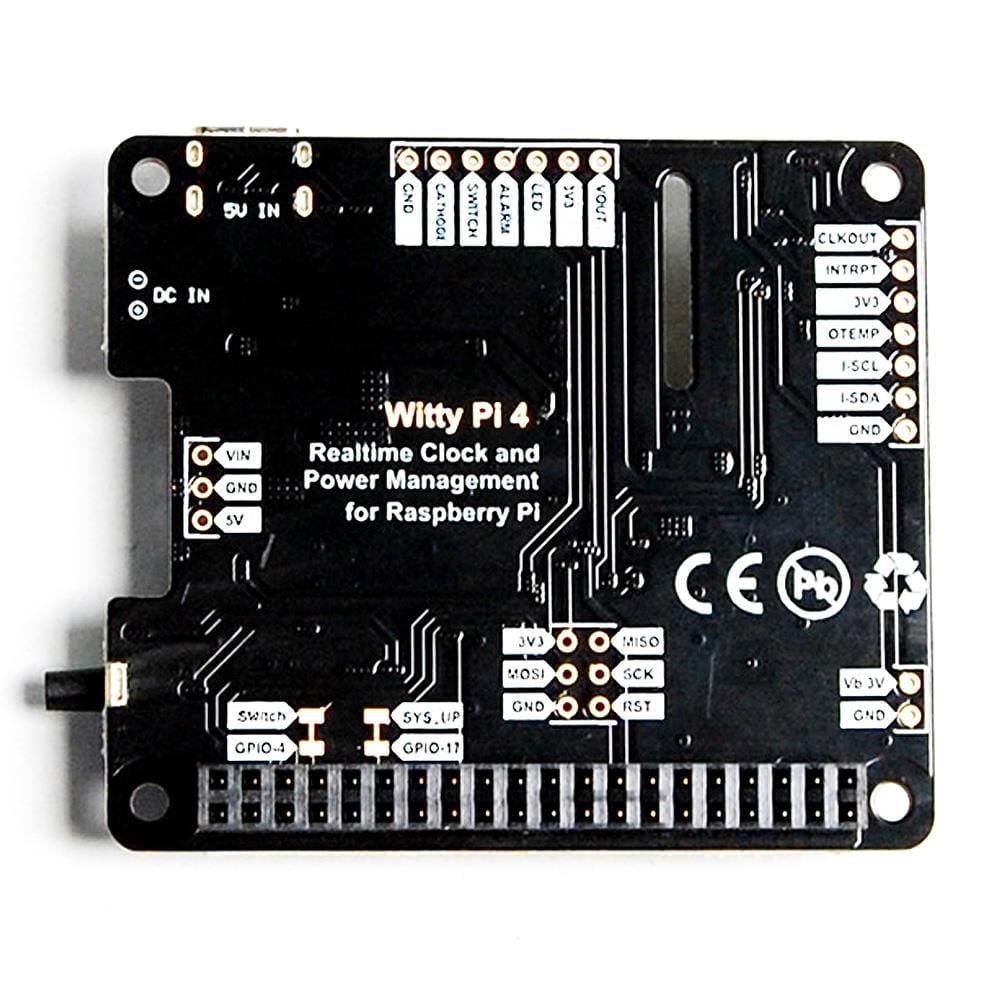

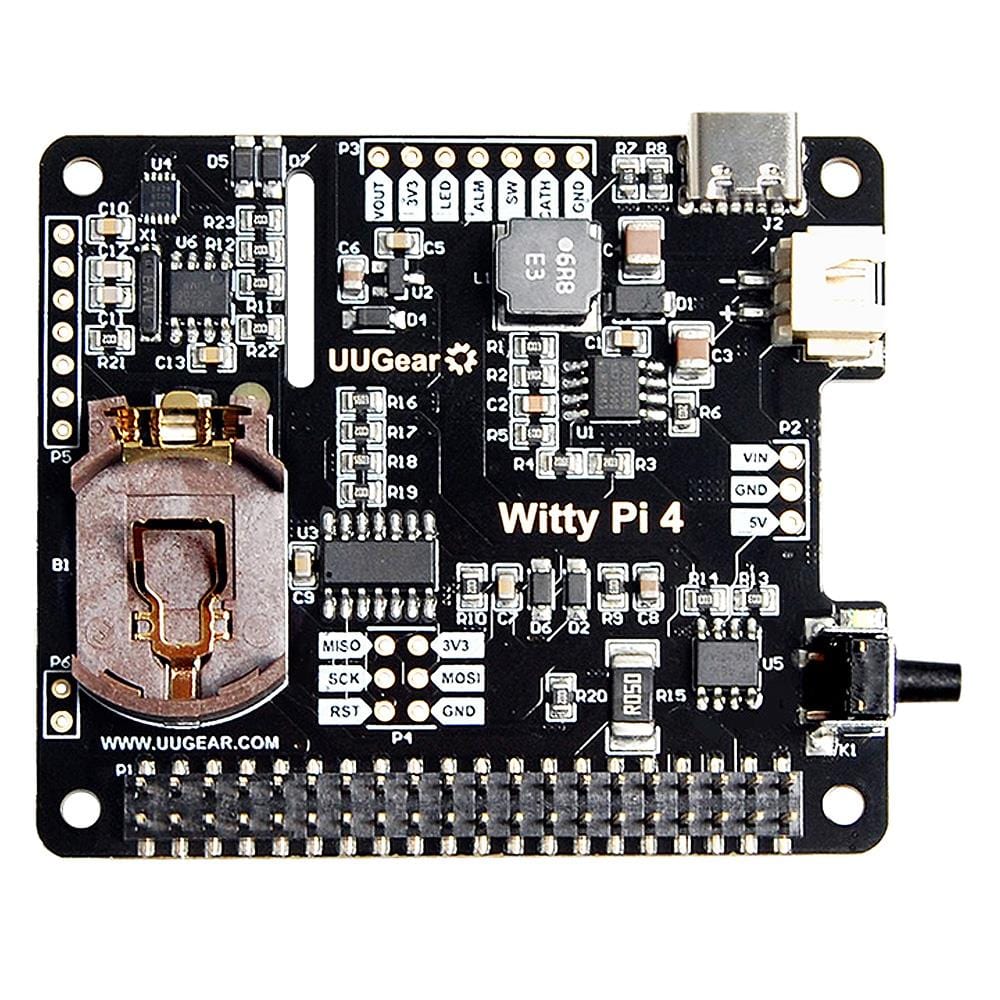

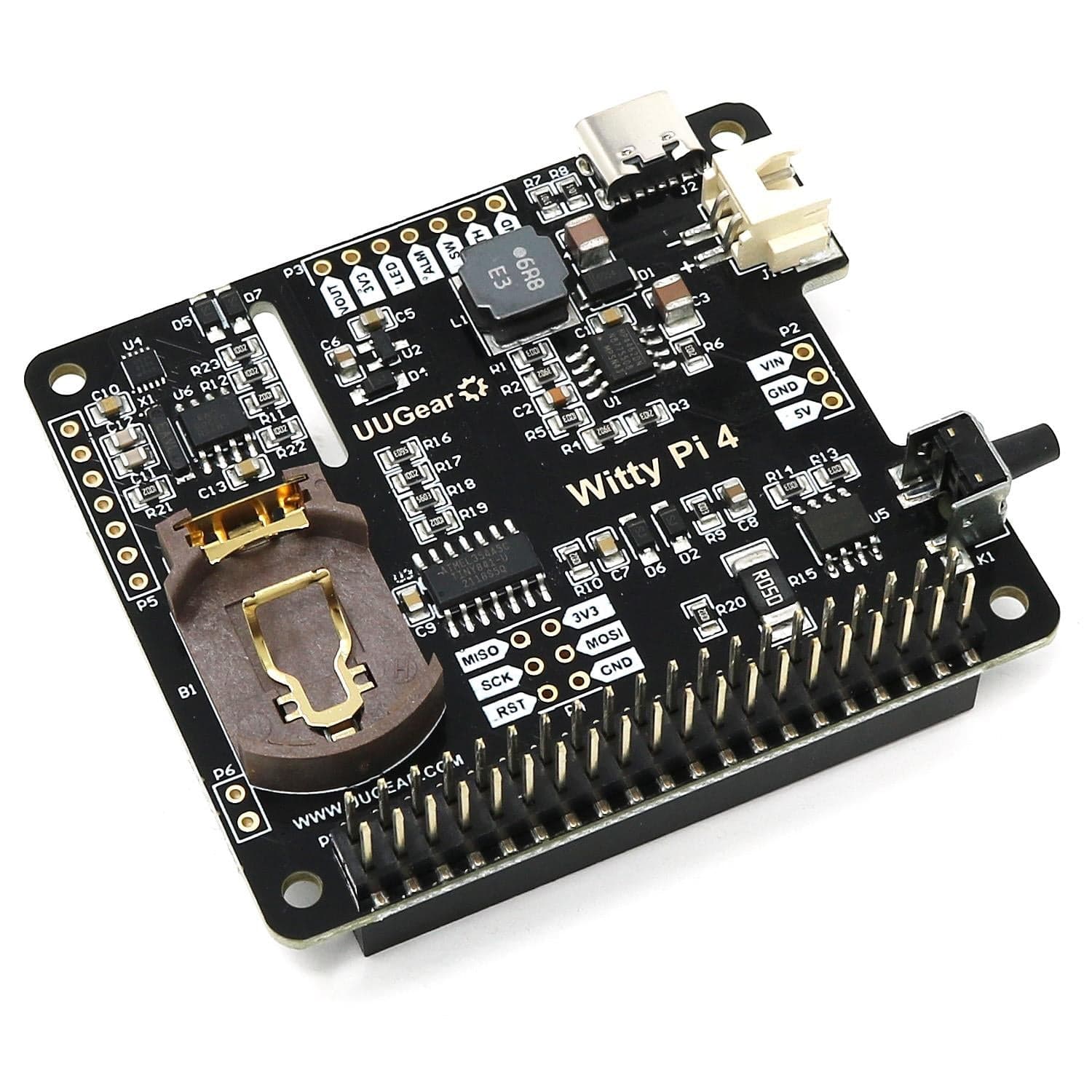

The Witty Pi 4 is an add-on board that adds a real-time clock and power management to your Raspberry Pi. It can define your Raspberry Pi’s ON/OFF sequence and significantly reduce energy usage. Witty Pi 4 is the fourth generation of the Witty Pi and has these hardware resources onboard:
- Factory calibrated and temperature compensated real-time clock with ±2ppm accuracy
- Dedicated temperature sensor with 0.125 °C resolution
- On-board DC/DC converter that accepts up to 30V DC
- AVR 8-bit microcontroller (MCU) with 8 KB programmable flash
Lithium Battery Shipping: This product can only be shipped to the UK mainland. With this item in your cart, your shipping options will be limited to DHL. Why?
Accurate Real-time Clock and On/Off Scheduling
The real-time clock (RTC) on Witty Pi 4 has been calibrated in the factory and Witty Pi 4’s firmware also makes temperature compensation for the crystal. This makes the RTC very accurate and the actual annual error is limited to within ±2ppm.
When your Raspberry Pi boots up, the time stored in the RTC will overwrite the system time. As a result, your Raspberry Pi knows the correct time even without accessing the Internet. You can schedule the startup and/or shutdown of your Raspberry Pi, and make it a time-controlled device. You can even define a scheduled script to schedule complicated ON/OFF sequences for your Raspberry Pi.
Scheduling the ON/OFF sequence for Raspberry Pi is the most popular feature of Witty Pi, and it is extremely useful for systems that are powered by batteries. By only turning on Raspberry Pi when necessary, the battery can be used way much longer with Witty Pi installed.
Temperature Controlled Device
The temperature sensor on Witty Pi 4 has 0.125 °C resolution. The temperature data is used for compensating the crystal and making the RTC more accurate.
You can also specify the action (startup or shutdown) when the temperature goes above or below the preset threshold. This means you can also make your Raspberry Pi a temperature-controlled device.
DC/DC Converter and E-latching Power Switch
Witty Pi 4 comes with a DC/DC converter on board, which allows you to power your device with a 6~30V power supply. You can also power your device with 5V via the USB type C connector.
Witty Pi 4 also implements an e-Latching power switch, which is very similar to the power switch on your PC/Laptop computer. You can gracefully turn on/off your Raspberry Pi with a single tap on the button. The software running in the background will execute the shutdown command before the power gets cut, this avoids the data corruption caused by a hard shutdown.

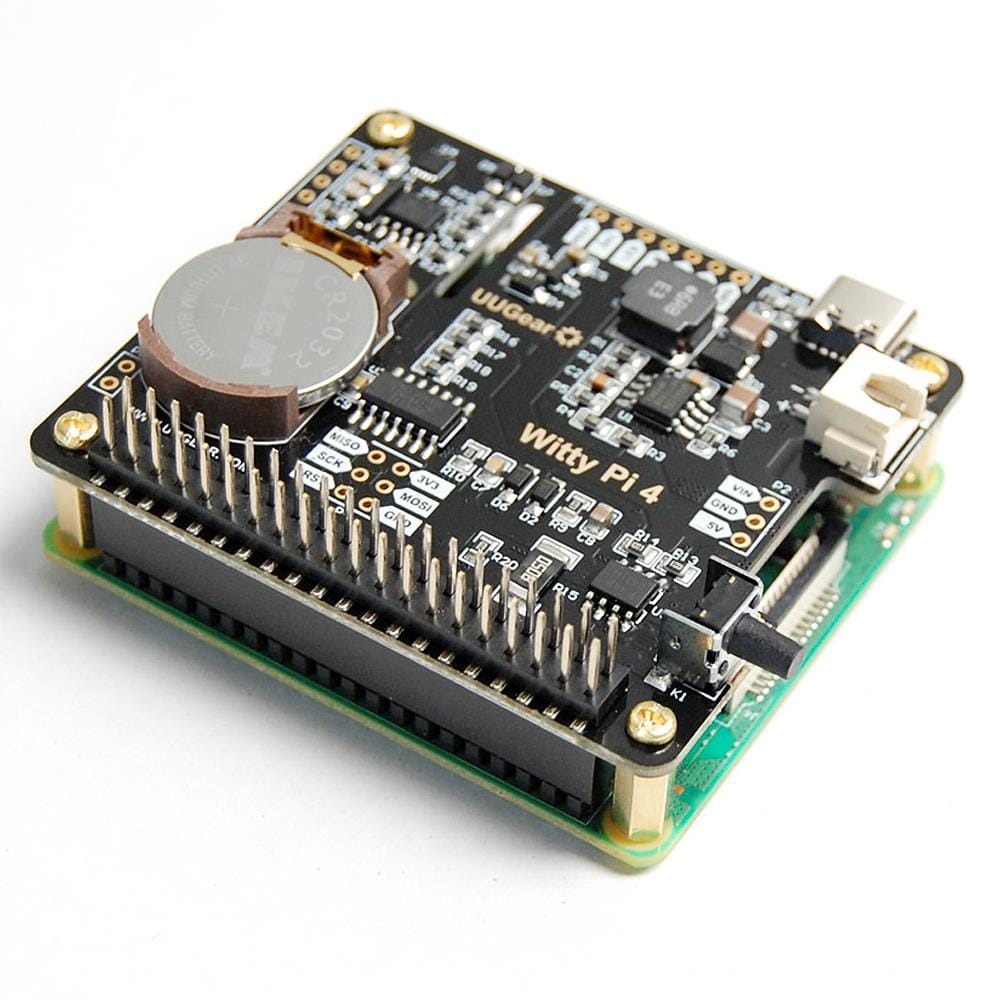

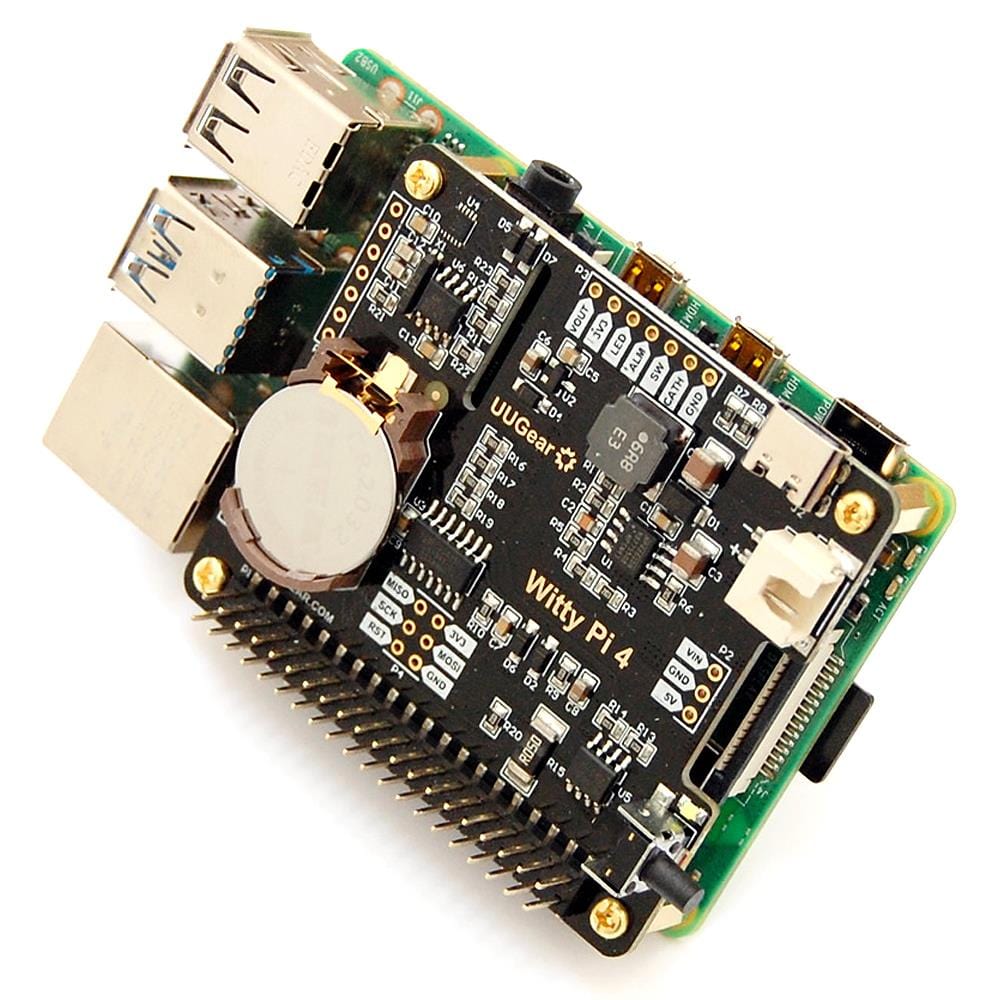

Witty Pi 4 supports all Raspberry Pi models that have the 40-pin GPIO header, including A+, B+, 2B, Zero, Zero W, Zero 2 W, 3B, 3B+, 3A+ and 4B. You will need to solder the 40-pin header to the Zero/Zero W/Zero 2 W model beforehand, so they can make a reliable connection with the Witty Pi.
Single I2C Device
Witty Pi 4 uses MCU to emulate a single I2C device with default address 0x08 and also maps all I2C registers in the real-time clock and temperature sensor as virtual I2C registers in the same device. You can access all I2C registers in the real-time clock and temperature sensor via the single I2C device emulated by Witty Pi 4.
The advantage of this new design is that Witty Pi 4 hides other I2C devices (real-time clock, temperature sensor) and becomes the proxy for them to talk to the Raspberry Pi. Because the I2C address used by Witty Pi 4 can be changed to any value, you can always avoid the I2C address conflicting.
Witty Pi 4 is fully supported by UWI, and you can access your Witty Pi 4 on any device that has network access.
You just need to run these two commands in your Raspberry Pi to install Witty Pi 3’s software:
sudo sh install.sh

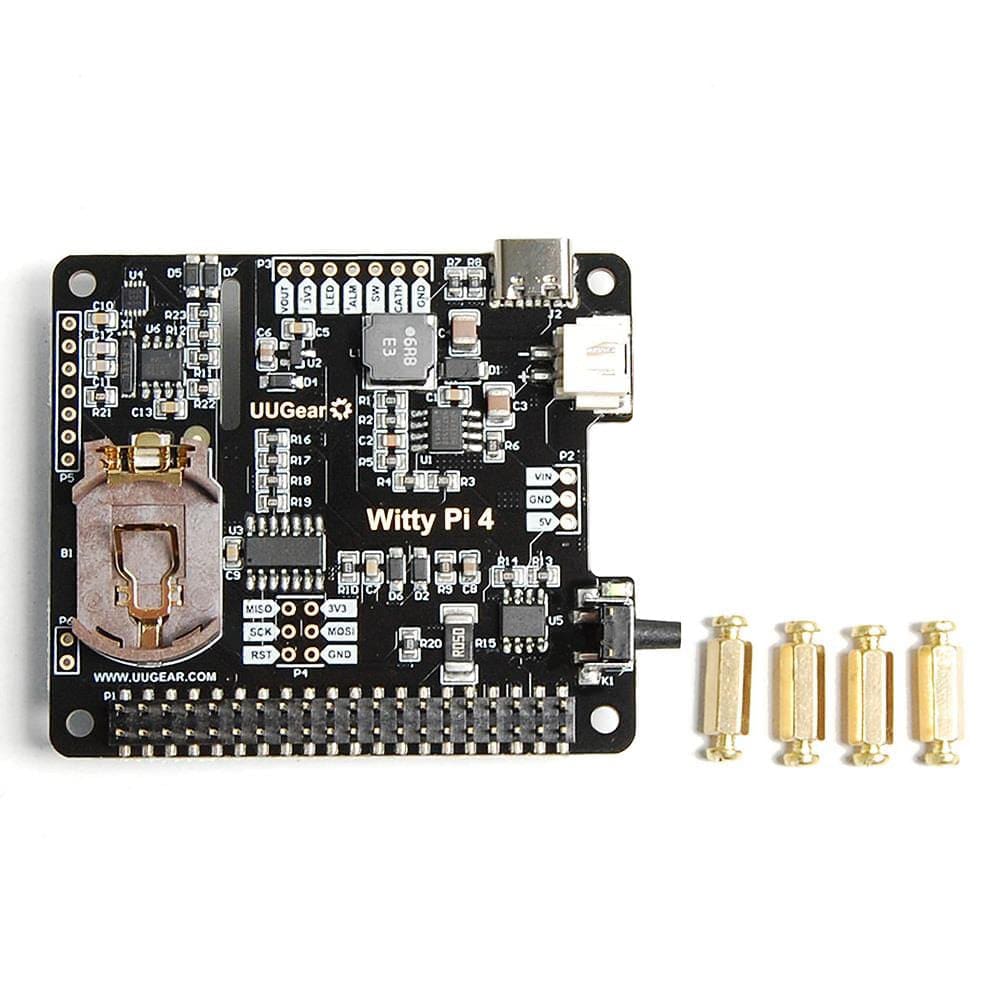

Each Witty Pi 4 package contains:
- 1x Witty Pi 4 board
- 1x CR2032 battery
- 4x M2.5 x 11mm Copper Standoff
- 8x M2.5 screws
|Dimension||65mm x 56mm x 19mm|
|Weight||23g (net weight without accessories)|
|Realtime Clock||PCF85063A (datasheet), calibrated in the factory|
|Temperature Sensor||LM75B (datasheet)|
|DC/DC Converter||MP4462 (datasheet)|
|MOSFET Switch||AO4616 (datasheet)|
|Battery||CR2032 (for timekeeping when the power supply is disconnected)|
|Power In||DC 5V (via USB type C connector)|
|or DC 6V~30V (via XH2.54 connector)|
|Output Current||Up to 3A for Raspberry Pi and its peripherals|
|Operating Environment||Temperature -30°C~80°C (-22°F~176°F)
Humidity 0~80%RH, no condensing, no corrosive gas
- User manual
- Schedule Script Generator - You can now use our web app to create and debug the schedule script for Witty Pi
