GamePi13 1.3" LCD Game HAT for Raspberry Pi (240 x 240)
Price:
Sale price
£12.80
Stock:
Awesome Extras
Who doesn't love some nostalgic gaming? We certainly do! It's so easy to connect this little device to a Raspberry Pi Zero and start playing your favourite classic games.

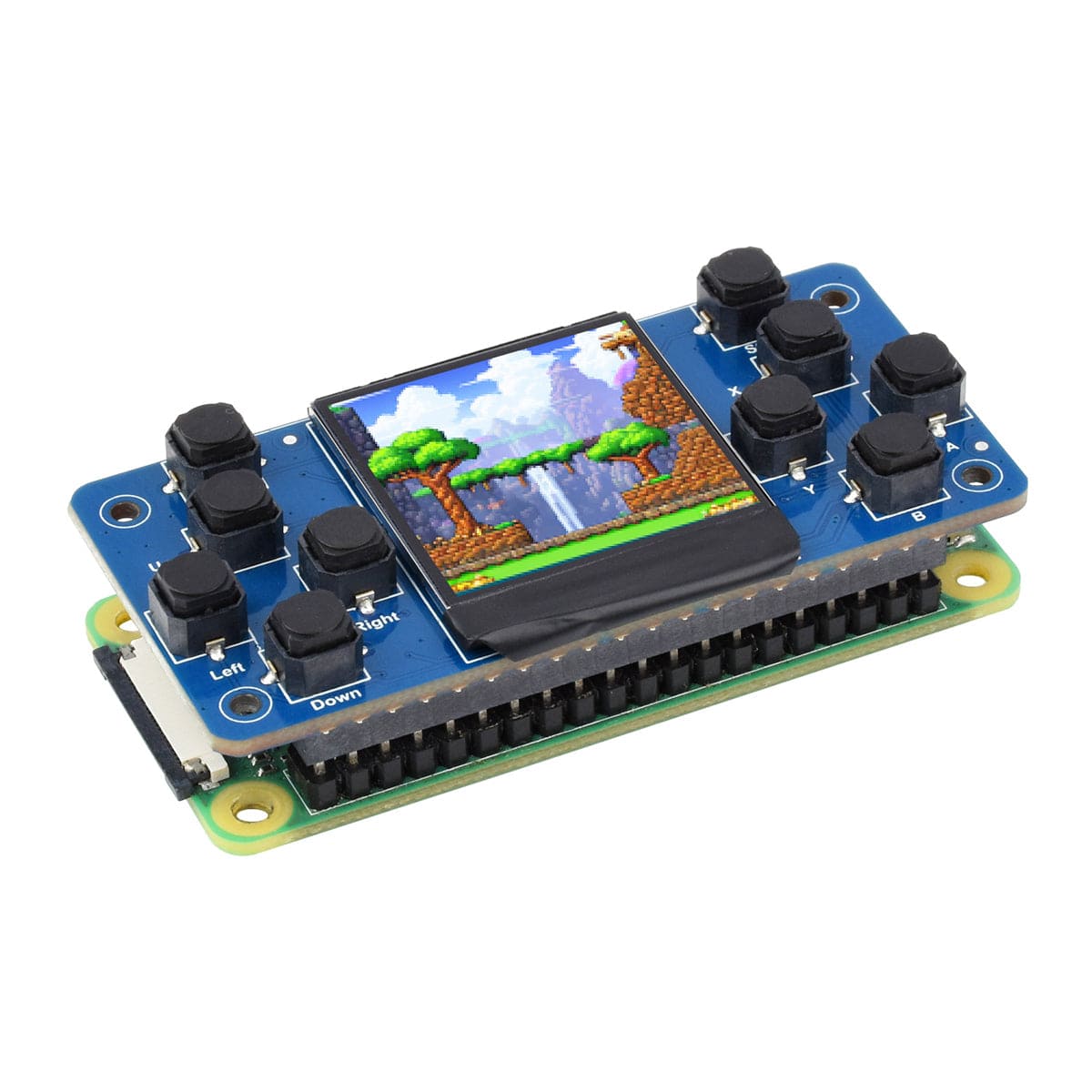

The GamePi13 is a small HAT that lets you build your own retro gaming device with your Pi Zero (so you don't have to dig out the old Gameboy). It has a 1.3" IPS display with a 240x240 resolution and 65K colours, and comes with plenty of buttons for a range of games.

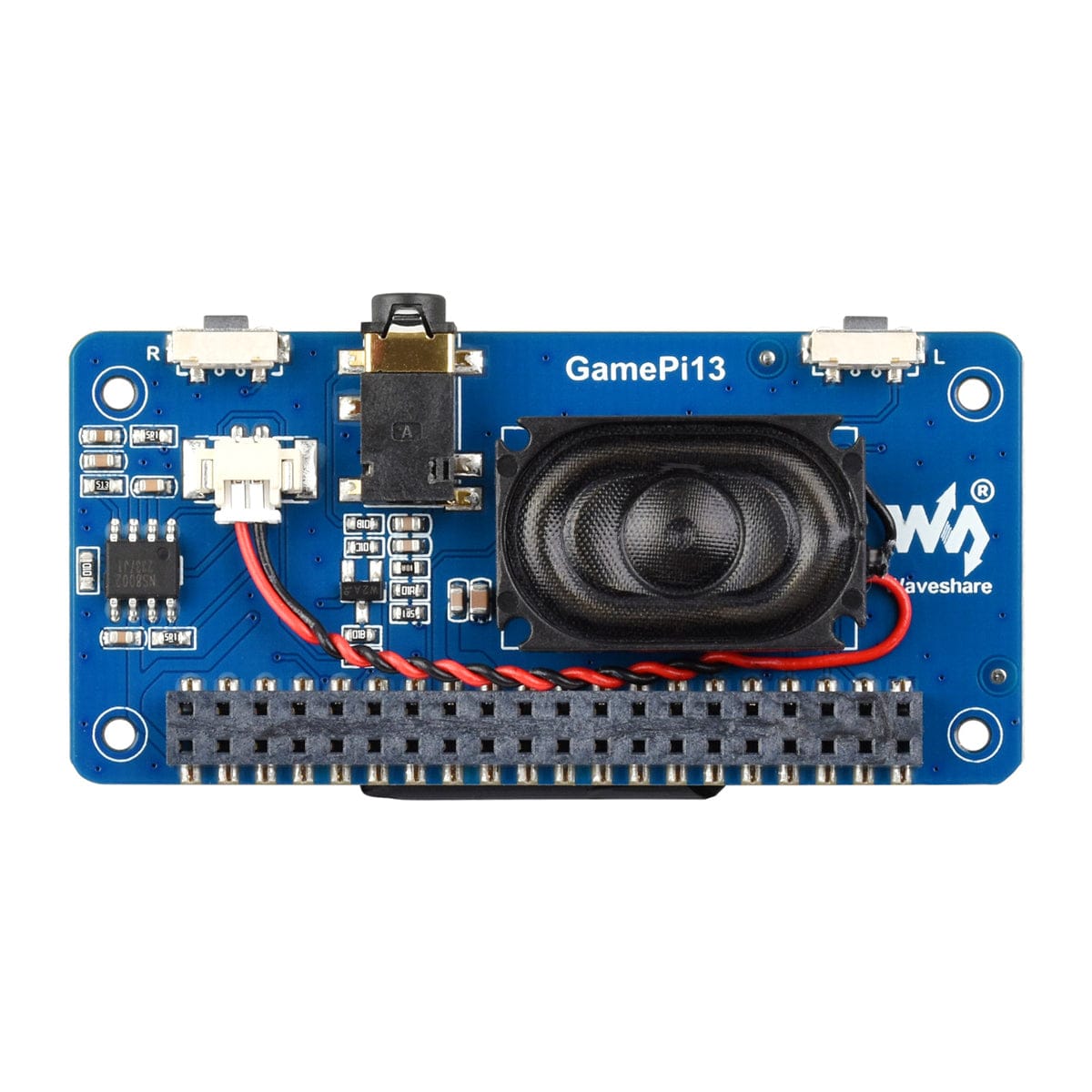

Audio is covered with a 3.5mm jack for headphones, a built-in speaker, and a buzzer to add to your gaming experience.
Powering the GamePi13 is easy - just connect it to a Pi Zero or RP2040 Zero and you're ready to go. Detailed resources and instructions are provided, making assembly and setup a piece of cake!
The Zero and games/ROMs are NOT included.
Features
- 1.3" IPS screen with ST7789 driver chip, using SPI interface communication
- 65K colour display screen, 240 x 240 resolution for clear display effect
- 12x Customisable Buttons
- Comes with online development resources (demos for Raspberry Pi / RP2040 Zero)
- Note: mounting holes are M2, not the standard M2.5 that you would expect from a HAT! We've fed this back to Waveshare to see if they will update the design to be more standardised.

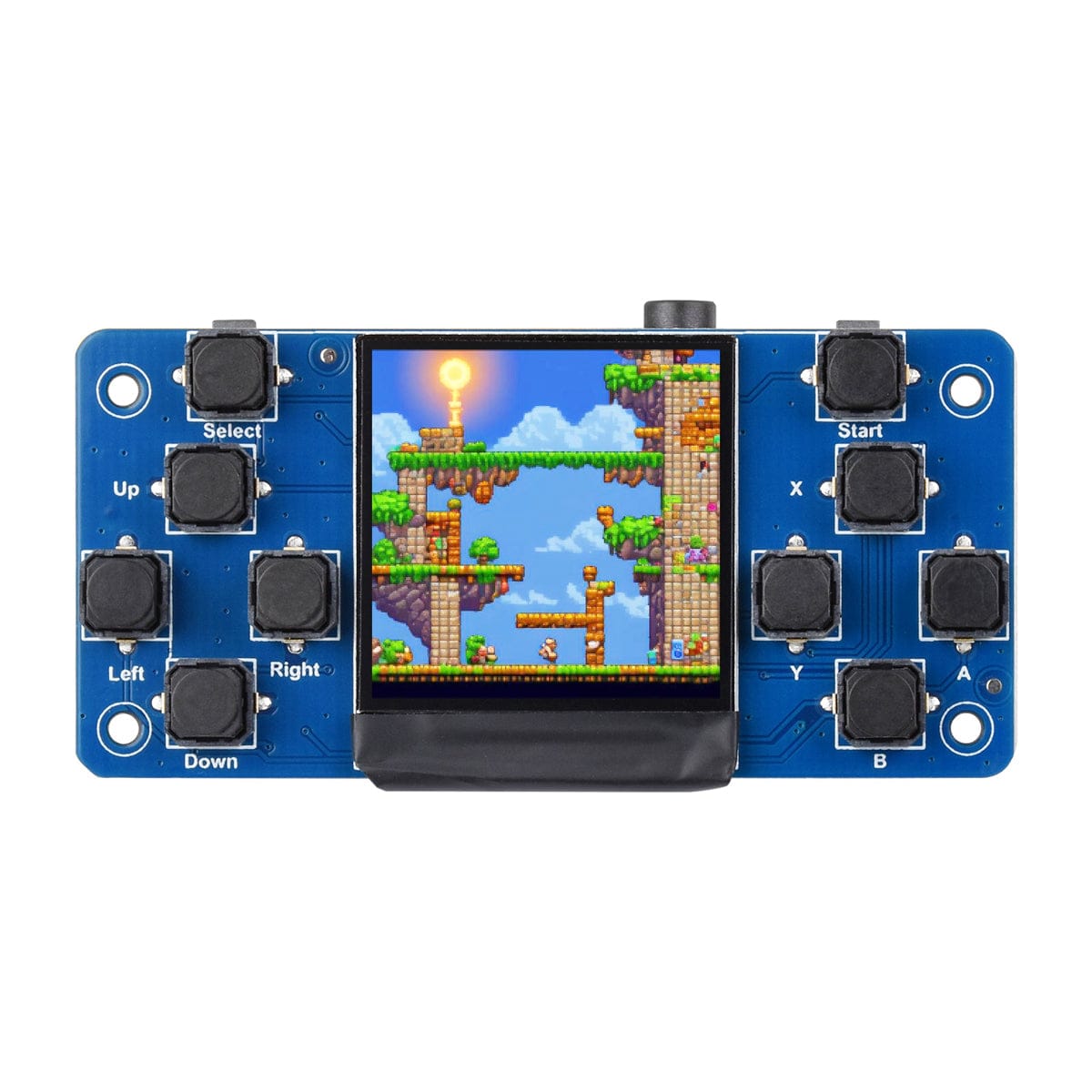

What's on Board/Button Map
Specifications
| Working Voltage | 3.3V |
| Communication Interface | SPI |
| Screen Type | IPS |
| Control Chip | ST7789 |
| Resolution | 240(H) RGB x 240(V) |
| Display Size | 23.4 (H) x 23.4 (V) (mm) |
| Pixel Size | 0.0975 (H) x 0.0975 (V) (mm) |
| Product Size | 65 x 31(mm) |
Resources
Pinout
Package Contents
- 1x GamePi13
