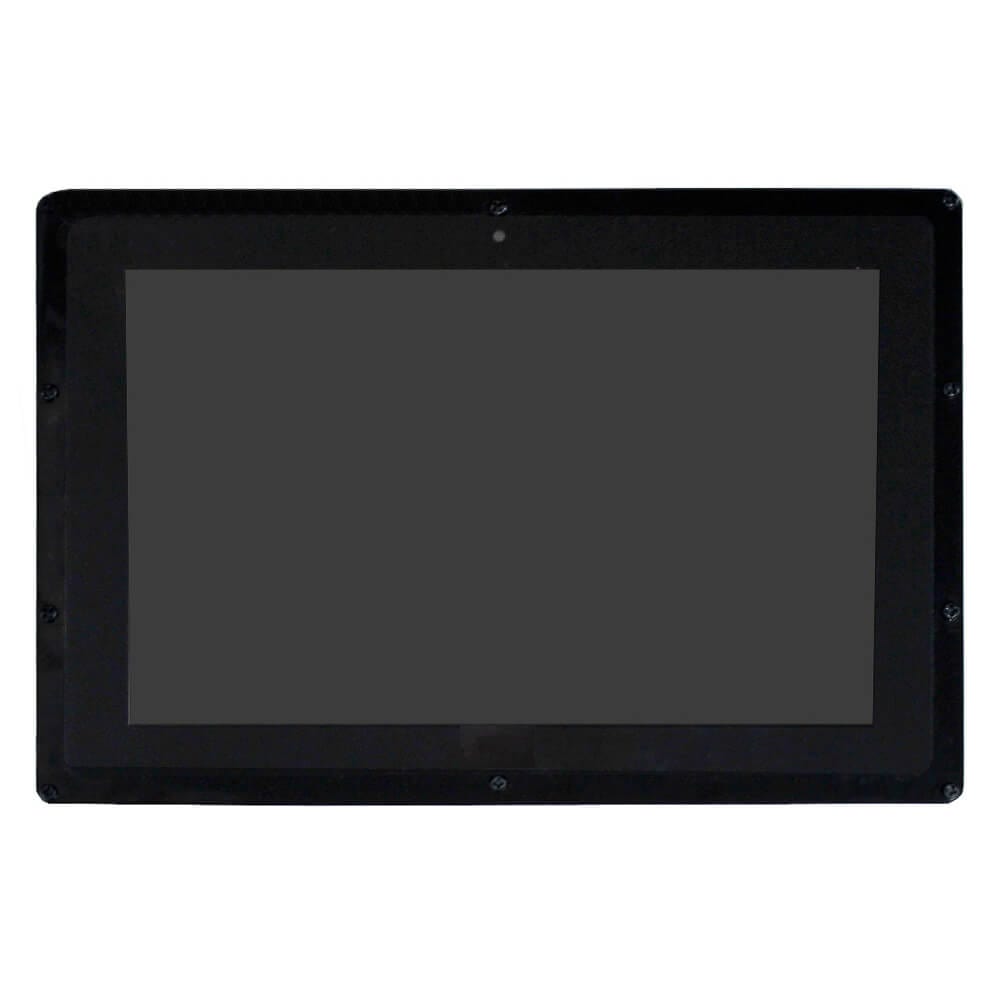

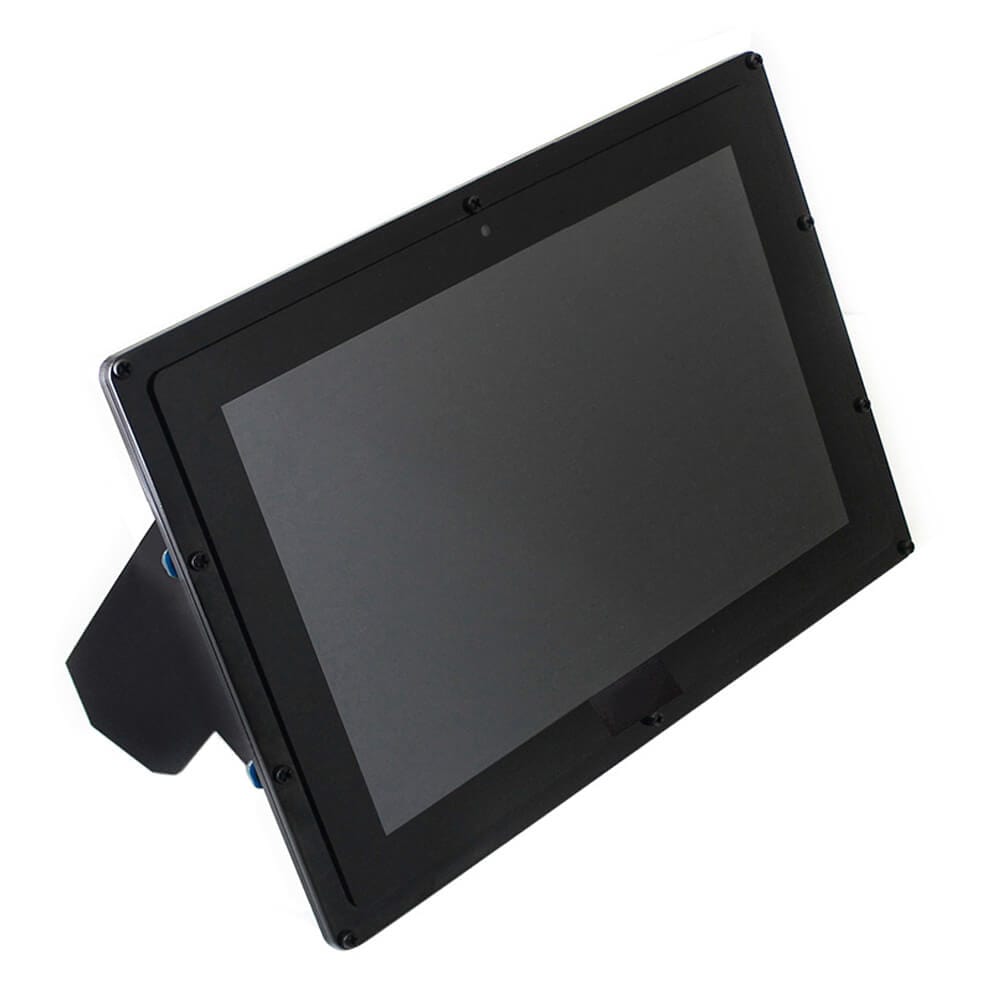

This is Wareshare's 10.1" 1280x800 IPS Touch Screen & Case (B)! It's easy to set up, has a great resolution and comes complete with a black acrylic stand!
This device uses the Raspberry Pi's HDMI output for display and USB port for touch control. A UK power supply, HDMI cable (+ micro-HDMI adapter), USB cable and fixings are all included in the box.
Note: This device does require some simple set-up. The display panels are covered in brown protective film. This needs to be removed before assembly.
Assembly of the Waveshare 10.1" screen is easy, just follow the simple guide here. More information can also be found on the Wiki page.
- 10.1" HDMI LCD (B)
- 1280x800 Resolution
- IPS display - 170° viewing angles
- UK 5V 2A Power Supply Included

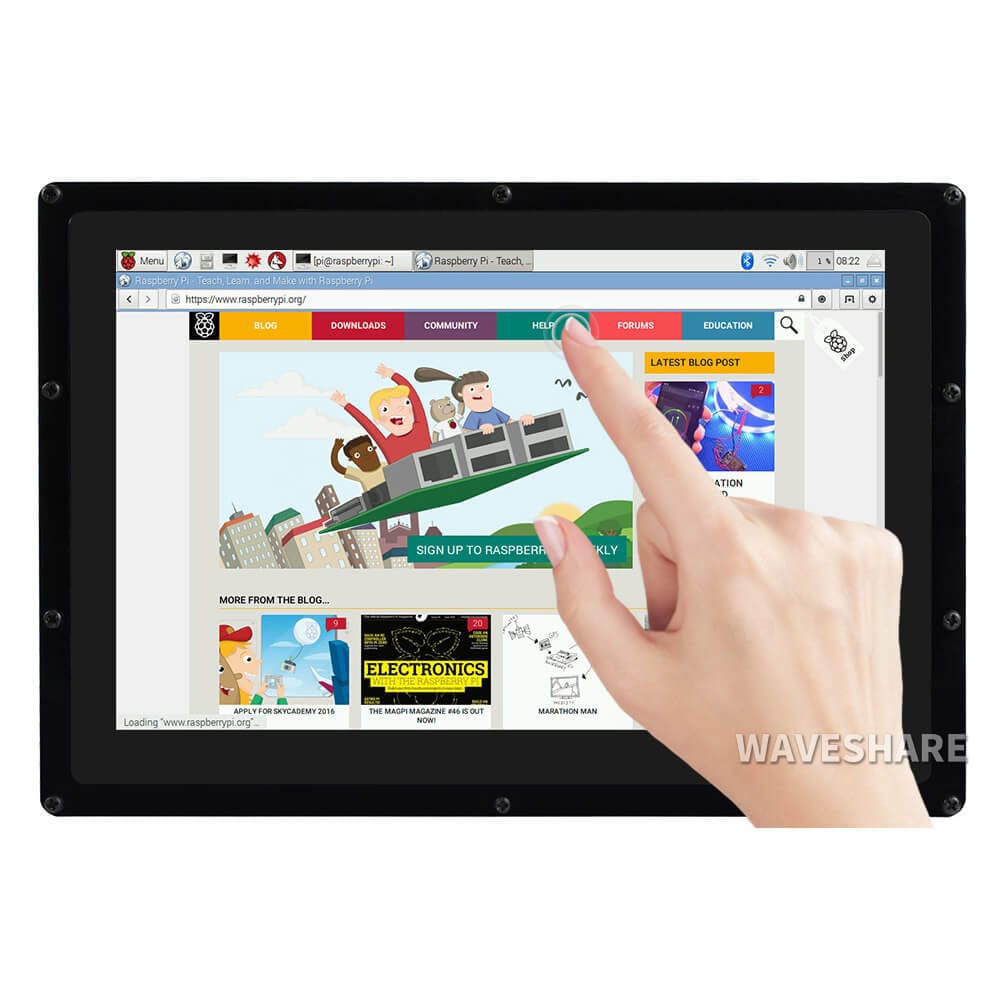

- Capacitive 10-point touch control

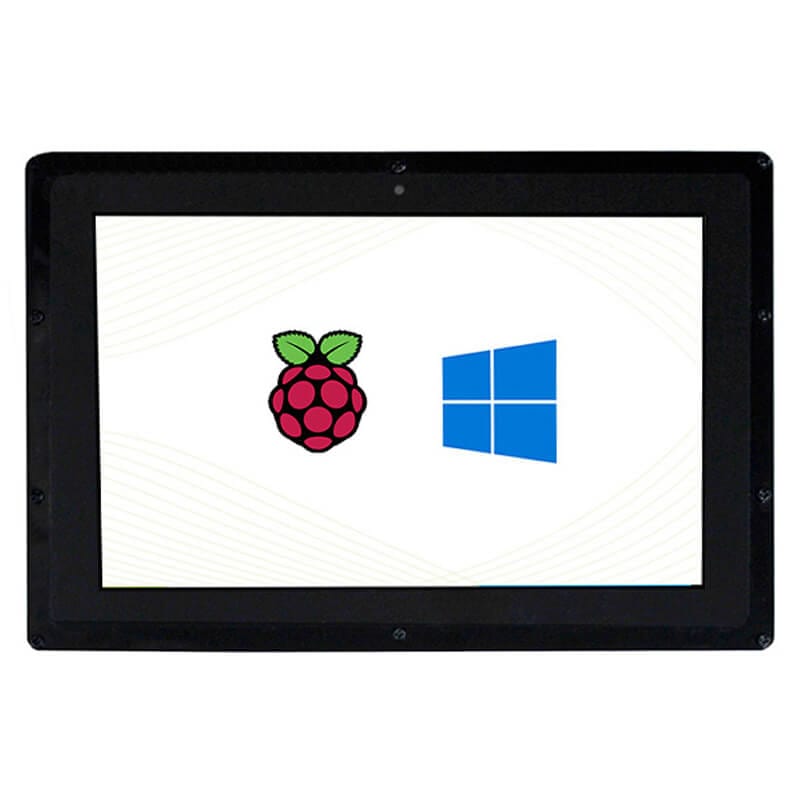

- Supports Raspberry Pi, Ubuntu, Windows 10 IoT driver free
- Can also be used as a computer monitor, supports Windows 10/8.1/8/7/XP etc.
- HDMI interface for displaying, USB interface for touch control
- Input interfaces: HDMI
- Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
- Firmware is upgradable to support more new features (continually updated)
- Material: High quality black and clear Acrylic

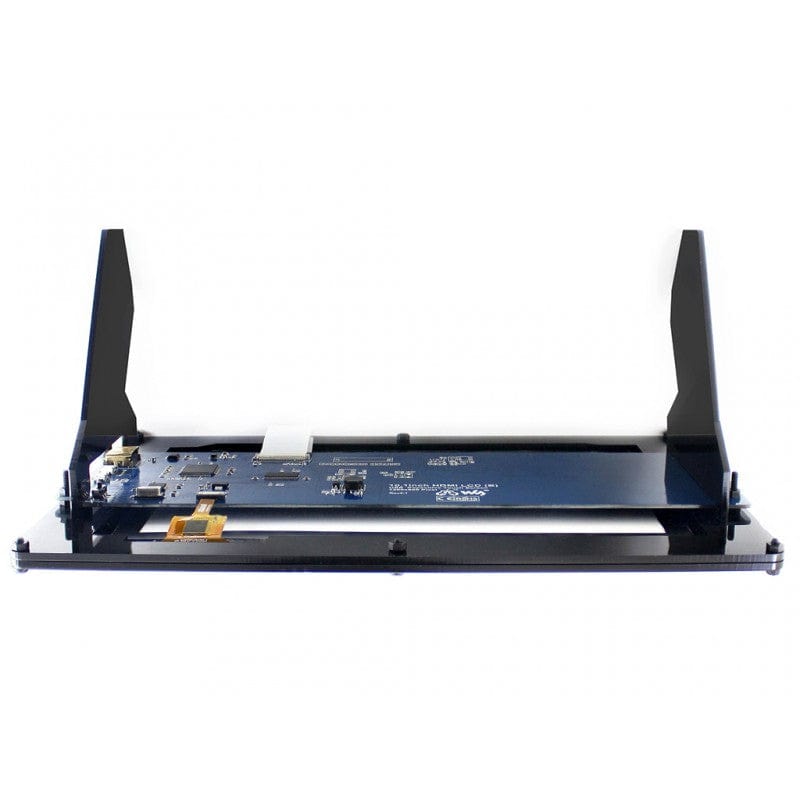

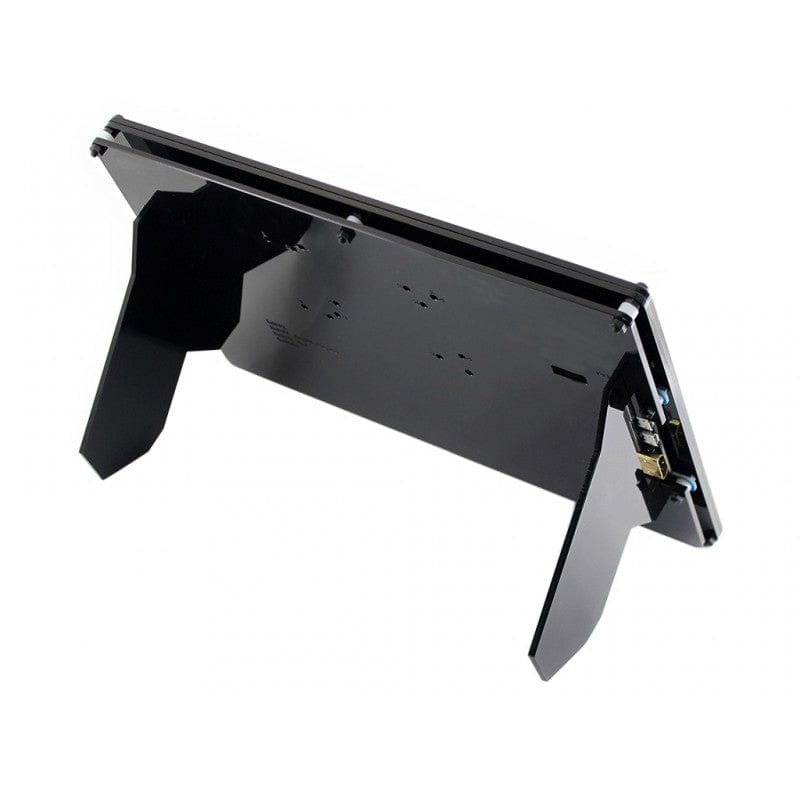

- Comes with bottom holder, 45° tilt angle

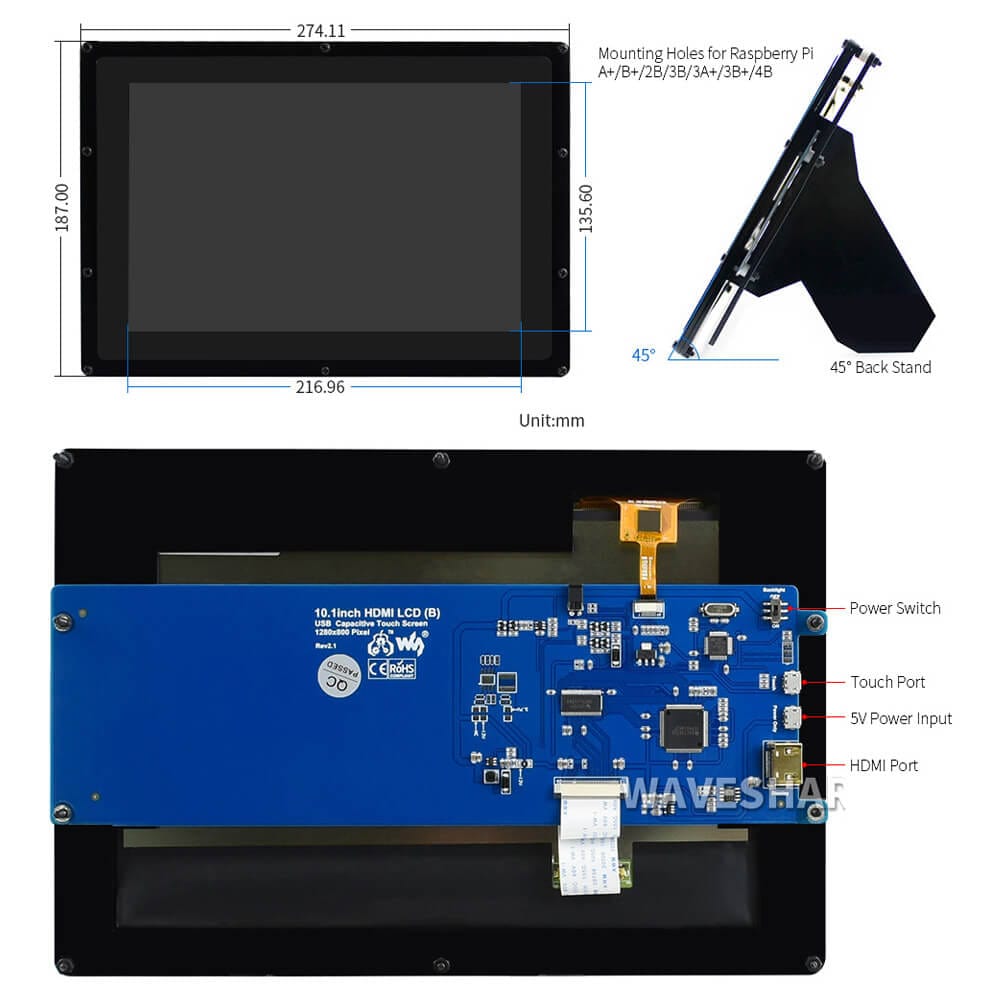

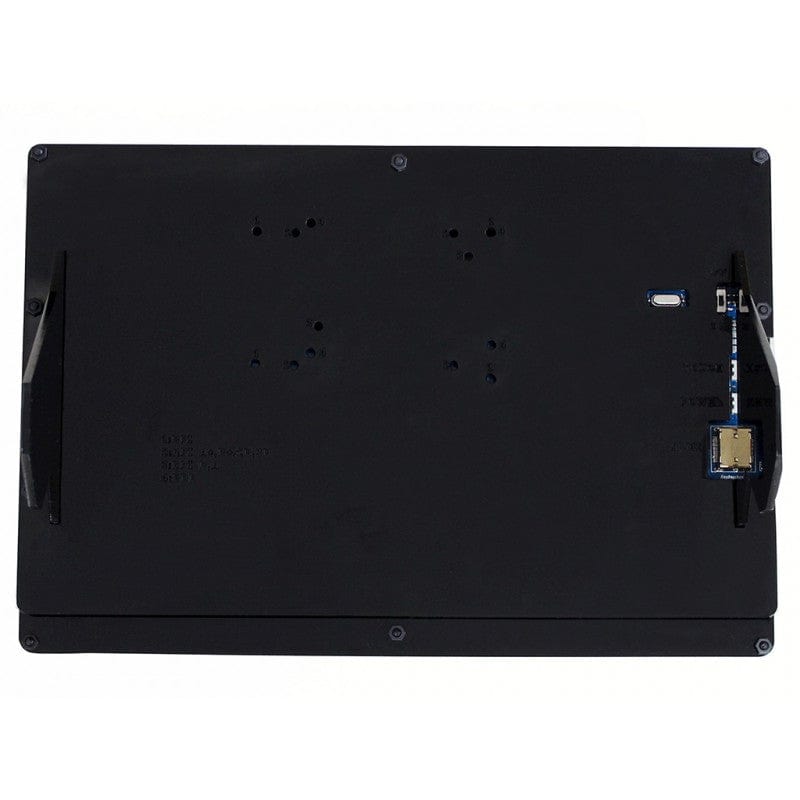

- Features mounting holes for Raspberry Pi 4/3B+/3B/2B/B+/A+/B
