Fermion: LSM303 Tilt Compensated Compass (Breakout)

DFRobotSKU: SEN0079
£14.90
incl. VAT
excl. VAT
Sold out
Notify me
The LSM303DLH is a triple axis accelerometer combined with a triple axis magnetic sensor.

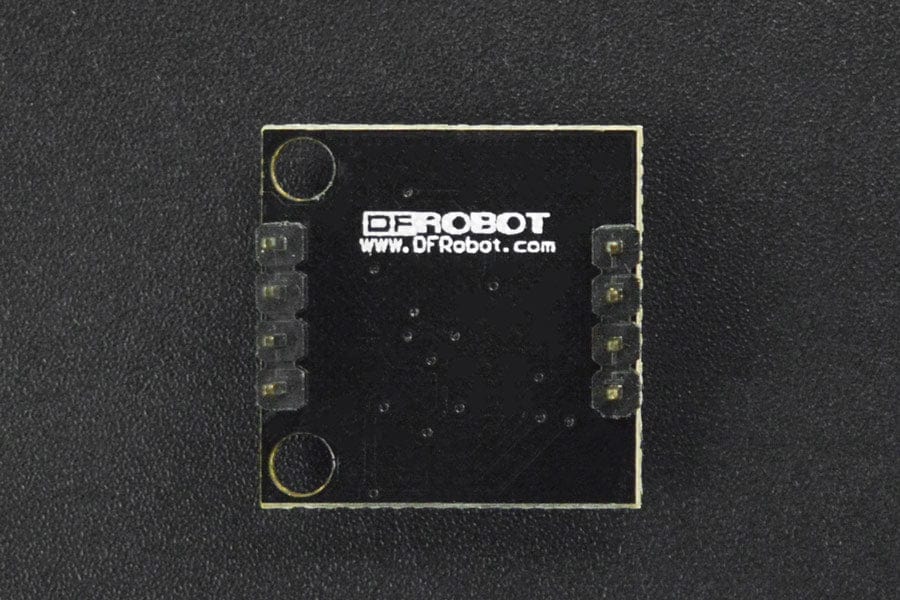

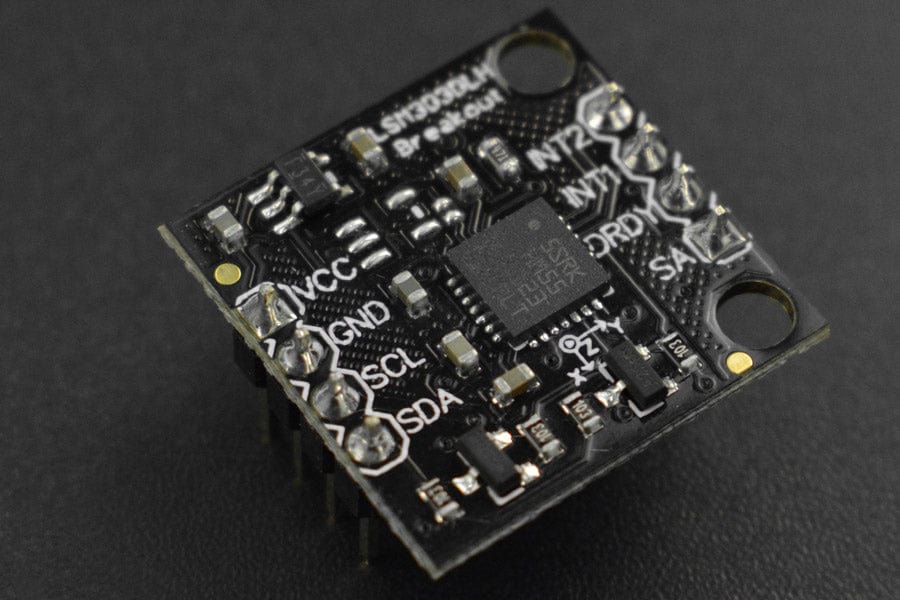

This breakout board uses the LSM303DLH to give you the data you need to feed into a microcontroller and calculate tilt-compensated output.

Applications

  • Compensated compassing
  • Map rotation
  • Position detection
  • Motion-activated functions
  • Free-fall detection
  • Intelligent power-saving for handheld devices
  • Display orientation
  • Gaming and virtual reality input devices
  • Impact recognition and logging
  • Vibration monitoring and compensation

Specification

  • Power supply: 3.6~8V DC
  • Chip: LSM303DLH
  • ±1.3 to ±8,1 gauss magnetic field full-scale
  • ±2 g/±4 g/±8 g dynamically selectable fullscale
  • 16-bit data out
  • I2C serial interface
  • 2 independent programmable interrupt
  • generators for free-fall and motion detection
  • Embedded self-test
  • Accelerometer sleep-to-wakeup function
  • 6D orientation detection
  • Dimensions: 20.5mmx20.5mm(0.8x0.8'')
  • Weight: 1g

Documents

Shipping List

  • LSM303 breakout board x1
