JST connector Kit (2.0mm) (0.079")

DFRobotSKU: FIT0299
£4.70
incl. VAT
excl. VAT
Only 2 units left

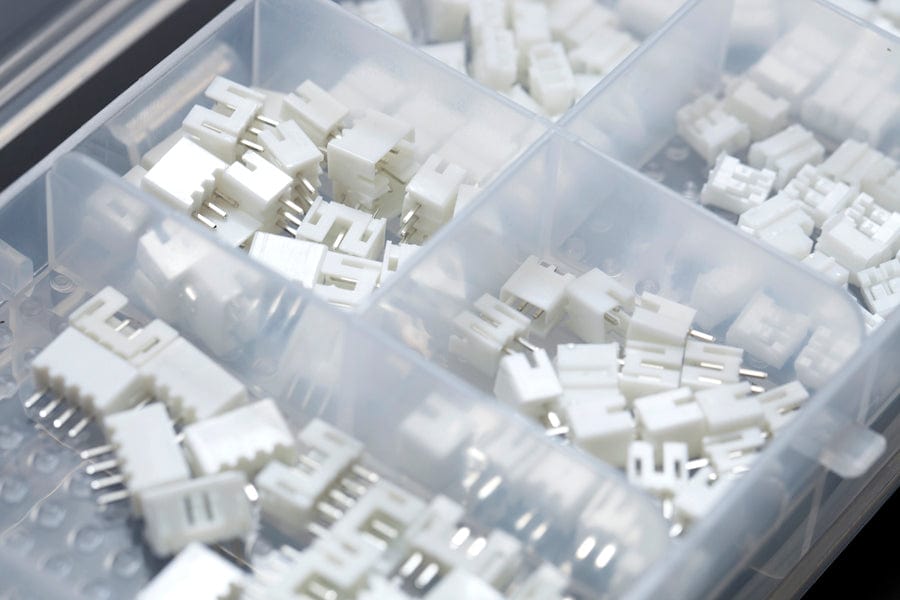

This kit includes PHR-2，PHR-3 and PHR-4 housing (20 units each), through-hole type shrouded header (20 units each) and crimp contact (100 units).

Specification

  • Pitch:2.0mm ((0.079"))
  • Current rating:2A AC,DC (AWG #24)
  • Voltage rating:100V AC,DC
  • Temperature range：-25℃ to +85℃（including temperature rise in applying electrical current）
  • Contact resistance：Initial value/10m Ω max.
  • After environmental testing/20m Ω max.
  • Insulation resistance：1000M Ω min.
  • Withstanding voltage：800V AC/minute
  • Applicable wire：AWG#32~#24
  • Applicable PC board thickness：0.8mm~1.6mm (0.03~0.06")

Shipping List

  • PHR-2 housing*20
  • PHR-3 housing*20
  • PHR-4 housing*20
  • B2B-PH-K-S through-hole type shrouded header *20
  • B3B-PH-K-S through-hole type shrouded header *20
  • B4B-PH-K-S through-hole type shrouded header *20
  • crimp contact*100
  • Two-sided Compartment Parts Box *1
