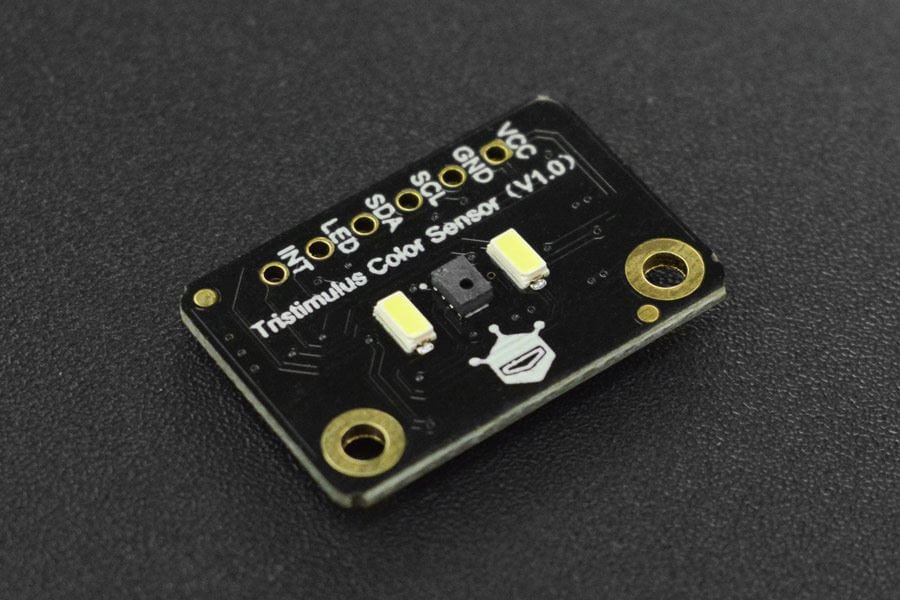

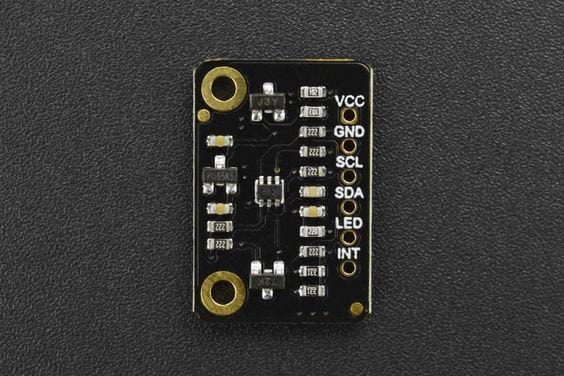

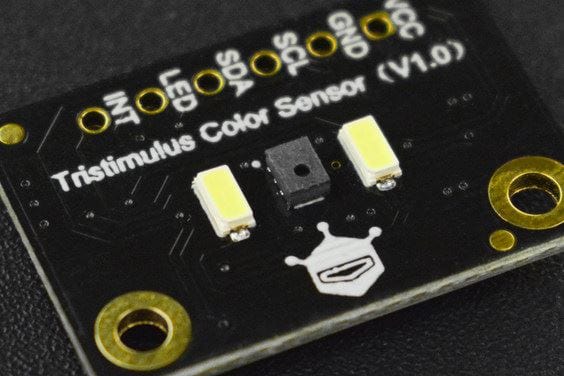

DFRobot TCS3430 XYZ Tristimulus Color Sensor employs the new generation of TCS3430 spectral sensor IC launched by the well-known AMS company.
It features advanced digital ambient light sensing(ALS) and CIE 1931 tristimulus colour sensing(XYZ). Each of the channels has a filter to control its optical response, which allows the device to accurately measure ambient light and sense colour.
These measurements are used to calculate chromaticity, illuminance, and colour temperature, all of which are used to support various potential applications.
You can learn more about the CIE 1931-XYZ system here:
Features
XYZ Tristimulus Filter
Capable of ±10% illuminance and correlated colour temperature accuracy
Wide dynamic range and high sensitivity
Programmable gain and integration time
Applications
Color detection
Brightness detection
White balance detection
Colour temperature measurement
Specification
Power Supply: 3.3V~5V
Operating Current: ＜5mA
LED Operating Current: ＜15mA
I2C Address: 0x39
Operating Temperature Range: -30℃~85℃

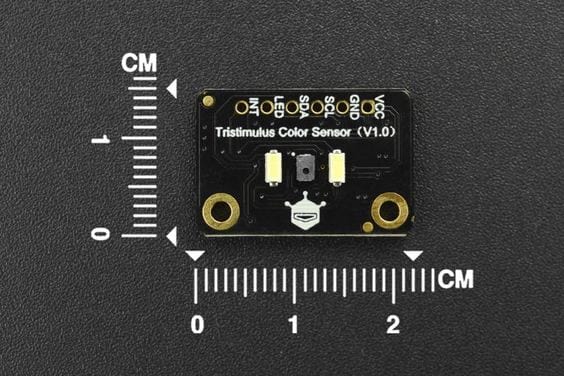

Dimension: 22*15mm/0.87*0.59”
Documents

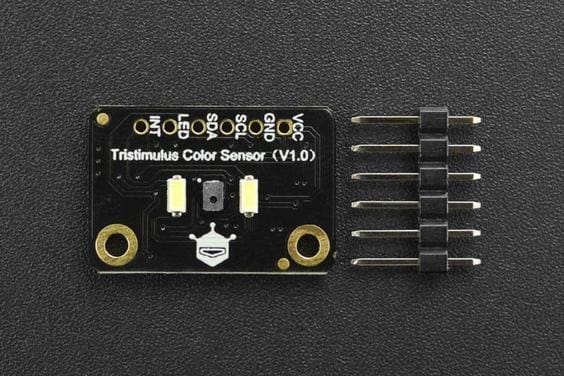

Shipping List
Fermion:TCS3430 Tristimulus Color Sensor(Breakout) x1
2.54-6P Black Single Row Pin Header x1
