10W Super Bright LED - RGB

DFRobotSKU: FIT0381
Price:
Sale price £9.50
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

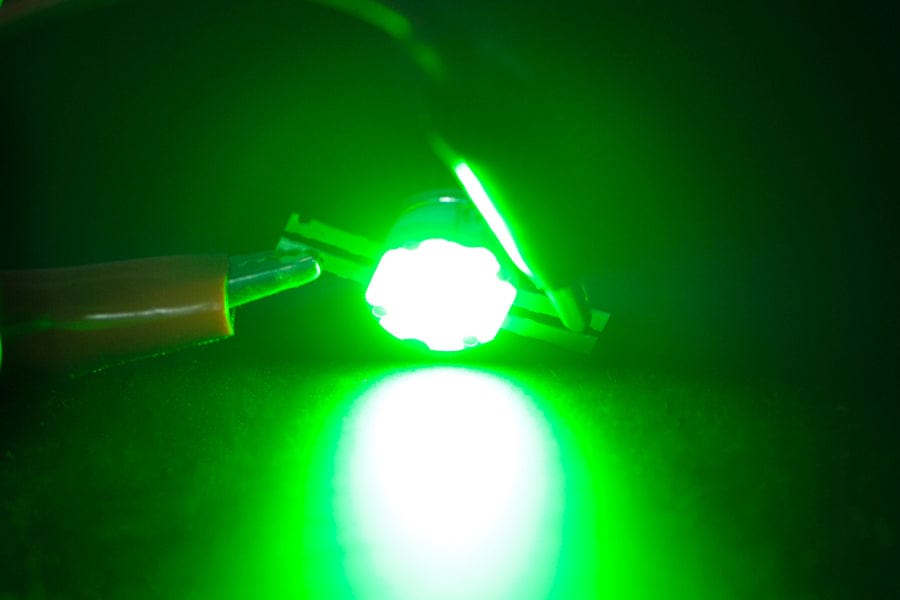

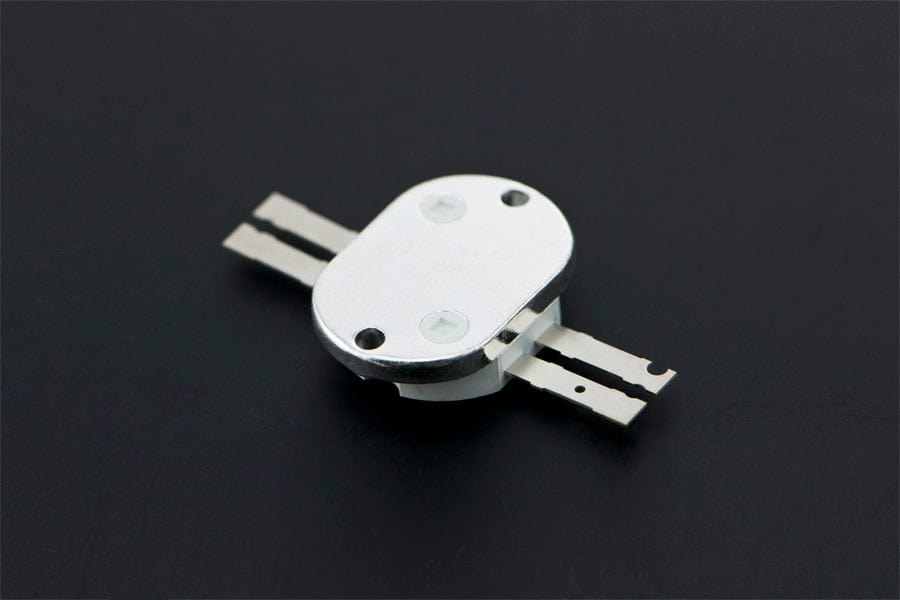

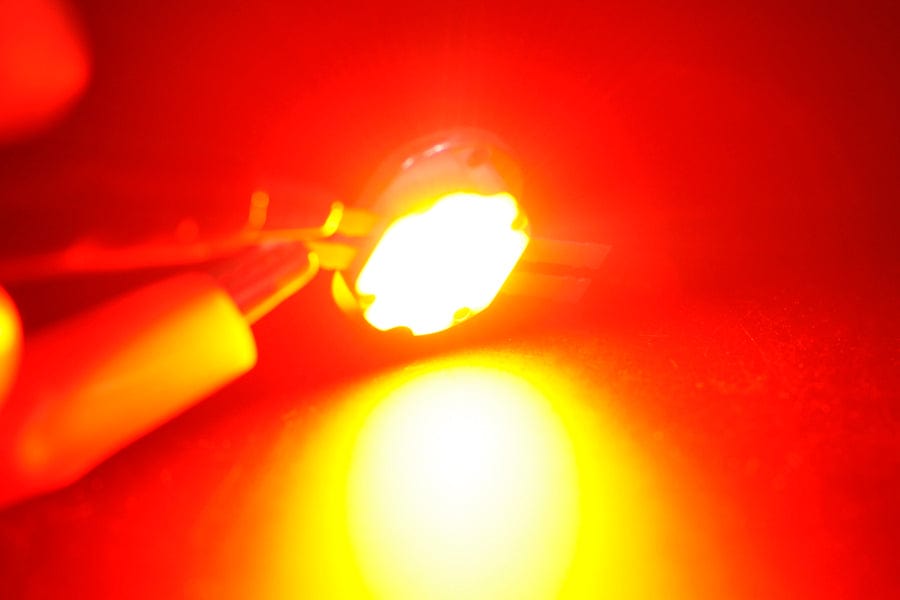

This 10W super bright LED can be used as a flash searchlight for your robot projects. It consists of 9 separate LEDs and has a luminance of 500LM. Comes in various colors.

Warning : If you use the full power, LED will be very hot. Please use Heat Sink to cool it down.

Specification

  • Rated Power: 10W
  • Luminance: Red: 110, Green: 165, Blue: 45
  • Working Voltage: Red: 6V-7V, Green: 9V-11V, Blue: 9V-11V(With Heat Sink) Red: 5V-5.5V, Green:7.5V-8.5V, Blue:7.5V-8.5V(Without Heat Sink)
  • Rated Current: Red: 400mA, Green: 350mA, Blue: 350mA
  • Color Temperature: 3000K-4000K
  • Angle: 105°
  • Working Temperature: -20°C ~ 60°C
  • Reserving Temperature: -20°C ~ 60°C
  • Size: 38mm*23mm(1.50"*0.91")
  • Weight: 10g

Documents

Shipping List

  • Super Bright LED - RGB x1
