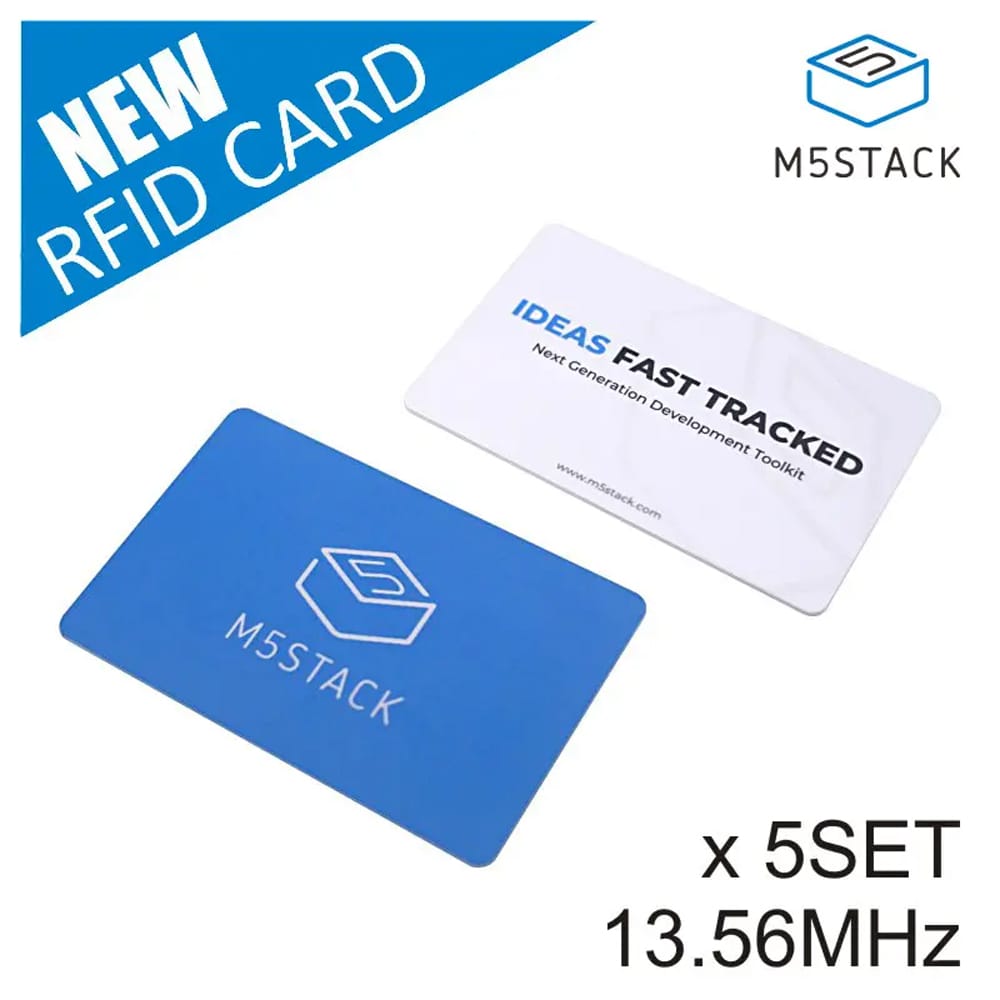

M5Stack 13.56MHz RFID Card-F08 Chip (5pcs） by M5Stack - The Pi Hut

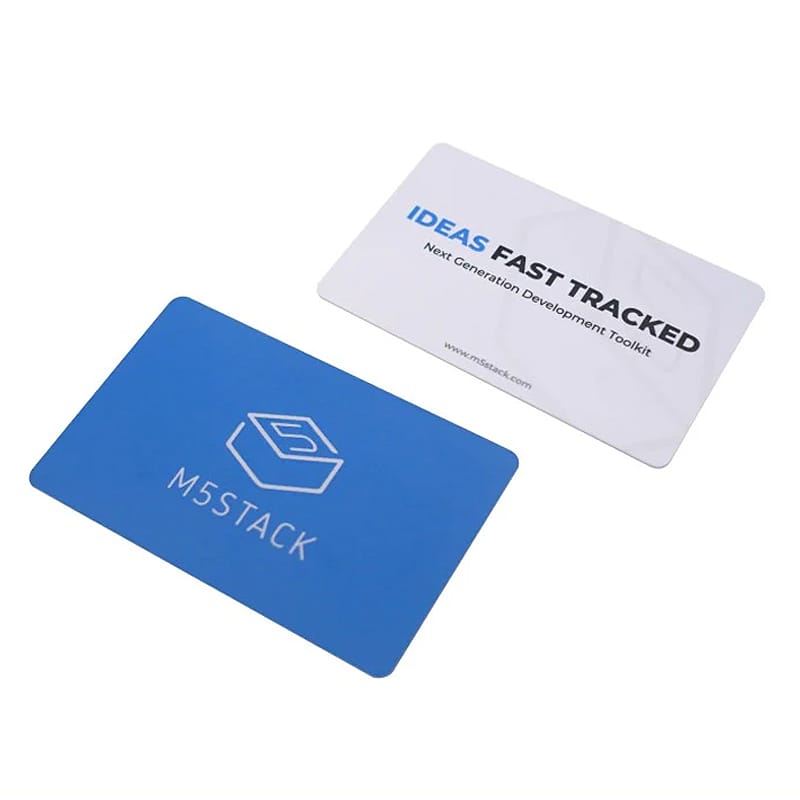

M5Stack 13.56MHz RFID Cards (5-Pack）

M5StackSKU: A073

£2.10

incl. VAT

excl. VAT

Only 8 units left

The M5Stack 13.56MHz RFID Card is a contactless RFID card designed for reliable wireless identification and communication with compatible RFID readers and terminal devices.

The M5Stack 13.56MHz RFID Card is a high-performance radio frequency identification card with M5Stack exclusive printed logo.

The main parts of the card include a chip, coil antenna, and card substrate, and it does not carry a power supply. The antenna operates by receiving radio waves emitted by the reader, and communication with the reader is achieved through radio frequency technology.

It can be easily integrated into various readers and terminal devices to enable fast and reliable contactless identification and interaction.

Features

Compliant with ISO/IEC 14443 A standard
Excellent stability and security
M5Stack exclusive printed logo
Made of high-quality PVC material

Specifications

Operating Frequency	13.56MHz
Storage Capacity	1024 bytes
Read/Write Distance	0 ~ 5cm (depends on reader device)
Read/Write Time	1 ~ 2m (depends on reader device)
Read/Write Life	>100,000 cycles (number of sensing times)
Material	PVC
Operating Temperature	-20°C ~ 50°C
Product Size	85.5 x 54.0 x 1.0mm
Product Weight	5.3g

Resources

Product documents

Package Contents

1x M5Stack 13.56MHz RFID Card-F08 Chip (5pcs）
