Arduino MKR Relay Proto Shield by Arduino - The Pi Hut

Arduino MKR Relay Proto Shield

ArduinoSKU: TSX00003

£17.20

incl. VAT

excl. VAT

Only 5 units left

Awesome Extras

Arduino MKR Zero by Arduino - The Pi Hut

Arduino Arduino MKR Zero

£27.60 incl. VAT excl. VAT

Arduino MKR NB 1500 by Arduino - The Pi Hut

Arduino Arduino MKR NB 1500

£82.90 incl. VAT excl. VAT

Prototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi Hut

The Pi Hut Prototyping Wire Spool Set - 6 Spool Solid Core

£12 incl. VAT excl. VAT

Notify me

120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut

The Pi Hut 120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)

£6 incl. VAT excl. VAT

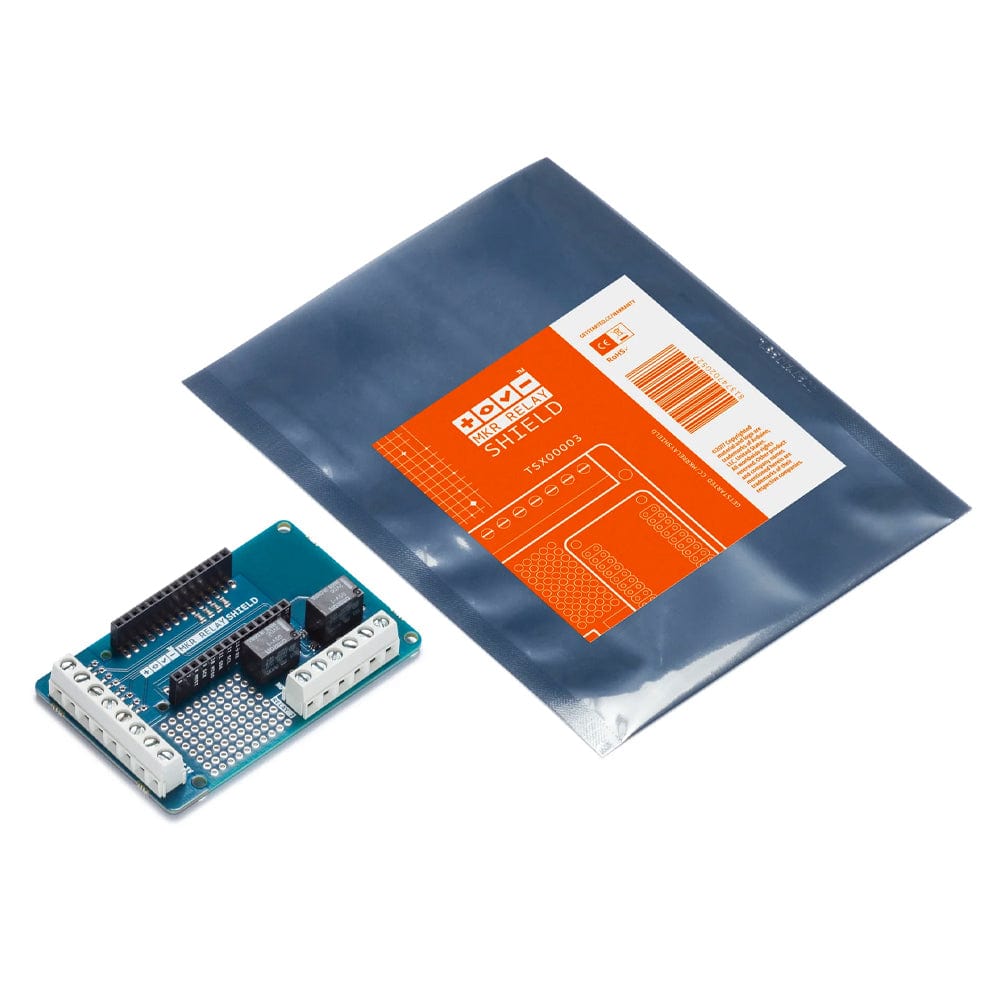

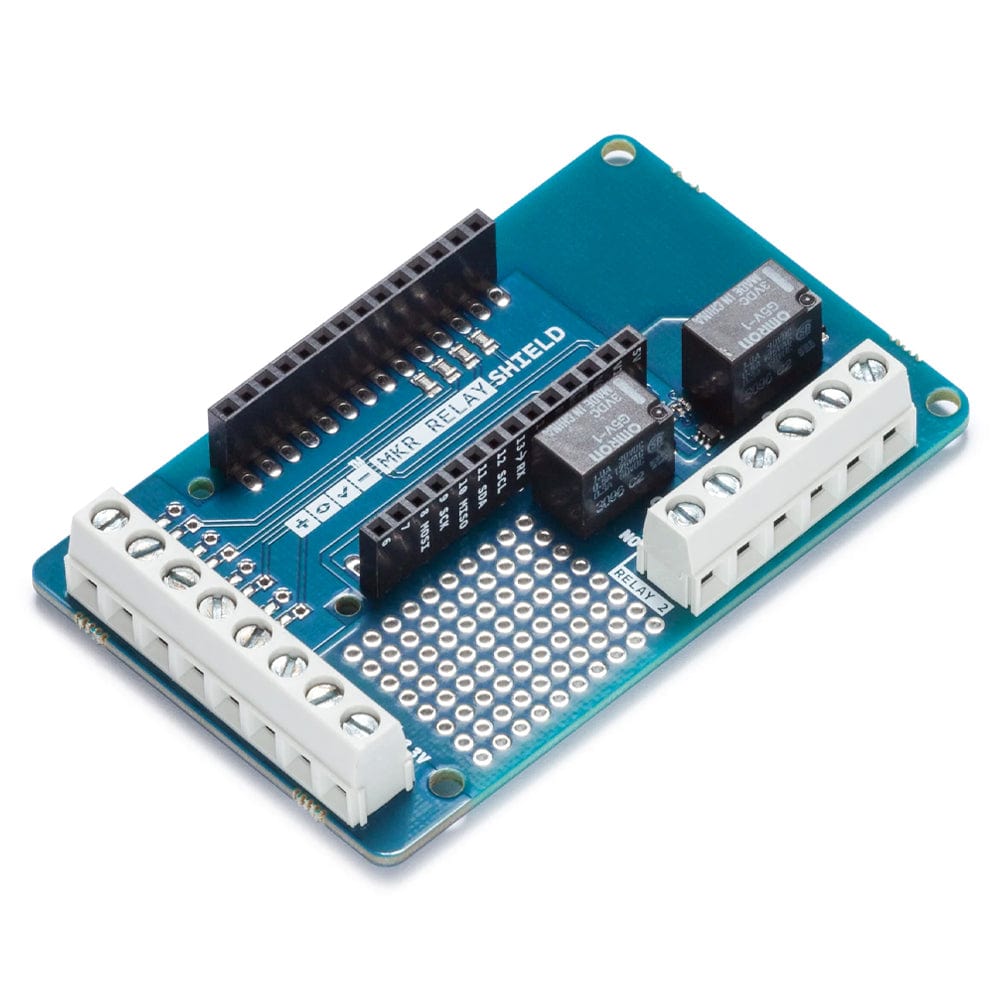

The MKR Relay Proto Shield allows you to easily command relays with your MKR board. The shield provides two onboard relays and a small prototyping area if you need to add some other component to your project.

The shield provides two relays (Datasheet) called RELAY1 and RELAY2 commanded by pin 1 and pin 2 respectively.

The shield also provides an easy connection by means of screw terminal blocks to A1 to A4 analogue inputs, I2C and supply voltages.

Operating voltage 3.3V (supplied from the host board)

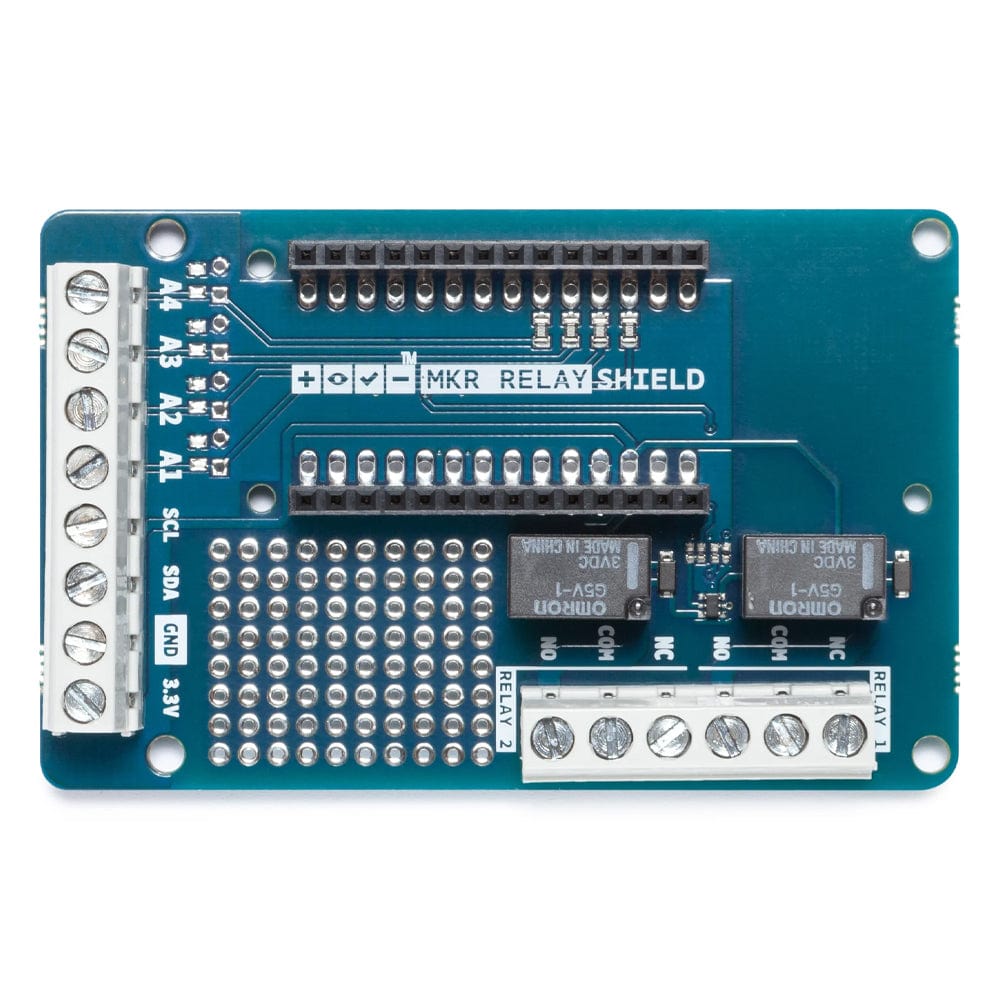

Two relays with NO, COM and NC connections
Works with battery-powered board

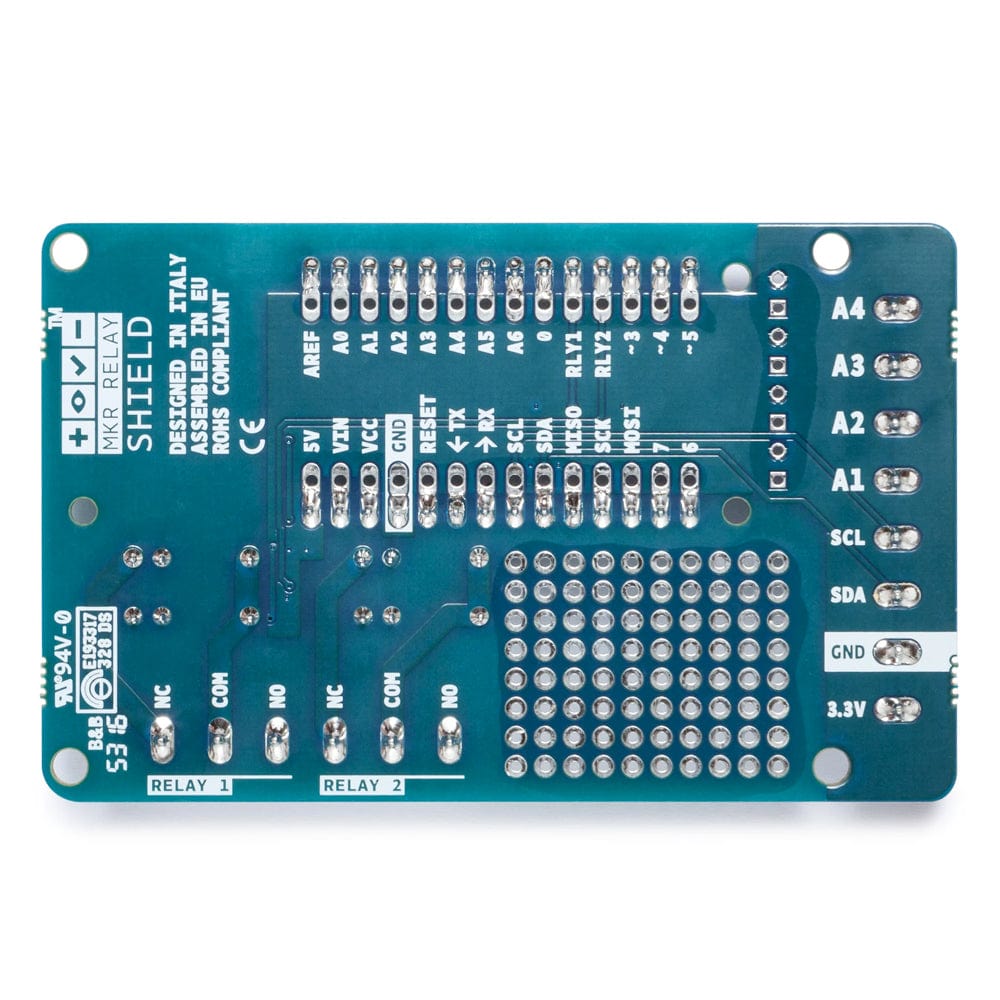

8 positions screw terminal blocks for easy connections with A1 to A4 Analog input, SCL SDA for I2C, GND and 3.3V output
6 positions screw terminal blocks (NO, COM, NC for each relay)
Carry current: 2 A
Max. operating voltage: 24 VAC, 50 VDC
Max. operating current: 1 A
Max. switching capacity: 62.50 VA, 30W
Proto area
