This 3.3V Inductive Power Transfer Module lets you deliver power wirelessly across a small gap, making it a neat option for enclosed devices, charging projects, and applications where a direct wired connection isn't practical.

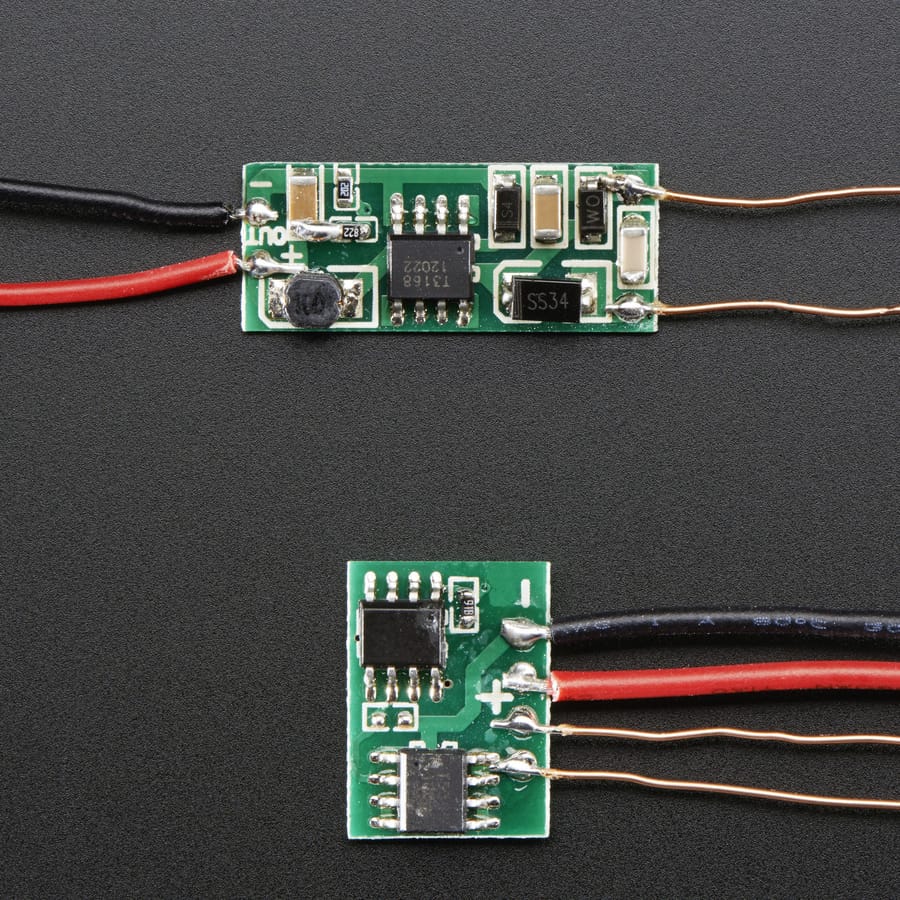

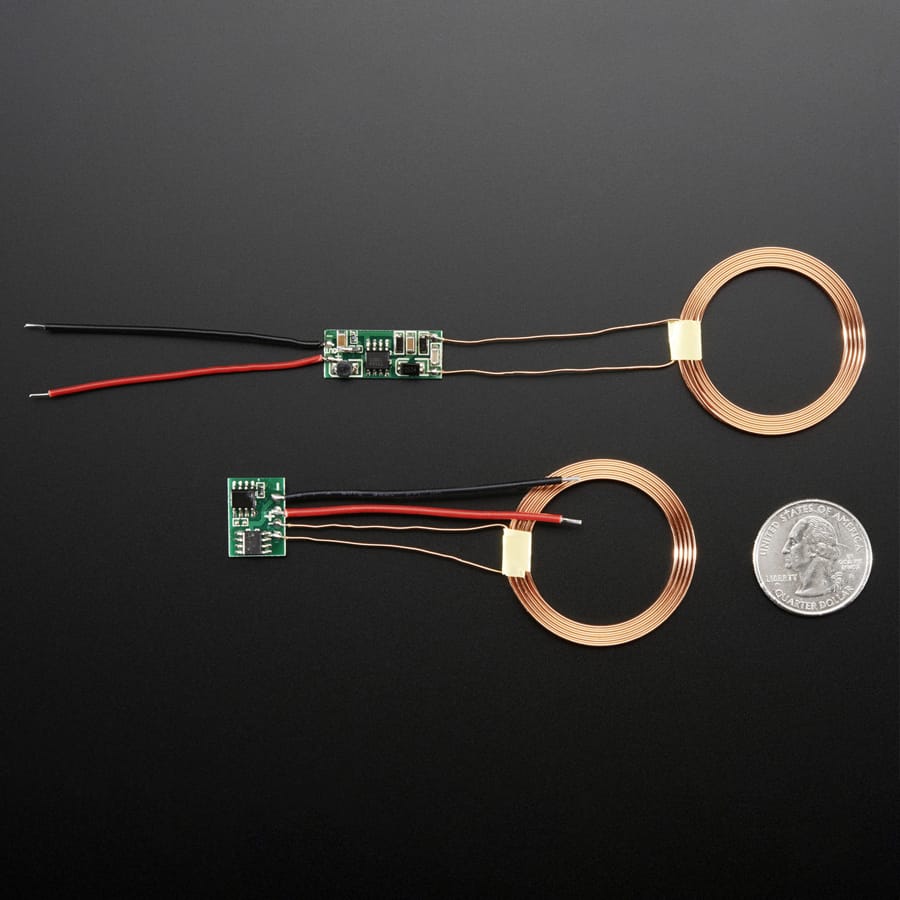

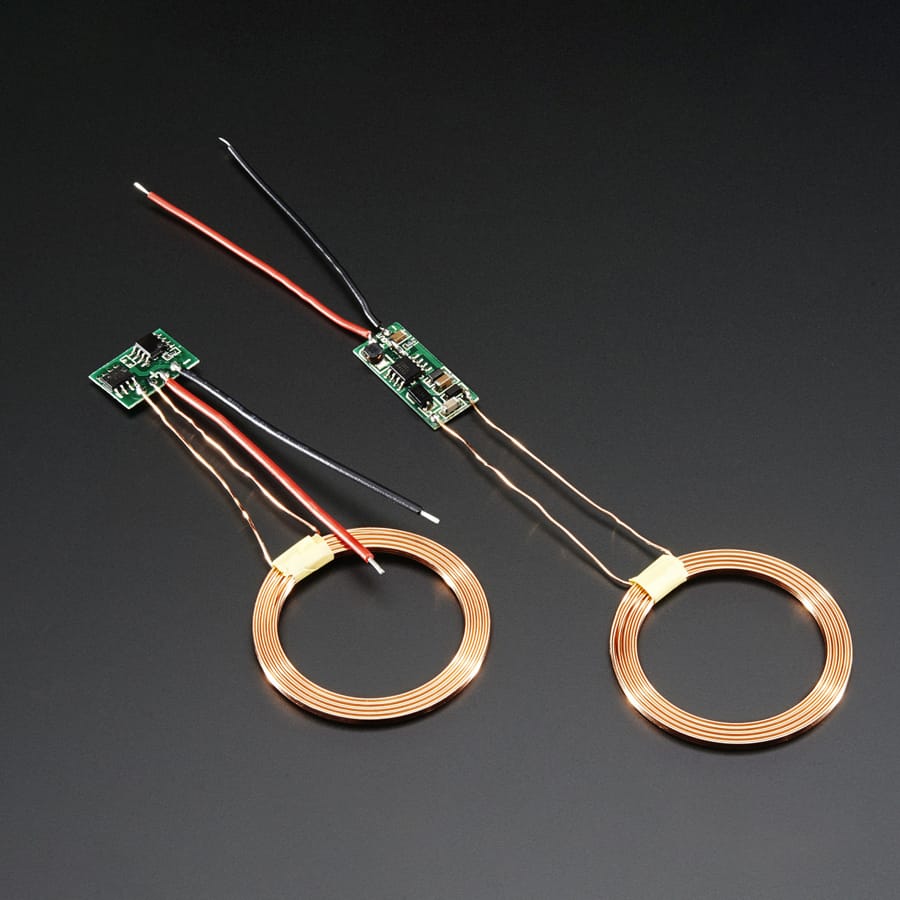

The squarish board with two chips on it is the transmitter (power with 9V). The longer board is the output and you can connect that to the part of your project that needs powering.
Inductive charging is a way of powering a device without a direct wire connection. Most people have seen inductive charging in a rechargeable electric toothbrush: you may have noticed that you recharge it by placing it into the holder, but there's no direct plug. These chargers work by taking a power transformer and splitting it in half, an AC waveform is generated into one, and couples into the second coil.
This is a basic charger set, and it does work, providing 3.3V DC output from the output half when the input half is powered with 9V to 12VDC. You can draw as much as 500mA if the coils are 2 or 3 mm apart. If you only need 100 or 200mA you can be up 7mm apart. For 10mA draw, the coils can be up to half an inch (12.5mm) apart. Any non-ferrous/non-conductive material (e.g. air, wood, leather, plastic, paper, glass) can be used between the two coils. The material doesn't affect the distance or efficiency. The coils do need to be fairly co-axial, try to get them to be parallel and have the circles line up for best power-transfer. (This is why the electric toothbrush must fit into the plastic holder, it's lining up the two coils for best efficiency.)
Because it's an air-core transformer, it's fairly inefficient. Only about 40% of the energy in shows up on the other end, but for low power or charging project. If you draw 5V 100mA on the output side (0.5W), you'll need 0.5W * 2.5 / 9V = ~150mA from the input end. The quiescent current is about 70mA at all time, even when the other coil is not anywhere near by.
These are basic modules, probably used for some low cost toy. We don't have any datasheets or specifications for them. We do see a feedback resistor divider on the output side using 0603 SMT resistors so an advanced user could solder in different values to turn it into a different valued output.
Features
Inductive charging transmitter and receiver coil set
Transmitter board powered by 9V to 12V DC input
Output board provides 3.3V DC power
Maximum 500mA output current at 2-3mm coil separation
Operates at up to 7mm distance for 100-200mA draw
Works at 12.5mm separation for 10mA applications
Compatible with non-conductive materials between coils (plastic, wood, paper, glass, leather)
Air-core transformer design with approximately 40% efficiency
Quiescent current draw of 70mA on input side
Requires coils to be parallel and co-axial for optimal power transfer
Modifiable output voltage via feedback resistor divider (0603 SMT resistors)
Suitable for low-power projects and wireless charging applications
Specifications
Coils are 38mm diameter
Receiver weight: 5.5g
Transmitter weight 5.7g
Package Contents
1x Inductive Charging Set - 3.3V @ 500mA max
