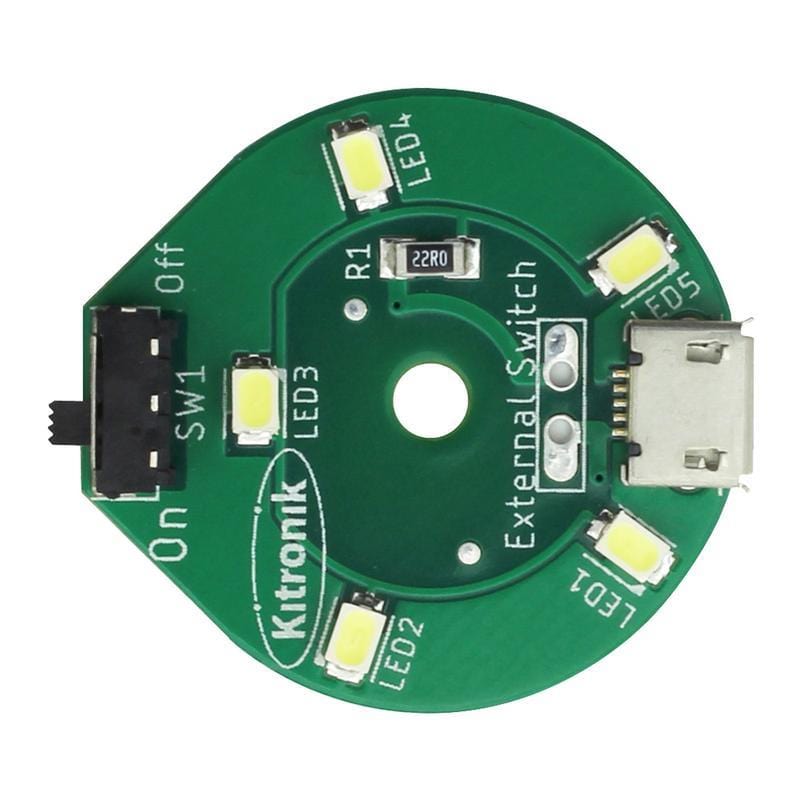

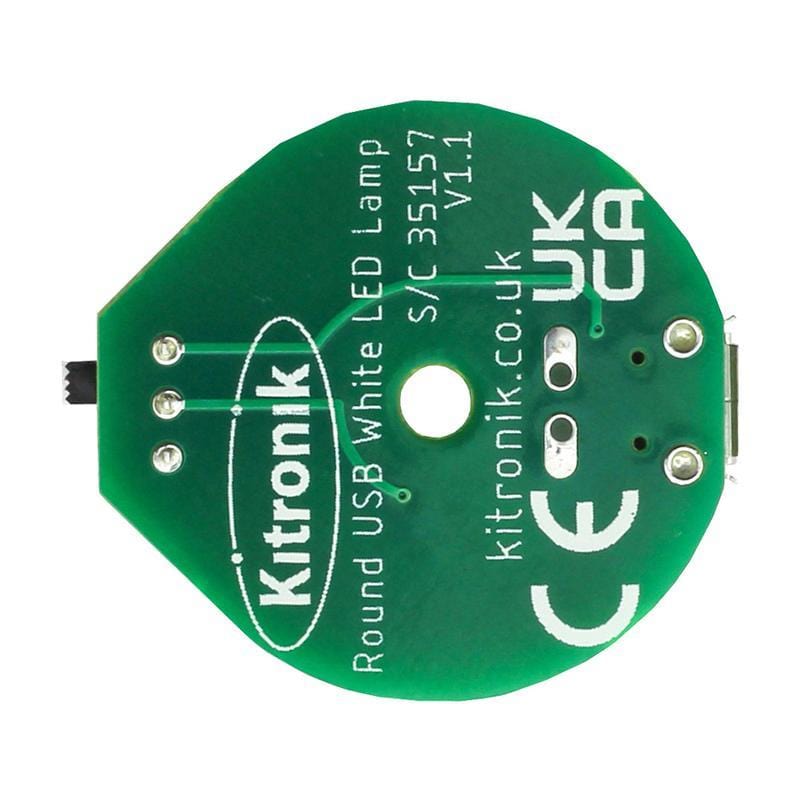

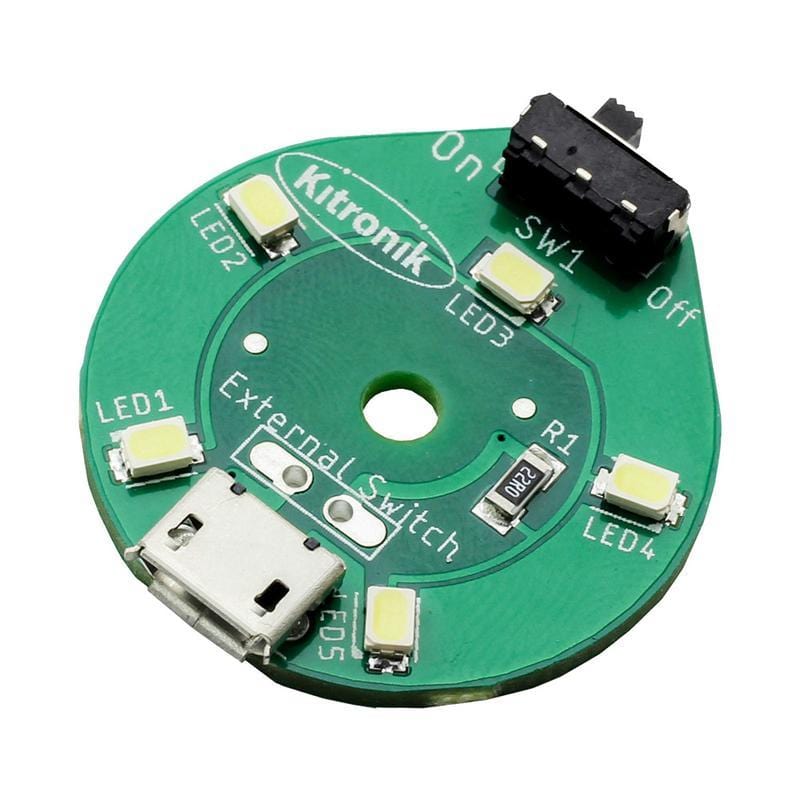

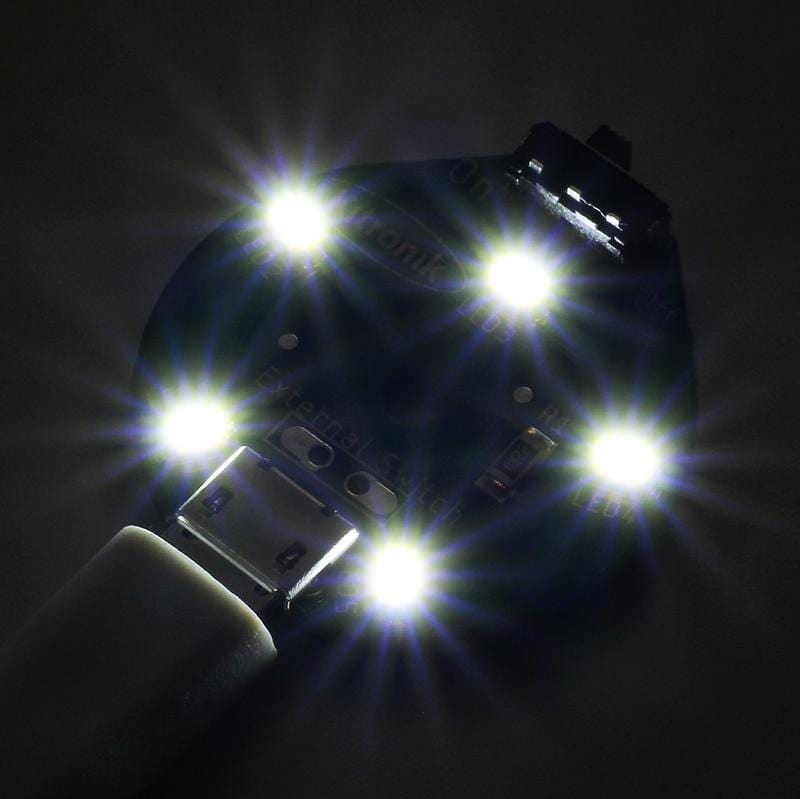

This Round USB White LED Lamp features 5 LEDs and is designed for low power lighting such as desk lamps or torch lights. Its discreet size and circular layout make it a great choice for creative lighting enclosures.

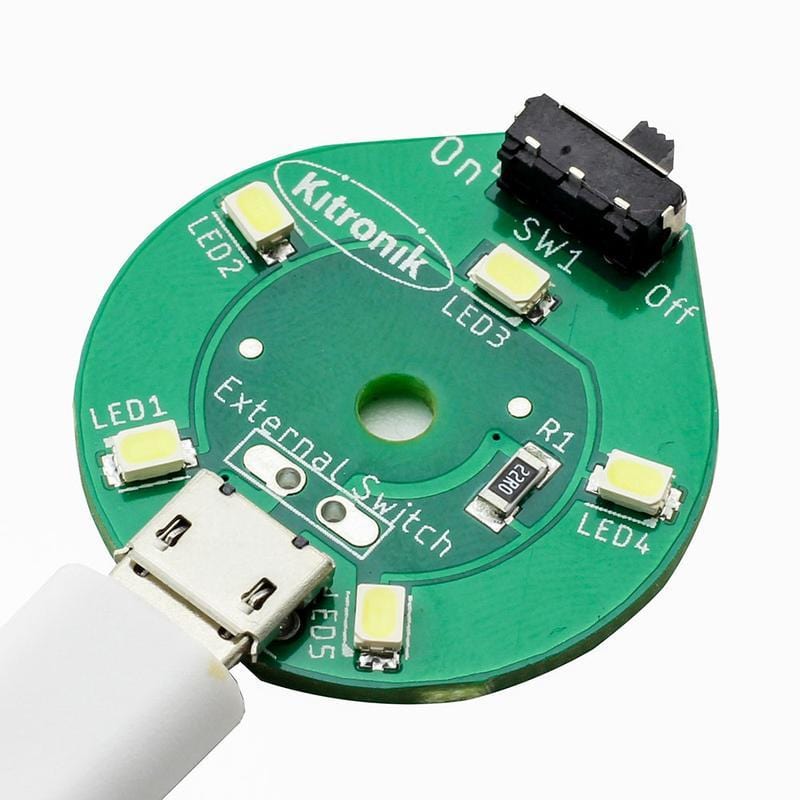

The board is designed such that it is within the supply rating of a computer USB port (under 100mA) - Micro-USB cable required. This means you can power it conveniently from a computer/laptop or a suitable 5V power supply.

The PCB is designed to fit inside a 28mm square area with the switch positioned prominently so it is easy to access. In the centre of the board is a single M3 mounting hole. The 5 LEDs are evenly set on a 72°degree separation from each other, from the centre mounting hole.

The onboard switch can be used to turn on/off the LEDs. An additional switch can be connected in parallel with the PCB switch to allow remote mounting within an enclosure. When using a remote switch the PCB mounted switch should be left switched to ‘Off'.

Features

  • Low power (under 100mA) round LED lamp that can be used in enclosure designs
  • 5 LEDs are evenly set on a 72°degree separation from each other, from the centre mounting hole
  • Onboard on/off switch.
  • Pads for connecting an optional switch that can be mounted on your enclosure
  • If using an additional switch, the onboard switch is disabled by leaving it in the off position
  • Single M3 (3.3mm) mounting hole at its centre
  • Micro-USB power connector - can be powered by a computer or a suitable 5V power supply
  • Max Height: 4mm
  • Max Diameter: 28mm
  • Mounting Hole Diameter: 3.3mm (M3)

Contents

  • 1 x Round USB White LED Lamp with on/off switch
