Raspberry Pi Zero Case Assembly Instructions

Raspberry Pi Zero Case Assembly Instructions

This guide will show you how to assemble the Raspberry Pi Zero Case. All you'll need is a simple cross-head screwdriver.

Step 1 – Snap the acrylic parts out of their holders and peel the protective film off of both sides of all layers then clean off any dust.


Step 2 – Use 4 M2.5 screws to secure the smaller M/F standoffs to the base layer of the case.

Step 3 – Add your Raspberry Pi Zero (use the "SD"/"Camera" guide to know which way around!) and follow up with the remaining F/F standoffs.

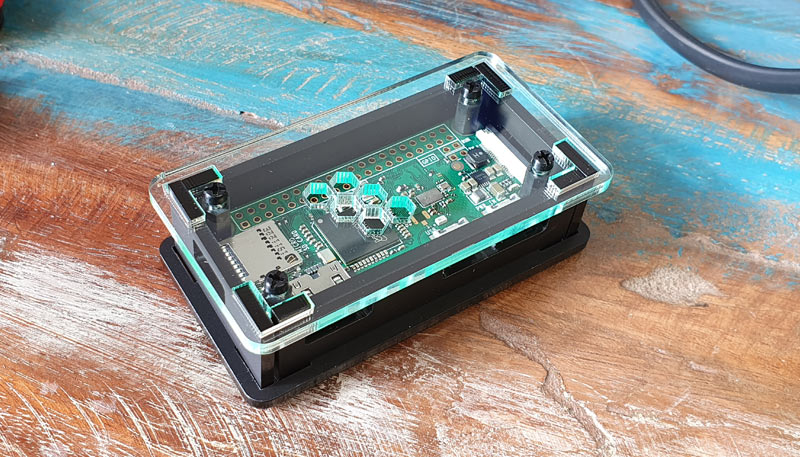

Step 4 – Slot your side panels into place one by one and place the lid on top. You will have 4 remaining M2.5 screws to lock this into place. Job done!
