Raspberry Pi PCB First Look

Raspberry Pi PCB First Look

By The Pi HutFeb 22, 2017 0 comments

From artwork to physical PCB's. Here are some photo's of the PCB's from the initial batch of 100 Raspberry Pi beta boards. These PCB's are an illustration of how the Raspberry Pi looks part way through its manufacturing process. It should be noted that the mounting board is not present on the release boards.


Raspberry Pi PCB Back

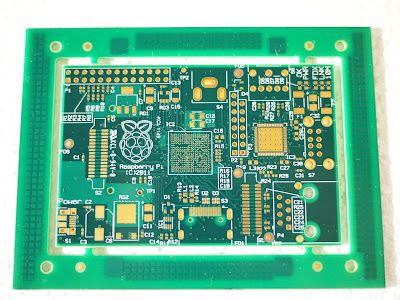

Raspberry Pi PCB Front


Raspberry Pi PCB Size


Raspberry Pi PCB Front


Raspberry Pi PCB Back
