Wio-WM6108 Wi-Fi HaLow mini-PCIe Module
Price:
Sale price
£14.50
Stock:
Quantity:
Awesome Extras
Coming Soon

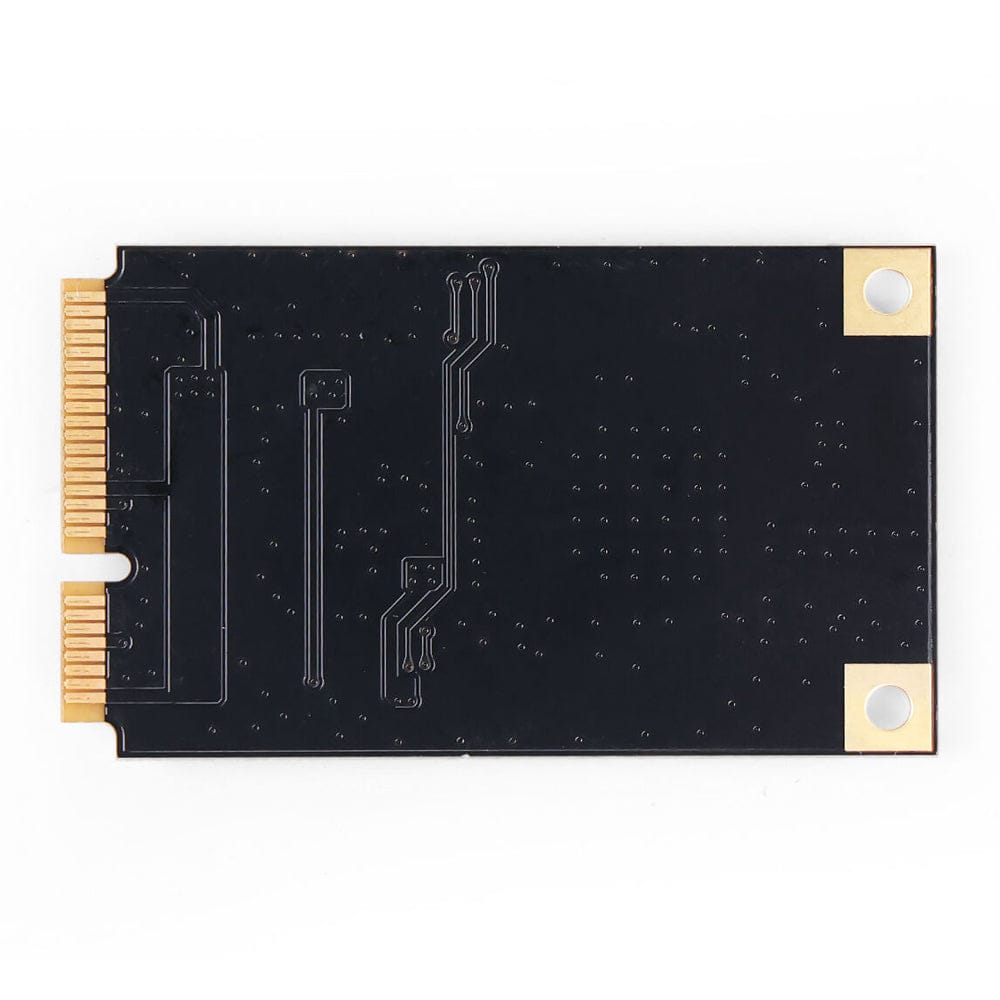

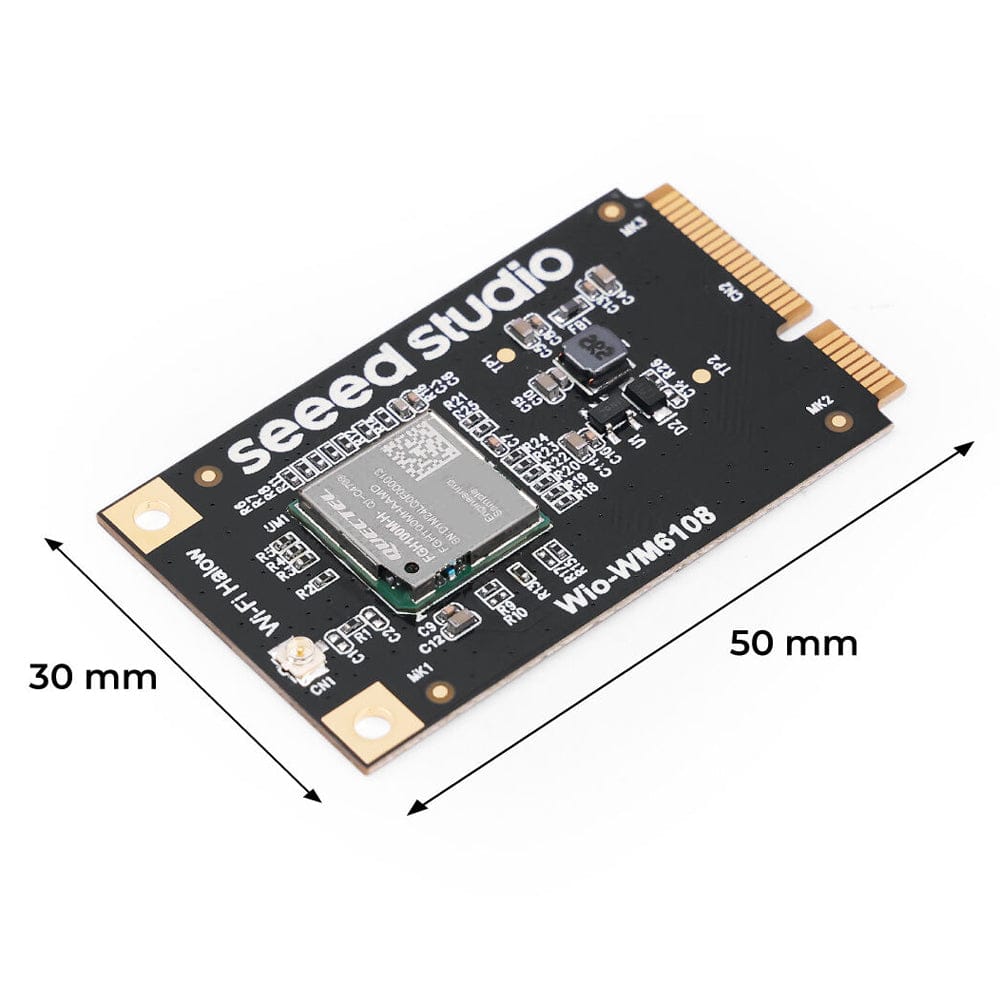

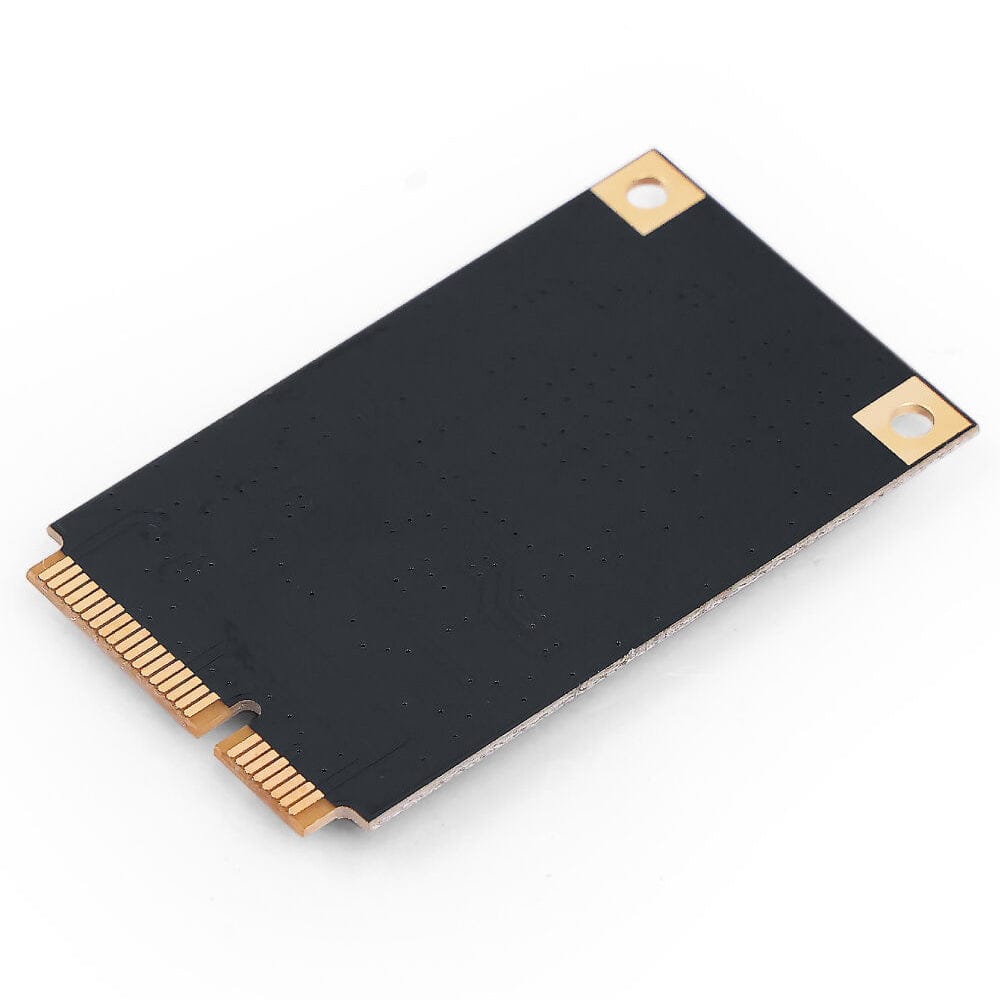

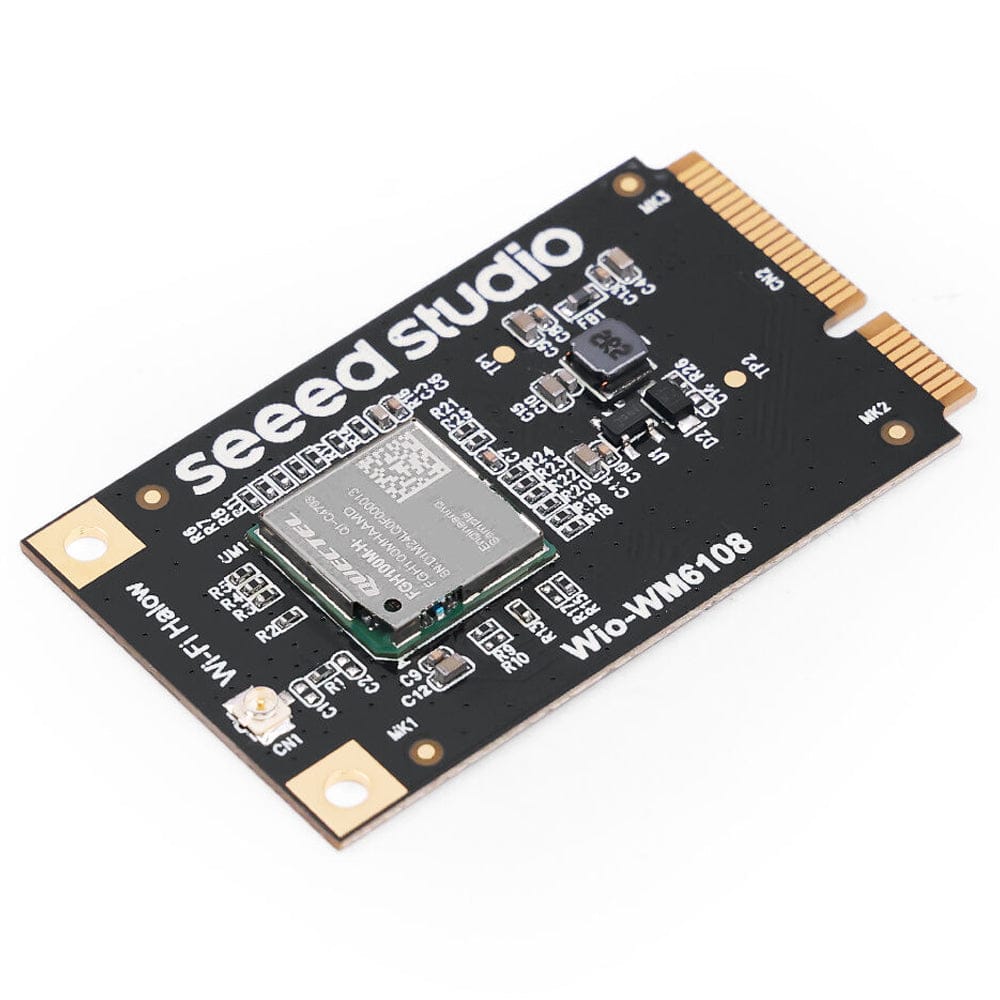

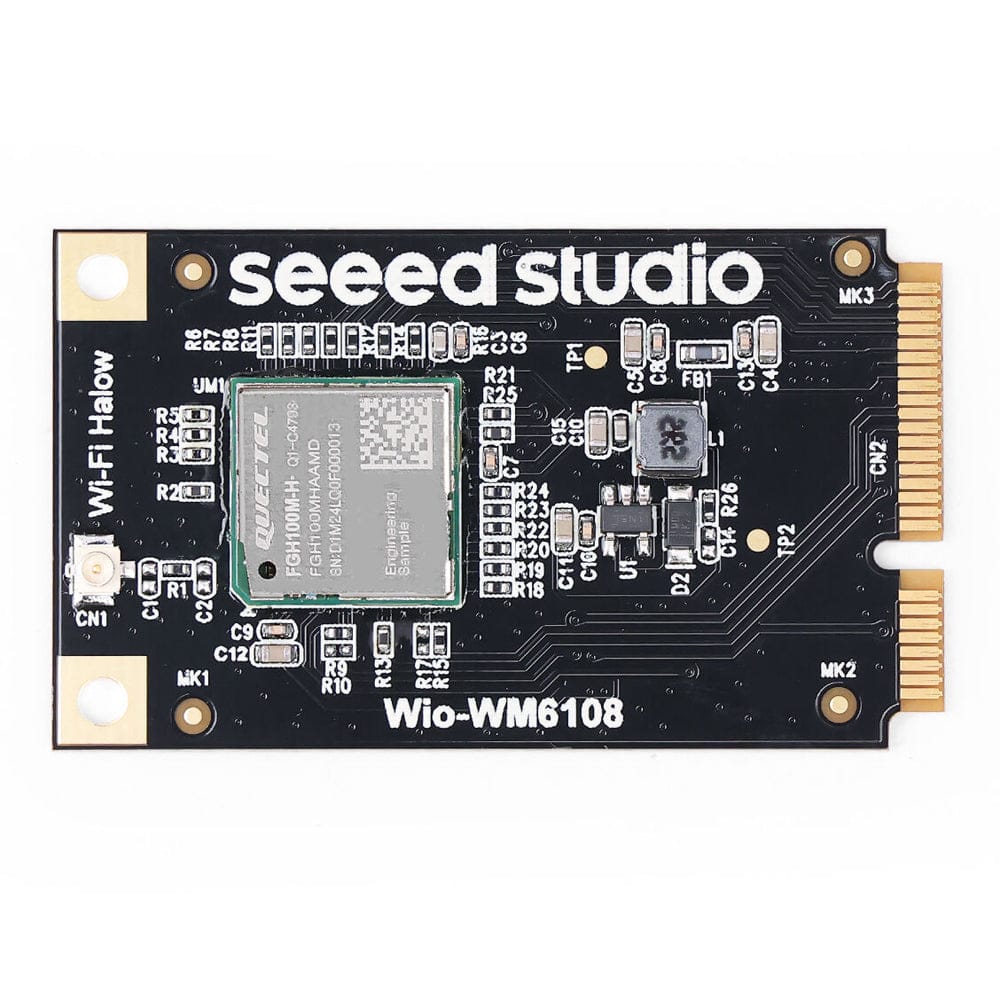

The Seeed Wio-WM6108 Wi-Fi HaLow Mini-PCIe Module, powered by the Quectel FGH100M-H, delivers long-range, low-power Wi-Fi HaLow connectivity in the 902–928 MHz band. With excellent coverage and signal penetration, it’s perfect for smart home, industrial, and IoT applications. Its Mini-PCIe form factor ensures easy integration and reliable performance in space-constrained designs.
The Seeed Wio-WM6108 Wi-Fi HaLow Mini-PCIe Module, powered by the Quectel FGH100M-H, is a long-range, low-power Wi-Fi HaLow module.
Operating in the 902-928 MHz frequency band, it offers excellent penetration and coverage, making it ideal for smart home and IoT applications. Featuring the industry-standard Mini-PCIe form factor, it's ideal for industrial and embedded applications where reliable connectivity and space efficiency are essential.
Features
- Long-Range Connectivity: Complies with IEEE 802.11ah standard, operating in 902-928 MHz frequency band, providing coverage up to 1 km with superior penetration performance.
- Low Power Consumption: Optimized power efficiency design, making it ideal for power-sensitive IoT applications.
- Large-Capacity Access: Supports up to hundreds of simultaneous device connections to the same Wi-Fi access point - ideal for large-scale IoT deployments.
- Robust Security: Implements comprehensive security features including AES, SHA-256, SHA-384, SHA-512, and WPA3 encryption.
- Mini-PCle Form Factor: Utilizing the industry-standard Mini-PCIe interface, this module enables straightforward integration into existing systems. The standardized form factor makes it an ideal choice for industrial and embedded applications, offering both reliable performance and installation convenience.
Please note: Wi-Fi HaLow is an open, standard Wi-Fi technology operating in the license-exempt Sub-1 GHz range.
You may need to prepare additional antennas suitable for WiFi-HaLow use.
Specifications
| Parameters | Details |
| WLAN Protocol | IEEE 802.11ah |
| Wi-Fi Frequency Band | 902–928 MHz |
| Wi-Fi Antenna | 1 x 1 |
| Wi-Fi Modulation Mode | OFDM, BPSK, QPSK, 16QAM, 64QAM |
| Encryption Mode | AES, SHA-256, SHA-384, SHA-512, WPA3 |
| Wi-Fi Operating Mode | AP / STA |
| Operating Temperature Range | -30 °C to +85 °C |
| Extended Temperature Range | -40 °C to +85 °C |
| Physical Rate (Max.) | 802.11ah: 32.5 Mbps |
| Power Supply Voltage | VBAT: 3.0–3.6 V, typ. 3.3 V |
| I/O Power Supply Voltage | VDD_IO: 1.62–3.6 V, typ. 1.8/3.3 V |
| FEM Power Supply Voltage | VDD_FEM: 3.0–5.25 V, typ. 5 V |
| Supplier Code | 109990565 |
Resources
Hardware Overview
Package Contents
- 1x Wio-WM6108 Wi-Fi HaLow Mini-PCIe Module
