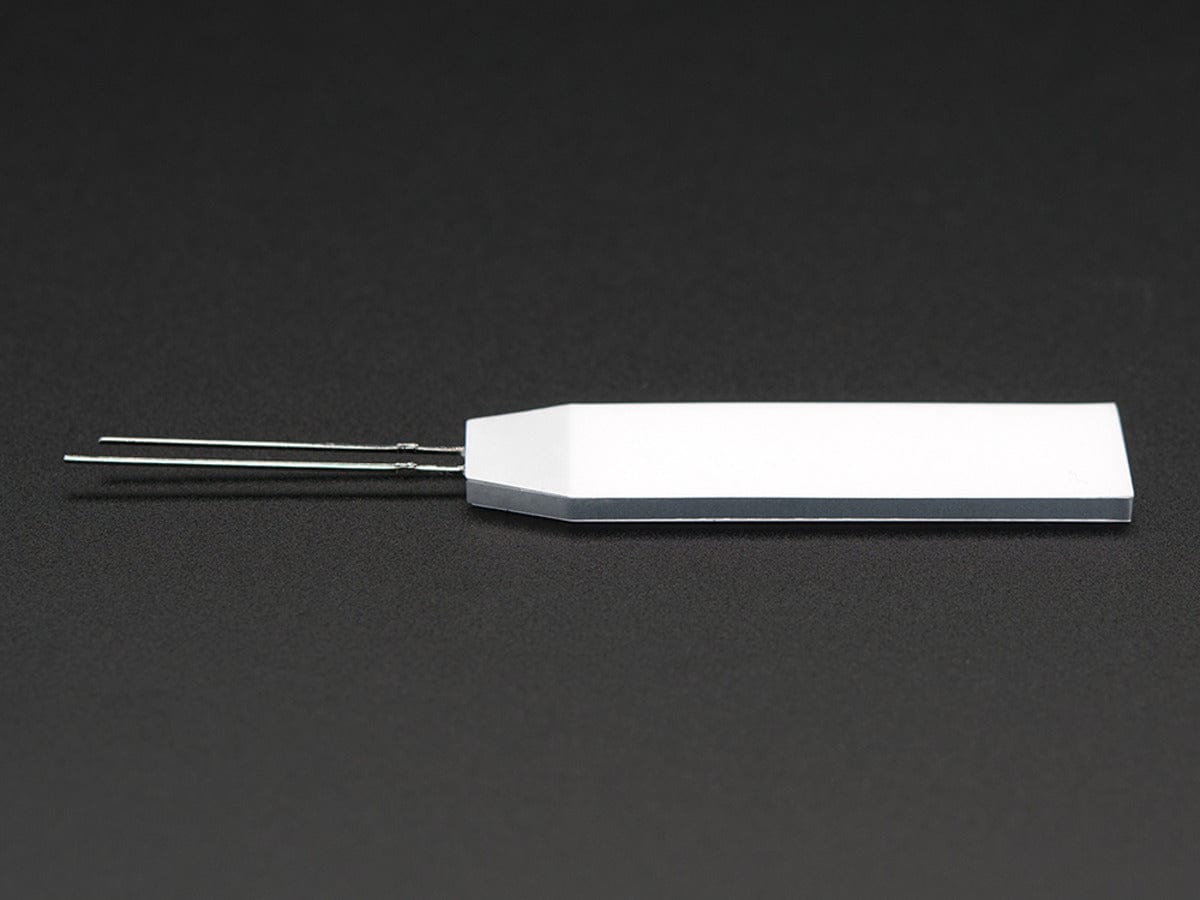

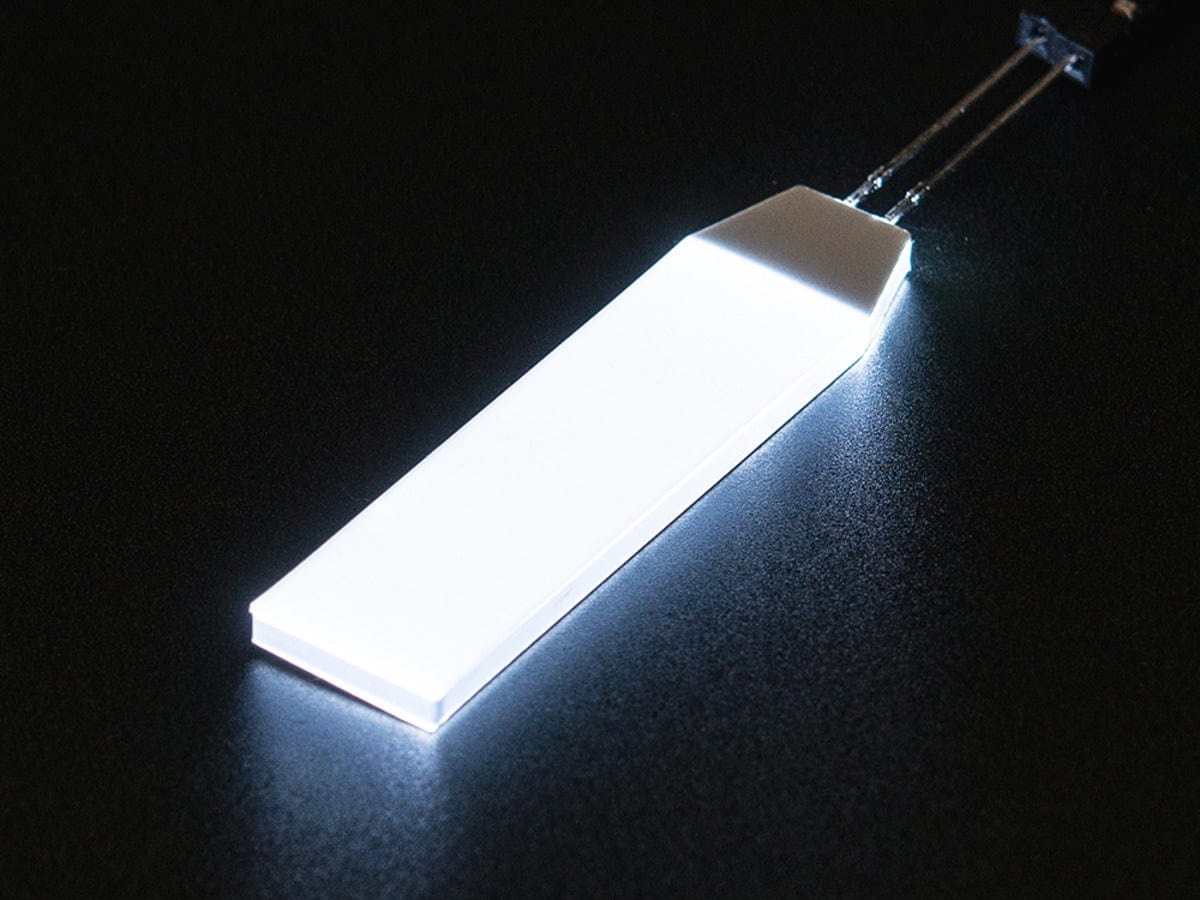

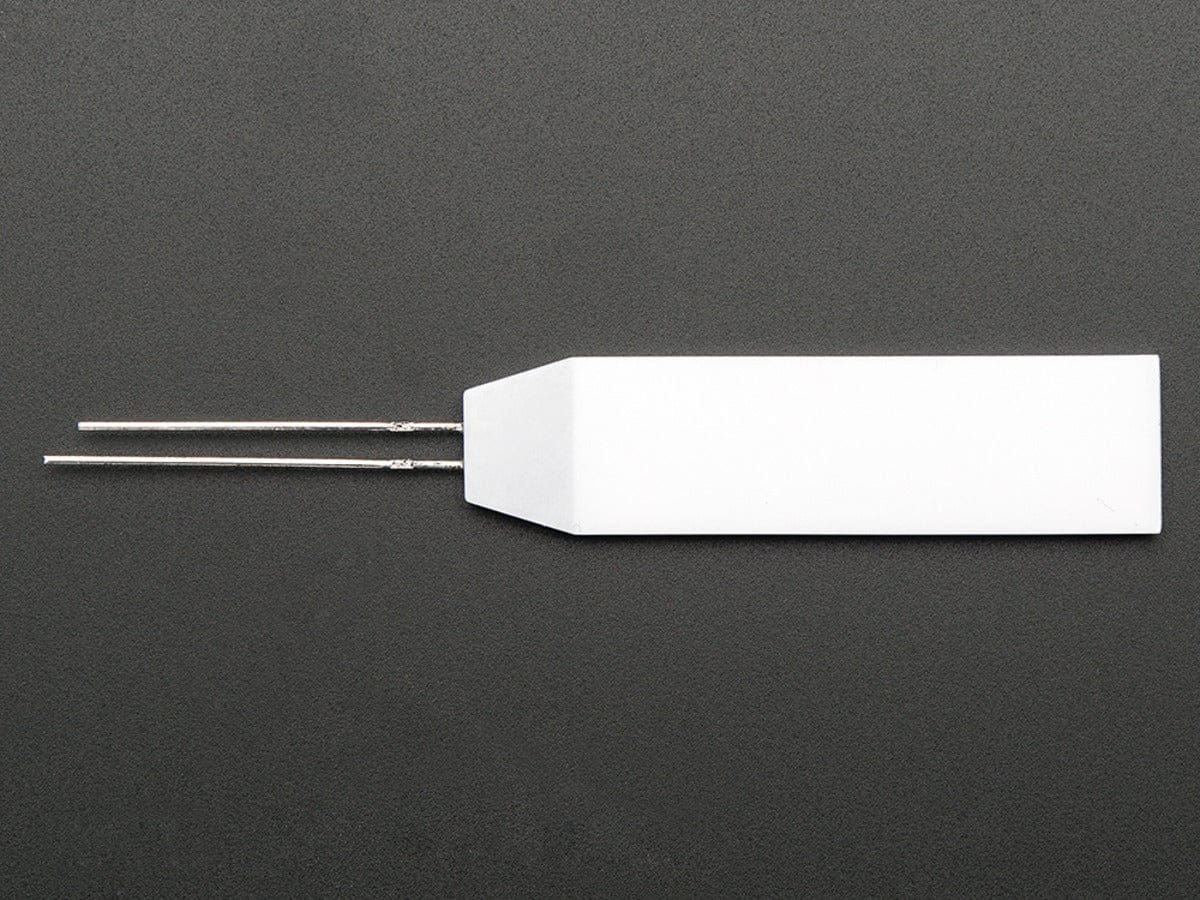

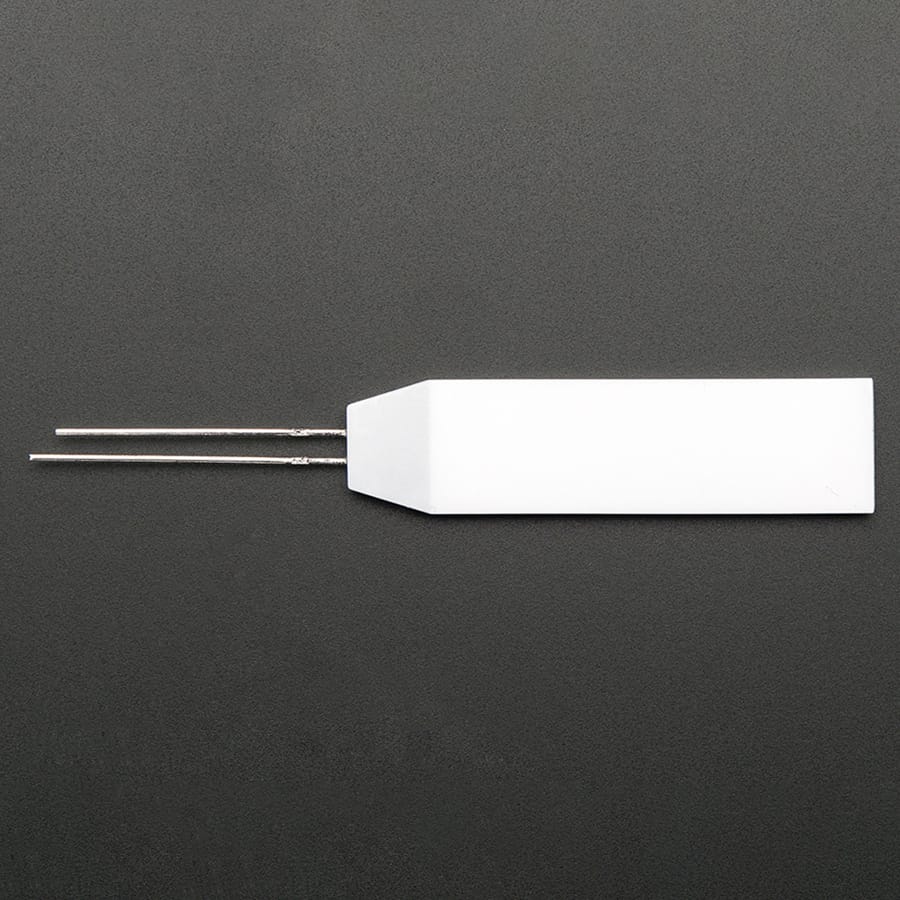

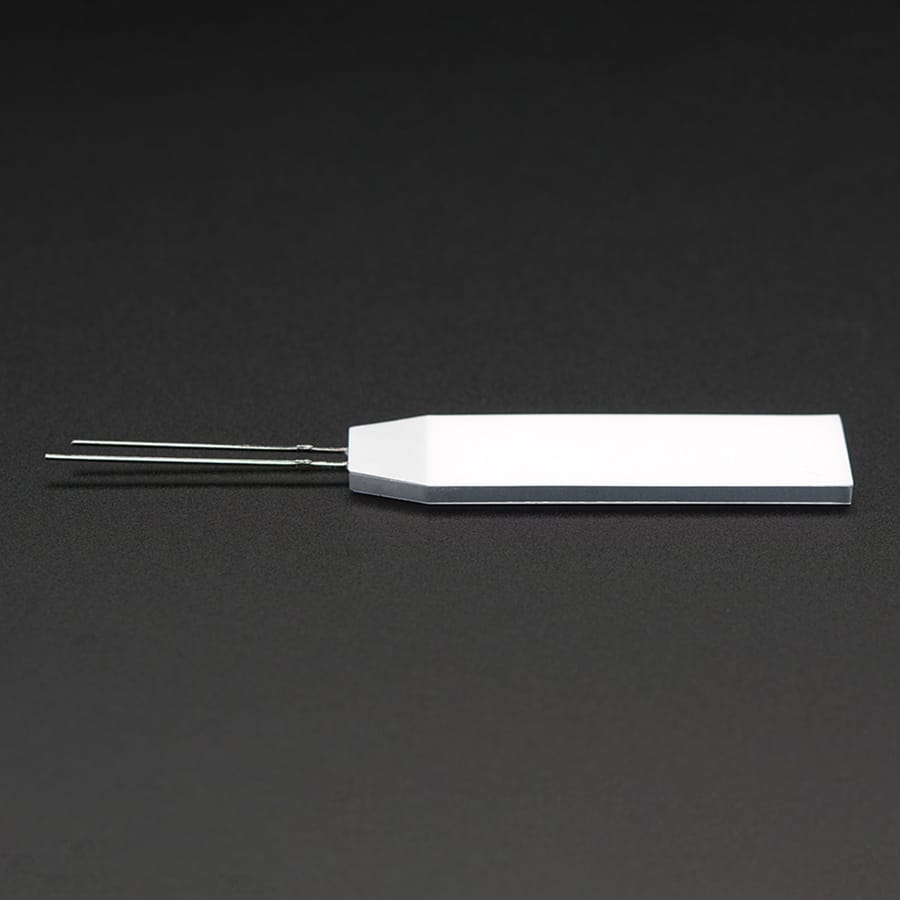

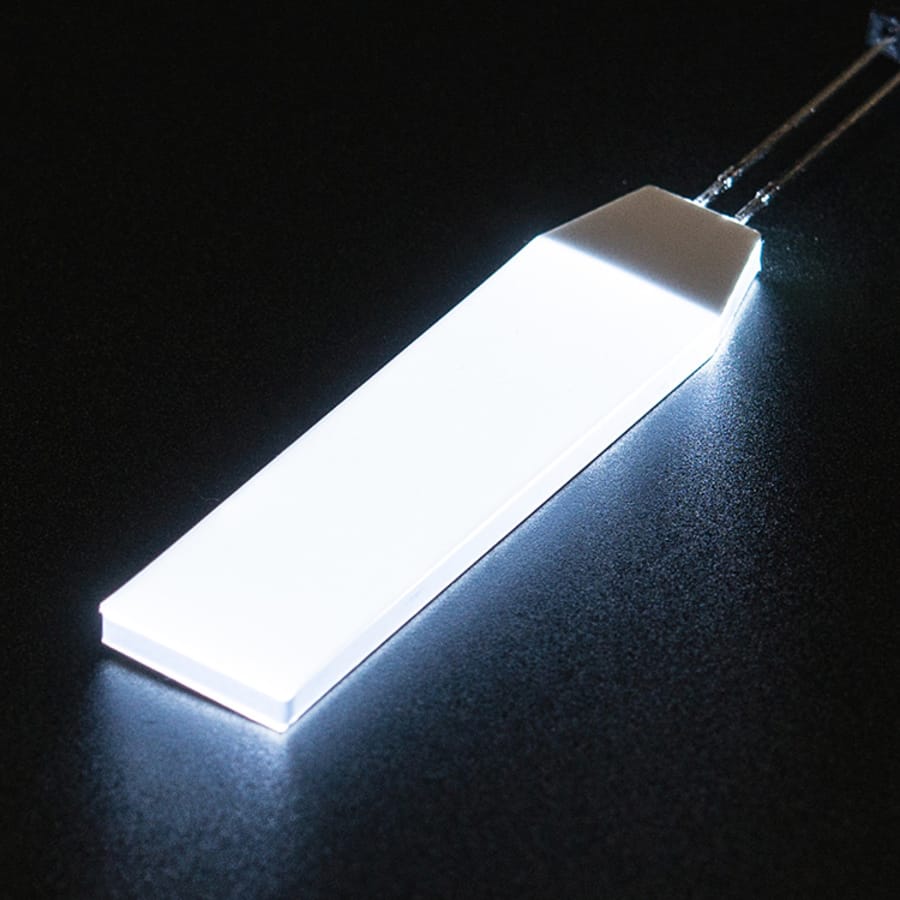

This LED Backlight Strip provides bright, even illumination from a single LED, making it ideal for custom lighting, small signs, wearables, and creative electronics projects.
These pretty strips of light are plastic diffused backlights, often seen in LCD displays. Normally they're tucked behind the LCD and shine white light from below. Here, we've got the LEDs available individually and they're really cool!
Each LED is encased in a 3.5mm thick strip of a acrylic. The acrylic strip is a special type that is very good at diffusing light, so even though there is only one single white LED, it provides near-uniform lighting. The other flat side of the strip has a reflector on it so you only get light from the top (otherwise the backlight would lose 1/2 the brightness unnecessarily).
You can treat this backlight just like an LED, light with ~3V at 20mA current and you get a pretty shape that you can mask with vinyl or draw over with a marker. You will need a resistor in series like any other LED, to set the max current. Gels can be used to change the colour. We think these would make great wearables without the need for EL or inverters, they're much brighter than EL and use less battery. The trade-off is these are not flexible at all.

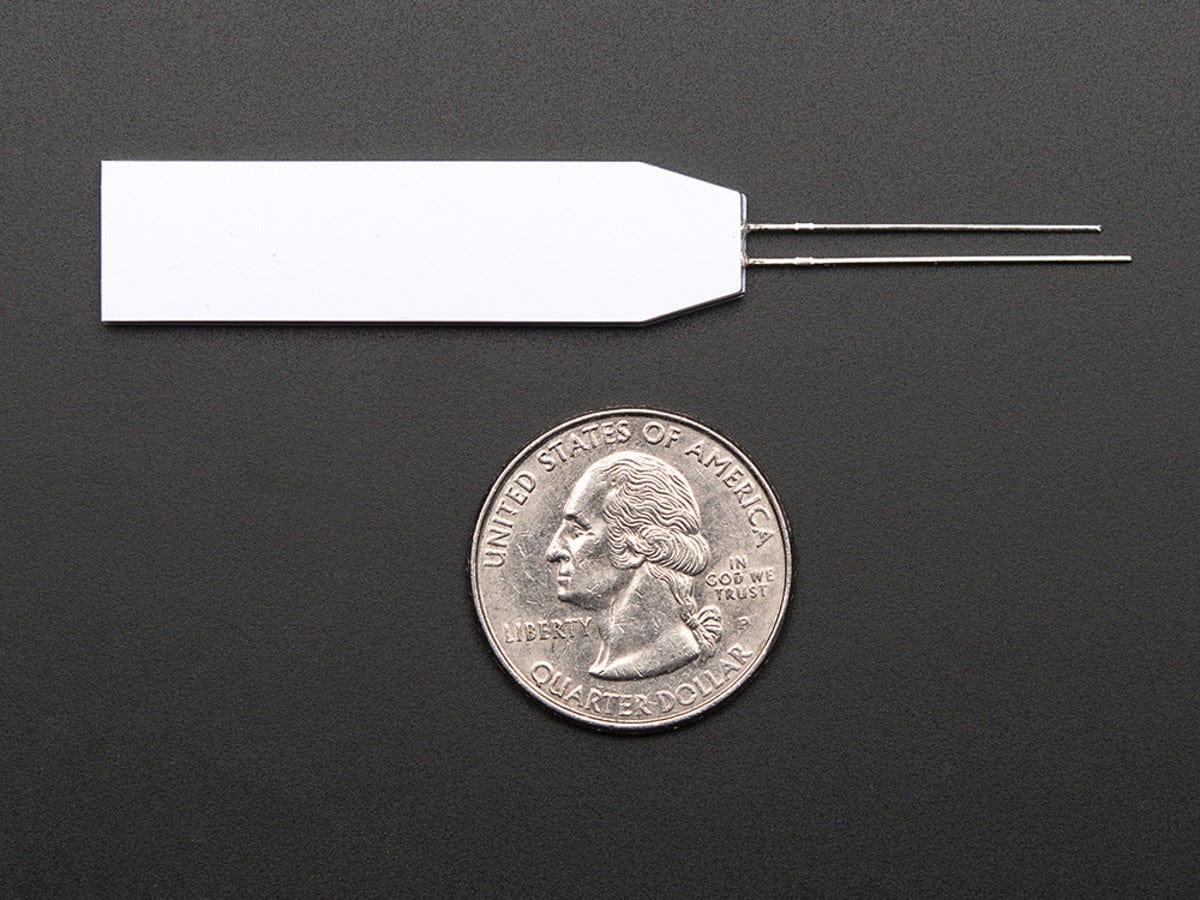

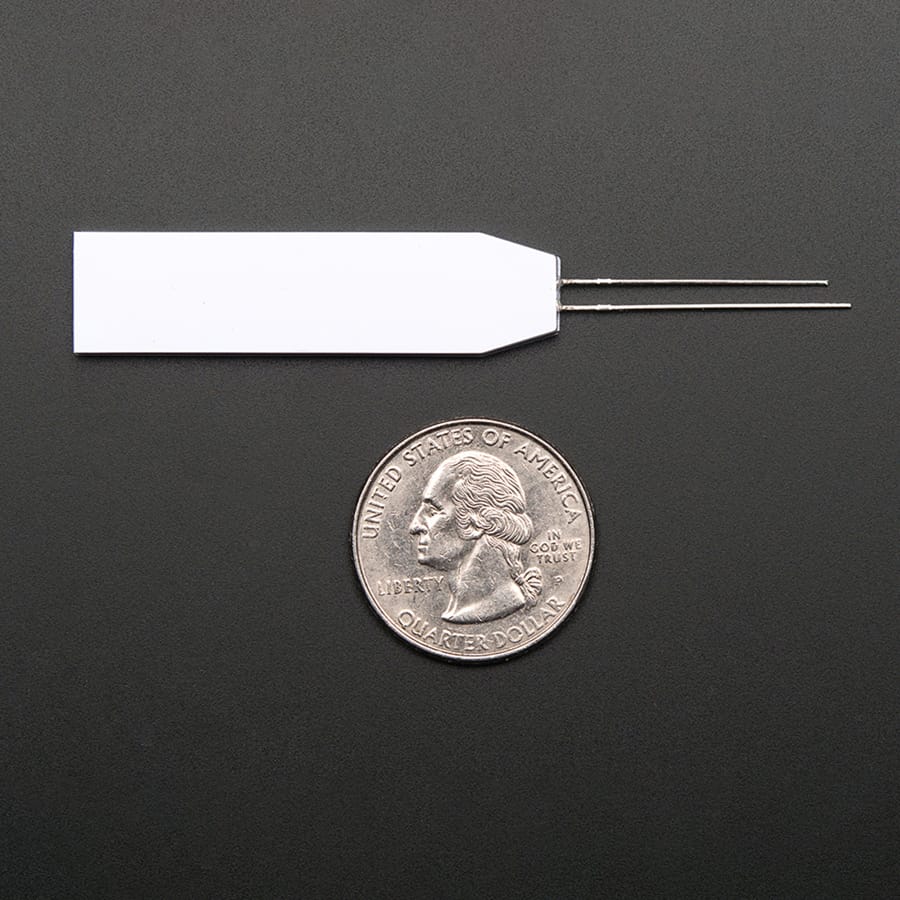

This particular backlight has a 12mm x 40mm lit area.
Features
3.5mm thick acrylic diffused backlight strip with single white LED
Near-uniform light distribution across the entire strip
Reflective backing on flat side directs light upward only
Operates at ~3V and 20mA (requires series resistor)
12mm x 40mm lit area
Maskable with vinyl or customisable with markers
Compatible with colour gels for light customisation
Brighter than EL backlights with lower power consumption
