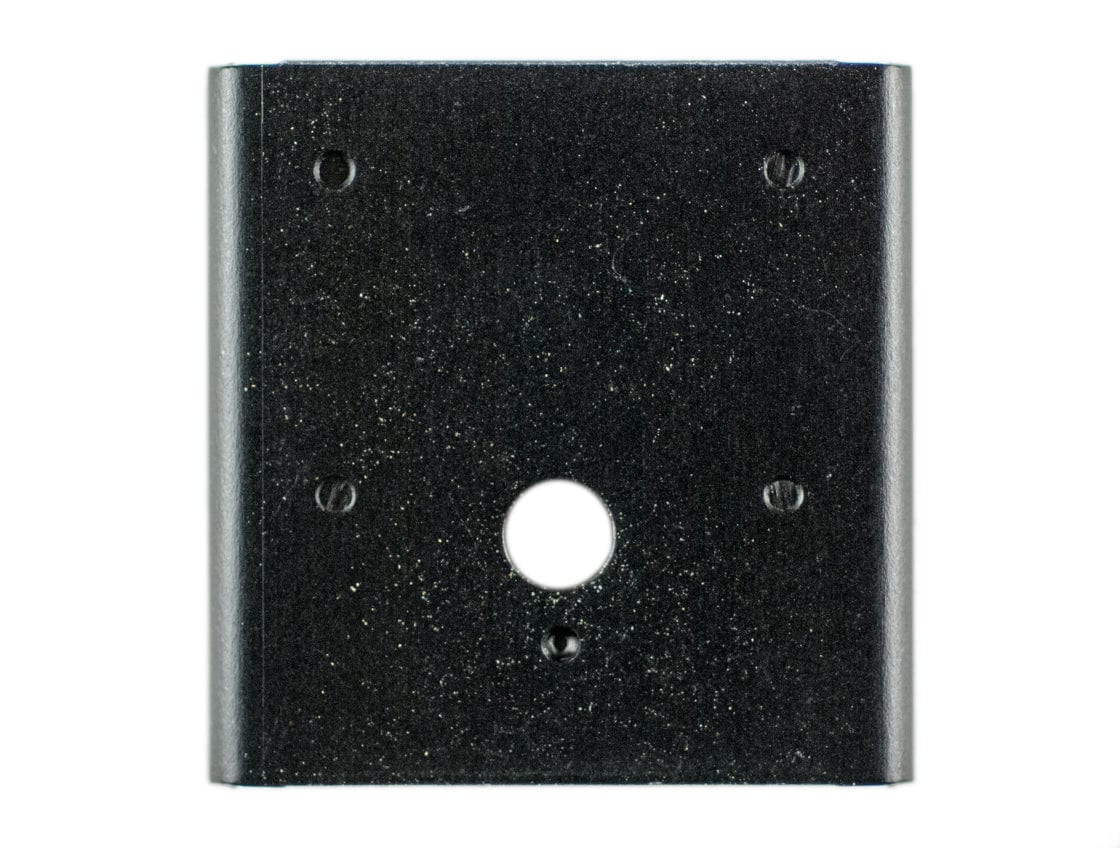

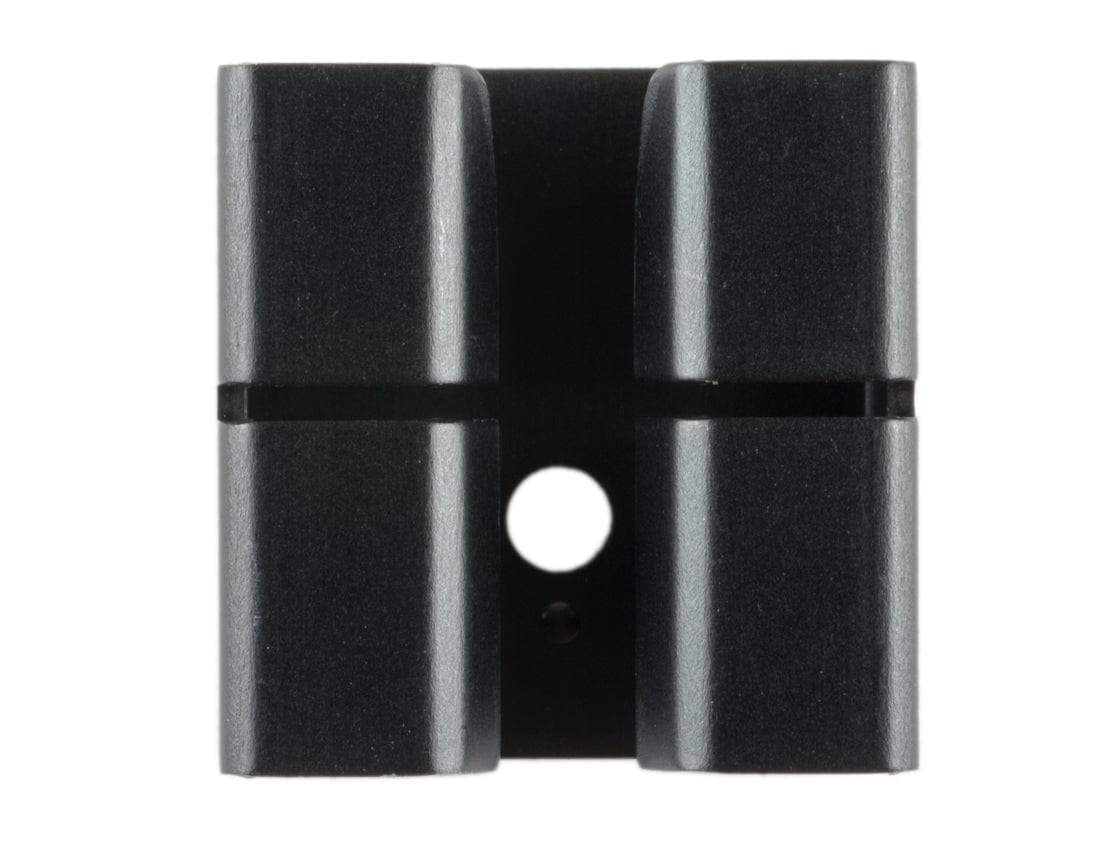

TO-220 Clip-on Heat Sink

ModMyPiSKU: MMP-0544
Price:
Sale price £0.50
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

The Pi HutN-channel power MOSFET (30V 60A)
Sale price £1.50 incl. VAT excl. VAT

Voltage regulators and transistors can get a little hot sometimes! Most chips state that they can cope with high currents and voltage drops, but running these devices in high-capacity situations can shorten their life.

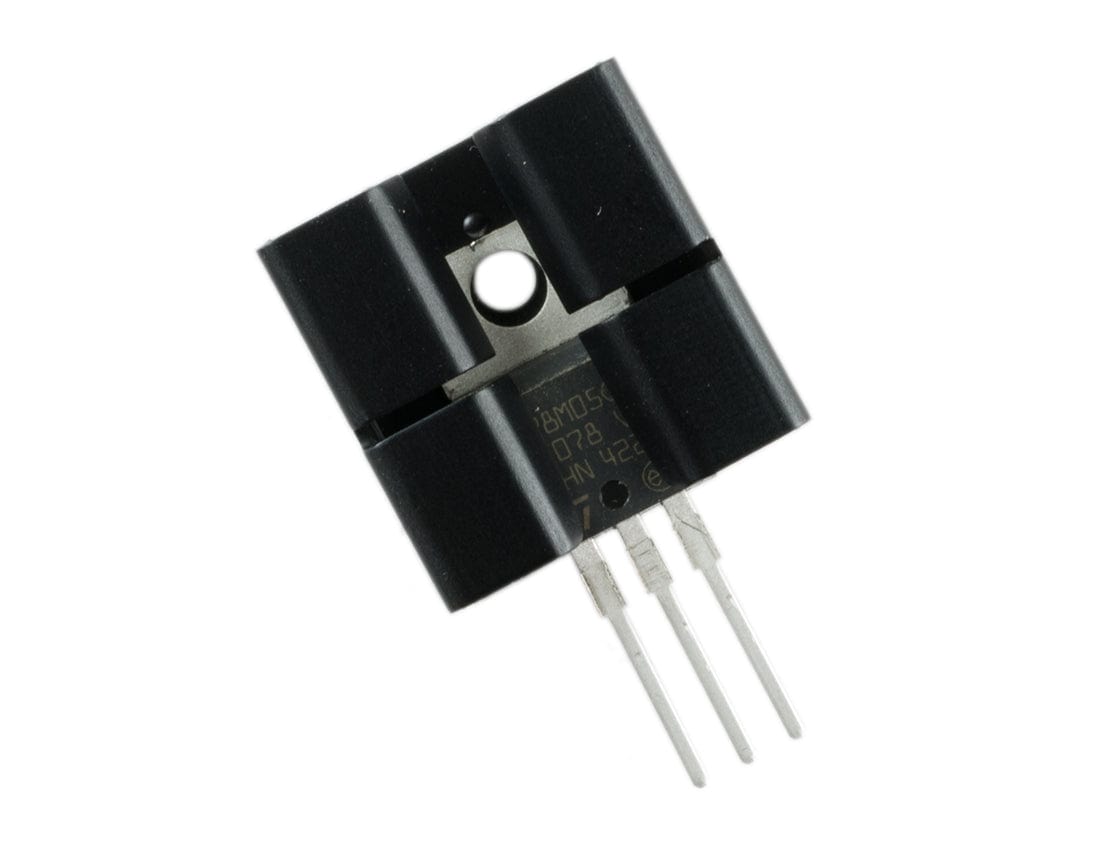

If you need to protect them from burning out, then add this nifty slide/clip-on** heat sink! No screws of thermal paste required, these heat sinks simply slide** onto any TO-220 size chip.

These heat sinks have a thermal resistance of 28°C/W when connected to a TO-220 chip, which should let you dissipate around 4 Watts of power.

** These heatsinks are slide/Clip-on but you do need to give it a good push, approaching from the side with the angled corner. TO-220 chips are tough, so don't worry about damaging the casing - it needs a good tight hold!

Specification

  • Packages Cooled : TO-220
  • Thermal Resistance : 28°C/W
  • External Height : 20mm
  • External Width : 19.7mm
  • External Length : 8.1mm
  • Mounting Type : Vertical / Horizontal clip-on
