USB Micro B Male Plug to 5-pin Terminal Block by Adafruit - The Pi Hut

USB Micro B Male Plug to 5-pin Terminal Block

AdafruitSKU: ADA3972

£6.30

incl. VAT

excl. VAT

Sold out

Awesome Extras

Prototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi Hut

The Pi Hut Prototyping Wire Spool Set - 6 Spool Solid Core

£12 incl. VAT excl. VAT

25-in-1 Compact Precision Screwdriver Set by The Pi Hut - The Pi Hut

The Pi Hut 25-in-1 Compact Precision Screwdriver Set

£9 incl. VAT excl. VAT

USB Micro B Female Socket to 5-pin Terminal Block by The Pi Hut - The Pi Hut

Adafruit USB Micro B Female Socket to 5-pin Terminal Block

£6.30 incl. VAT excl. VAT

Notify me

Multifunction Wire Strippers by The Pi Hut - The Pi Hut

The Pi Hut Multifunction Wire Strippers

£6 incl. VAT excl. VAT

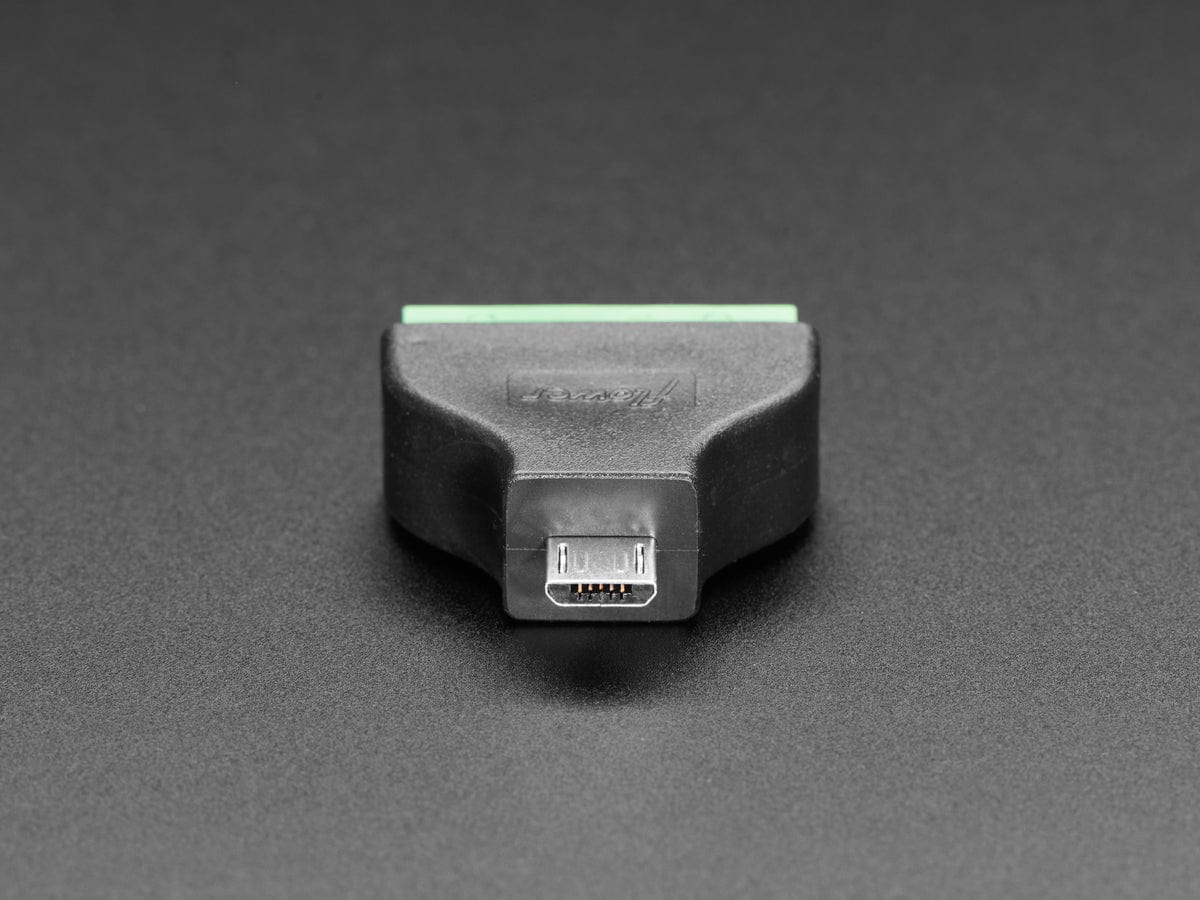

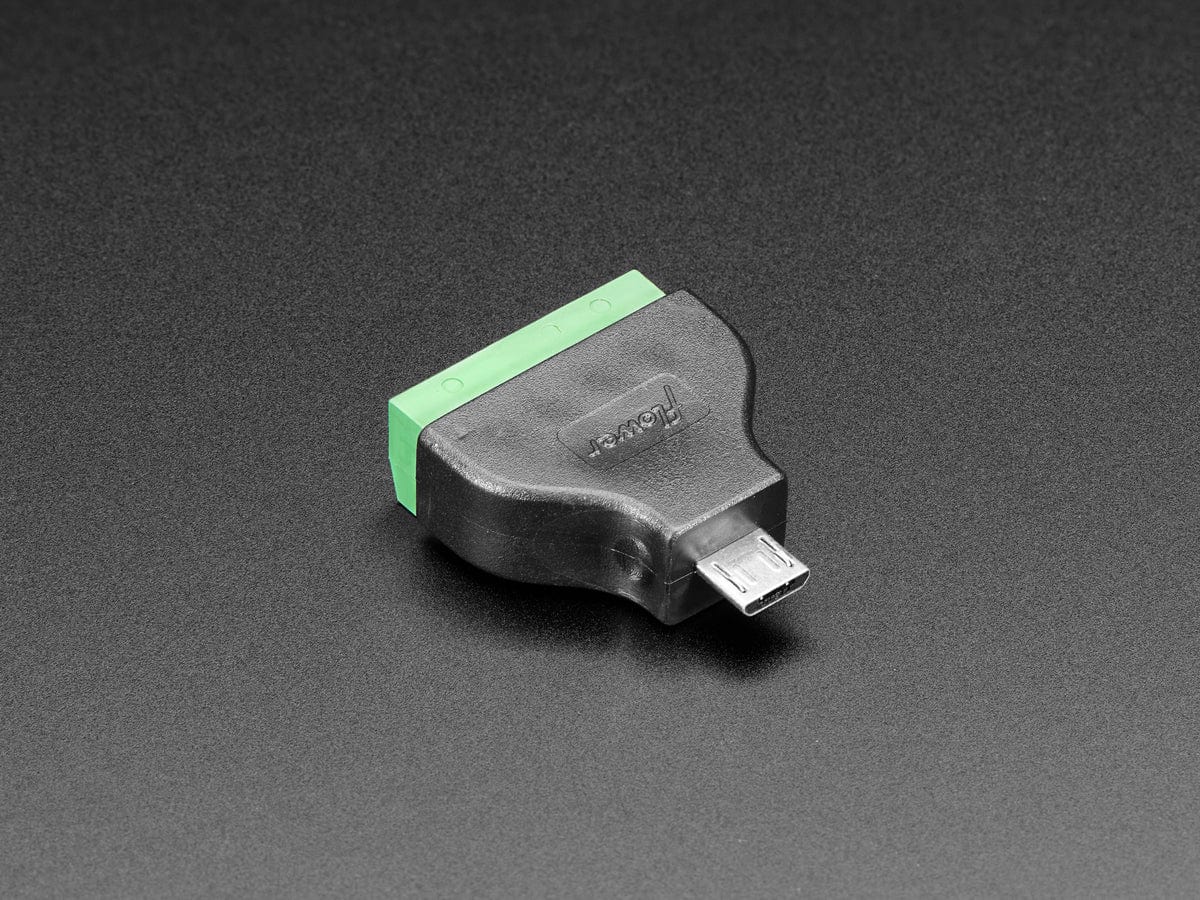

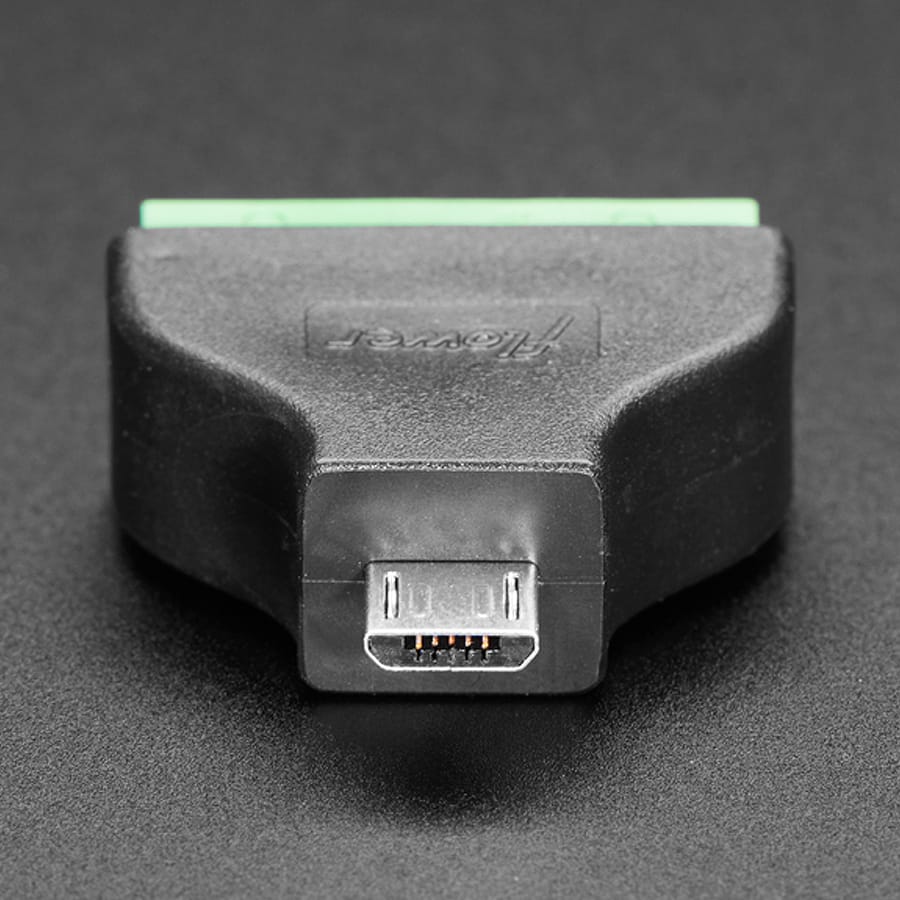

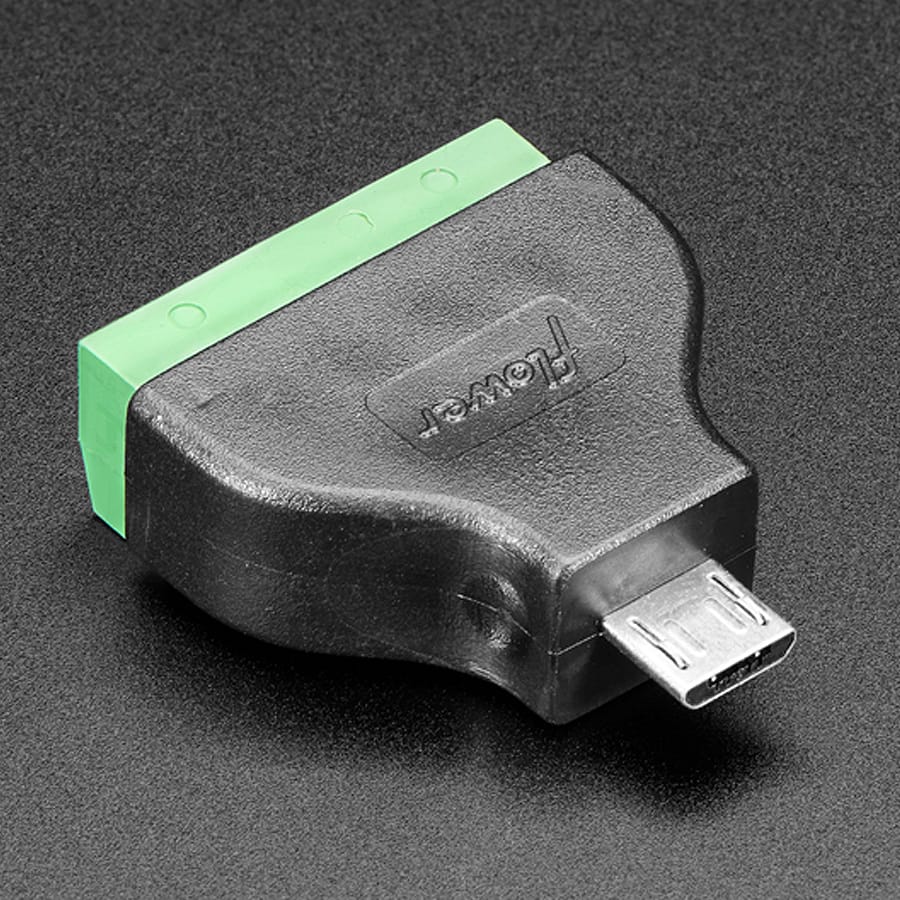

Make your next custom USB cable quickly and easily with a USB Micro B Male Plug to 5-pin Terminal Block.

If you need to connect to a device with a micro USB plug or maybe make your own USB OTG device or custom cable of sorts - this adapter will come in very handy: no soldering required!

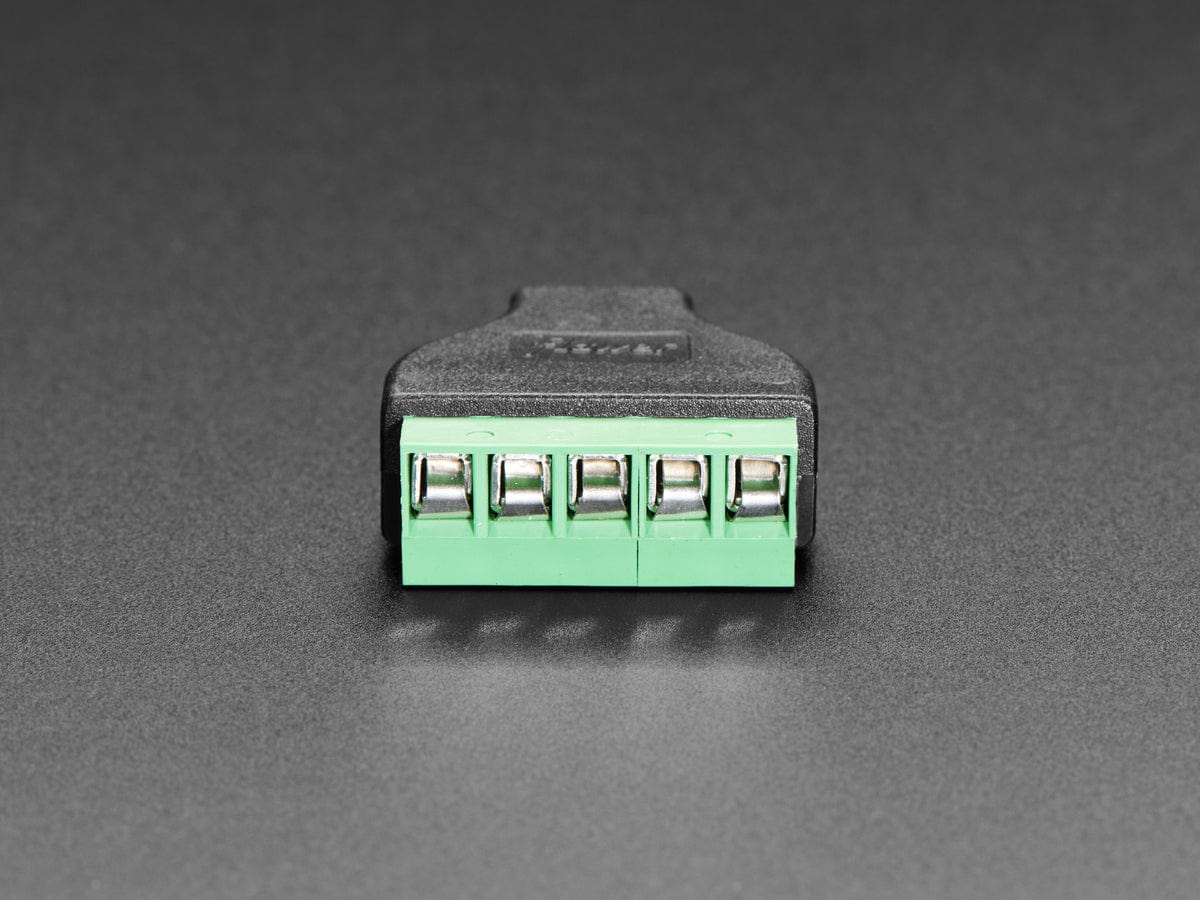

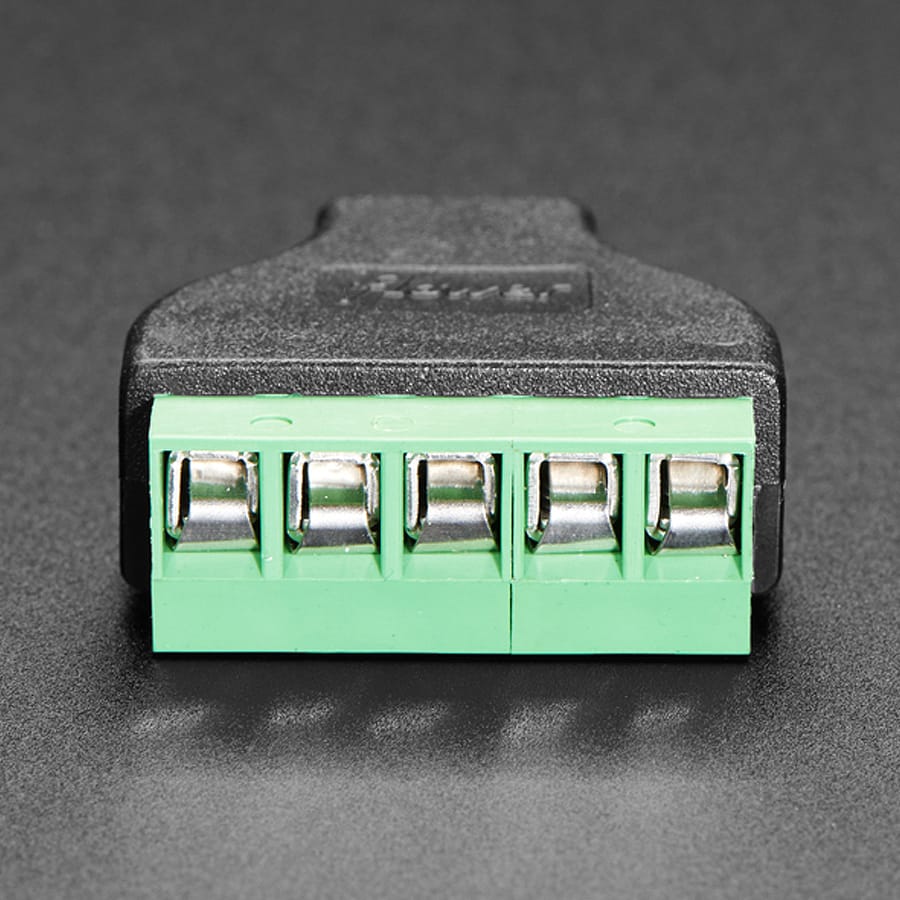

Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten. All the pins are labelled, which is really nice because we keep forgetting the order.

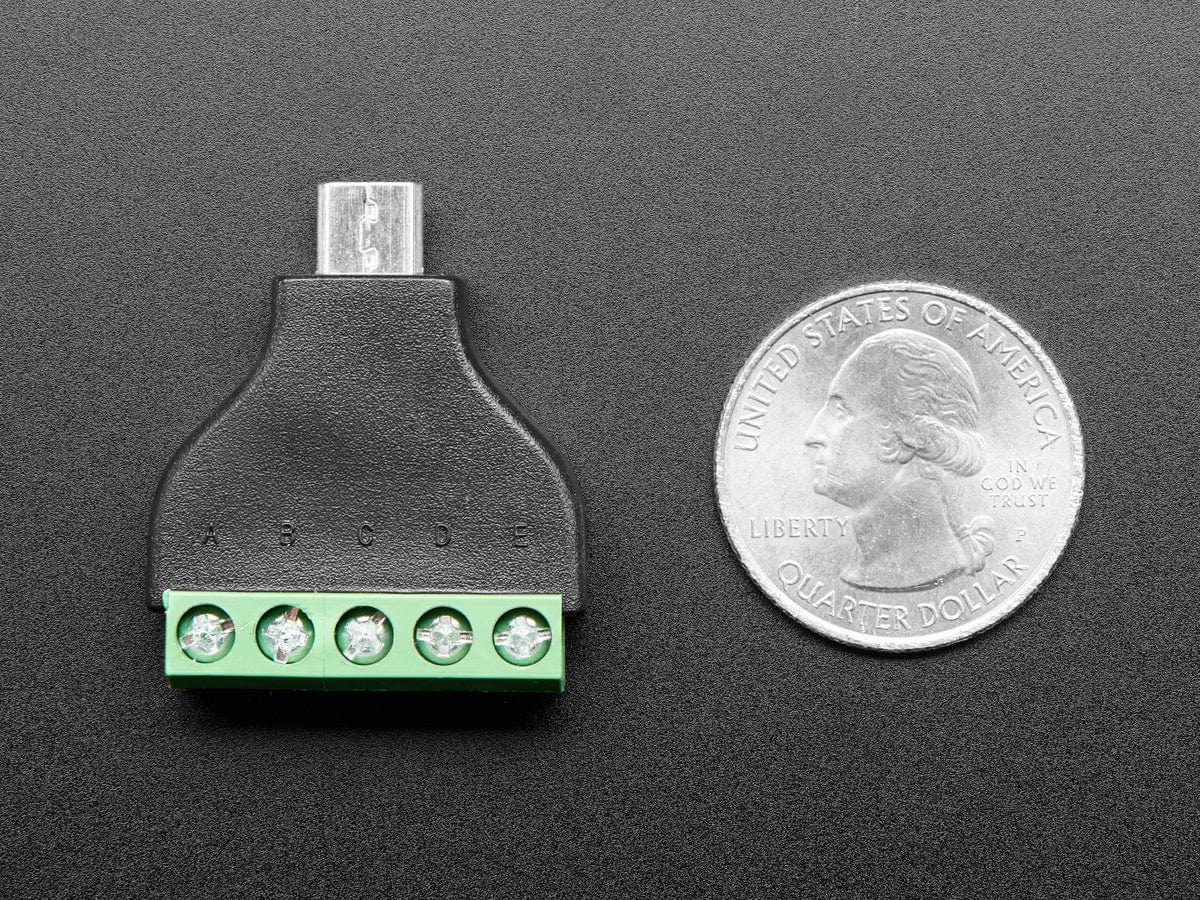

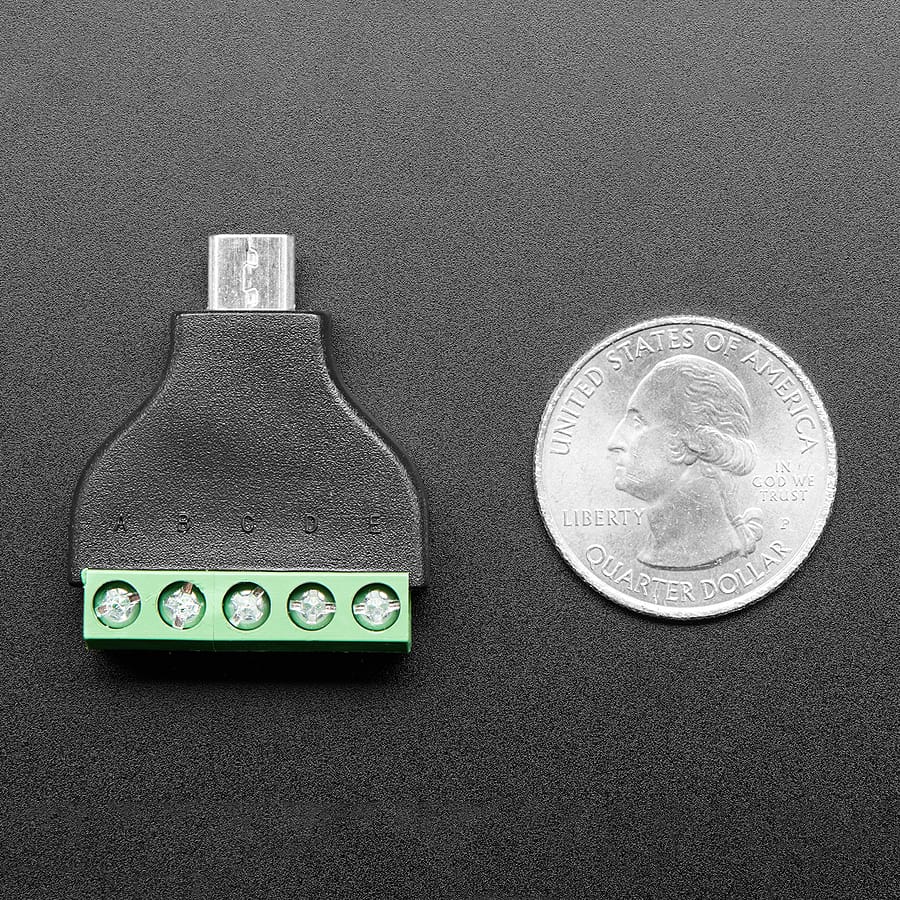

A – Pin 1 (V+)
B – Pin 2 (D-)
C – Pin 3 (D+)
D – Pin 4 (ID)
E – Pin 5 (GND)

We also stock the plug 'mating' version of this adapter.

Specifications

Terminal Block Pitch: 5mm
Wire gauge: 26-16AWG
Dimensions: 32.5mm x 28.0mm x 10.4mm
