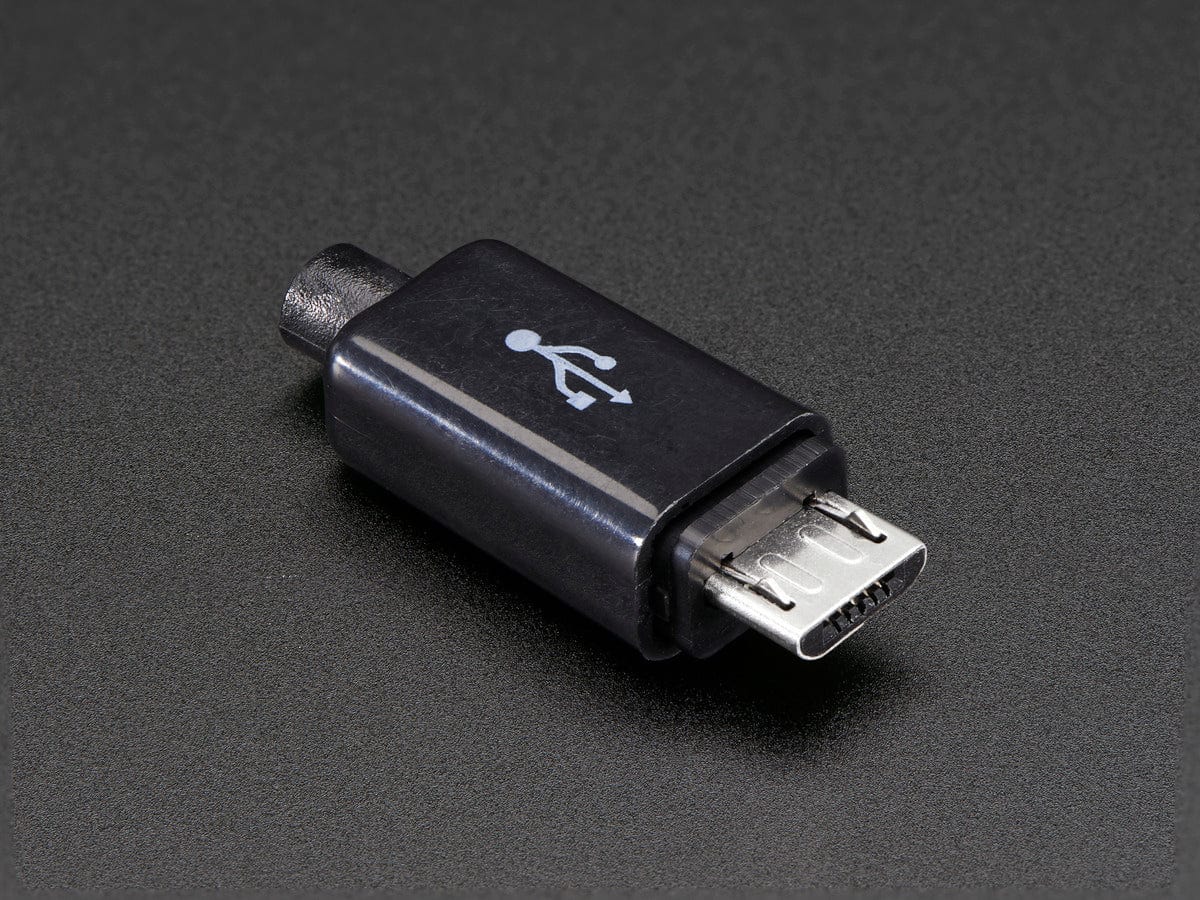

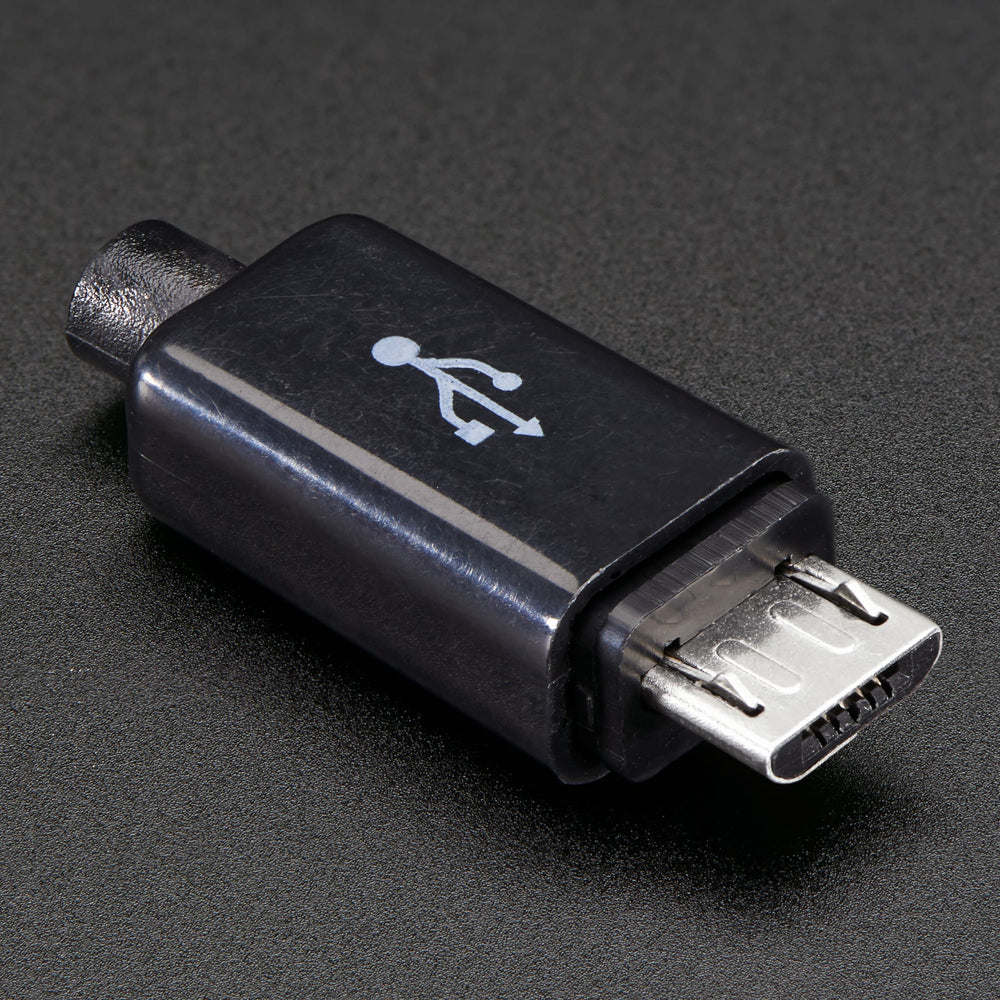

Make your own USB connections without slicing apart a USB cable and soldering those thin wires inside. This is the 'slim' version of the DIY MicroB Male connector. It's a little more elegant because instead of snapping two pieces together the connector press-fits into the overmolding for a modern look. We also carry the slim size in USB-A male and USB-microB female.
Normal DIY "USB shells" are available in USB A plug, micro B, mini B and USB A socket.

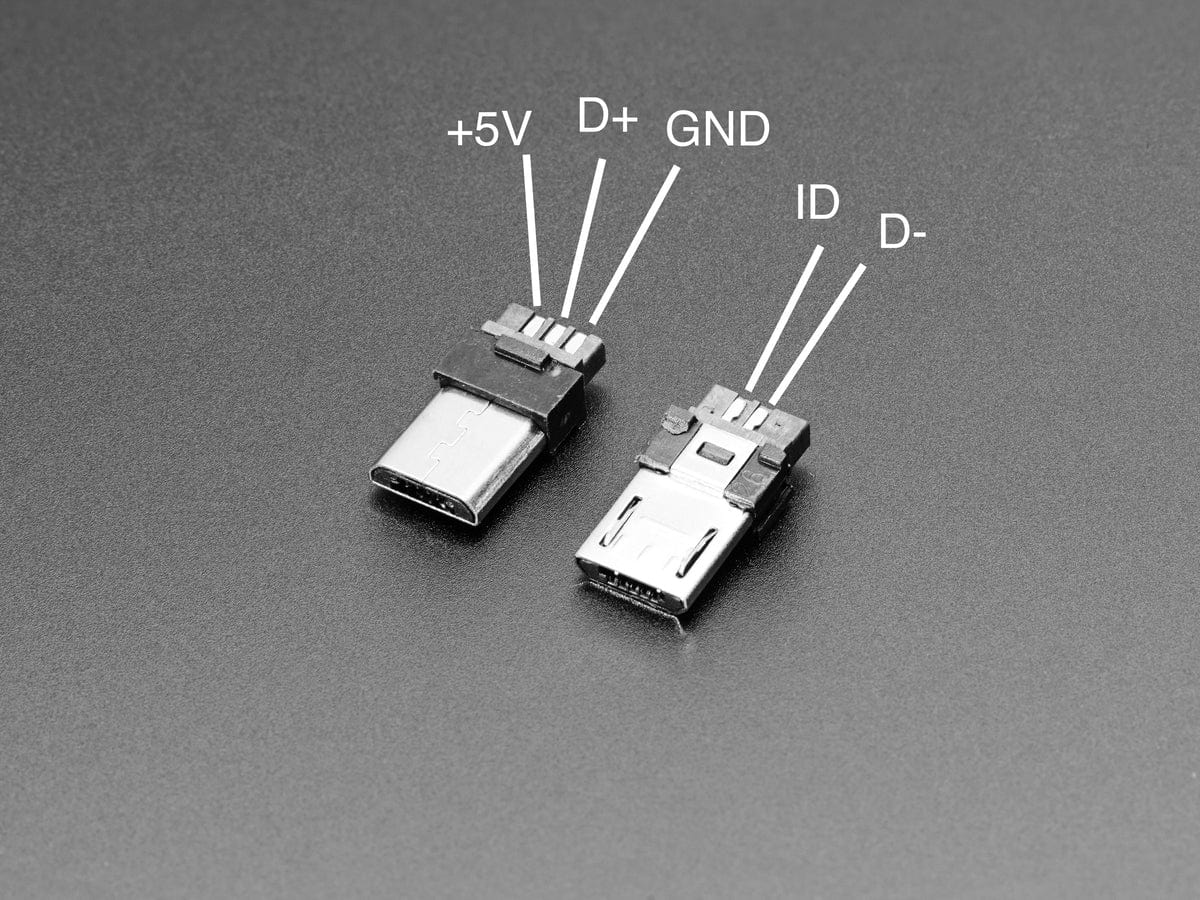

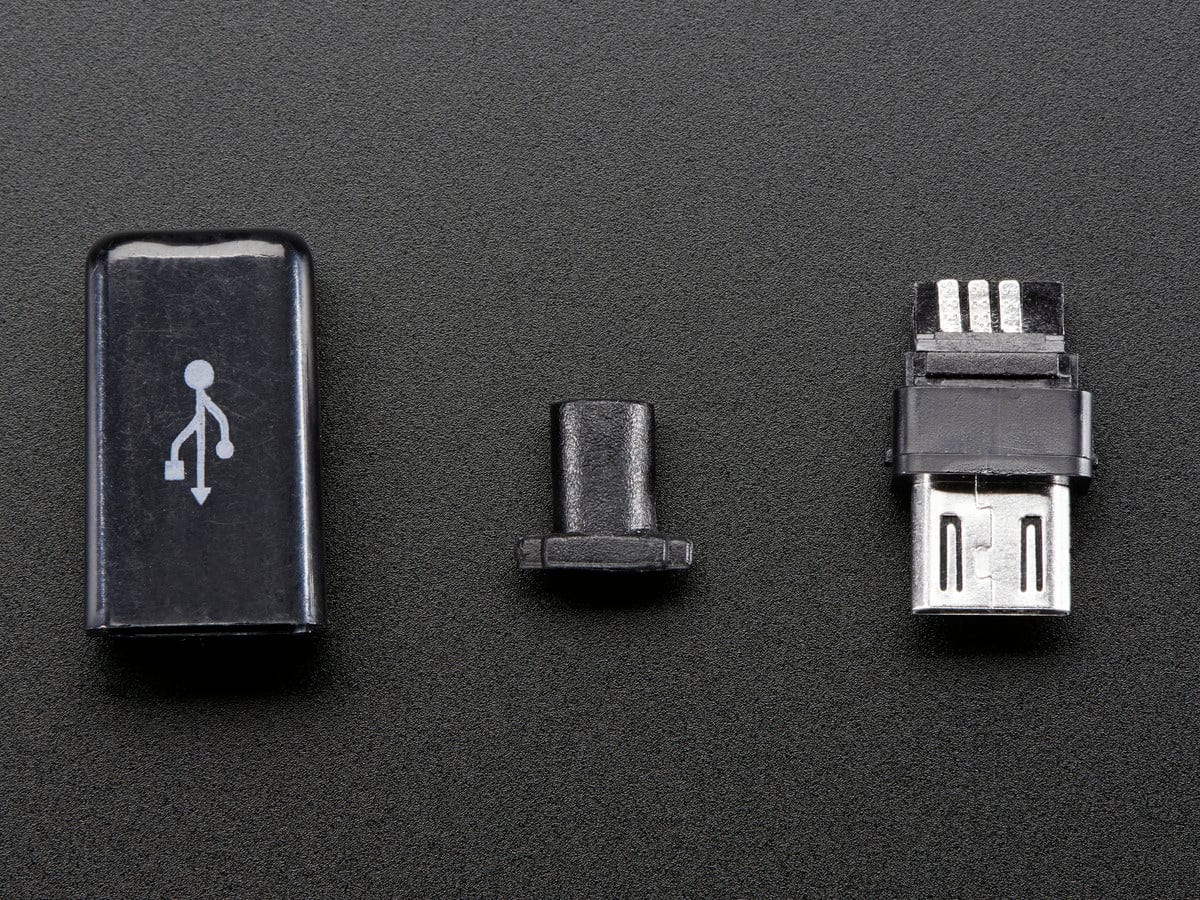

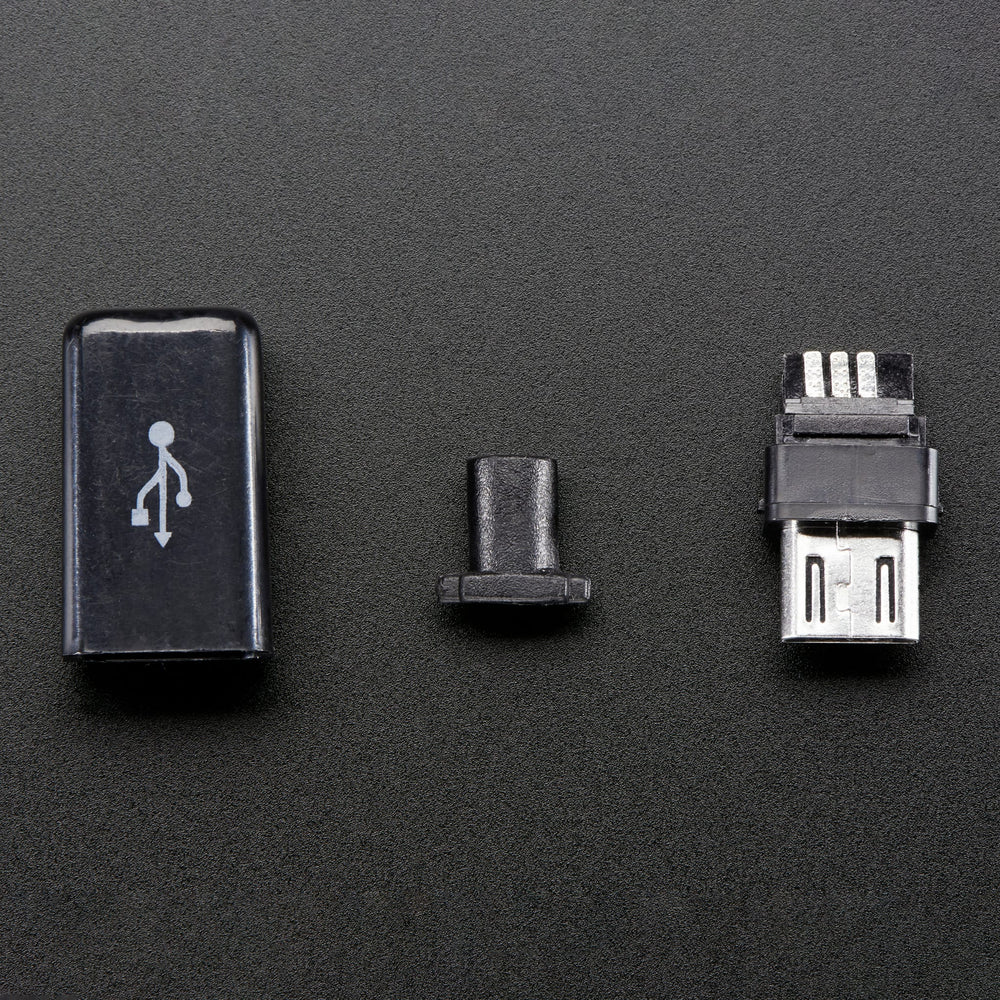

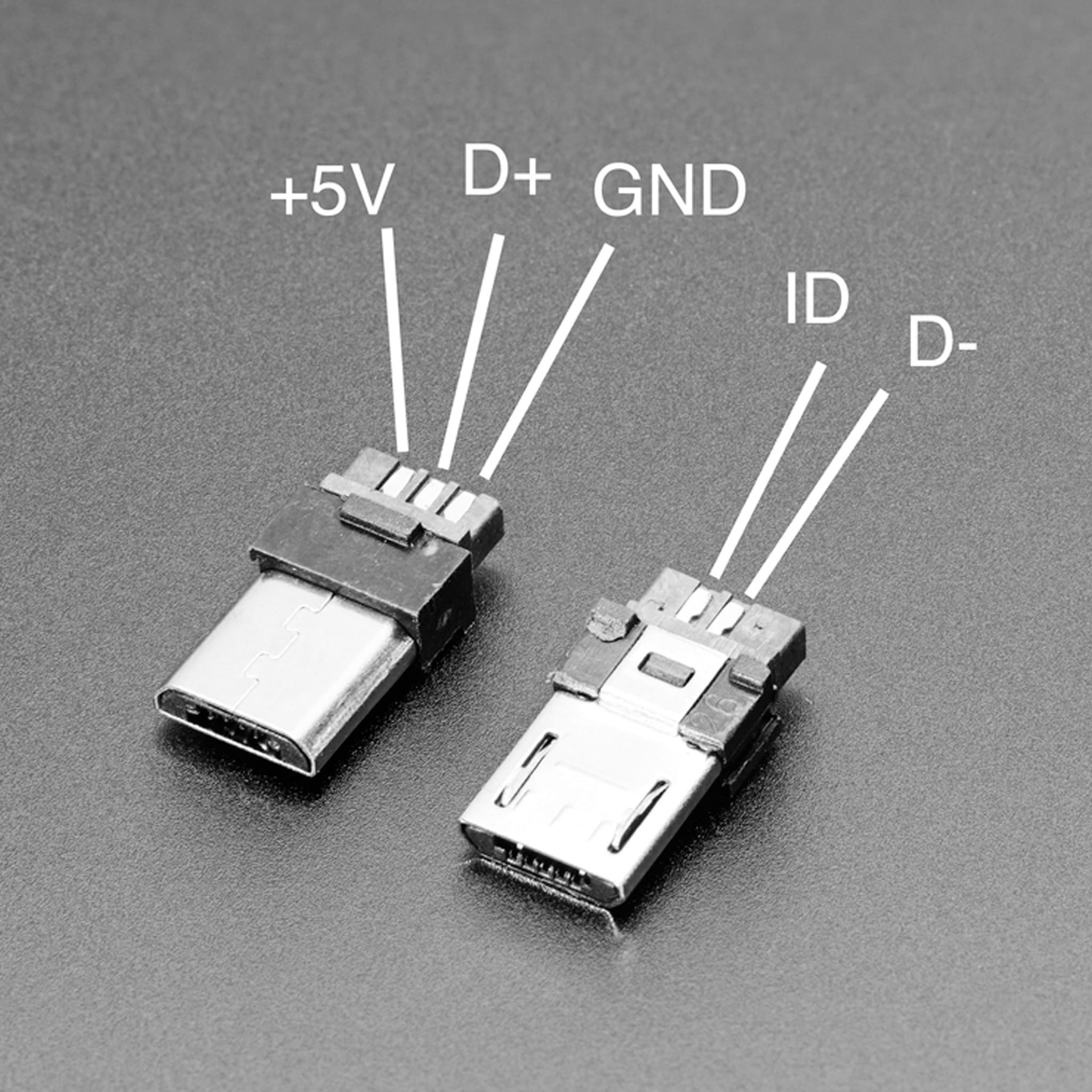

Each shell comes with a plastic shell and a proper connector with easy-to-solder tabs. All 5 pins are brought out, 3 on one side of the connector, two on the other.
For pinout image check out USB DIY Connector Shell - Type Micro-B Plug

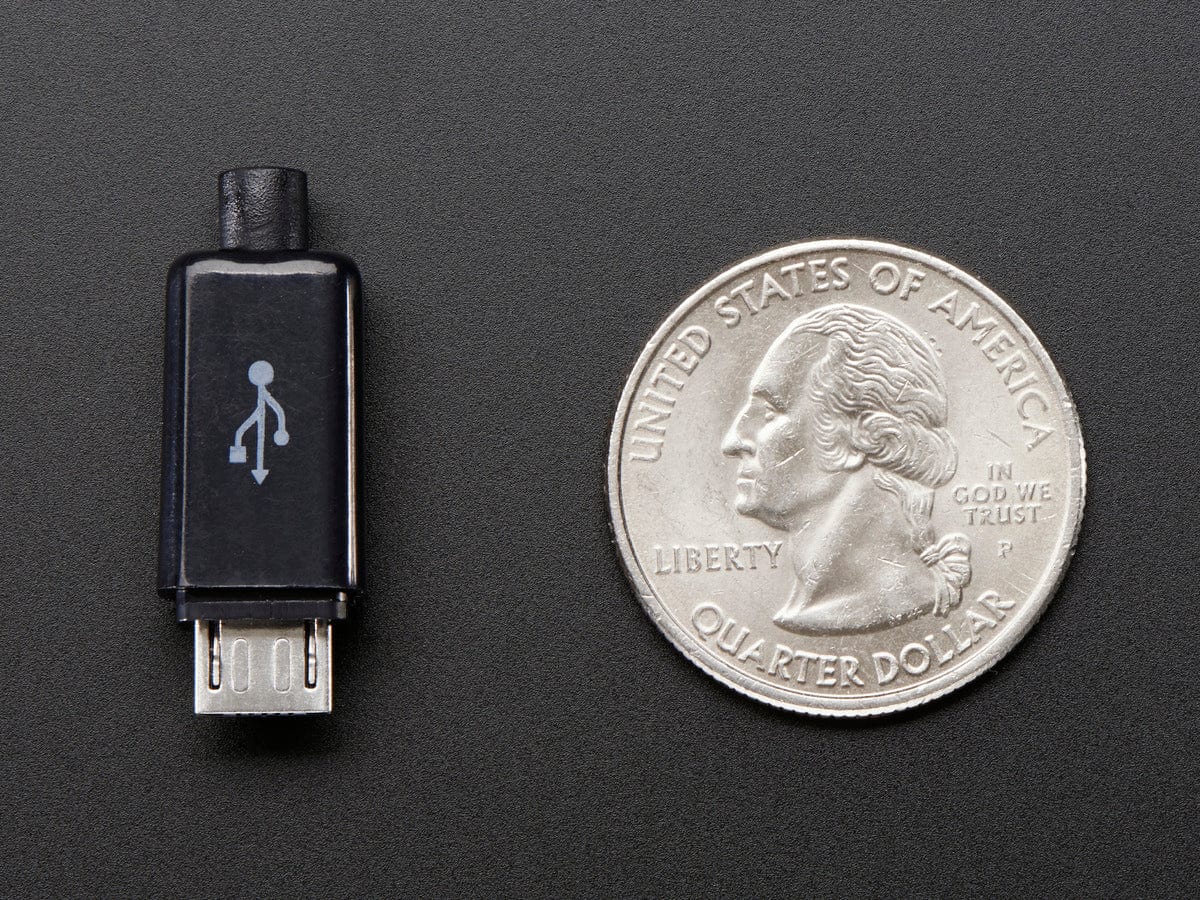

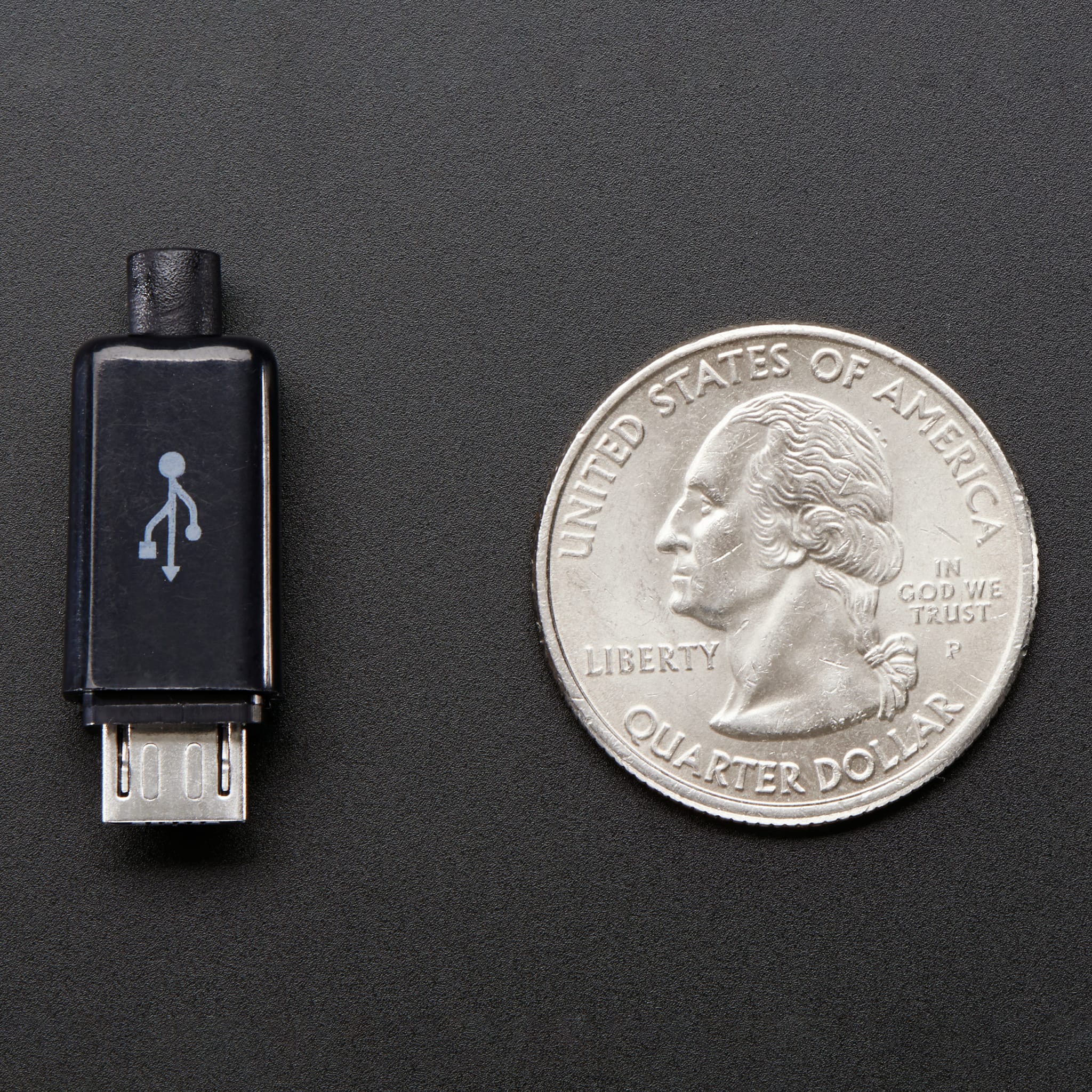

- Assembled Dimensions: 26mm x 10mm x 7mm / 1" x 0.4" x 0.3"
- Assembled Weight: 1.22g
- Micro USB Connector Dimensions: 14mm x 8.5mm x 6mm / 0.6" x 0.3" x 0.2"
- Micro USB Connector Weight: 0.6g
