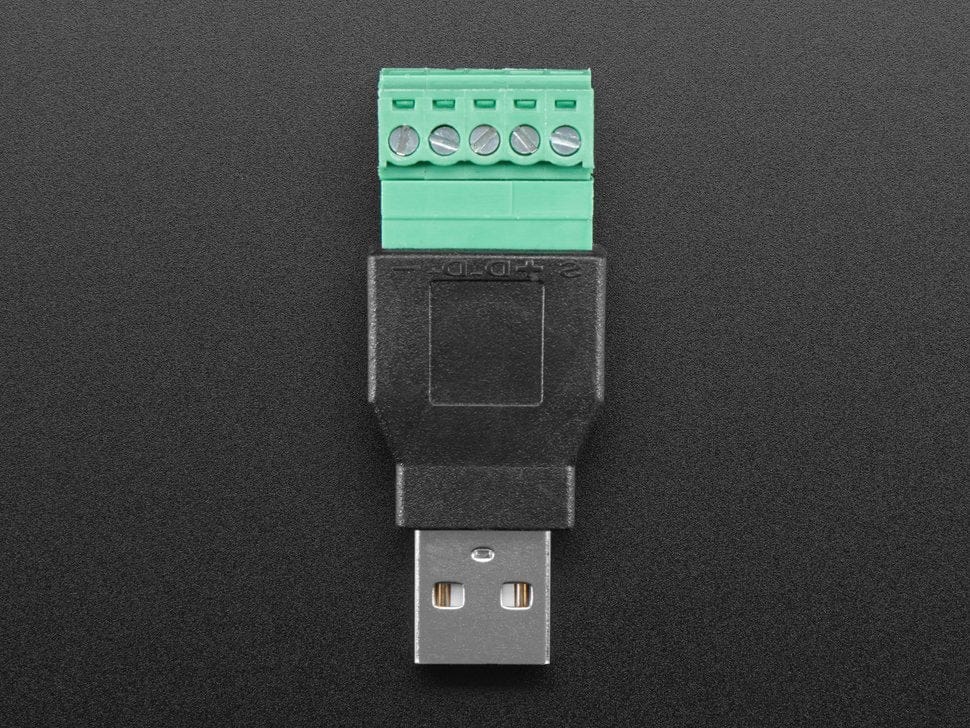

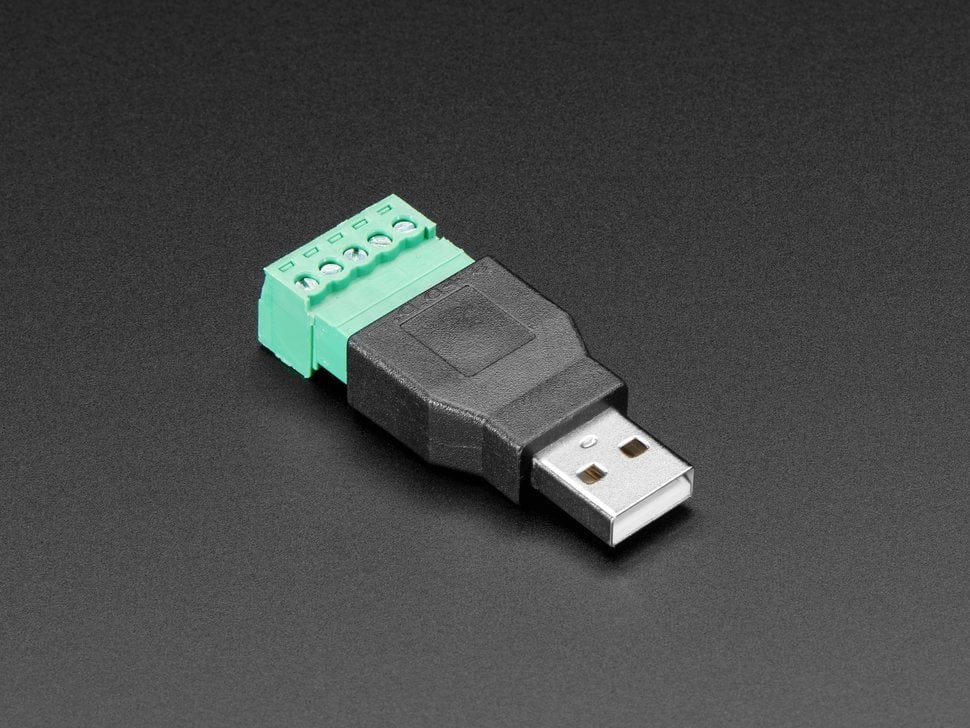

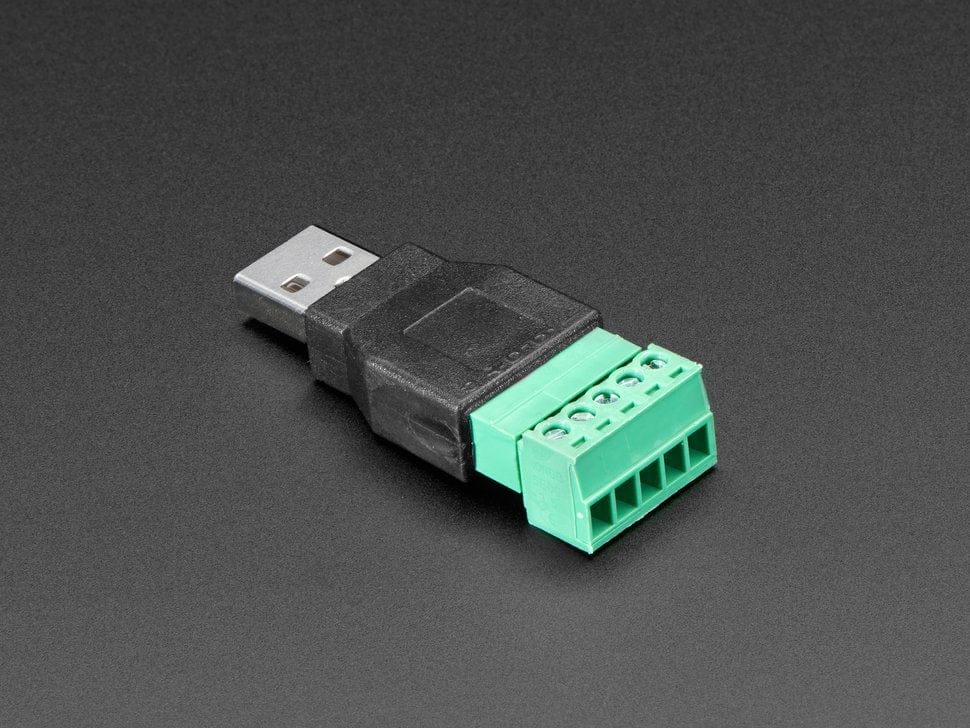

USB-A Male Plug to 5-pin Terminal Block

Price:
Sale price £4.30
incl. VAT
excl. VAT
Stock:
Only 9 units left
Quantity:

This is the USB-A Male Plug to 5-pin Terminal Block. If you need to connect to a device with a USB Jack, maybe make your own USB stick or custom cable of sorts - this adapter will come in very handy! No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.

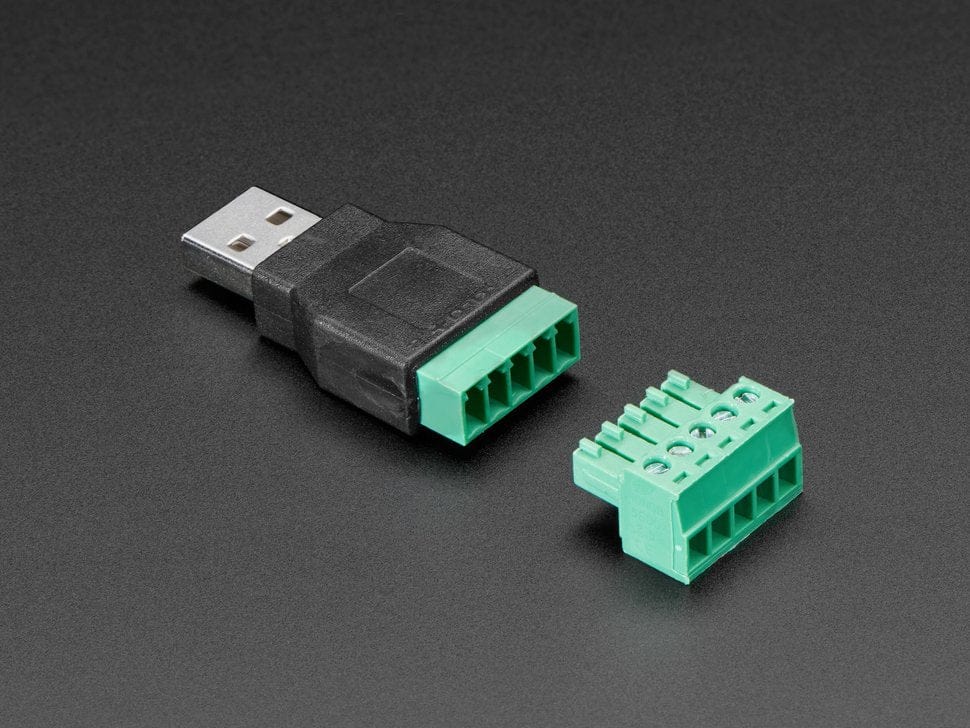

The terminal block itself is removable from the body. It's more durable than soldering wires onto a connector and all the pins are labeled, which is really nice because we keep forgetting the order. The 5th pin is for the Sleeve of the connector.

Technical details

Terminal Block Pitch: 5mm
Wire gauge: 26-16AWG

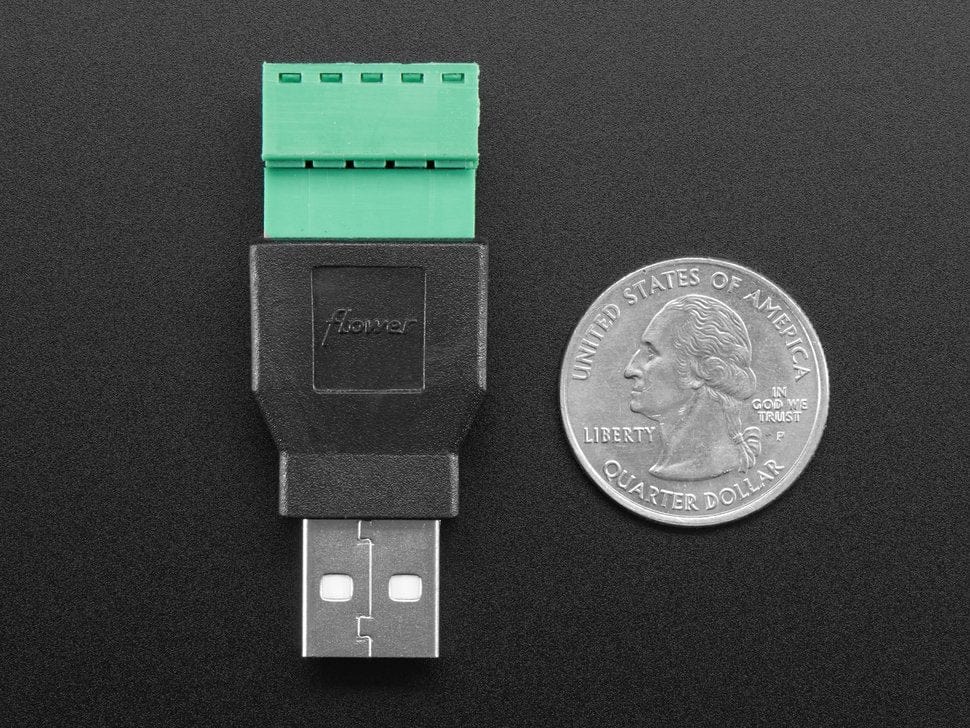

Product Dimensions: 52.0mm x 19.0mm x 11.4mm / 2.0" x 0.7" x 0.4"

Product Weight: 12.1g / 0.4oz
