URM04 Ultrasonic Sensor (RS485)

DFRobotSKU: SEN0002
Price:
Sale price £26.90
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Awesome Extras

URM Ultrasonic Mounting Bracket - The Pi HutURM Ultrasonic Mounting Bracket - The Pi Hut
DFRobotURM Ultrasonic Sensor Mounting Bracket
Sale price £5.30 incl. VAT excl. VAT
RS485 Shield for Arduino - The Pi HutRS485 Shield for Arduino - The Pi Hut
DFRobotRS485 Shield for Arduino
Sale price £10.10 incl. VAT excl. VAT
Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT

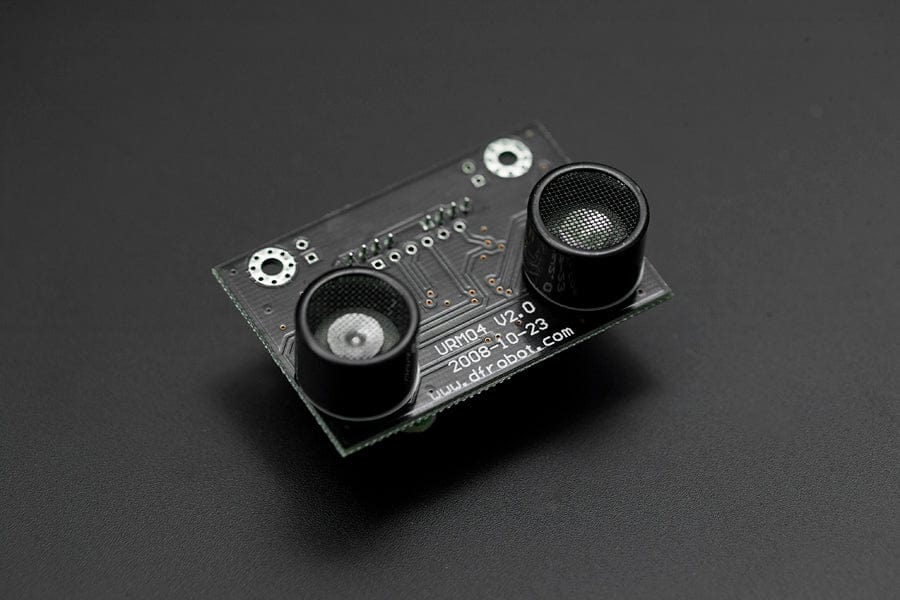

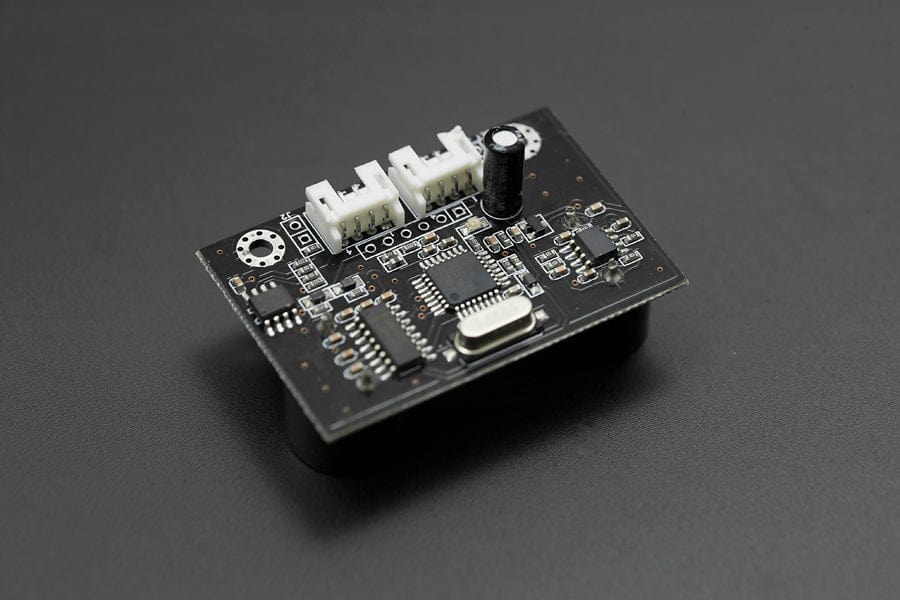

The URM04 Ultrasonic sensor is developed based upon our popular URM37 ultrasonic sensor, it is using RS485 interface which allows multiple sensors to be used simultaneously. The RS485 interface allows a number of sensors to work together. Up to 32 URM04 may be connected together in a network.

The ultrasonic sensor allows you to determine the exact distance of an obstacle in the sonar field of view. The cleverness of your robot will depend on a sensitive sensor similar to the one bats use to know their position and track prey. With advanced programming, you can design compensators in order to perfectly control your motors according to the obstacle's distance.

NOTE: This sensor REQUIRES an RS485 interface. It can not be connected directly to an Arduino. To make the connection easily we recommend using our Arduino RS485 Shield.

Specification

  • Operating Voltage: +5V
  • Current: <20mA
  • Operating Temperature: -10℃~+70℃
  • Detecting range: 4cm-500cm (1.6in-197in)
  • Resolution: 1cm (0.4in)
  • Frequency: 40KHz
  • Interface: RS485
  • Units: Range reported in cm
  • Temperature sensor: 12 bits reading from serial port
  • Default Device Address: 0x11
  • Default Device baudrate: 19200

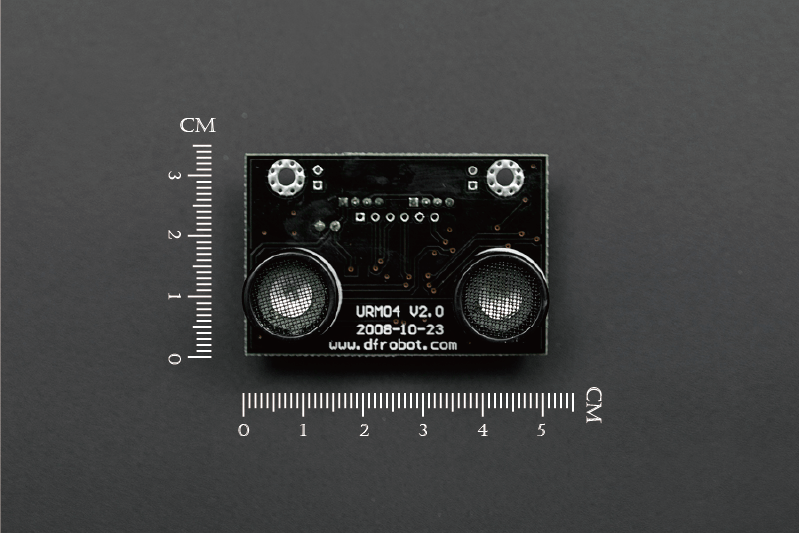

  • Size: 34x51 mm (1.3x2 in)
  • Weight: 30g

Documents

Shipping List

  • URM04 v2.0 Ultrasonic Sensor (x1)

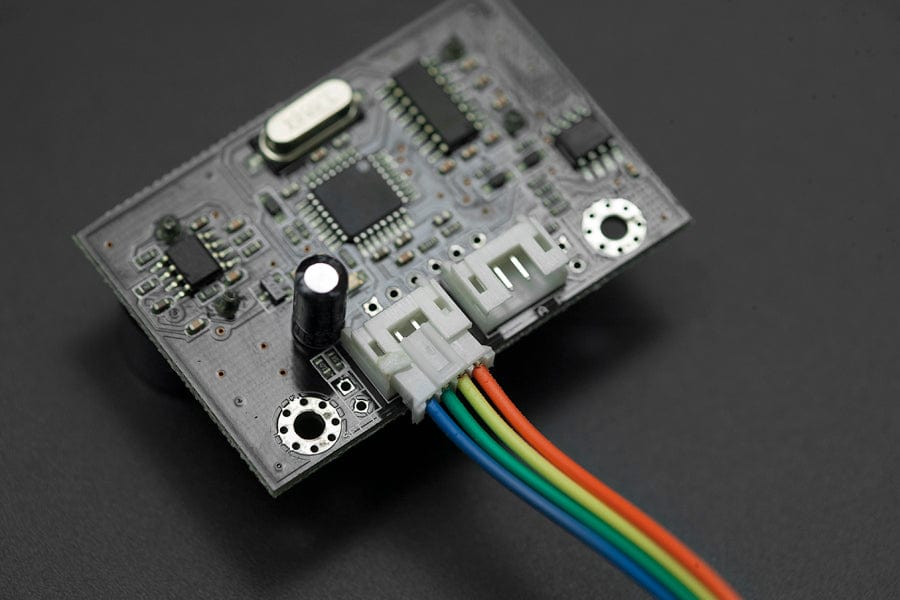

  • Wire with 4p JST connector(x1)
