UART Non-contact Optical Turbidity Sensor

DFRobotSKU: SEN0554
Price:
Sale price £9.60
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
Gravity: Photoelectric Water / Liquid Level Sensor For Arduino - The Pi HutGravity: Photoelectric Water / Liquid Level Sensor For Arduino - The Pi Hut

This non-contact turbidity sensor detects water quality by measuring the level of turbidity. Based on the optics principle, it is capable of detecting the light transmittance and scattering rate of the liquid in transparent cylinder containers with a diameter of 40–50mm, which will then be output as an analogue value within a certain range that reflects the level of liquid turbidity.

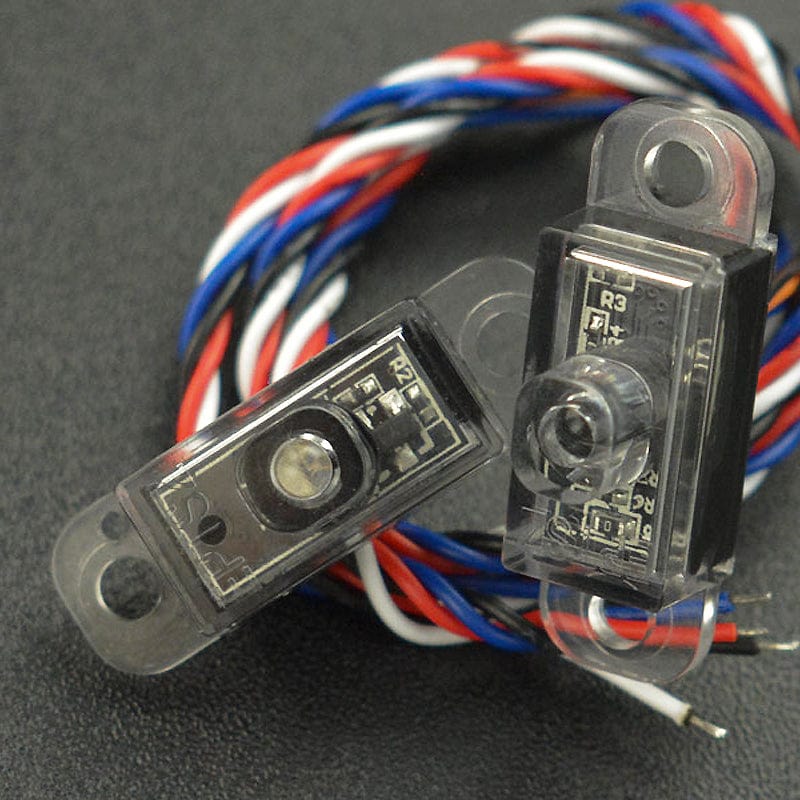

The turbidity sensor comes with two infrared probes, which should be oppositely installed on a container, and it detects when the liquid level inside is higher than the two probes. The sensor can measure without coming into contact with liquid, making it less susceptible to corrosion from water or chemicals.

Connection Example - Turbidity Sensor to DFRduino UNO R3

Features

  • No mechanically moving parts, high reliability
  • Small size & low cost

Specifications

  • Supply Voltage: 5V
  • Communication Mode: UART-TTL
  • Applicable Cylinder Container Diameter: 40 to 50mm
  • Baud Rate: 9600
  • Operating Current: less than 10mA
  • Response Time: less than 1s
  • Operating Temperature: 5 to 60℃Storage Temperature: 0 to 65℃
  • Service Life: 50000h

Resources

Pinout

Sensor Adapter UNO
GND GND GND
VCC VOUT VCC
RX IO1 11(TX)
TX IO2 12(RX)

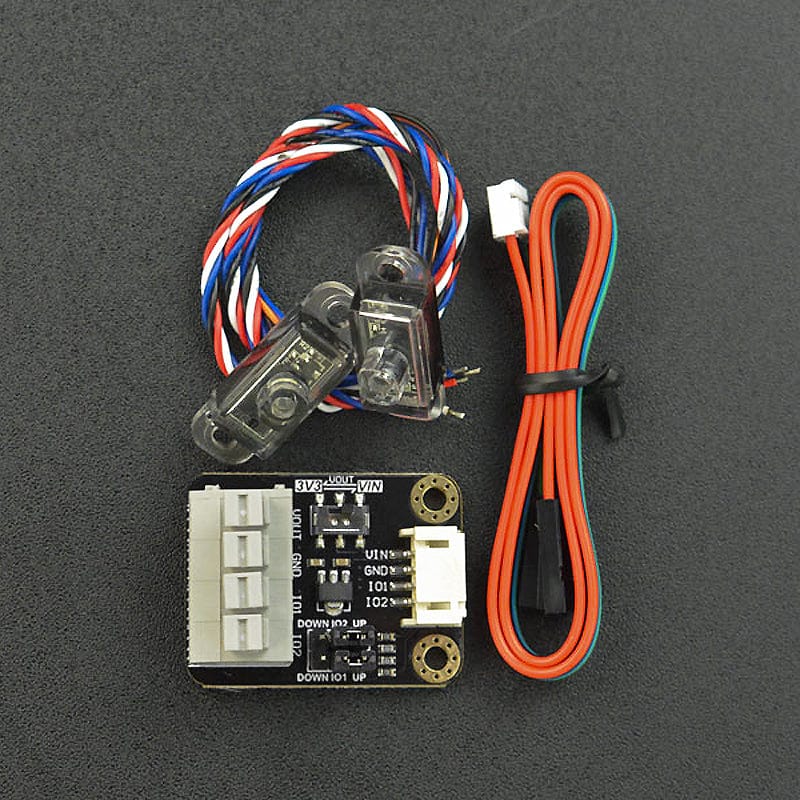

Package contents

  • 1x Turbidity Sensor

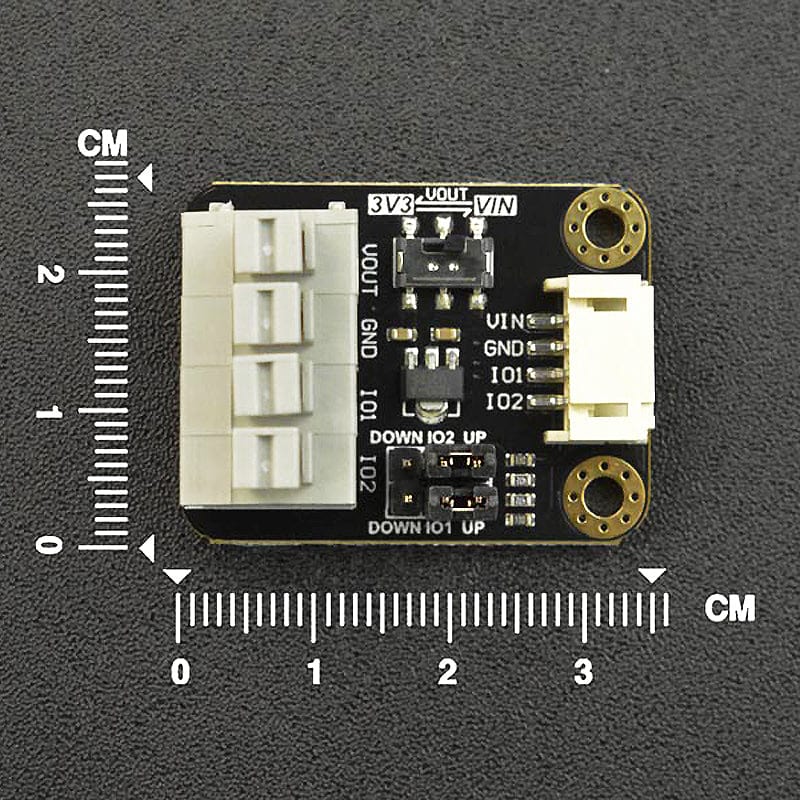

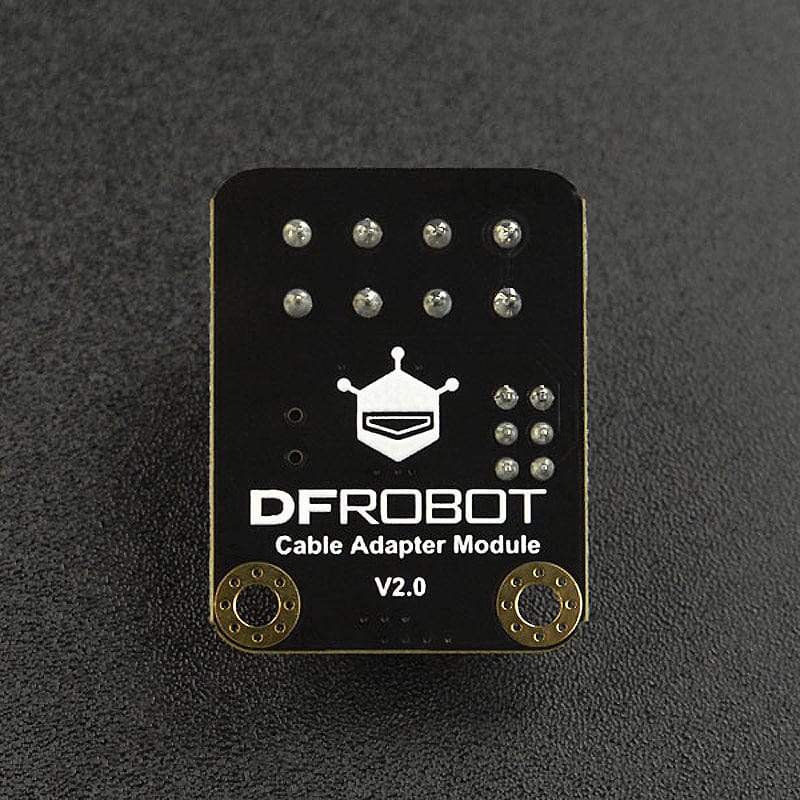

  • 1x Gravity: 4Pin Sensor Adapter
