Two-Digit Seven-Segment Common Cathode Display - Red

The Pi HutSKU: 103526
(1 Reviews)
£2
incl. VAT
excl. VAT
Only 14 units left

Awesome Extras

Raspberry Pi Breadboard (Half Size) - The Pi Hut
(111 Reviews)
The Pi HutHalf-Size Breadboard - White
£3 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
(109 Reviews)
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT
MAX7219CNG+ LED & 8-Digit Display Driver - The Pi HutMAX7219CNG+ LED & 8-Digit Display Driver - The Pi Hut
ModMyPiMAX7219CNG+ LED & 8-Digit Display Driver
£9 incl. VAT excl. VAT

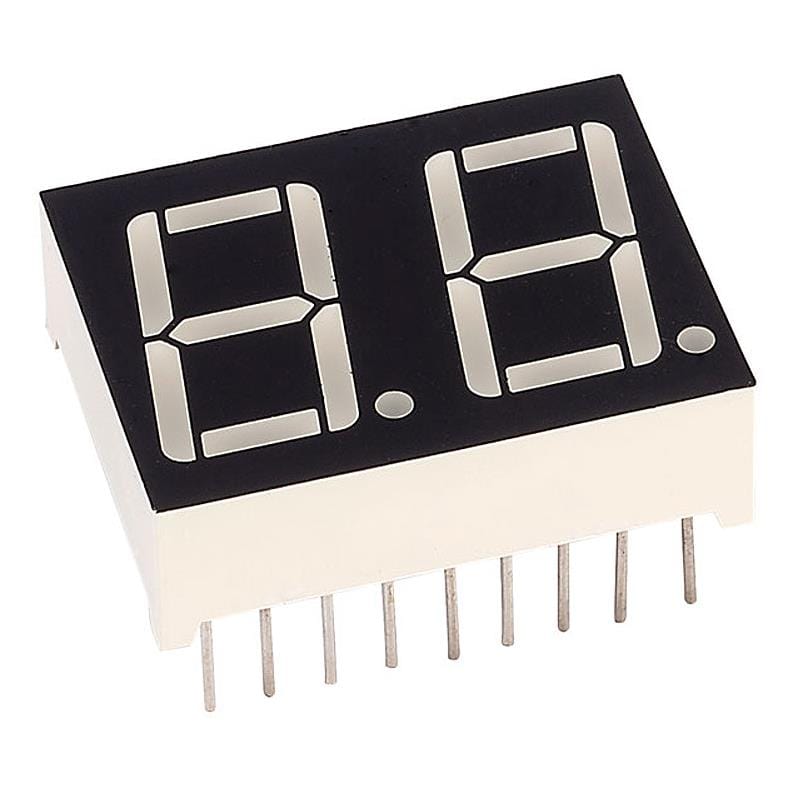

This is a two-digit, common cathode seven-segment display with red LEDs. Ideal for adding a counter or clock to your projects.

The display is 14.2mm high and includes decimal points. These kinds of display units are usually used in conjunction with LED driver chips to reduce the number of IO pins required to show characters efficiently.

You can pop these straight into a solderless breadboard and hook them up to ICs and your microcontroller with jumper wires.

We also offer a single-digit version.

Features

  • Common cathode configuration
  • Two decimal points
  • Long lifetime operation
  • IC Compatible
  • Low power dissipation

Specifications

Wavelength
(mm) 		Lum. int. (mcd)
@ IF=20mA 		IF
max. (mA) 		VF
typ. (V) 		VF
max. (V) 		PD
(mW)
625 100 20 2.1 2.5 44
