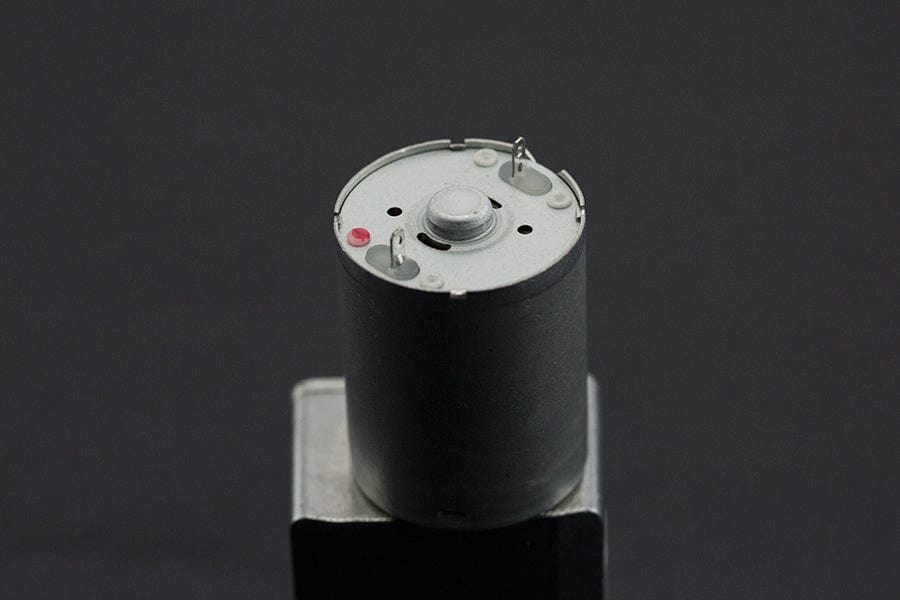

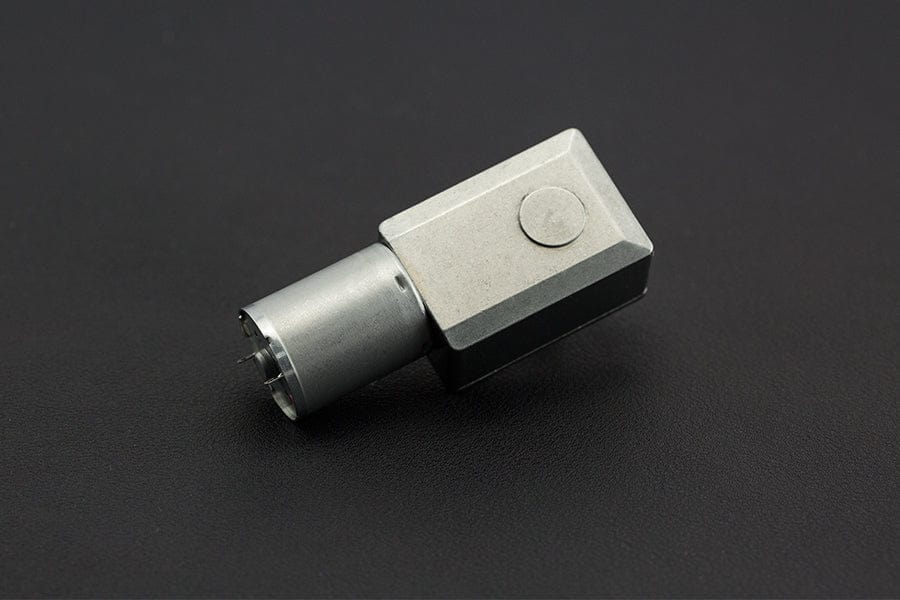

Turbo Metal Gear Worm Motor (6V 40RPM 10kg/cm)

Deliveryfrom just £2.50

20,000+customer reviews

No Quibblereturns policy

Securepayment system

Next Day DeliveryOrder by 2PM*

Sold Out
£20.00

We will notify you when this product becomes available.


*PreOrder Details

Share this Product


INTRODUCTION

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.

This part uses a two wire connection and supports direction control as well as PWM speed control. Rated voltage is 6v and will achieve 40RPM, with a torque of 10kg/cm.



SPECIFICATION

  • Operating Voltage: 3 - 9 V
  • Rated Voltage: 6V
  • No-load Speed: 40 RPM
  • No-load Current: 40 mA
  • Rated Torque: 32 RPM
  • Rated Current: 250 mA
  • Rated Torque: 2.5 kg.cm
  • Rated Power: 1.3 W
  • Stall Torque: 10 kg/cm
  • Stall Current: 1.7 A
  • Reduction Ratio: 1:150
  • Weight: 160 g
