Triple IPS LCD HAT for Raspberry Pi

WaveshareSKU: WAV-25586
Price:
Sale price £14.20
incl. VAT
excl. VAT
Stock:
Only 20 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry Pi 4 Model B - The Pi HutRaspberry Pi 4 Model B - The Pi Hut
Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £33.30 incl. VAT excl. VAT
Raspberry Pi 5 - The Pi HutRaspberry Pi 5 - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £46.50 incl. VAT excl. VAT
Raspberry Pi Zero 2 - The Pi HutRaspberry Pi Zero 2 - The Pi Hut
Raspberry PiRaspberry Pi Zero 2 W
Sale priceFrom £14.40 incl. VAT excl. VAT
Male GPIO Pin Header for Raspberry Pi Zero - The Pi HutMale GPIO Pin Header for Raspberry Pi Zero - The Pi Hut
The Pi HutMale 40-pin GPIO Header
Sale price £1 incl. VAT excl. VAT

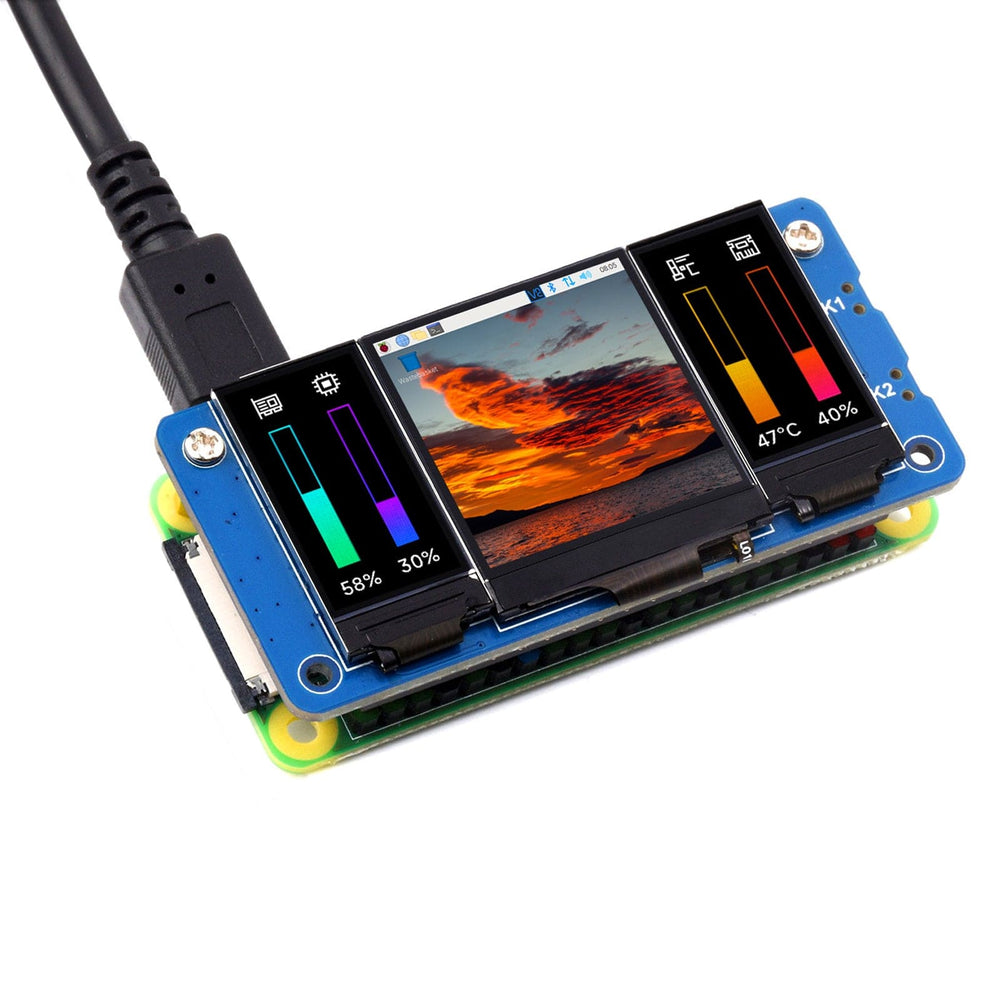

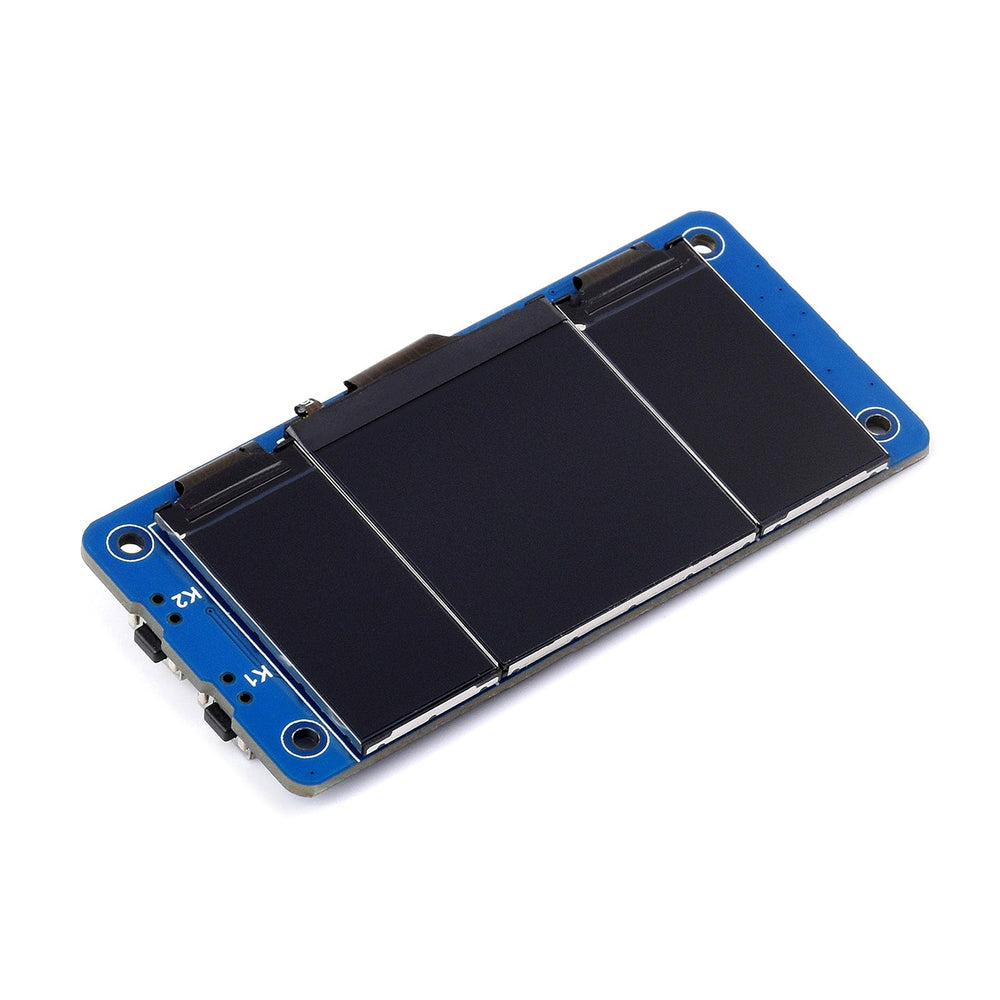

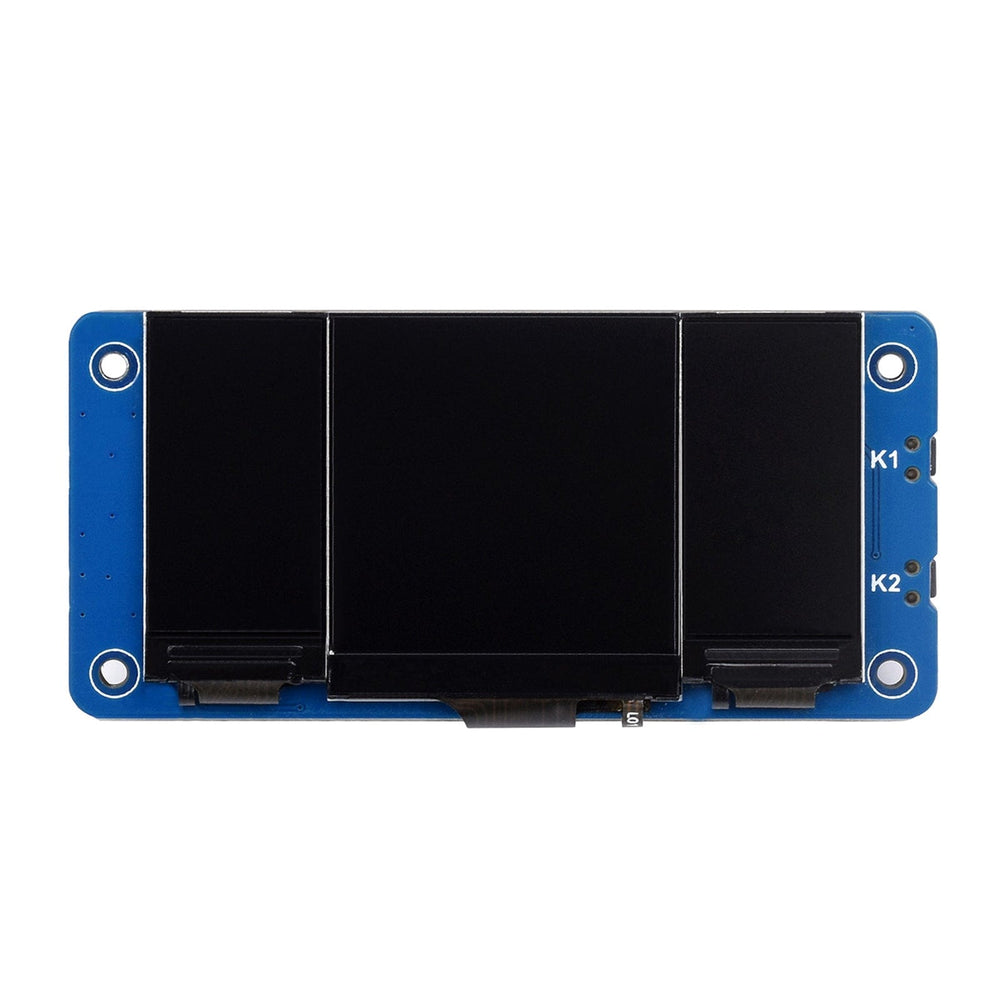

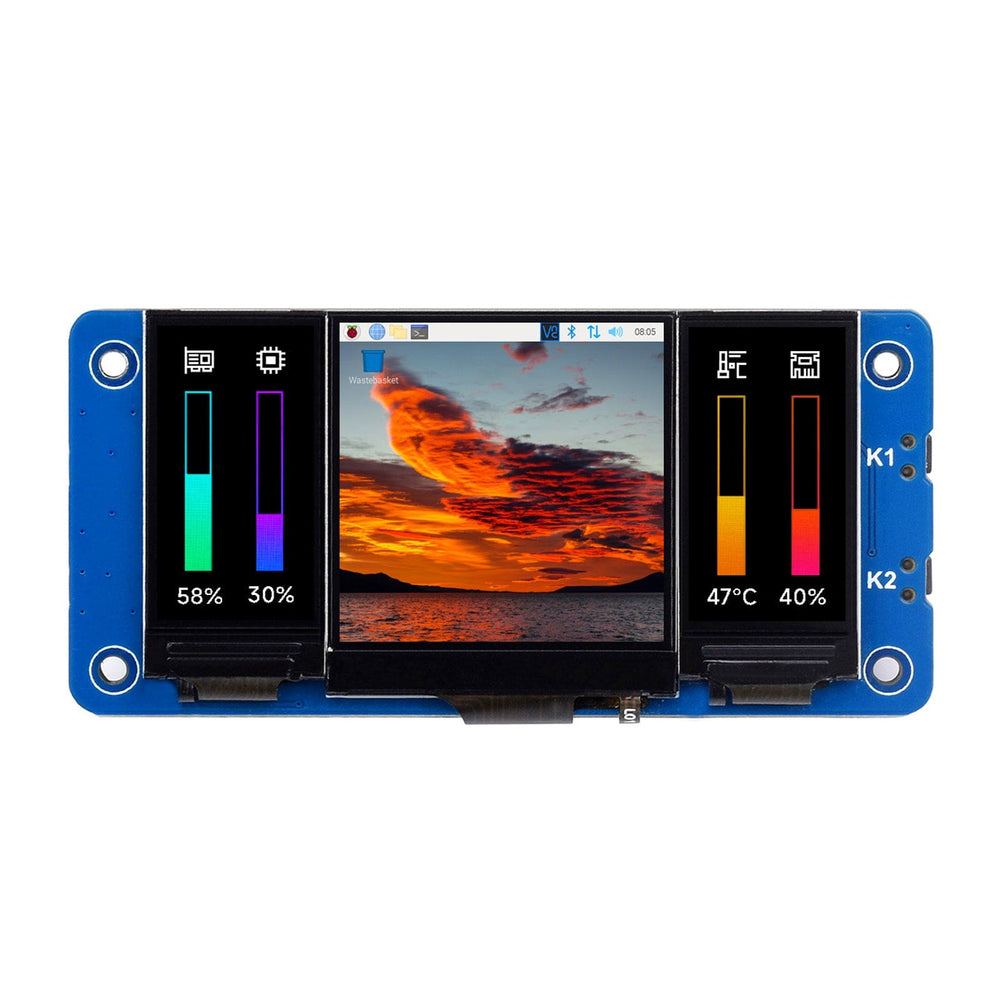

This Triple LCD HAT for Raspberry Pi features three LCD screens: a 1.3" IPS main screen and two 0.96" IPS secondary screens that have a rich 65K colour display, and a 240 x 240 (main screen) and 160 x 80 (secondary screens) resolution for sharp and detailed visuals.

The main LCD screen is powered by the ST7789 driver chip, providing high-quality image rendering and efficient performance. The dual secondary LCD screens are equipped with the ST7735S driver chip, offering crisp and clear visuals. All screens use SPI communication for seamless integration with the Raspberry Pi, providing a versatile platform for various projects like monitoring systems, multi-data displays, or innovative user interfaces.

Note: Raspberry Pi is NOT included

Features

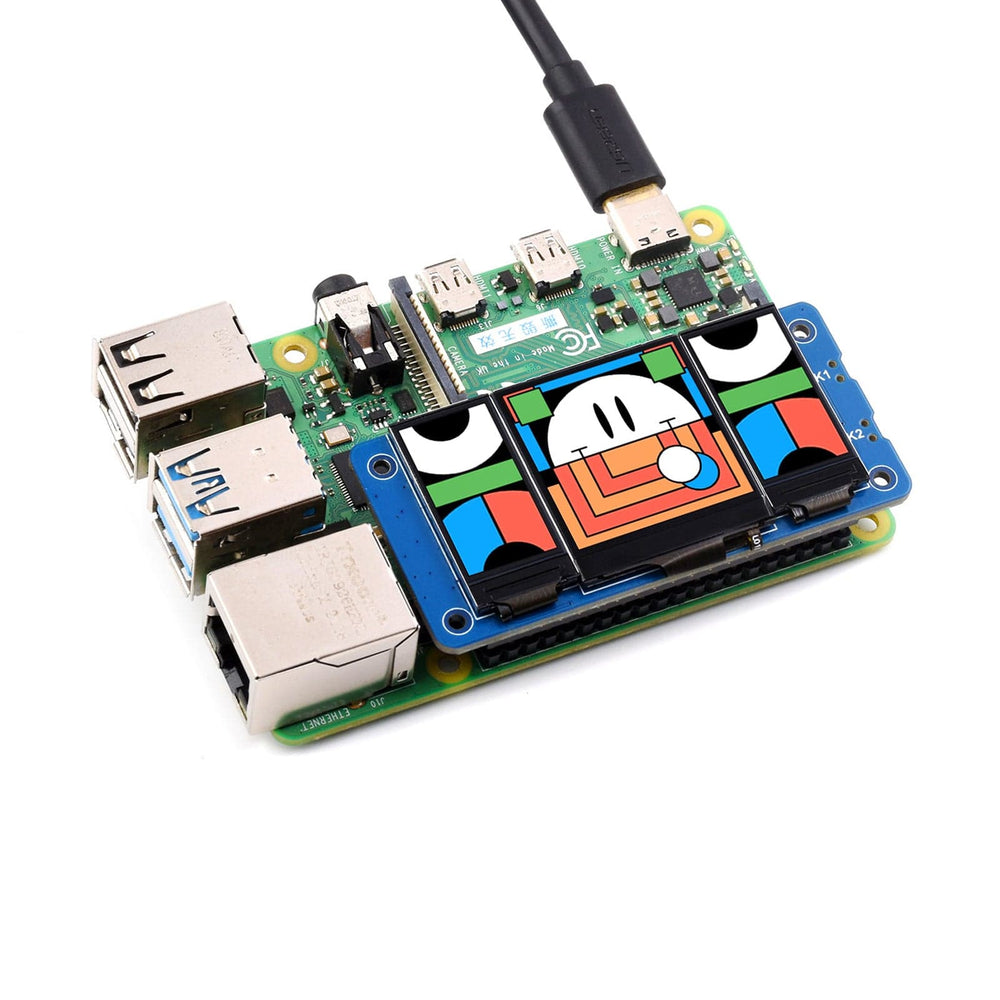

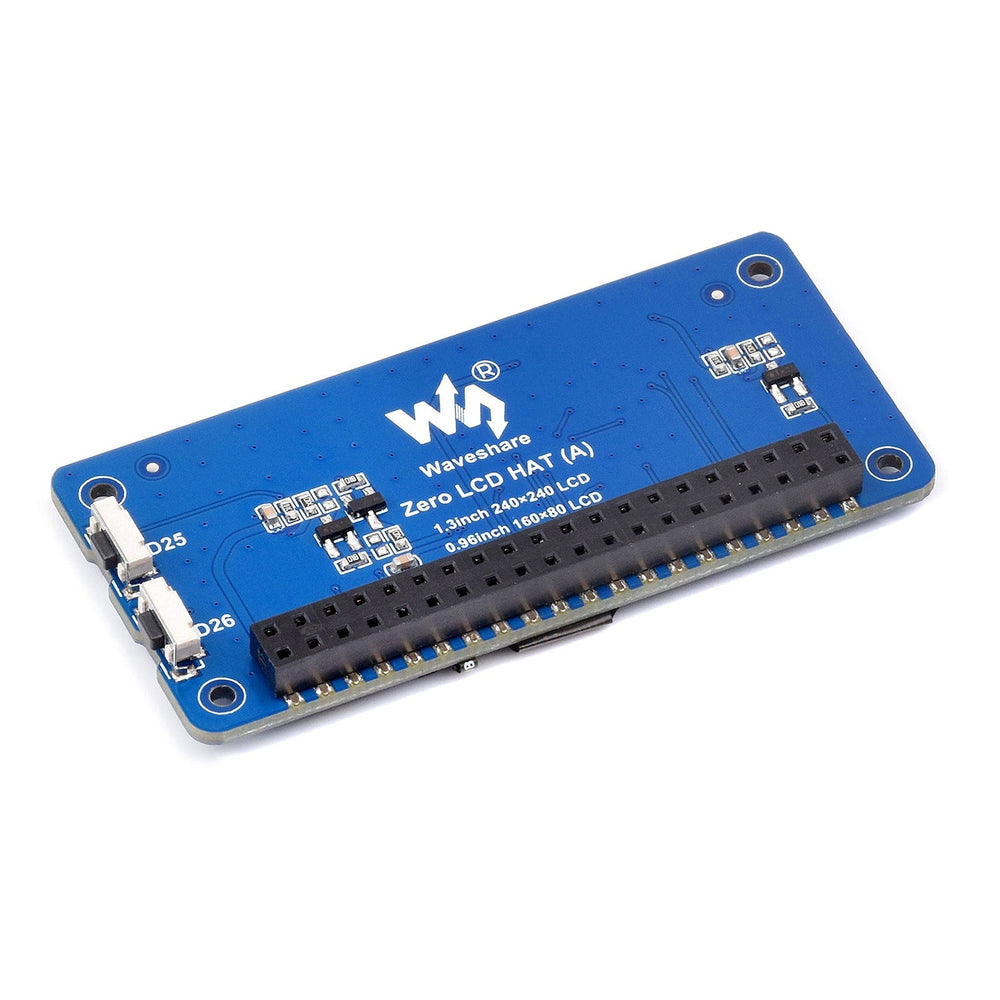

  • Standard Raspberry Pi 40-Pin GPIO header, compatible with Raspberry Pi series boards
  • 1.3" IPS LCD Main Screen with built-in ST7789 driver chip, SPI interface communication, wide viewing angle, supports 65K colour display, 240 x 240 resolution
  • Dual 0.96" LCD secondary screens with built-in ST7735S driver chip, SPI interface communication, supports 65K colour display, 160×80 resolution, can be used to display key information, status indicator messages or small graphics

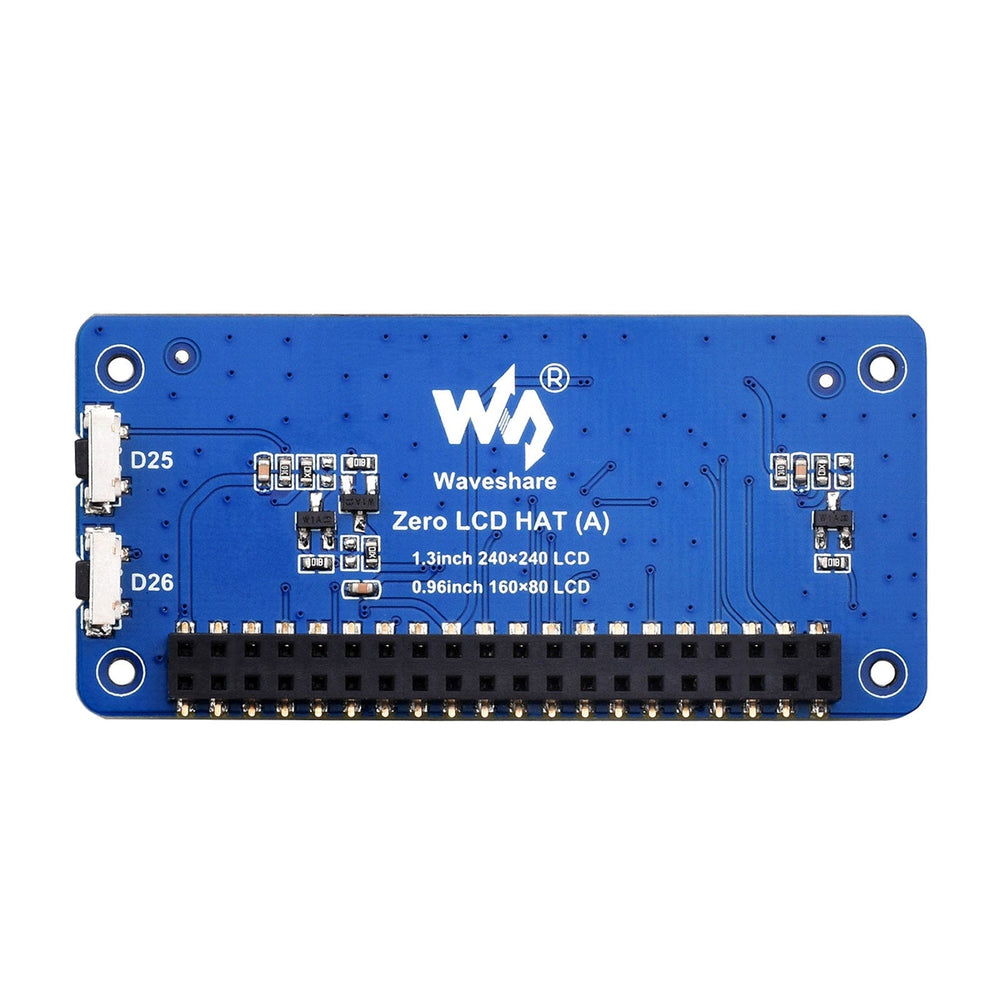

  • Onboard 2x user-defined keys for extended applications
  • Comes with online development resources and manuals (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)

Specifications

Power Supply 3.3V
Working Current 840mA

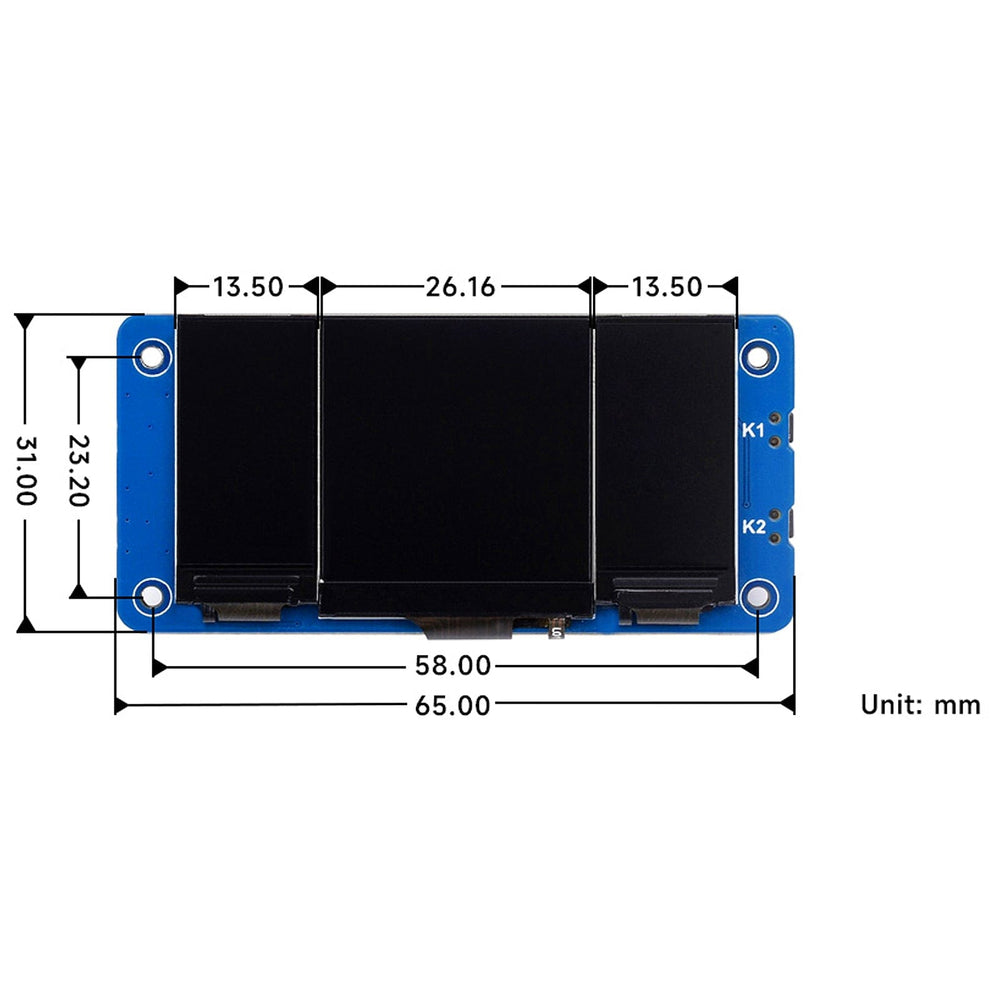

Dimensions 65.00 x 31.00 (mm)
Screen Types 0.96" LCD 1.3" LCD
Controller ST7735S ST7789
Communication Interface SPI
Resolution 160 x 80 240 x 240
Display Size 21.7mm x 10.8mm 23.4mm x 23.4mm
Pixel Size 0.1356mm x 0.135mm 0.0975mm x 0.0975mm

Resources

Pinout

Package Contents

  • 1x Zero LCD HAT (A)
  • 1x Standoffs pack
