TPS62827 3.3V Buck Converter Breakout - 3.3V Output 2 Amp Max

AdafruitSKU: ADA4920
Price:
Sale price £6.90
incl. VAT
excl. VAT
Stock:
Only 1 unit left
Quantity:

Awesome Extras

AntexAntex Lead Free Solder - 4m Tube
Sale price £4.50 incl. VAT excl. VAT

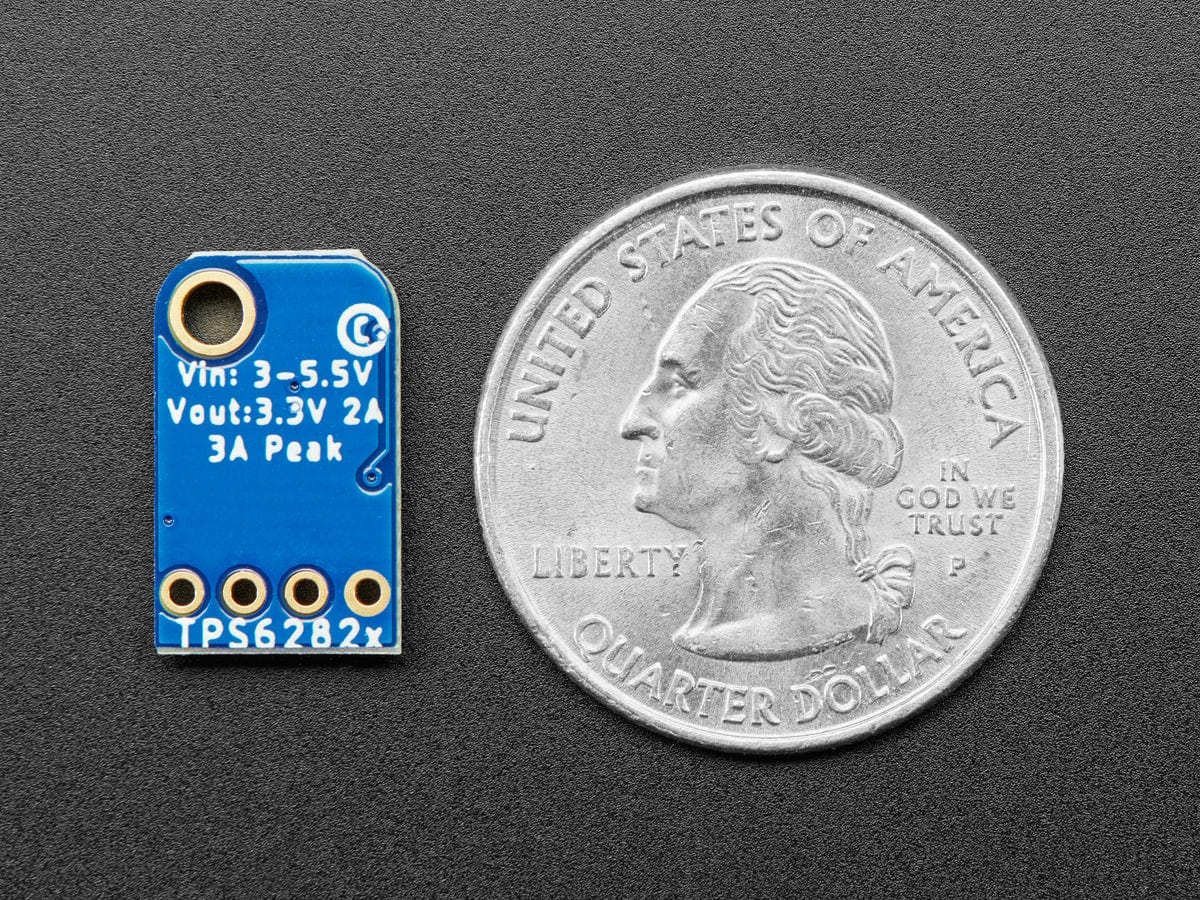

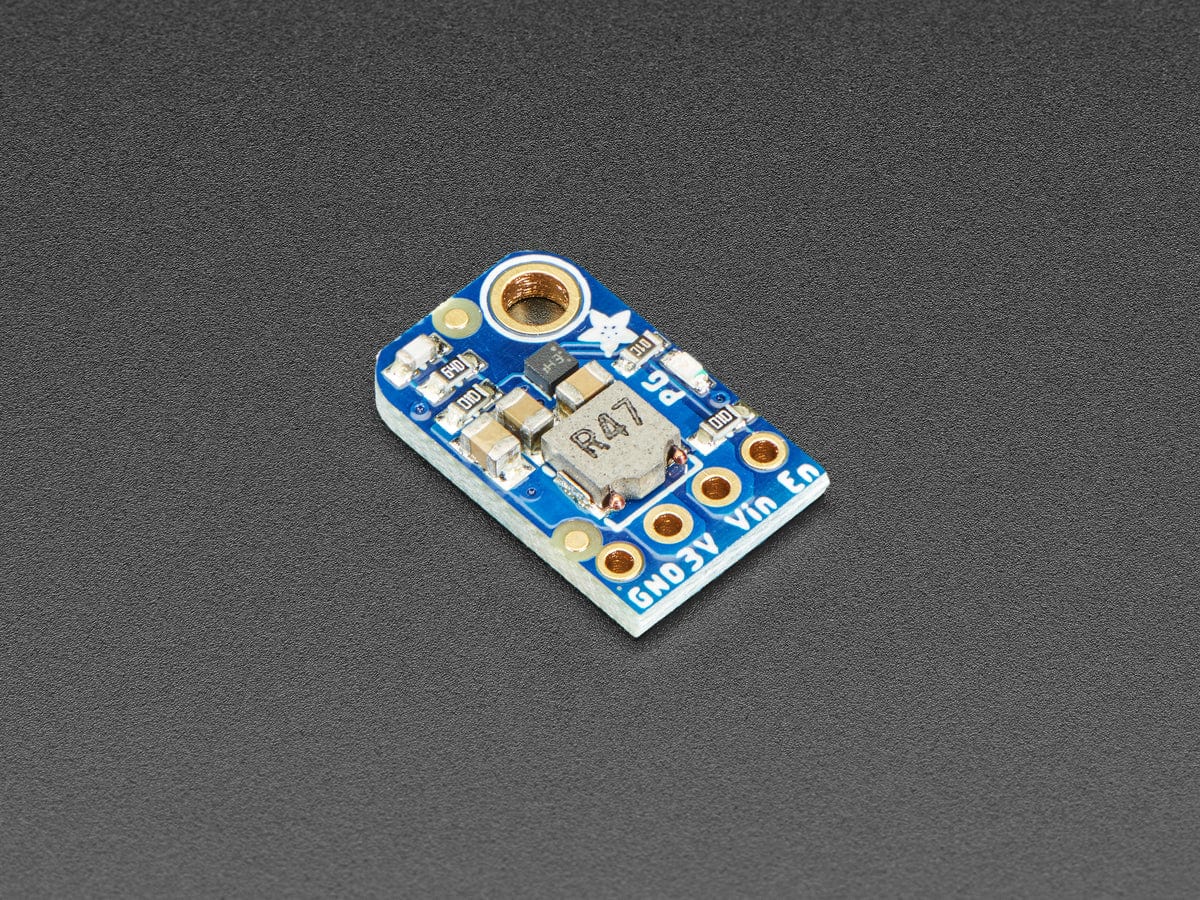

This little buck converter based on the TPS62827 is super handy, taking up to 5.5V input and providing a 3.3V output with up to 2A current. It's great for supplying power to hungry 3.3V voltage circuits from a range of battery or power options. This chip provides up to 2 Amp load current across the entire input voltage range of 3.4 to 5.5V. It's not a huge range but does cover LiPoly batteries, 3 alkalines, and USB power.

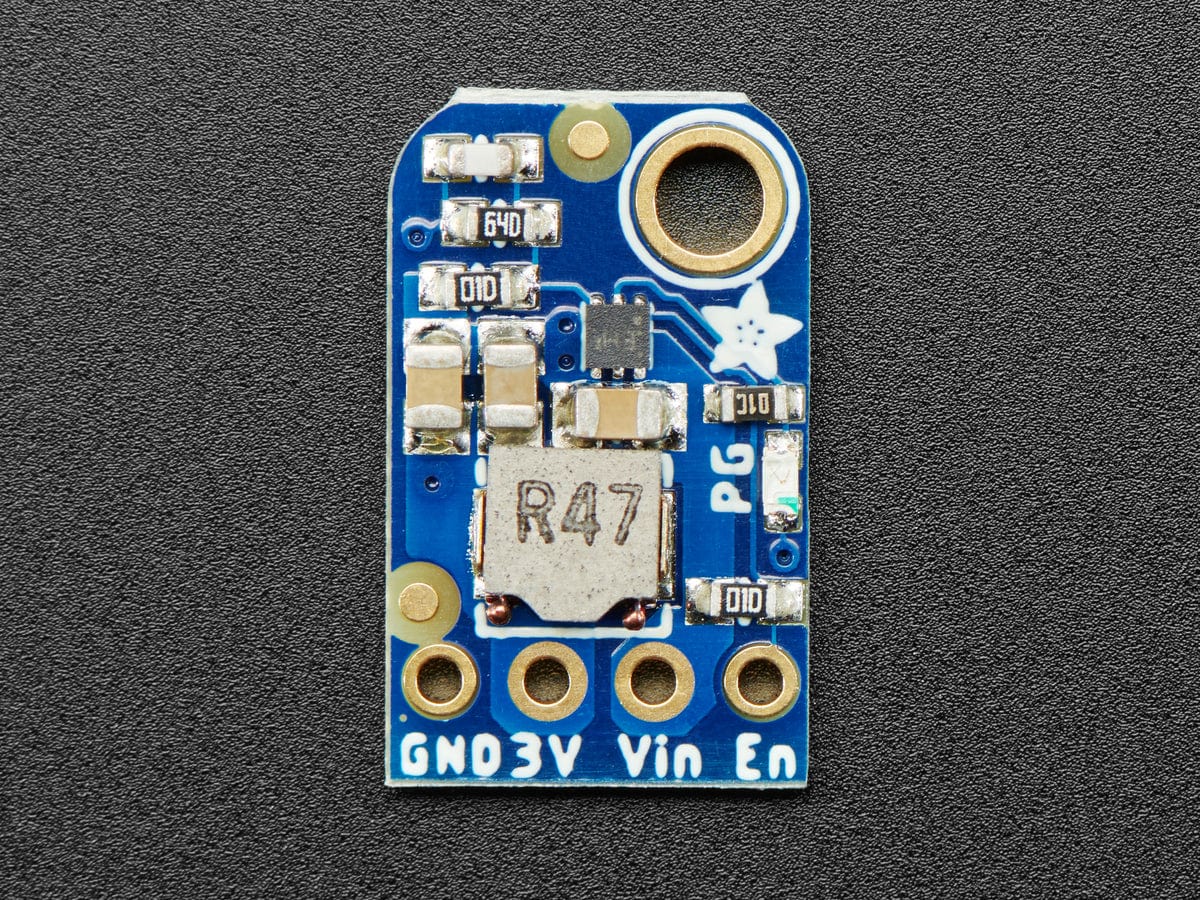

Great for your portable project, we made this "pin compatible" with the LM1117-3.3V TO-220 chip so you can swap it in for better performance (90-95% efficiency!) There's also an ENable pin, tie it low to shut down the output completely.

The Adafruit TPS62827 Breakout runs at 2.2-MHz fixed-frequency. Even though the chip itself supports up to 4A, we found that 2 Amps or so was a good max to stick to for constant current draw and 3 Amps for temporary peak current draws. We did use a 2 oz copper double-layer PCB.

If you need a wider input range, check out the 3.3V output MPM3610 breakout with up to 20V input!

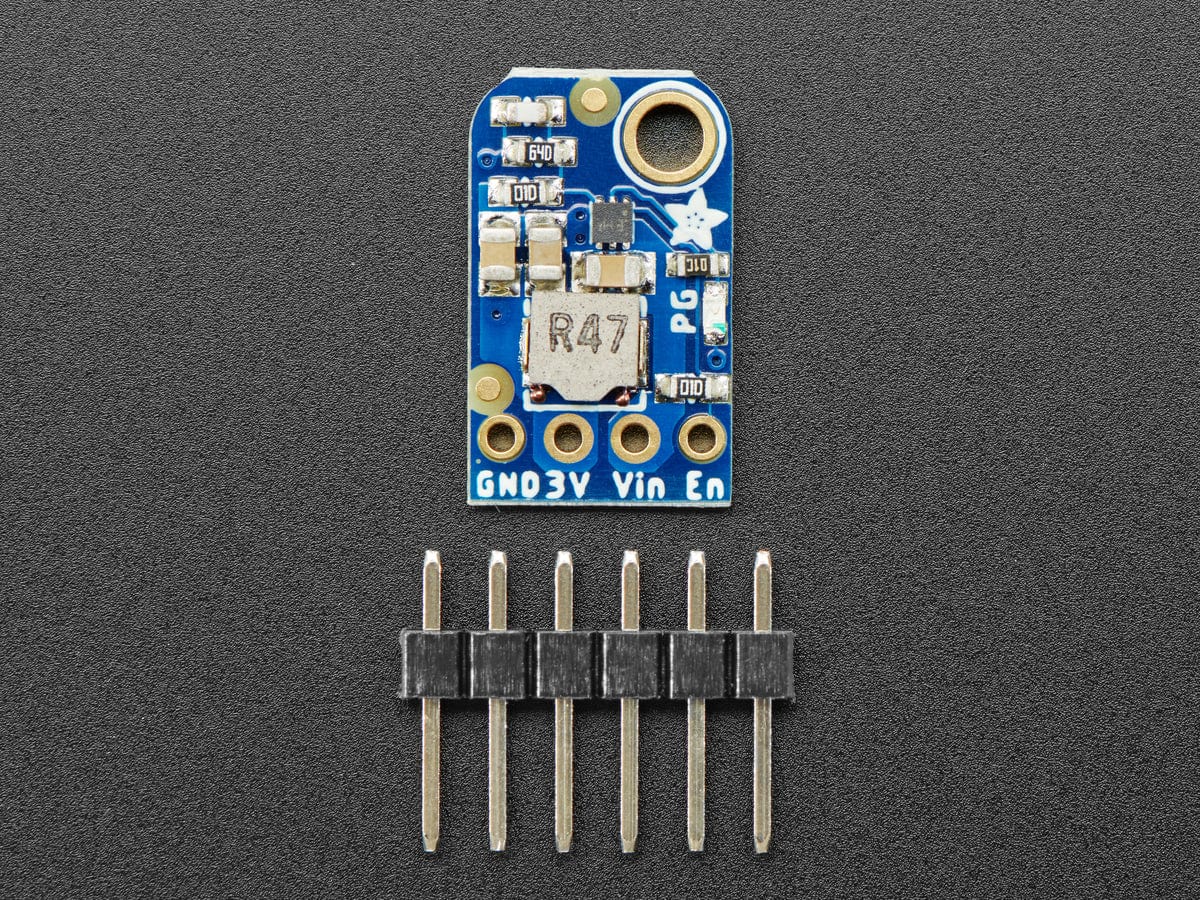

Comes with a fully assembled and tested breakout board. We also include header to plug it into a breadboard.
