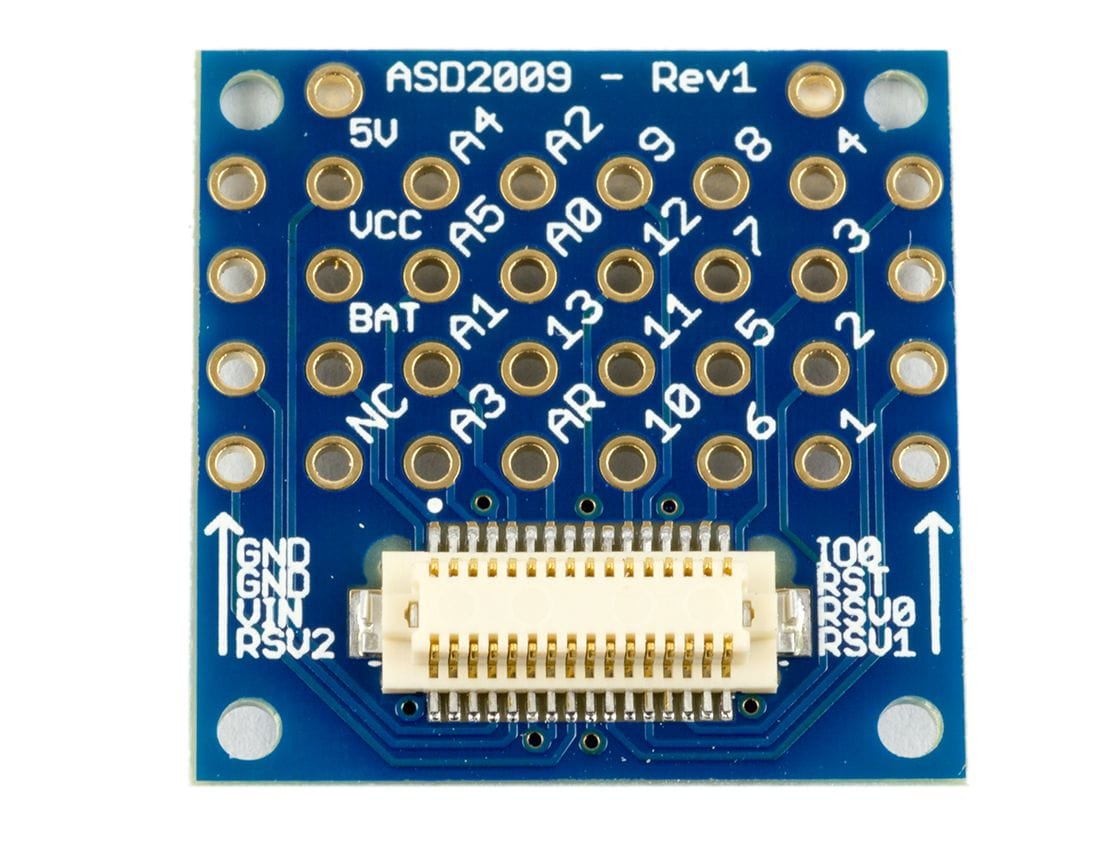

TinyShield Proto Board - Without Top Connector
This proto board brings all of the TinyShield signals out to a point that you can solder to. All of the signals are marked and are spaced with 0.1? spacing (same spacing as on the standard Arduino Uno), so a standard 0.1? header can be used if desired.
This proto board can be ordered with or without a top stackable connector. By default, a top connector is not needed since the standard method is to use this proto board as the top board in a TinyDuino stack which allows the easiest access to the signals. However when this board is ordered with the top stackable connector, the proto board can be located in an inner layer of the TinyDuino stack which is useful for some projects.
Note: This TinyShield replaces all of the older style Proto1, Proto2 and Proto3 boards which have been discontinued.
To learn more about the TinyDuino Platform, click here.
