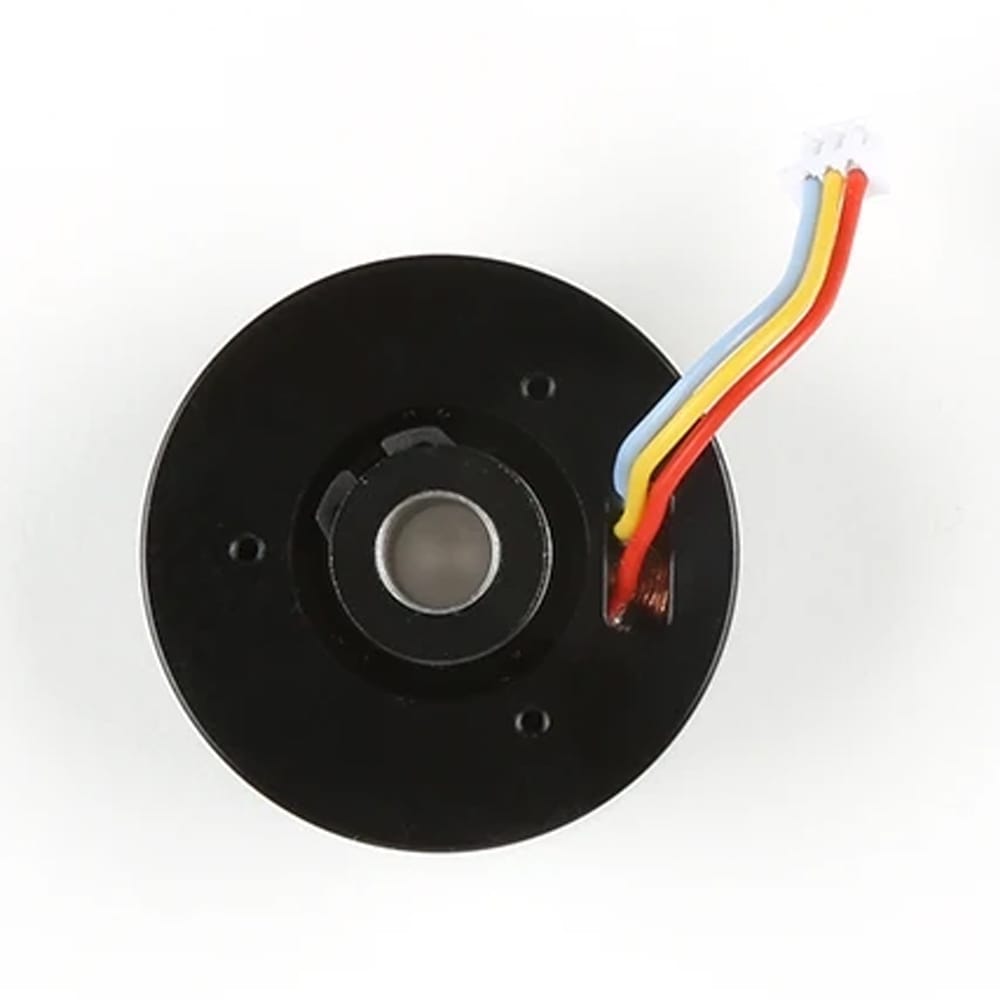

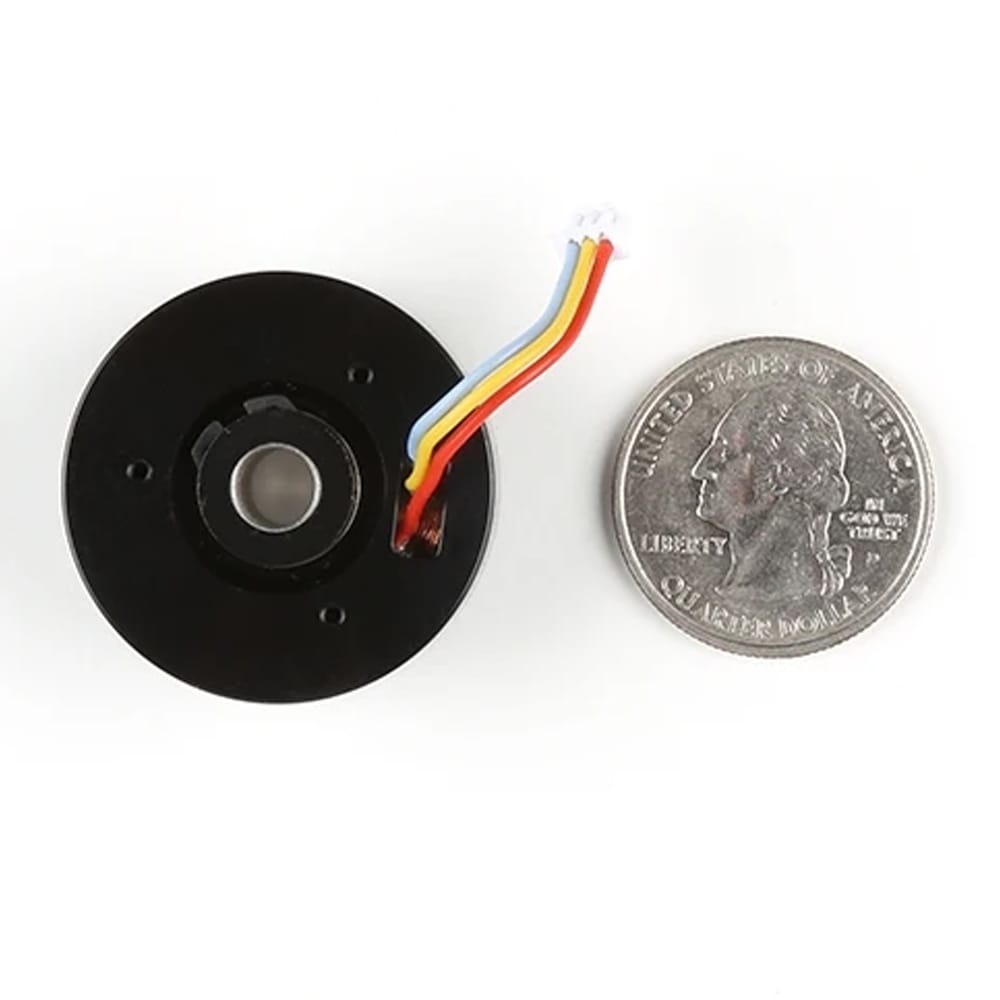

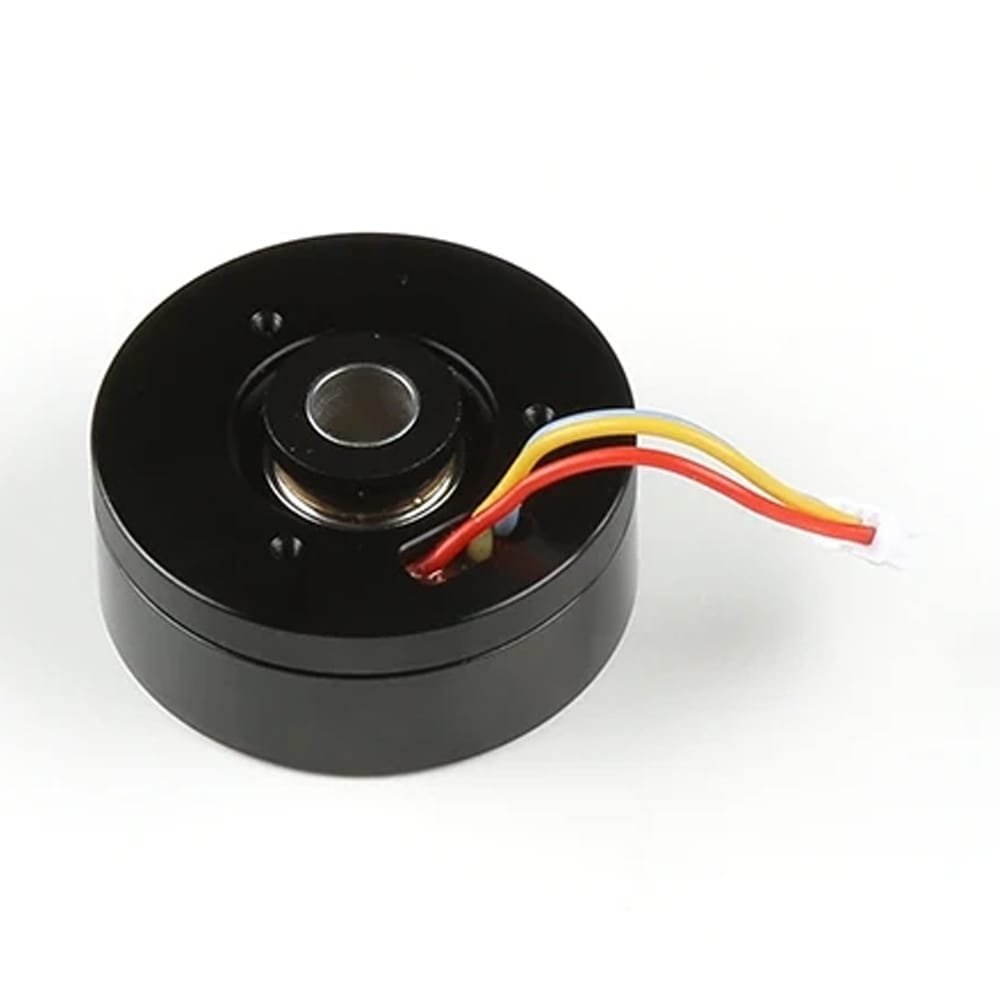

This 3-Phase Brushless DC Motor delivers smooth, efficient, and high-torque operation, making it a great choice for robotics, motion-control systems, precision mechanisms, and haptic feedback projects.
A 3-phase DC brushless DC motor has the unique capability of being both a high efficiency, high torque, very smooth motor, as well as the starting point for haptic feedback when combined with the appropriate sensor and motor control. For an excellent demonstration of what's possible with 3-phase DC motors, checkout Scott Bezek's Smart Knob YouTube video.

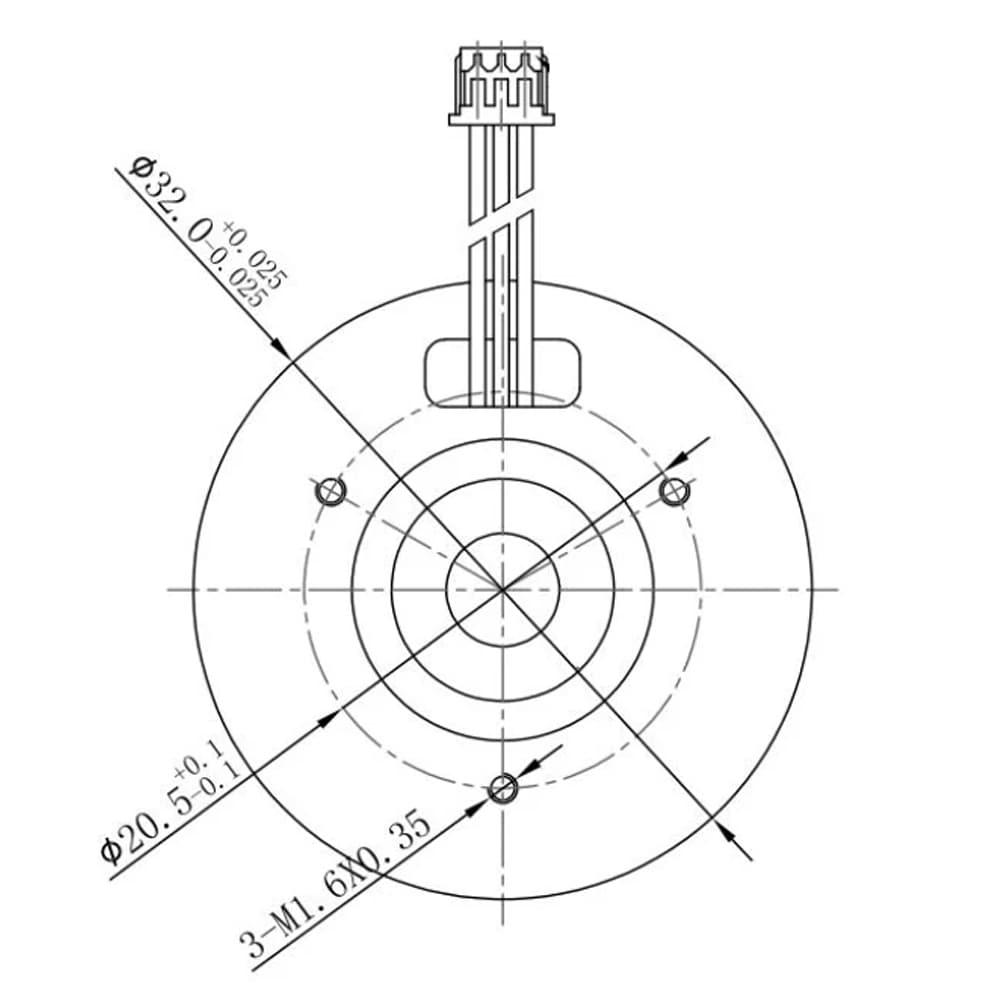

Please note: The datasheet indicates the mounting holes are through-holes but they are not. The holes allow for 1.5mm thread insertion. Using anything longer risks damaging the part.
Features
Rated Voltage: 7.4V DC
Operating Voltage Range: 6.0V ~ 8.0V DC
Operating Temperature Range: -10°C ~ +60°C
Storage Temperature Range: -30°C ~ +80°C
Operating Humidity Range: 30% ~ 85%RH
Direction of Rotation: CW / CCW
Motor Position: All Direction
No-Load Current (At Rated Voltage and no-load): 0.11A (max 0.13A)
No-Load Speed (At Rated Voltage and no-load): 2000±10% rpm
Start Torque (At Rated Voltage): 320 g.cm
Starting Current (At Rated Voltage): 0.8A (max 1.0A)

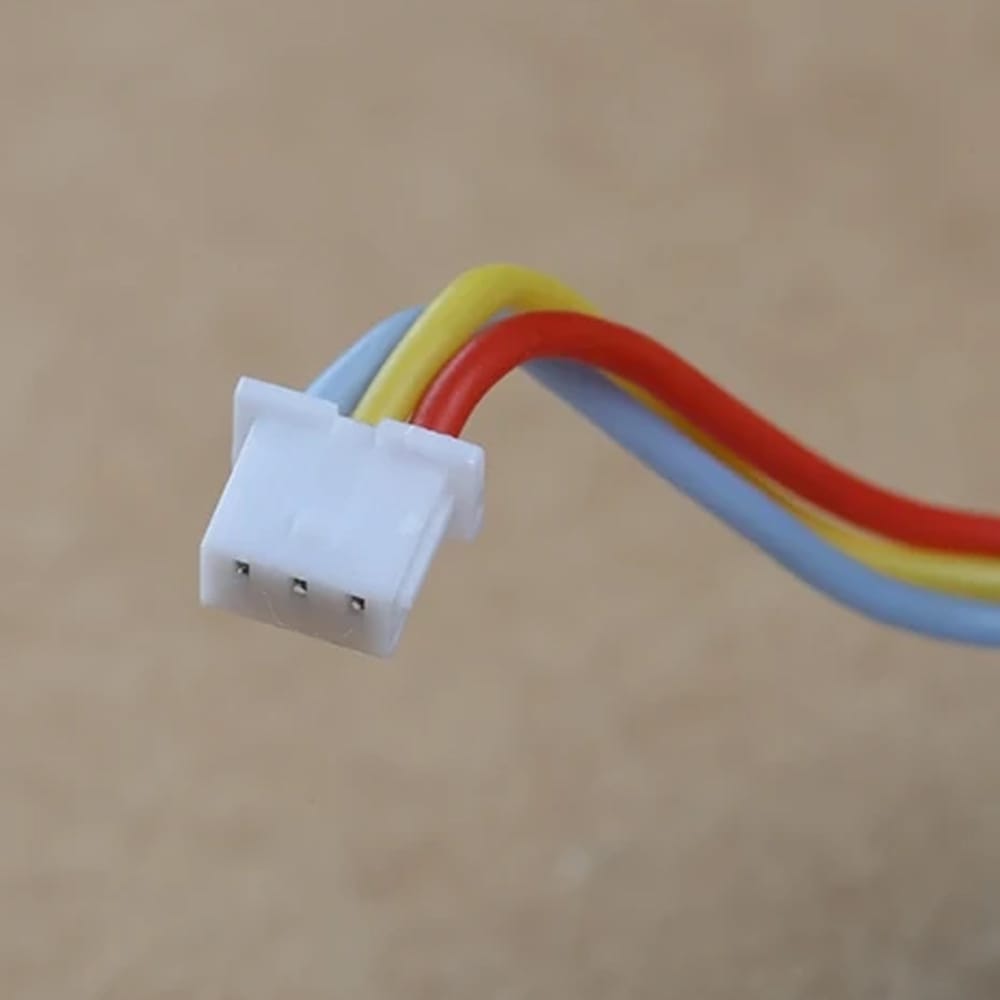

Connector: Molex 51021-0300
Mating connector: 053048-0310 (PTH R/A), or 053047-0310 (PTH), or 053261-0371 (SMD)
The datasheet indicates the mounting holes are through-holes but they are not. The holes allow for ~1.5mm thread insertion. Using anything longer risks damaging the part.
Package Contents
1x Three Phase Brushless Gimbal Stabilizer Motor
