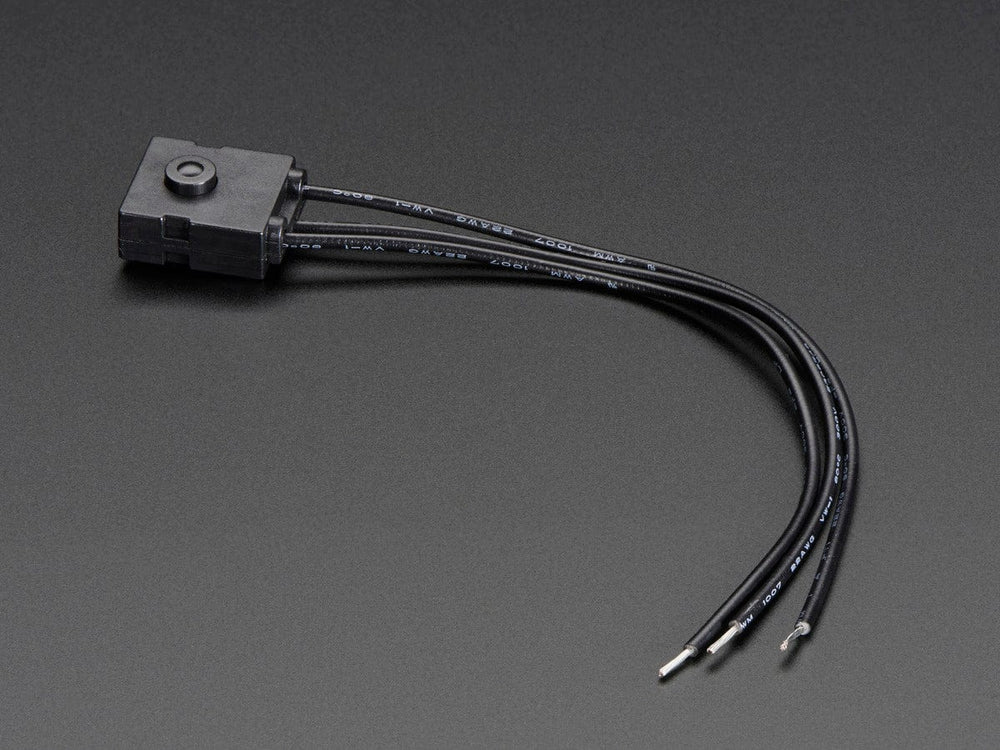

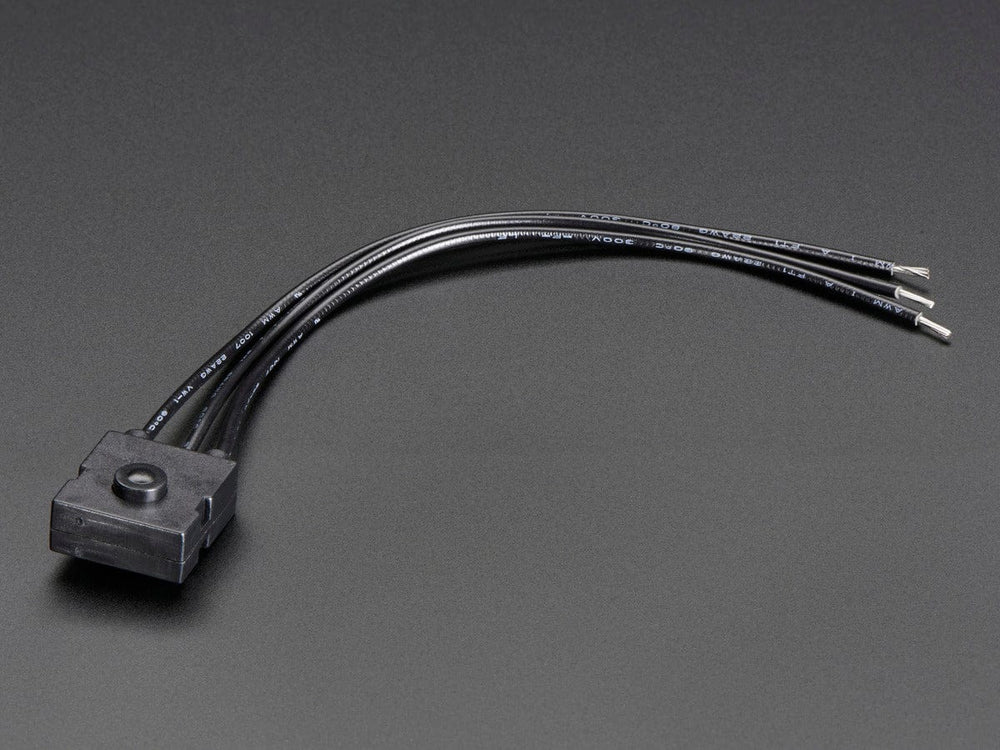

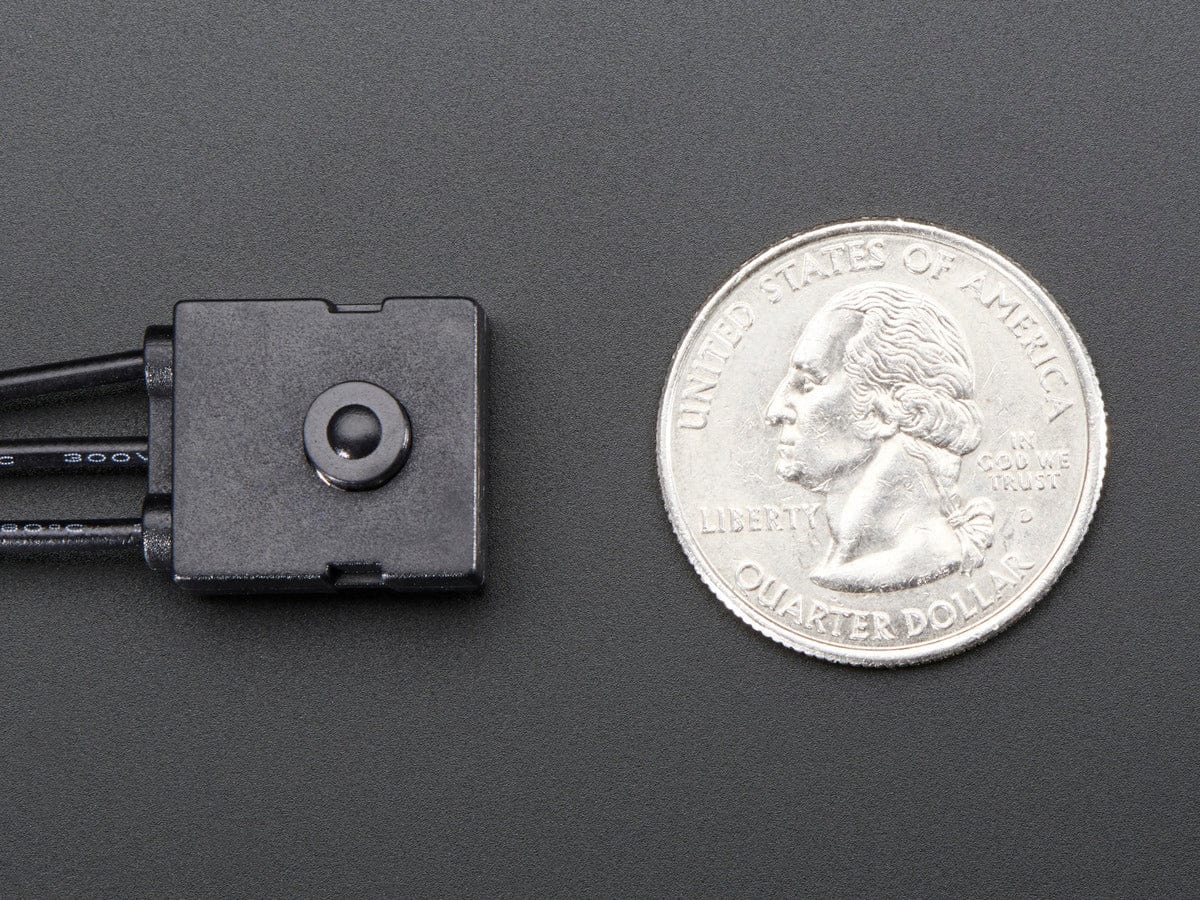

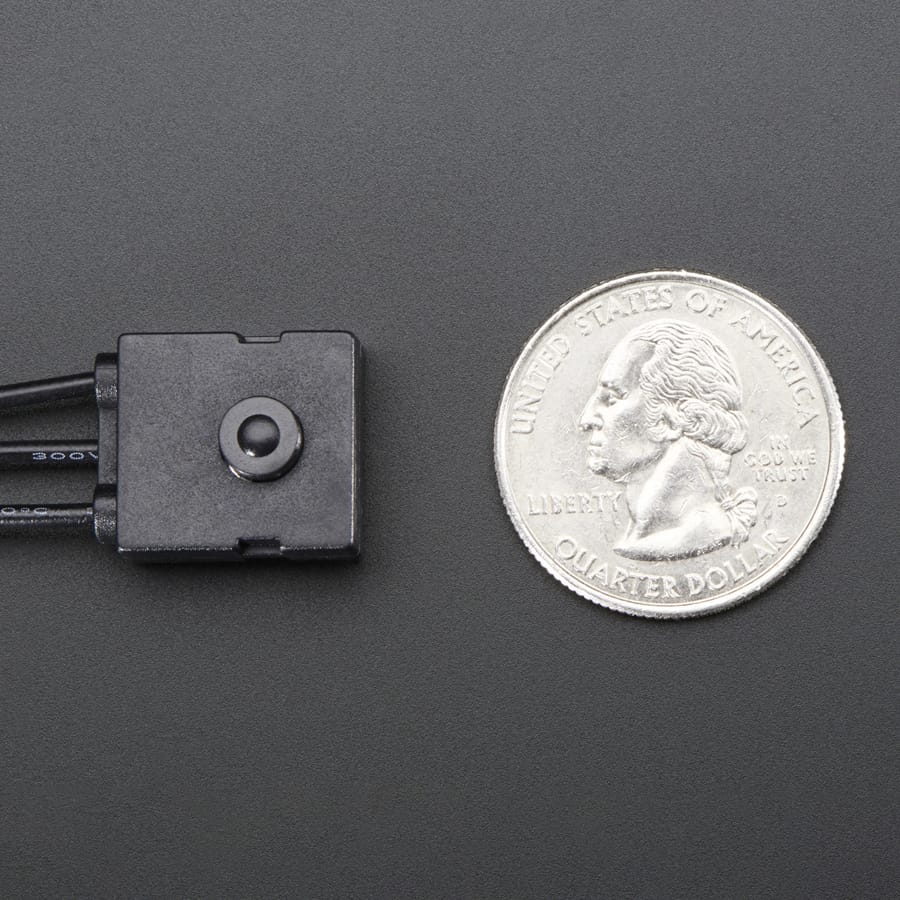

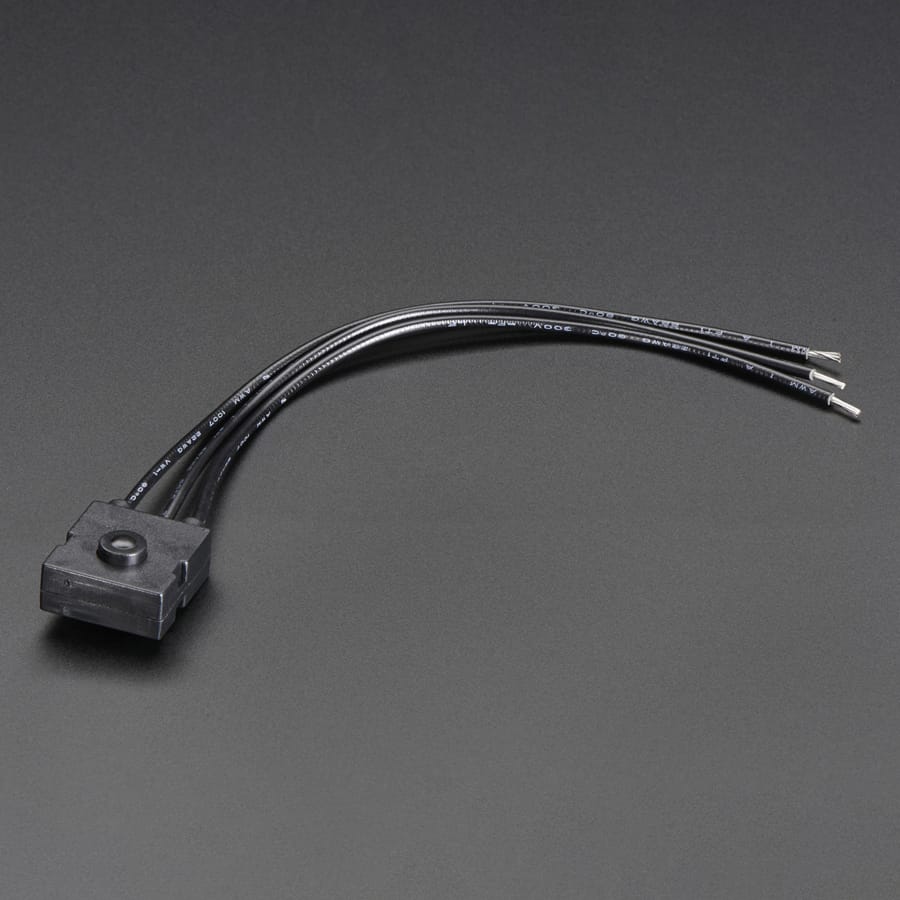

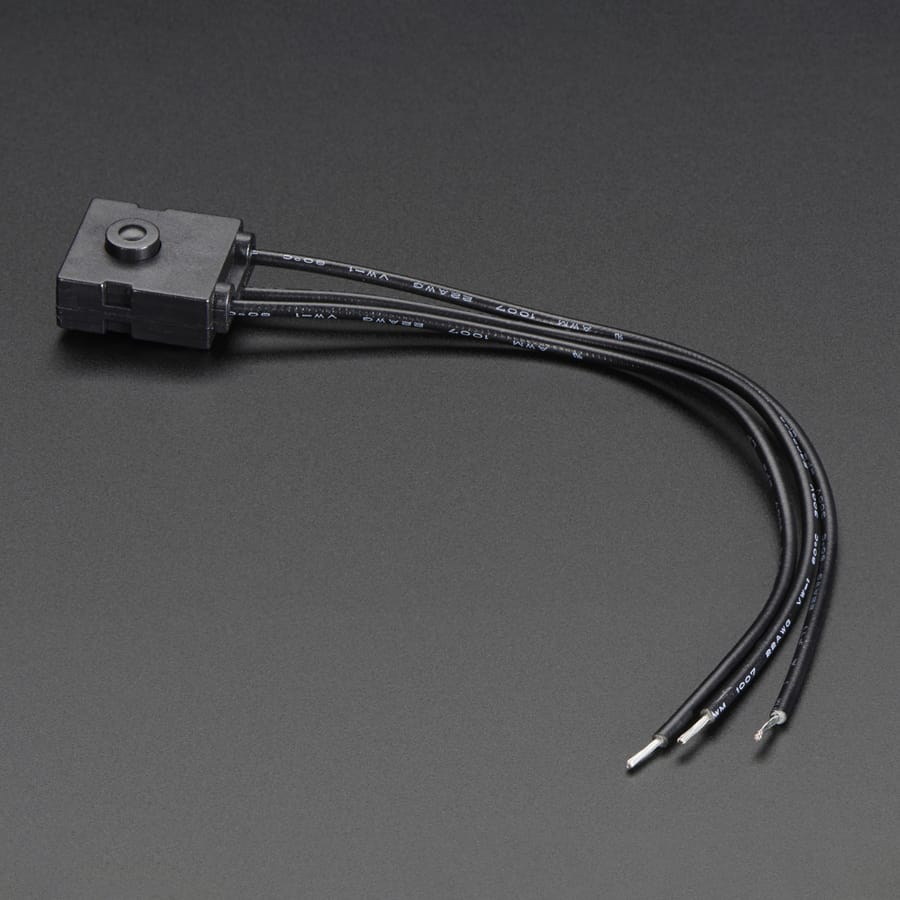

Tactile Alternating Button w/3 Wire Leads

The Pi HutSKU: ADA1685
(2 Reviews)
£3.90
incl. VAT
excl. VAT
Only 5 units left

Push once to turn one side on, push again to turn the other side on! It's basically a push-button toggle switch that connects and disconnects the middle pin from either of the two side switches with every click.

This clicky switch makes a great power switch or mode toggler. We like this switch because it's easy to embed in a seam for easily powering up/off multi-wire wearable and fabric projects. Can reliably handle up to 3A and up to 120VDC. This is a really satisfying switch.

Technical Details

  • Ambient temperature: -25 ℃ ~ +70 ℃
  • Rated load: AC250V 1.5-2A; 125V 3-5A
  • Contact resistance: ≤ 50mΩ
  • Insulation resistance: DC500V 100MΩ
  • Withstand voltage: AC 500V (50Hz) / min
  • Operating force: 5N ~ 12N


Dimensions:

  • Total unit is 137mm / 5.4" long
  • Wires are 119mm / 4.7" long
  • Weight: 3.7g
  • Wires are 22AWG.
