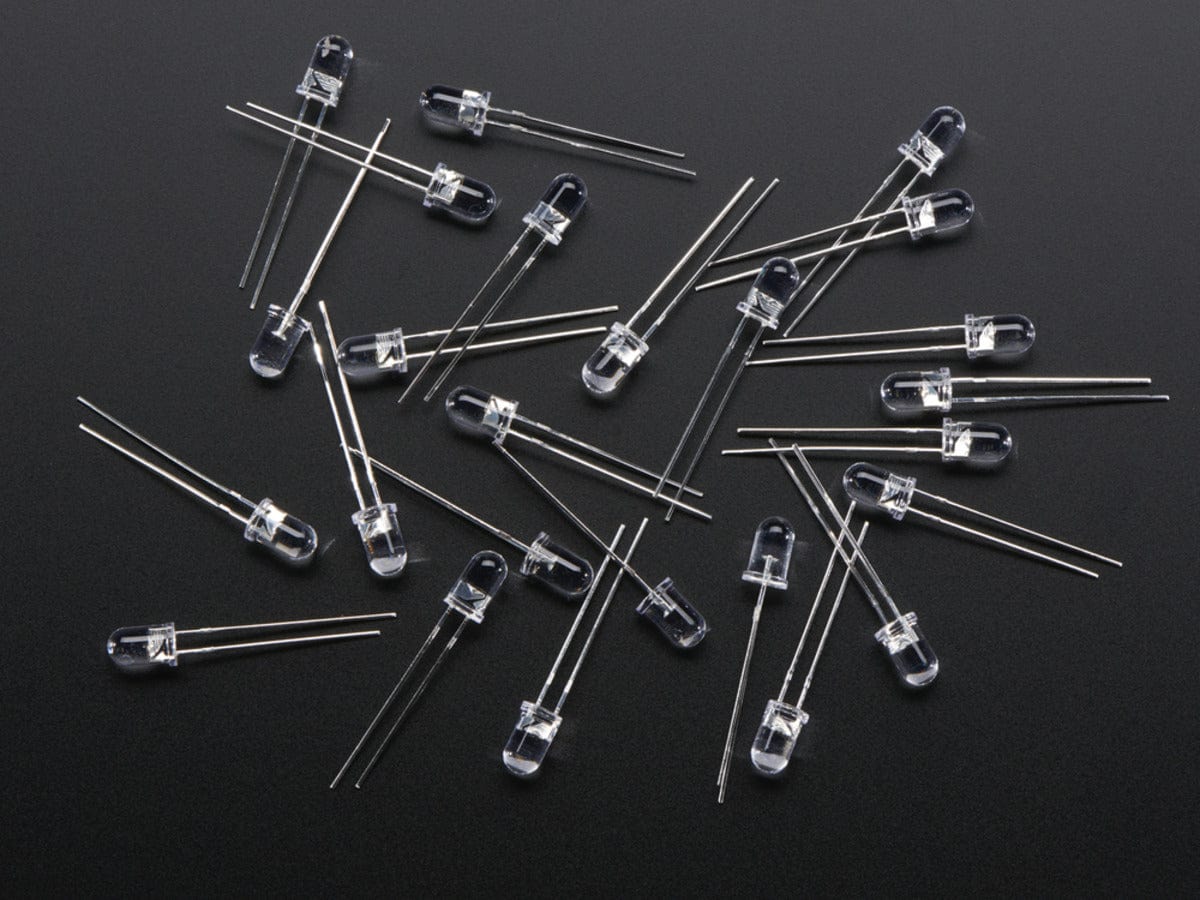

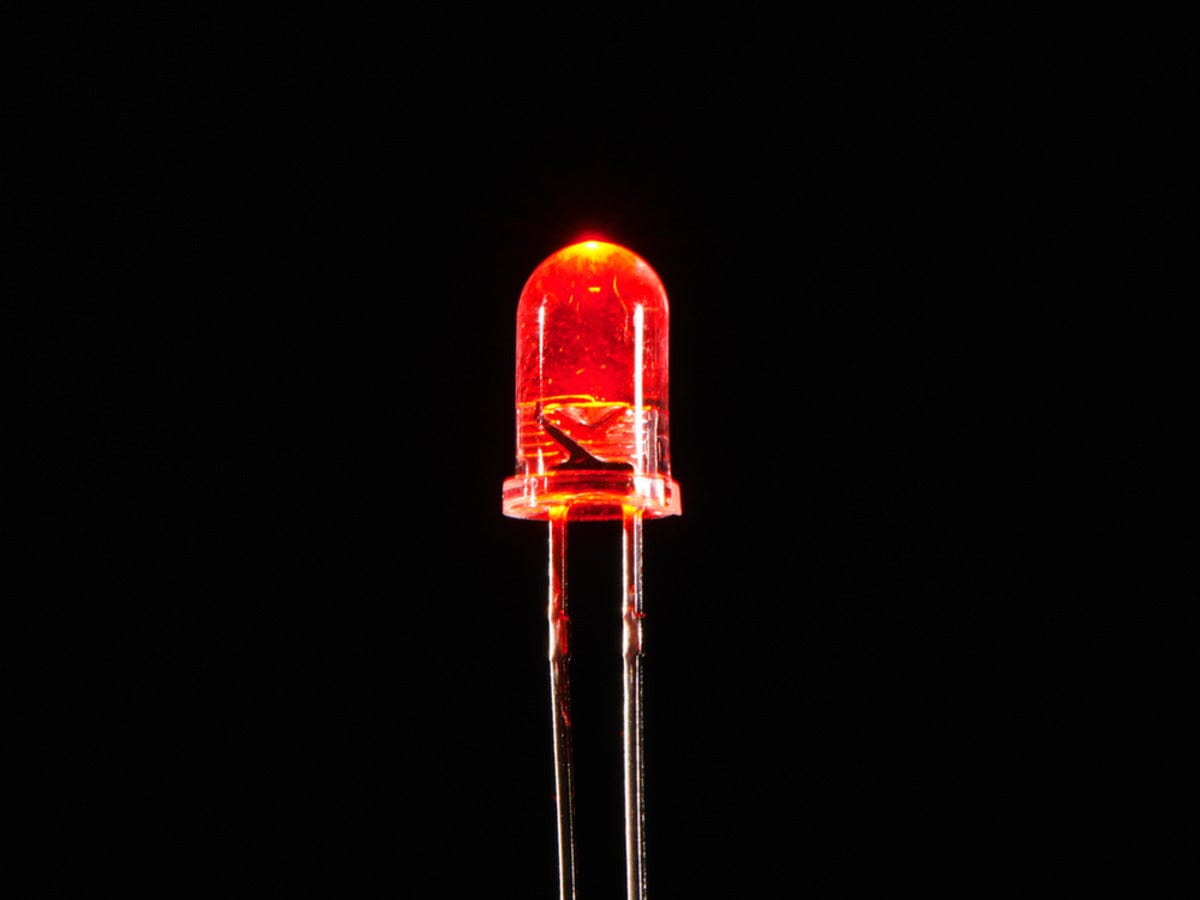

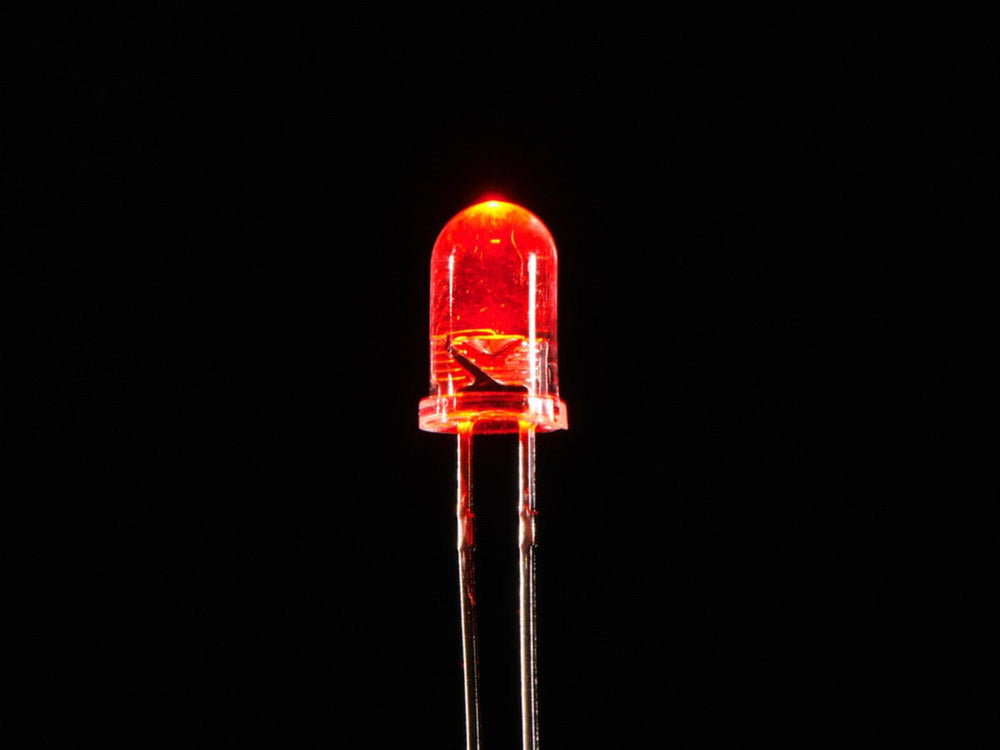

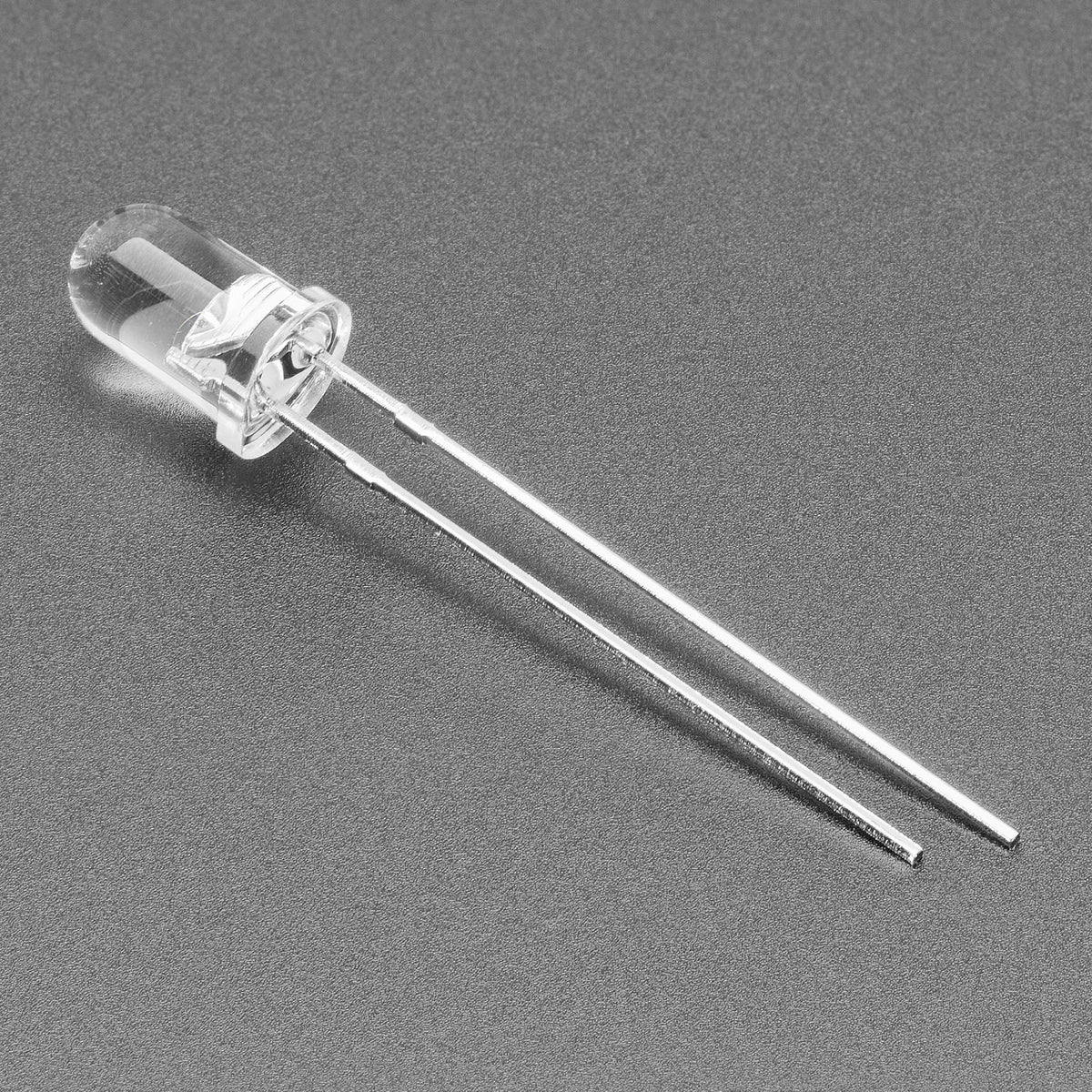

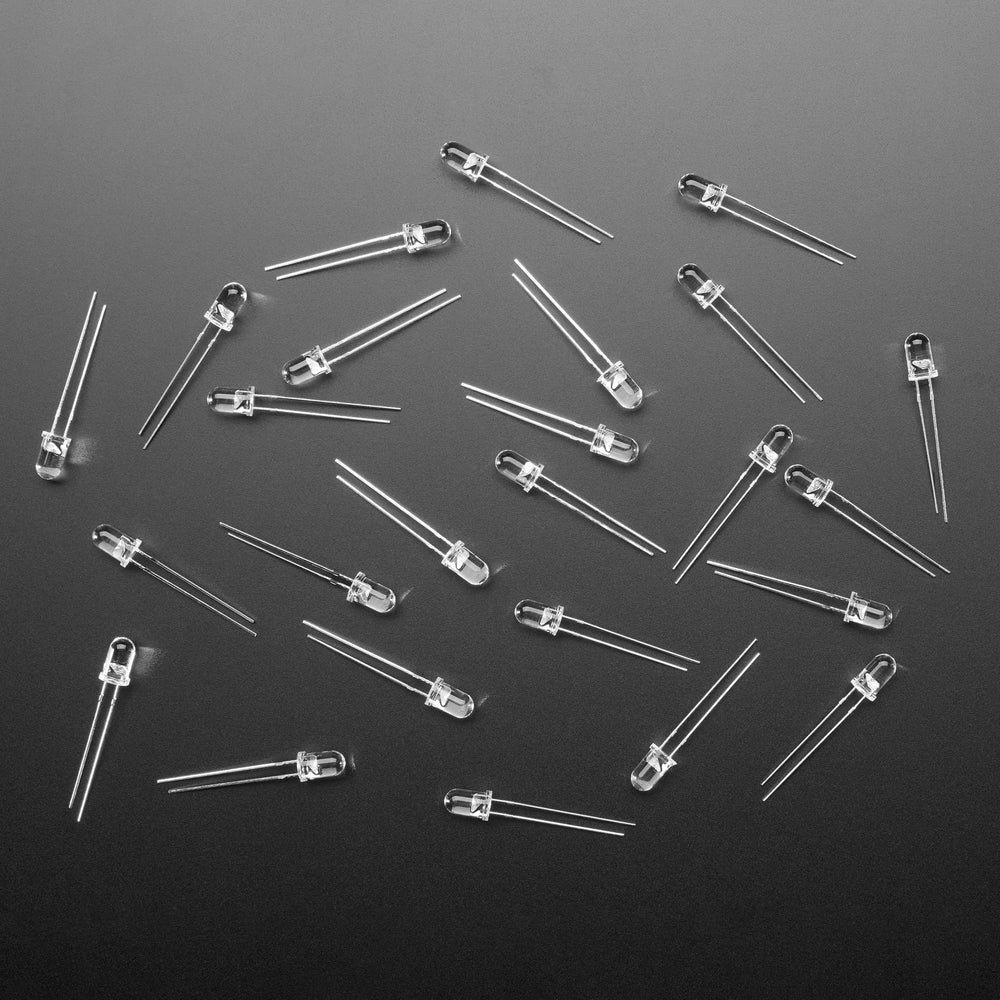

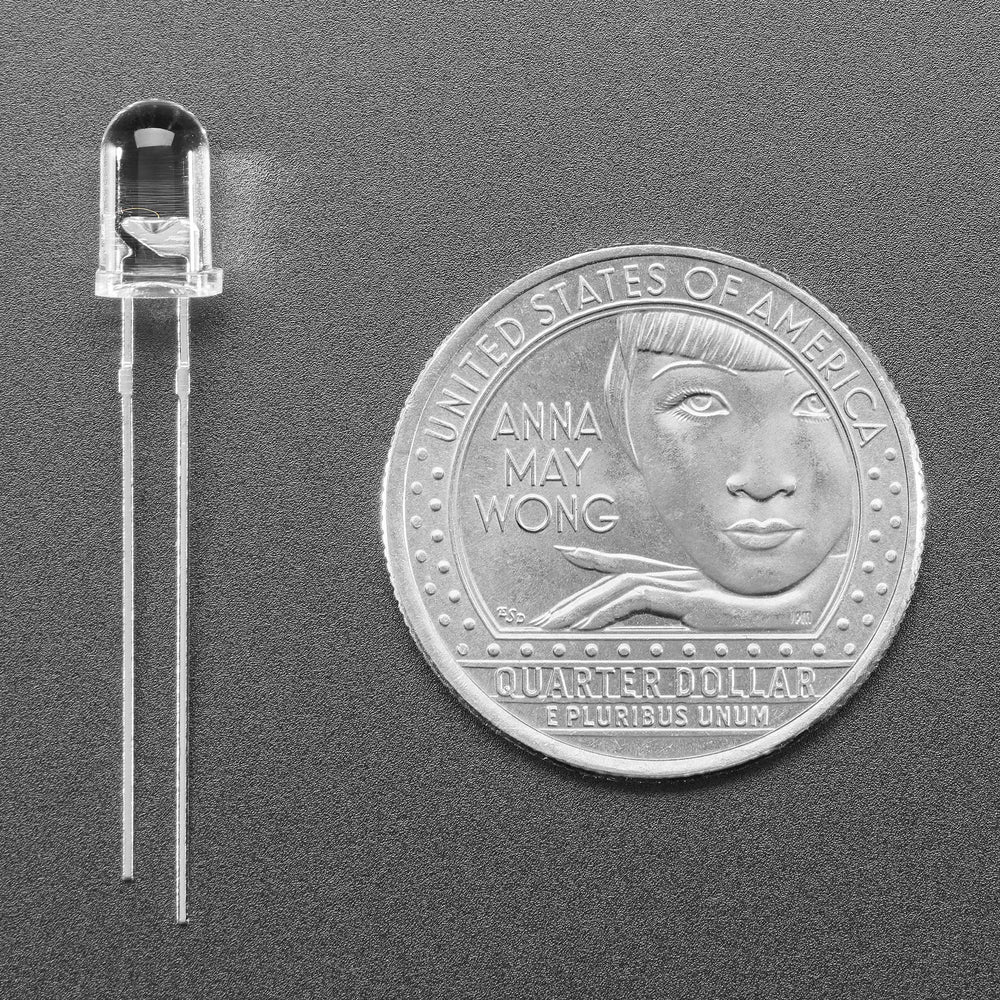

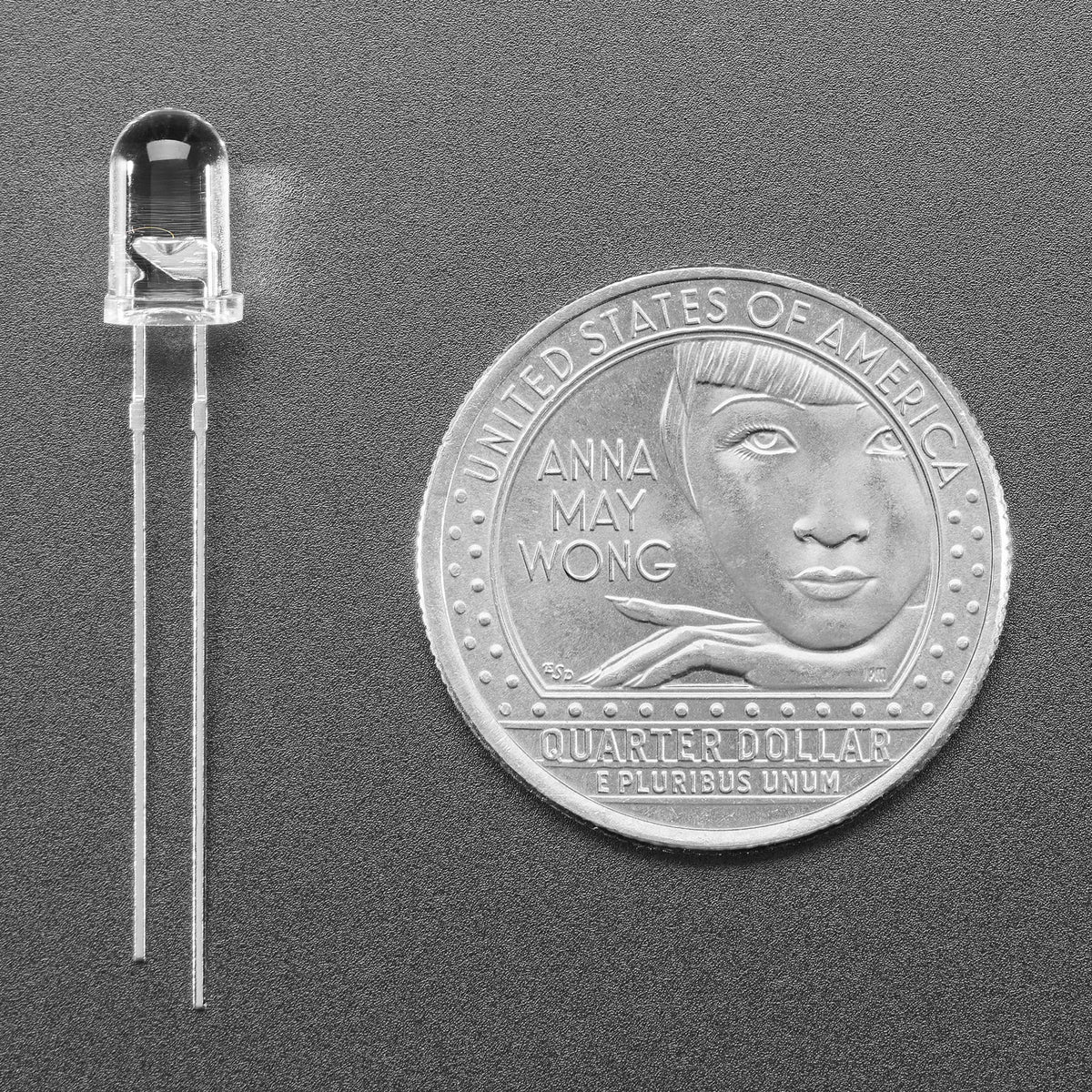

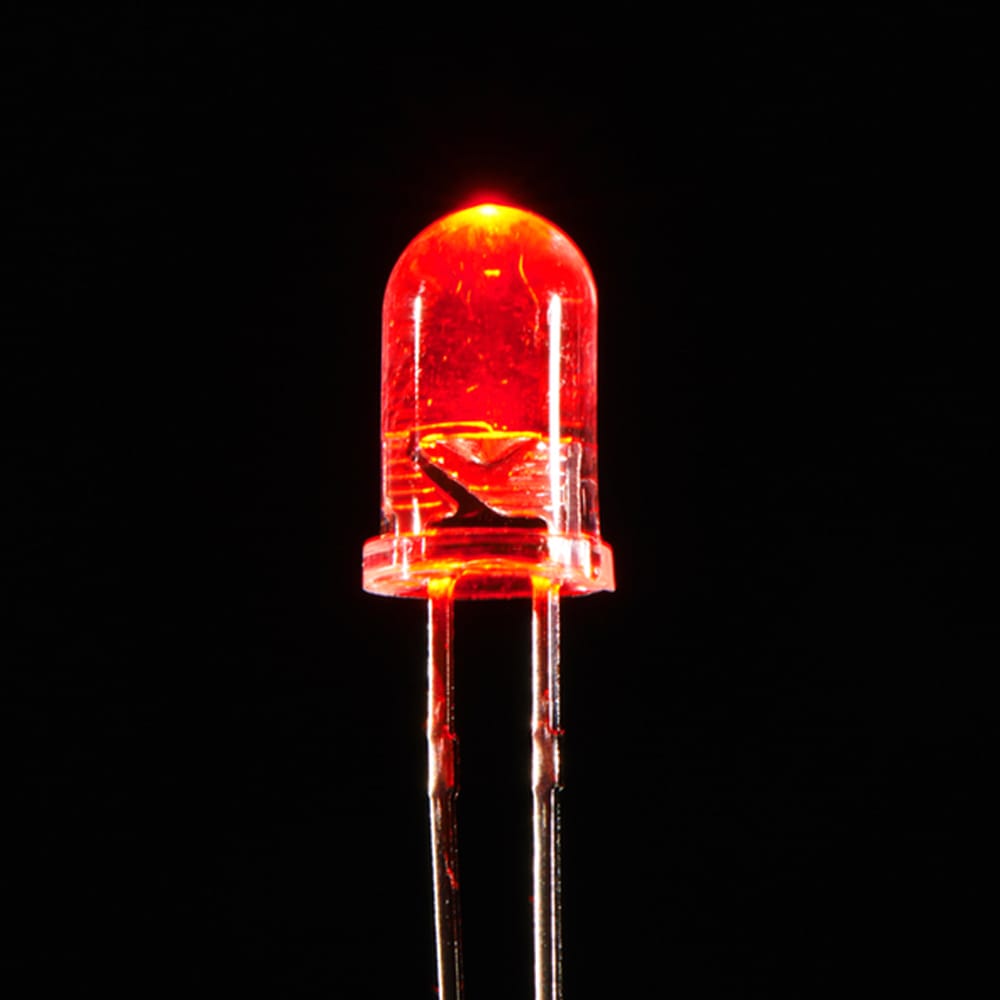

Super Bright Red 5mm LED (25 pack)

These Clear Red LEDs provide a bright red light with a focused 20° beam in a breadboard-friendly package for prototyping, indicators and electronics projects.

Need some really bright LEDs? We are big fans of these clear red LEDs, in fact we use them exclusively in our kits. They are very bright and have about 20degree LED beam. They go easily into a breadboard and will add that extra zing to your project.

If you need some help using LEDs, Adafruit have a handy "Introduction to using LEDs" tutorial for any electronics project.

Features

• Clear red LEDs with exceptional brightness
• 20-degree beam angle
• Breadboard compatible
• Used exclusively in our kits
• Suitable for electronics projects

Specifications

• Pack of 25 clear red LEDs

• 5mm diameter

• 640 nm wavelength

• 1.8-2.2V Forward Voltage, at 20mA current

• 1500 mcd typical brightness

• Viewing Angle : ±10 degrees

• Maximum continuous current: 30mA

Resources

• Datasheet

Package Contents

• 1x Super Bright Red 5mm LED (25 pack)
