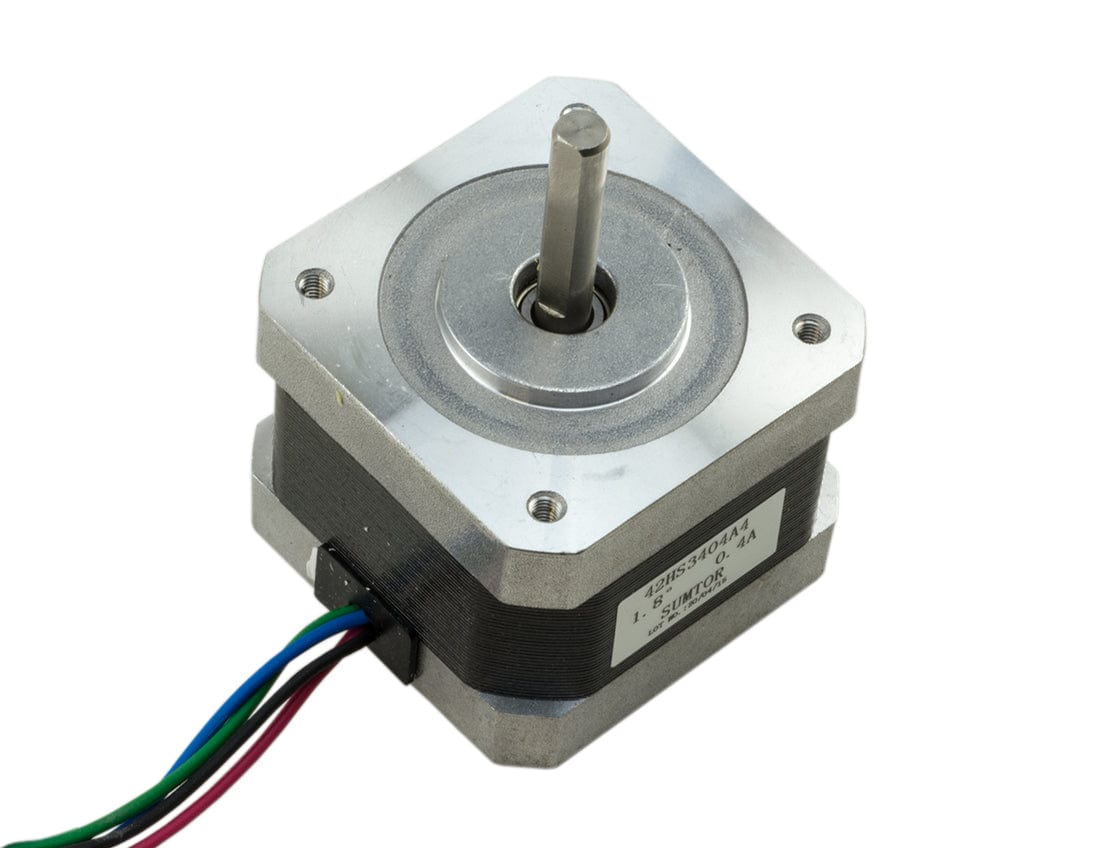

Stepper Motor - 4-wire 200 steps/rev, 12V 400mA [Discontinued]

ModMyPiSKU: MMP-0255
Sale price £14.99
incl. VAT
excl. VAT

A stepper motor to satisfy all your robotics needs! This 4-wire bipolar stepper has 1.8° per step for smooth motion and a nice holding torque. The motor was specified to have a max current of 400mA so that it could be driven easily with an Adafruit motor shield for Arduino (or other motor driver) and a wall adapter or lead-acid battery. A perfect first stepper motor, and works well with our ThunderBorg motor controller

If you are using a ThunderBorg motor controller, wire the board as follows:

M1+ Stepper Black
M1- Stepper Green
M2+ Stepper Red
M2- Stepper Blue
V+ Power supply positive
GND Power supply ground

Some nice details include a ready-to-go cable and a 5mm machined drive shaft (so you can easily attach stuff using a 5mm hub).

Stepper Motor Features:

  • Model No: 42BYGHW208
  • Bipolar stepper
  • 200 Steps Per Revolution
  • 4-wire, 300mm leads
  • 12V DC Suggested Operation at 400mA max current
  • Weight: 200 g
  • 250 RPM
  • Dimensions: 42.3mm square body, 34mm tall not including 24mm shaft with 5mm diameter
  • Holding Torque: 2800 g*cm
  • Wiring:
    • Black and green are a pair.
    • Red and blue are a pair.

Technical data:

42BYGHW208 datasheet
