SparkFun SSOP to DIP Adapter - 8-Pin

SparkfunSKU: BOB-00497
Price:
Sale price £3.15 Regular price £3.70
incl. VAT
excl. VAT
Save 15%
Stock:
Only 5 units left
Quantity:

Awesome Extras

Break-away 0.1" 36-pin male headers (Black 10-pack) - The Pi HutBreak-away 0.1" 36-pin male headers (Black 10-pack) - The Pi Hut
Breadboard - 400 Point (Clear) - The Pi HutBreadboard - 400 Point (Clear) - The Pi Hut
The Pi HutHalf-Size Breadboard - Transparent
Sale price £3 incl. VAT excl. VAT
Chip Quik No-Clean Liquid Flux Pen – 10ml Pen w/ Tip - The Pi HutChip Quik No-Clean Liquid Flux Pen – 10ml Pen w/ Tip - The Pi Hut

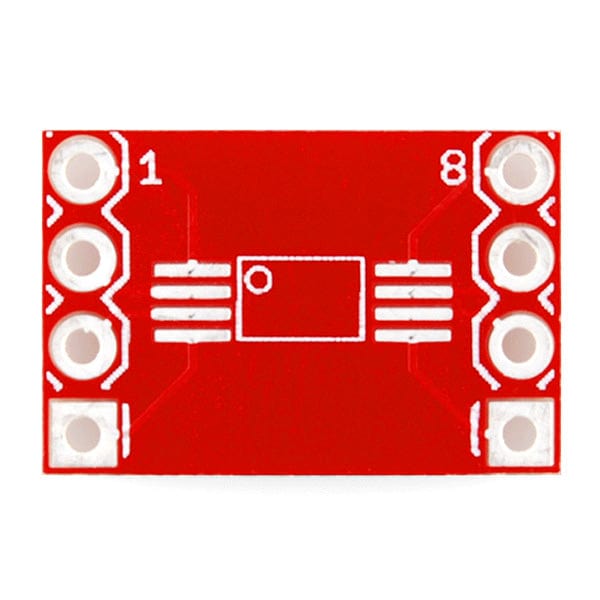

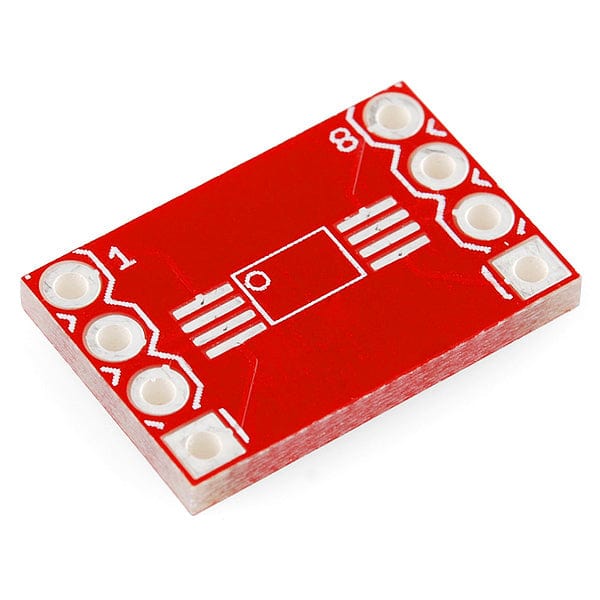

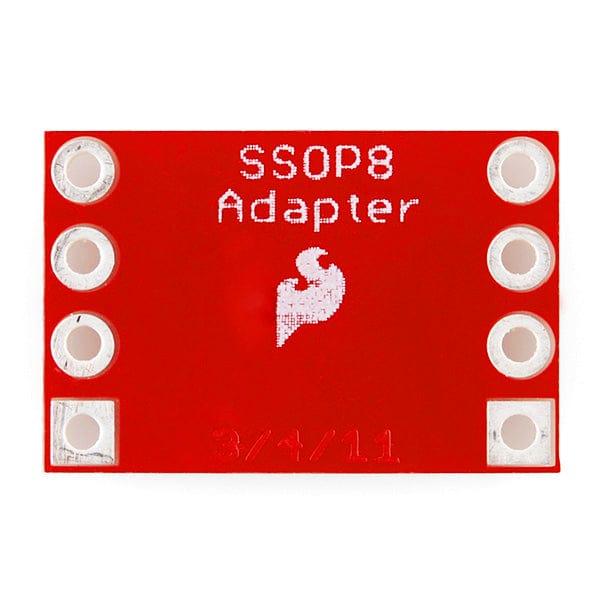

8-Pin SSOP to DIP breakout board. The footprint was rotated to accommodate different width SSOP devices and can be used with 8-pin SSOPs.

Designed to be used with 0.65mm pitch devices but can also be used with 0.025" pitch devices (comes out to ~0.635mm). We've made these 0.635mm devices fit just fine. Can be used with packages from 0.200" (5mm) up to 0.450" (11.4mm) in width.

Break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SSOP .65mm and can accommodate .635mm pitch devices.

Features

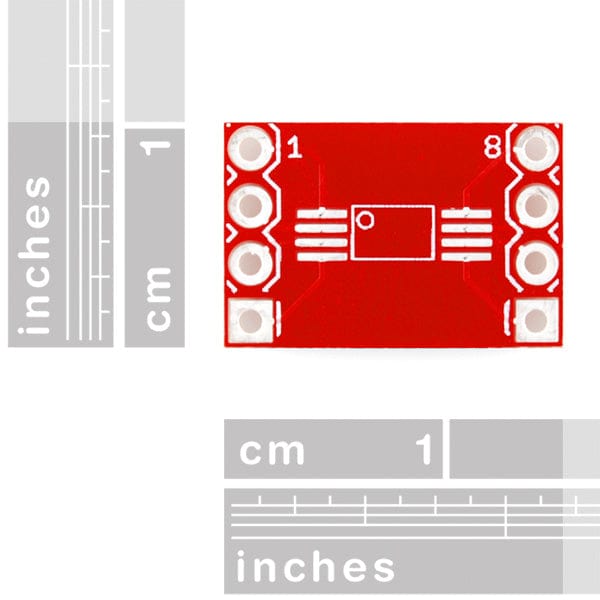

  • 8-pin: 0.6 x 0.4" (15.24 x 10.16mm) 500mil DIP spacing
